The SuperStation One has moved beyond the speculative preview stage. Retro Remake has shipped several production waves, independent owners have used the hardware and the supporting software continues to receive updates. That makes the machine much easier to assess than it was in 2025—but it also reveals a crucial distinction that early coverage often blurred. The console itself is real and capable; the polished, disc-led “Console Mode” experience remains a work in progress.

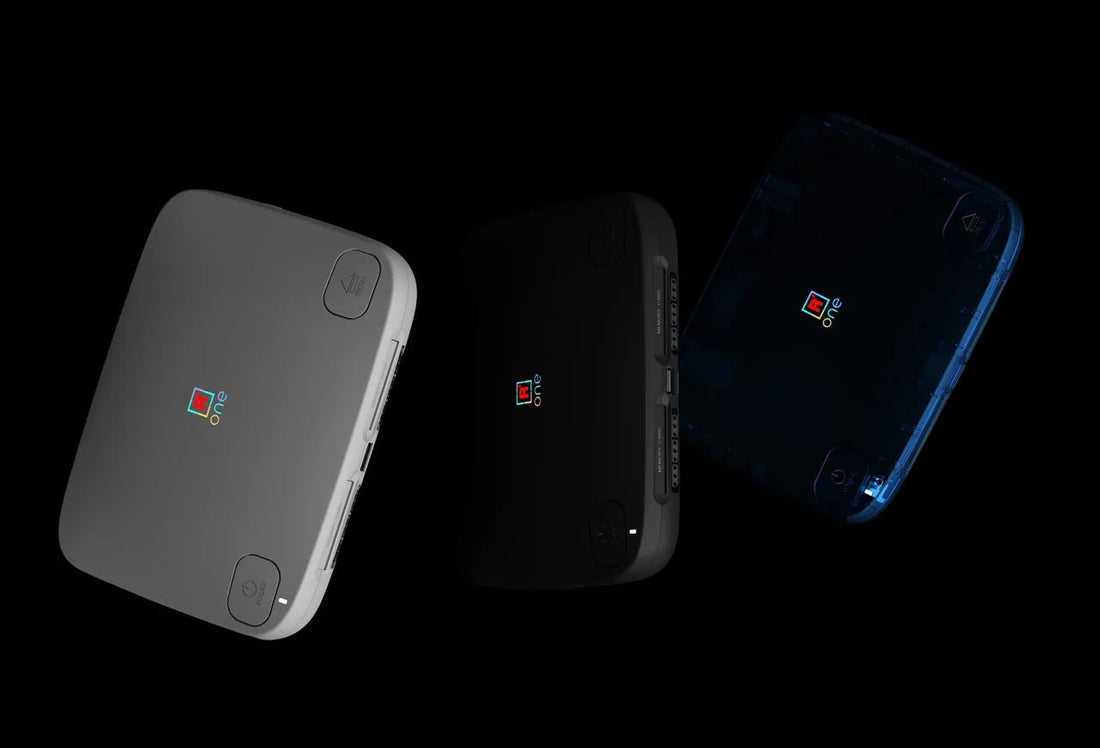

At heart, this is a compact MiSTer FPGA system built into a case inspired by the original PlayStation. Its Cyclone V FPGA and 128 MB of SDRAM can run the open-source PSX core as well as a large library of other MiSTer cores. Original PlayStation controllers and memory cards can connect through dedicated front ports, while HDMI and analogue video outputs make the machine unusually flexible for modern televisions and CRTs.
That combination is the real attraction. SuperStation One brings together an established open FPGA ecosystem, convenient console-style hardware and a strong focus on Sony’s 32-bit machine. It is not an officially licensed Sony product, it does not include commercial games, and it should not be described as a perfect transistor-for-transistor PlayStation recreation. It is a thoughtfully packaged route into MiSTer whose software experience still asks more of the owner than a conventional plug-and-play console.
The updated verdict: SuperStation One is now shipping hardware, not vapourware. Its extensive video outputs, integrated wireless hardware, front PS1 peripheral connections and mature MiSTer foundation make it one of the most interesting consolised FPGA systems at its price.
However, the optional SuperDock’s optical drive and the software required for direct disc launching are separate parts of the story. Retro Remake’s current setup page still labels Console Mode “In Development”. Do not buy the dock on the assumption that PlayStation, Saturn or Mega-CD discs already provide a finished, universally supported, insert-and-play experience.
What SuperStation One Actually Is
The case and controller ports invite a simple description: a modern FPGA PlayStation. That is only part of the truth. SuperStation One is a dedicated MiSTer-compatible computer whose industrial design and built-in connections place the PlayStation experience front and centre. Rather than selling a bare development board plus hubs, memory modules and output accessories, Retro Remake integrates the important pieces into a small console-shaped enclosure.
MiSTer is an open platform that uses reconfigurable logic to implement the behaviour of classic consoles, computers and arcade boards. When the PSX core is loaded, the FPGA is configured around a hardware description intended to reproduce the functional behaviour of a PlayStation. Load another supported core and the same silicon is rearranged for that target instead. This is fundamentally different from running a conventional PlayStation emulator as an application on a fast desktop processor.
It is also different from placing original PlayStation chips in a new shell. The PSX core is a reverse-engineered, continually developed recreation. Compatibility is already impressive, but the project’s own repository still documents developing or incomplete areas. Firmware, core versions, timing options and individual games can therefore affect behaviour. “FPGA” describes the implementation method; it does not automatically guarantee perfection.
| Common Description | What Is Accurate | What Needs Qualification |
|---|---|---|
| “A PS1 clone” | The design, original-peripheral ports and default emphasis are strongly PlayStation-focused. | It is a multi-system MiSTer platform, not a replica made from Sony’s original chipset. |
| “Hardware emulation” | The FPGA is configured to reproduce hardware behaviour and timing in parallel. | Accuracy depends on the quality and maturity of each core; FPGA does not mean infallible. |
| “Plug and play” | A prepared 64 GB card and integrated hardware remove much of a DIY MiSTer build. | Wi-Fi, Bluetooth, PS1 SNAC devices, BIOS files and some video options still require setup. |
| “Plays original discs” | Direct-disc operation has been demonstrated during development with the SuperDock. | The current official software page still says Console Mode is in development. |
How Its FPGA Approach Works
The system is built around an Intel Cyclone V FPGA and includes 128 MB of BGA SDRAM. That memory capacity is important for the more demanding MiSTer cores and is already integrated, avoiding the separate SDRAM module used by traditional DE10-Nano builds. An ADV7125 24-bit video DAC provides the analogue side of the system, while built-in cooling is designed to keep the compact enclosure within a sensible thermal range.
Once a core is loaded, much of the target machine’s work is represented as simultaneous logic inside the FPGA rather than a sequence of software instructions pretending to be another processor. That can produce low latency and timing behaviour close to original hardware. It is especially attractive for rhythm games, fighting games and CRT use, where the complete input and display chain matters.
The surrounding MiSTer environment still matters. Linux-side services handle storage, networking, updates and menus; configuration files control video, filters and input behaviour; and the individual cores are maintained as software and hardware-description projects. SuperStation One makes that platform tidier and more console-like, but it does not remove the underlying architecture.
Core Hardware
Intel Cyclone V FPGA with 128 MB of integrated BGA SDRAM.
Video DAC
24-bit ADV7125 for high-quality analogue output alongside HDMI.
Connectivity
Ethernet, built-in Wi-Fi and Bluetooth, USB and an integrated NFC reader.
Open Platform
MiSTer cores and public Retro Remake repositories allow ongoing community development.
Retro Remake describes the project as open source from day one, and its public repositories now include the SD-card installer, distribution files, PSX work, Console Mode beta components and dock tools. That visibility is encouraging. Buyers should nevertheless distinguish the openness of the software projects from a promise that every component of every production unit can be reproduced or repaired without specialist knowledge.
Hardware, Ports & Included Accessories
The front is the clearest evidence that this is more than a conventional MiSTer board in a decorative shell. Two PlayStation-style connection bays accommodate original controllers and memory cards, while a front USB-A port provides a convenient route for modern pads, keyboards or storage. The power and menu buttons sit where a PlayStation owner expects them, although their functions belong to the new FPGA system.
On the rear are USB-C power, two more USB-A ports, HDMI, VGA, a DIN10 analogue-video connection, 3.5 mm audio and Ethernet. Side flaps conceal composite video with stereo RCA audio on one side and component video on the other. The composite side also includes optical TOSLINK audio. Retro Remake says digital and analogue video can be used simultaneously, which is useful for stream capture, testing and dual-display setups.
| Area | SuperStation One Specification | Practical Note |
|---|---|---|
| FPGA / memory | Intel Cyclone V and 128 MB BGA SDRAM | Integrated for demanding MiSTer cores; no separate SDRAM purchase. |
| Digital video | HDMI with output up to 1536p and 1440p modes | Actual resolution method and core support vary by configuration. |
| Analogue video | VGA, DIN10, composite and component | Use the correct cable and settings for the intended display. |
| Audio | HDMI, 3.5 mm analogue, stereo RCA and TOSLINK | A broad selection for televisions, monitors, receivers and speakers. |
| Input / storage | Three USB-A, Ethernet, microSD and two PS1 peripheral bays | Original PS1 devices require core-specific SNAC configuration. |
| Wireless / NFC | Built-in Wi-Fi, Bluetooth and NFC | These still require pairing, network setup or Zaparoo configuration. |
| Expansion | Dedicated SuperDock connection | The dock is optional and sold separately. |
The box includes the console, a prepared 64 GB microSD card, HDMI cable and USB-C cable. It does not include a controller or power adaptor. Retro Remake specifies a 5 V / 2 A minimum supply. USB Power Delivery can work, but the manufacturer warns that voltage conversion creates additional heat; with bus-powered drives or other demanding USB devices, active cooling and a suitable supply become particularly important.
Setup & The Current Software Experience
The supplied microSD card lowers the barrier to first boot, but owners should back it up before making changes. Retro Remake’s current SD Card Installer v1.1 was released on 6 July 2026. Its process is conventional: write the installer image to a card with a tool such as Etcher or Rufus, insert it, boot the console and allow the automated installation to complete. Existing users are told to preserve their games, saves and save-state folders before re-imaging.
Initial configuration still exposes the MiSTer underneath. Wi-Fi is configured through the Scripts menu. Bluetooth pairing can be opened with a long press of the menu button or the F11 key. BIOS files and game backups are not supplied by Retro Remake; users must provide the data required by a core and comply with the law that applies to them.
A USB keyboard or a compatible modern controller is worth keeping nearby during setup. Original PlayStation controllers connected through SNAC are intended to communicate directly with a compatible core, not to replace every general menu-control function. The official guide instructs users to change the PSX core’s input setting from DualShock to SNAC before the original pad works, then configure the relevant memory-card option separately.
Software status: this article was fact-checked on 20 July 2026 against Retro Remake’s official product, firmware and shipping pages, SD Card Installer v1.1 and the current public project repositories. The hardware is in customers’ hands; the simplified Console Mode remains officially described as in development.
This is easier than assembling a MiSTer from separate parts, but it is not yet as guided as switching on a Nintendo or Sony mini console. Independent hands-on reviews published in 2026 praised the physical design while also encountering setup friction, peripheral quirks and unfinished disc software. That mixed picture is consistent with an enthusiast platform becoming more consumer-friendly rather than a finished consumer appliance hiding every technical choice.
The PlayStation Experience
The PSX MiSTer core is the centrepiece. It supports common disc-image formats, virtual memory-card files, multiple controller types, region-related BIOS options and a growing selection of display and performance settings. For owners with legally created backups, it offers quick loading from solid-state storage without wearing an ageing optical drive.
Original controllers are one of SuperStation One’s strongest differentiators. SNAC—Serial Native Accessory Converter—gives supported cores a direct, exceptionally low-latency path to original accessories instead of translating them through USB. That makes authentic digital pads, DualShock controllers and specialist devices attractive. Support still depends on the core and configuration, and analogue behaviour or unusual accessories should be checked individually rather than assumed.
Original memory cards can also be used through the front slots once the PSX core is configured for them. The core’s documentation explains that enabling SNAC for a port replaces the corresponding emulated pad or memory-card path. In practice, owners should understand which physical or virtual device is active before copying or overwriting an irreplaceable save. A backup of important card data remains sensible.
For light guns and other timing-sensitive accessories, the original port is only one part of the chain. The core must support the device, the video mode and SNAC connection must be appropriate, and traditional PlayStation light guns generally need a compatible CRT. A direct controller socket cannot make a CRT-dependent gun work on a modern flat-panel television.
The result can feel remarkably close to using original hardware, particularly with a period controller and CRT. It is also more flexible: image-based libraries, per-game memory files, HDMI output and filters can coexist with original pads. Purists may still prefer a real console and disc drive; players interested in preservation and convenience may find the FPGA route more practical.
HDMI, Analogue Video & CRT Support
Few FPGA consoles offer this much display flexibility without accessories. HDMI serves modern displays and capture devices, while VGA, component and composite cover a wide range of monitors and televisions. The dedicated video DAC and simultaneous digital/analogue output make the console especially appealing to players who want a CRT for play and HDMI for capture at the same time.
Retro Remake advertises output up to 1536p and 1440p. Those labels need context. MiSTer’s 1536p modes are useful integer-scaled targets for suitable content and displays. A 2560 × 1440 output can use pixel repetition rather than providing a wholly new full-resolution rendering path, and older or resource-heavy cores may fall back to lower modes. Higher output numbers do not add detail that was absent from the original game.
MiSTer also provides filters, scanlines, aspect-ratio control and direct-video options, but its flexibility creates a learning curve. A configuration that looks excellent for PlayStation software may not be ideal for an arcade board or an 8-bit computer. Users who want accurate pixel geometry, low latency and correct refresh behaviour should expect to learn a few platform settings instead of treating “1440p” as a universal quality switch.
Analogue output deserves equal care. CRTs vary by region and accepted signal, and the wrong cable or mode can produce no picture or an unsafe signal. SuperStation One’s broad port selection is a capability, not a guarantee that every display accepts every format. Check the television or monitor manual and use correctly wired cables from a reputable source.
NFC & Zaparoo
The built-in NFC reader is designed to work with Zaparoo, an open-source system that associates physical tokens with items in a digital library. A card, sticker or other writable NFC tag can be linked to a particular game or menu action; scanning it then provides a satisfying physical shortcut. For a machine whose library normally lives on microSD or attached storage, this can restore some of the ritual of choosing an object from a shelf.
It is not automatic game recognition. Owners must install and configure the relevant Zaparoo software, scan their library and write or associate tags. A retail game disc, arbitrary NFC card or boxed game does not magically grant access to software. Zaparoo’s frontend and core are active projects with their own update process, separate from Retro Remake’s developing Console Mode.
The feature is therefore best regarded as an enthusiast-friendly bridge between a digital collection and a physical display. It can become wonderfully console-like once prepared, but the preparation belongs to the owner.
More Than A PlayStation
Because the machine is based on MiSTer, PlayStation is only one part of its potential. Compatible cores cover a broad range of consoles, home computers and arcade hardware. That makes SuperStation One a possible centrepiece for a retro setup rather than a single-purpose replacement for a failing PS1.
Core maturity varies. Established 8-bit and 16-bit implementations can be extremely refined, while demanding later systems and active experimental cores may have compatibility gaps, special setup requirements or features still being developed. The SuperStation One’s case cannot change the status of the upstream project it loads. Check each core’s own documentation and issue tracker when a particular machine or game is essential.
Inputs also vary by system. The front PlayStation ports do not turn a PS1 pad into a universally configured controller for every core, and an original accessory only works through SNAC where the core explicitly supports it. USB and Bluetooth controllers are more general-purpose but add their own pairing, mapping and latency considerations.
No games are included: Retro Remake explicitly states that the product contains no copyrighted games or other protected material. The included card provides system software and homebrew-style starting content, not a licensed commercial PlayStation catalogue. Add only homebrew, public-domain software and personal backups that you are legally entitled to use.
What The SuperDock Adds
The optional SuperDock transforms the footprint and expands the available hardware. Retro Remake’s current listing specifies a tray-loading DVD-RW drive, an unpopulated M.2 2280 slot for NVMe storage, four additional USB-A ports, SNAC bypass, USB-C UART, a USB-C PC mode, infrared receiver and remote, plus a further expansion connection. Its listed price is $50.
The NVMe bay can provide a large internal library without leaving a USB drive hanging from the console. Buyers should not assume an SSD is included unless a specific bundle says so. Likewise, “DVD-RW” describes the optical mechanism’s hardware capability; it does not mean the console can play DVD-Video films or that every MiSTer core automatically understands an inserted CD.
The dock itself is now shipping through combined and split fulfilment waves. That is meaningful progress from the prototype announcements, but hardware delivery and feature completion are not the same milestone. An optical drive can be present and mechanically functional while the core integration, disc detection and consumer-facing menu needed to launch a particular system’s software remain unfinished.
The Reality Of Direct Disc Loading
Direct disc support generated the most excitement—and the most confusion. During 2025 development demonstrations, Retro Remake founder Taki Udon showed preliminary access to PlayStation, Sega CD/Mega-CD and Saturn discs through the dock, with PC Engine CD discussed as another target. Contemporary reporting quoted him describing the Saturn work as preliminary and noting that copying data to SD or SSD remained preferable where rapid random access was important.
Those demonstrations proved a route was being explored; they did not establish a finished retail feature. Retro Remake’s current firmware and setup page still places Console Mode under “In Development”. A public Console Mode beta repository shows active work, but “public beta” is not the same as supported insert-a-disc-and-play behaviour for every owner. Independent 2026 hands-on coverage similarly found that disc launching was not yet part of the normal finished experience.
Disc-loading status: the shipping SuperDock contains an optical drive, and direct-disc operation has been demonstrated in development. At the time of this fact-check, Retro Remake had not presented PS1, Saturn, Mega-CD or PC Engine CD disc launching as a completed feature in its standard setup documentation.
Buy the dock for the hardware it delivers today—extra USB, NVMe expansion, remote and development connectivity. Treat broad physical-disc support as an evolving feature until Retro Remake publishes a stable release, system list and operating instructions.
There are further technical reasons to avoid blanket promises. Optical systems use different file structures, security checks, subchannel data and access patterns. A computer DVD drive cannot reproduce every property of every original console mechanism by itself. Some games may work through a straightforward data path while others need more core, drive or software support.
Even if physical loading becomes widely available, solid-state images will remain attractive. They reduce mechanical delay and disc wear, keep the system compact and provide consistent access. Physical discs offer the emotional pleasure of using an original collection; image files generally provide the more convenient day-to-day library. SuperStation One may eventually support both well, but they solve different needs.
Console Mode Versus Standard MiSTer
Standard MiSTer presents a flexible hierarchical menu, scripts and per-core settings. Long-time users appreciate its directness, but it can feel technical beside the full-screen artwork, guided setup and controller-first navigation expected from a modern commercial console. Console Mode is Retro Remake’s attempt to close that gap and connect features such as disc detection, the dock remote and a simplified front end.
The project is active: Retro Remake’s public organisation includes Console Mode beta, menu and dock-related repositories, with development continuing in July 2026. The official consumer setup page nevertheless retains the “In Development” label. That is the right status to quote in a buying guide. Enthusiasts may experiment with beta components; ordinary buyers should judge the machine by the standard MiSTer experience available today.
Zaparoo offers another route to a controller-friendly library and has recently improved its own frontend and update process. It remains a separate project, not proof that Retro Remake’s Console Mode or disc integration is complete. Owners can choose the workflow that suits them, but should expect some installation and configuration whichever route they take.
| Feature | Current Position | What Buyers Should Expect |
|---|---|---|
| Standard MiSTer operation | Available now through the supplied distribution and current installer. | A mature enthusiast platform with menus, scripts and per-core settings. |
| Original PS1 pads / cards | Supported through the PSX core and front SNAC connections. | Manual input and memory-card configuration is required. |
| NFC / Zaparoo | Hardware is built in; Zaparoo software is actively maintained. | Library scanning and tag setup are owner tasks. |
| SuperDock hardware | Shipping in fulfilment waves. | Optical drive, NVMe bay, USB expansion, remote and development I/O. |
| Direct disc launching | Demonstrated during development, but not documented as a finished standard feature. | Do not assume universal insert-and-play support yet. |
| Retro Remake Console Mode | Public beta work exists; official setup page says “In Development”. | Standard MiSTer remains the dependable baseline. |
Price, Colours & Shipping
The launch article’s $179.99 pre-order figure and Q3/Q4 2025 estimates are now historical. At the time of this update, Retro Remake listed Batch 4 at $210 against a displayed regular price of $225. The available finishes shown were classic grey, black and transparent blue. Stock status and batch timing change, so an article should link to the live listing rather than present an old pre-order date as current.
Shipping is underway rather than merely promised. Retro Remake’s dashboard shows multiple SuperStation One waves already dispatched and later console/dock orders moving through staged production and fulfilment. Batch 4 was still awaiting its manufacturing stage when checked. Prospective buyers should read the dashboard for their exact batch instead of assuming that “now shipping” means immediate retail dispatch.
The $210 price is competitive for an integrated MiSTer system with 128 MB SDRAM, wireless connectivity, NFC and extensive analogue output. The true cost is higher if the buyer needs a quality power supply, controller, larger storage, specialist video cables or the $50 dock. Import VAT, duty and courier fees may also apply depending on destination and checkout arrangements.
Check The Current SuperStation One Listing At Retro Remake
Limitations & Buying Advice
- It is not an official Sony console: the styling is referential, but the hardware and open cores come from independent projects.
- No controller or power brick is included: budget for both and use at least the manufacturer’s specified 5 V / 2 A supply.
- No commercial games are supplied: owners provide lawful homebrew, BIOS files and personal backups.
- FPGA does not guarantee 100% compatibility: cores remain active projects and edge cases can depend on settings or version.
- Original PS1 devices need configuration: SNAC is excellent for low latency but is not a universal menu or cross-core input system.
- Console Mode is unfinished: the polished front end shown in development material is not the baseline retail software experience.
- Disc support is still evolving: a SuperDock optical drive should not be mistaken for completed support across every advertised CD system.
- High-resolution output needs context: 1536p and 1440p modes vary by core and do not create extra game detail.
- Analogue video needs correct cables and modes: check display compatibility before connecting a CRT or specialist monitor.
- Batch sales require patience: consult the live shipping dashboard for the specific production wave.
The ideal buyer enjoys retro hardware but is comfortable reading a setup guide, maintaining a microSD card and adjusting options. That person receives a compact, unusually well-connected MiSTer with a convincing PlayStation identity. Someone expecting the simplicity of an official mini console, a licensed game catalogue or guaranteed physical-disc operation should wait for Console Mode and disc support to reach a documented stable release.
The Verdict
SuperStation One has become more compelling as real hardware than it was as a set of ambitious announcements. The integrated 128 MB memory, three USB ports, wireless networking, NFC, original PlayStation connections and exceptional mixture of HDMI and analogue outputs solve many of the awkward parts of assembling a traditional MiSTer. At around $210, the console delivers substantial hardware for an enthusiast willing to learn the platform.
Its PlayStation focus is more than cosmetic. Original pads and memory cards, the mature PSX core and CRT-friendly video can create an experience that balances authenticity with the convenience of solid-state storage. The wider MiSTer library then turns the same unit into a flexible multi-system machine. None of that requires the SuperDock or a future front end to justify the console.
The unfinished features still matter because they have driven so much publicity. SuperDock hardware is shipping, but broad direct-disc support and Retro Remake’s simplified Console Mode remain development stories. The responsible conclusion is neither to dismiss them nor to present them as completed. They are promising additions to a product whose strongest functions already exist.
As it stands, SuperStation One is an excellent consolised MiSTer and a particularly appealing way to explore the PlayStation core. It is not yet the frictionless multi-format disc console suggested by its most enthusiastic early coverage. Buy it for the FPGA platform, connectivity and original-peripheral support available now; consider polished disc loading a potential future bonus.
