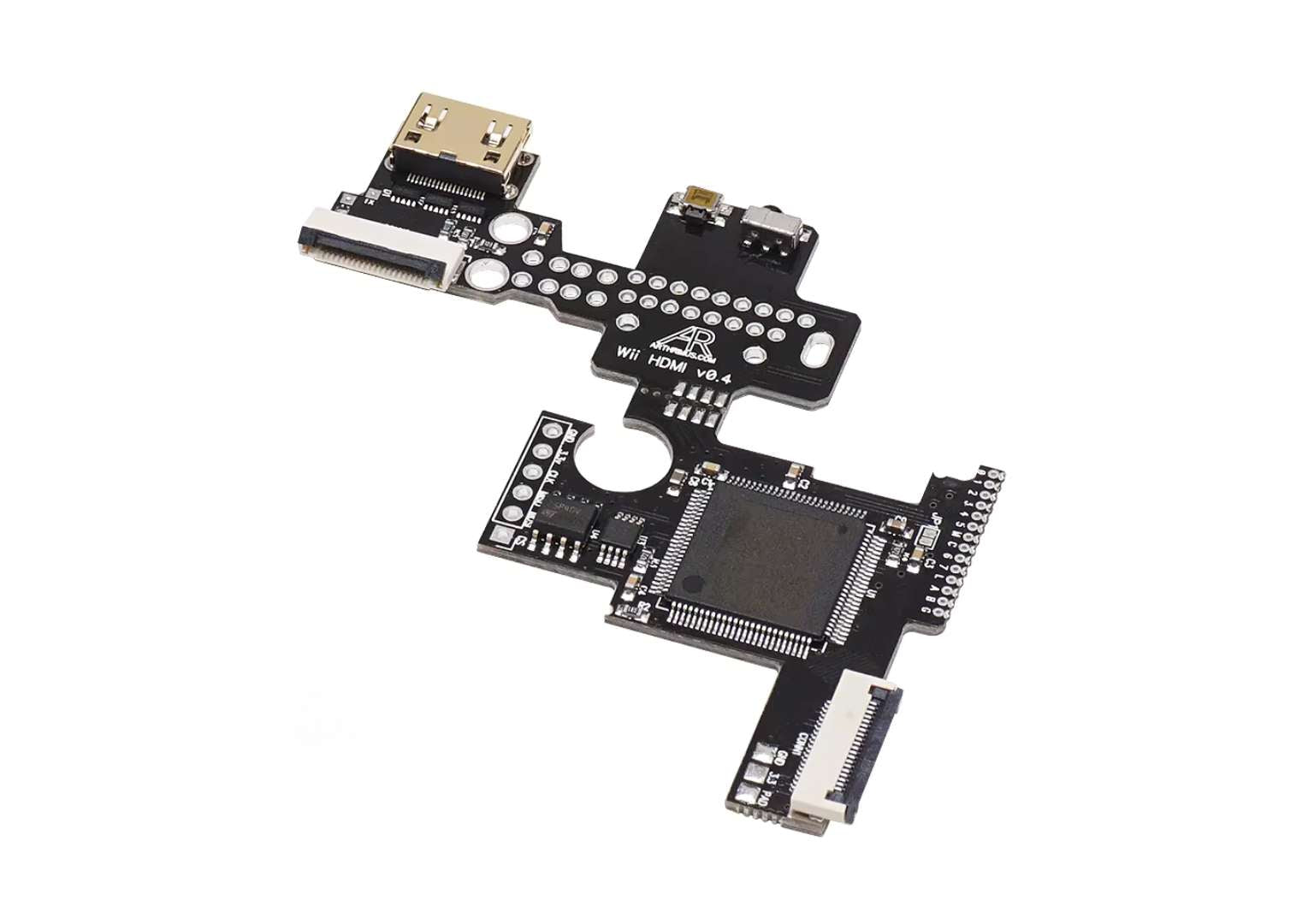

HDMI Kit v0.4 Line Doubler Adapter Wii HDMI - Nintendo Wii

Features/Specifications:

• Supports all Wii display modes!
• Provides advanced signal processing with great precision, colours, and resolution!
• Ability to line double (upscale) lower resolution games!
• Option to add and remove scan lines for a more authentic aesthetic!
• OSD menu interface available for adjustment!

Compatible Consoles:

• RVL-CPU-40
• RVL-CPU-50
• RVL-CPU-60
• RVK-CPU-01 (No GameCube Ports - Requires Infra-red Controller
• RVK-CPU-02 (No GameCube Ports) - Requires Infra-red Controller

How to Check Wii Console Motherboard Model:

1. Remove the battery from the bottom of the Wii.
2. Check the 2-digit number printed on the motherboard inside the battery bay.
3. The 2 digits will match the last 2 digits of the motherboard model number.

Motherboard Model Codes and Revisions:

• RVL-CPU-01: 01
• RVL-CPU-10: 10
• RVL-CPU-20: 20
• RVL-CPU-30: 30
• RVL-CPU-40: 40
• RVL-CPU-50: 50
• RVL-CPU-60: 60
• RVK-CPU-01: K01
• RVK-CPU-02: K02

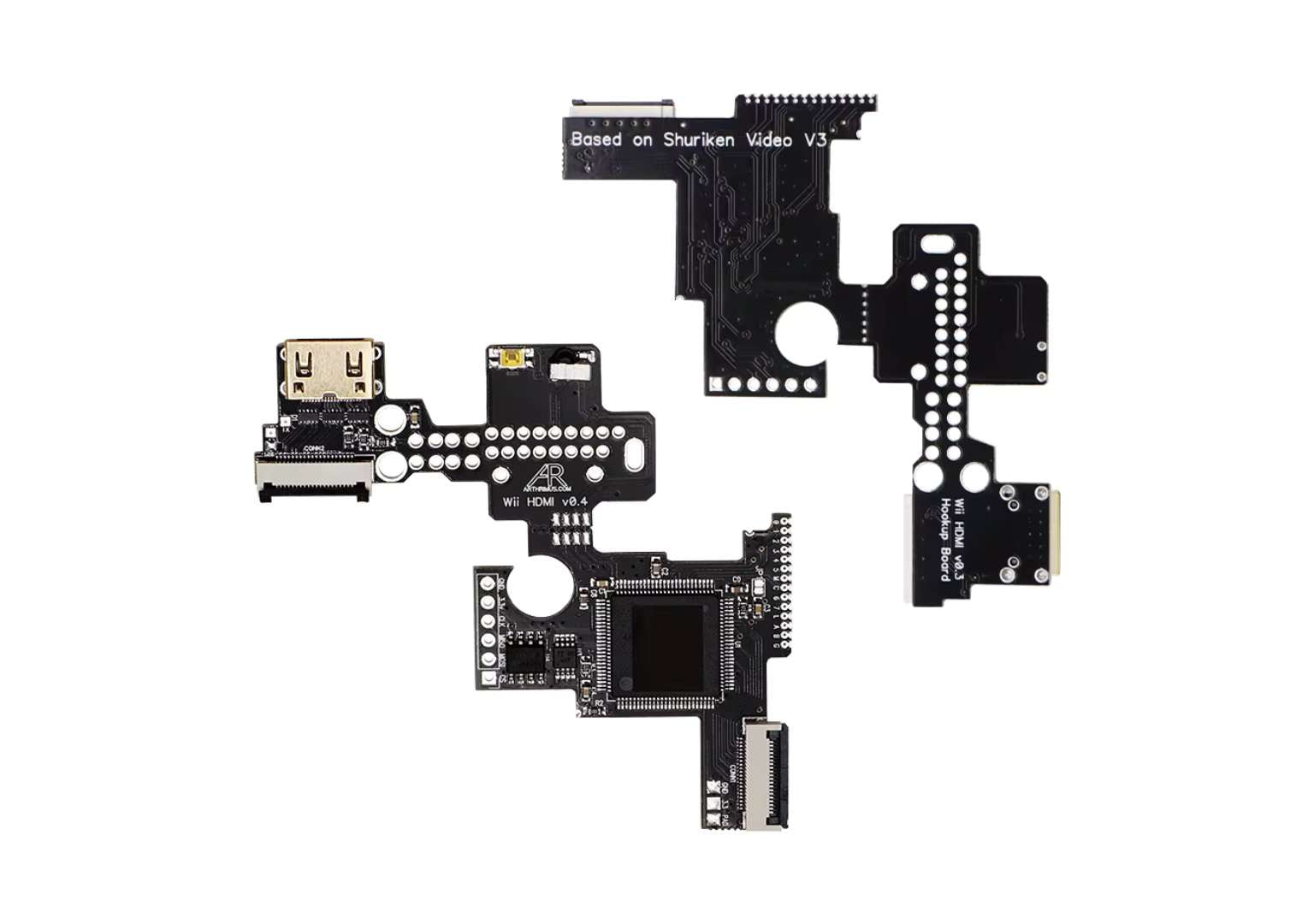

Product Description: The HDMI mod is a high-definition digital signal output module based on the GC video project, providing a clean digital to digital HDMI output to the Wii.

The Wii-HDMI supports all the native output resolutions of the Wii, as well as line doubled 240p and deinterlaced 480i. The Wii HDMI's menus can be controlled using a GameCube controller plugged into controller port 1, or it can also be controlled using an infrared remote. This makes it currently the best HDMI video processing solution for Wii consoles, ensuring superior video quality and ease of use.

Enhance your Wii gaming sessions with the HDMI Kit v0.4 Line Doubler Adapter, providing unmatched video clarity and compatibility with multiple Wii console models. Whether you are upscaling lower resolution games or adding scan lines for a nostalgic feel, this adapter ensures your Wii games look their best on modern displays.

Installation Video: Watch the installation video here: Installation Video.

Please Note: We are unable to accept returns of items damaged during installation. If you wish to return the item, please do so before any installation attempts are made.

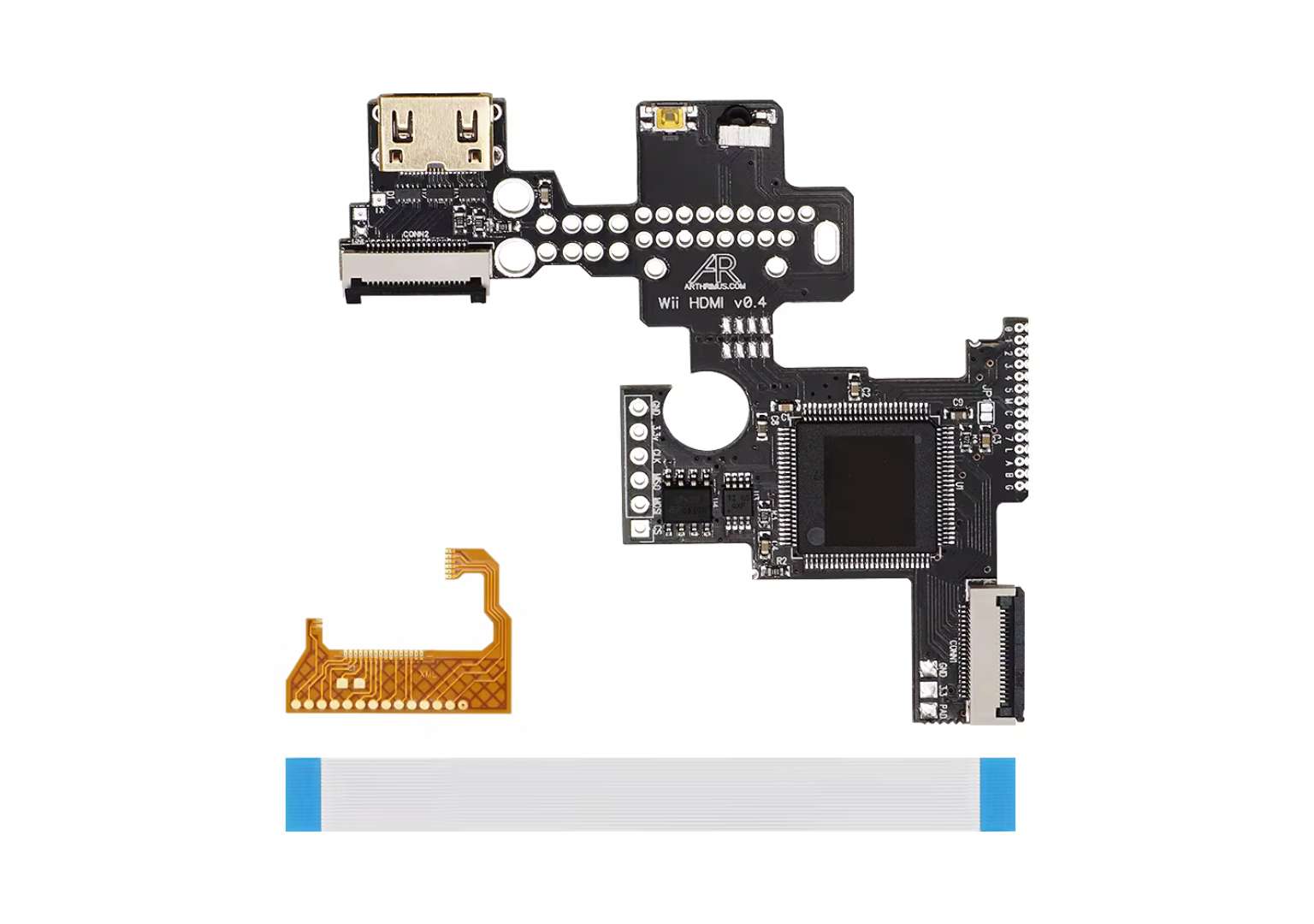

Package Includes:

• 1 x HDMI Kit v0.4 Line Doubler Adapter - Wii-HDMI
• 2 x Ribbon Cables
• 1 x Retail Box
