The Nintendo 64 controller is inseparable from the console. Its three handles, central analogue stick, four yellow C-buttons and trigger-like Z button were designed around games that did not yet share today’s standard twin-stick layout. That originality is part of its appeal, but a short cable, a worn stick and an unconventional shape can make it awkward in a modern living room.
The RetroScaler BlueRetro Wireless Receiver offers a reversible alternative. It plugs into one original N64 controller port, draws power from the console and translates a compatible Bluetooth controller into the signals expected by the hardware. There is no soldering, no internal board replacement and no permanent alteration to the Nintendo 64.
Wireless control is only its most obvious feature. The receiver can also remap buttons and axes, adjust analogue response, pass Rumble Pak commands to compatible controller motors and emulate a Controller Pak with four selectable memory banks. Those extras make it considerably more capable than a fixed Bluetooth converter.
There is an equally important qualification: BlueRetro cannot turn every modern gamepad into an original N64 controller. A DualSense, Xbox Wireless Controller or Switch Pro Controller has different button positions, stick mechanics and ergonomics. The receiver can translate and reshape data, but it cannot change the hardware in your hands.
Review in one sentence: this is a highly flexible, good-value route to wireless N64 play, particularly when paired with Nintendo’s Switch Online N64 controller, but original wired hardware remains the reference for authentic layout and analogue feel.
The Review At A Glance
| Feature | What The Receiver Provides | What It Means In Practice |
|---|---|---|
| Installation | External receiver for one original N64 controller port | No soldering or internal modification; one receiver is required for each wireless player. |
| Controller support | Selected Nintendo, Sony, Microsoft, 8BitDo, Retro-Bit and generic Bluetooth devices | Compatibility depends on the exact model, hardware revision, Bluetooth mode and firmware. |
| Configuration | Browser-based remapping, axis scaling, deadzone and turbo controls | Useful for adapting modern layouts and tuning a stick, although no setting recreates different physical mechanics. |
| Rumble | Emulates an N64 Rumble Pak | A compatible Bluetooth controller can vibrate when the game issues a Rumble Pak command. |
| Memory | 128 KB divided into four selectable 32 KB Controller Pak banks | One bank is visible to the console at a time, and saves can be exported or restored as MPK files. |
| Accessory choice | None, Memory or Rumble | Controller Pak and Rumble Pak modes cannot operate simultaneously, matching the original controller’s single accessory slot. |
| Latency | Advertised as 4 ms at receiver level | This is not a complete input-to-screen measurement; controller, game, video chain and display also matter. |
| Web tools | Web Bluetooth configuration and over-the-air updating | The current product instructions specify desktop or Android Chrome, with no controller actively linked during configuration. |
What It Does Well
- Quick, reversible installation on original hardware.
- Broad controller choice and automatic reconnection.
- Flexible remapping and analogue adjustment.
- Integrated rumble and virtual Controller Pak functions.
- Wired and wireless controllers can be mixed for multiplayer.
What To Consider
- Modern layouts do not reproduce the N64 controller exactly.
- Controller Pak and rumble are separate modes.
- Web configuration has browser requirements.
- Each wireless player needs a separate receiver.
- The original upstream project is now archived.
What BlueRetro Is — And What This Receiver Does
BlueRetro is an open-source hardware and software platform created by Jacques Gagnon, also known as DarthCloud. It uses the ESP32 family of microcontrollers to receive Bluetooth input and reproduce the controller protocol of an older console or computer. The original system sees an ordinary compatible controller; it does not need to know that Bluetooth is involved.
BlueRetro is therefore a technology platform, not a single manufacturer or one universal retail product. Different makers have used the project to create internal installations, multi-console boards and external receivers. The RetroScaler unit reviewed here is the compact, console-specific version that fits one Nintendo 64 controller port.
That distinction matters when reading instructions. Firmware, connector arrangements and configuration details may differ between BlueRetro implementations. Advice for a universal DIY board or an internal four-port kit should not automatically be applied to this RetroScaler receiver.
The adapter is powered through the controller port, so it requires no USB power lead. It is also completely removable: owners can use BlueRetro for a relaxed wireless session, then reconnect an original controller for a game that benefits from Nintendo’s exact button positions or analogue response.

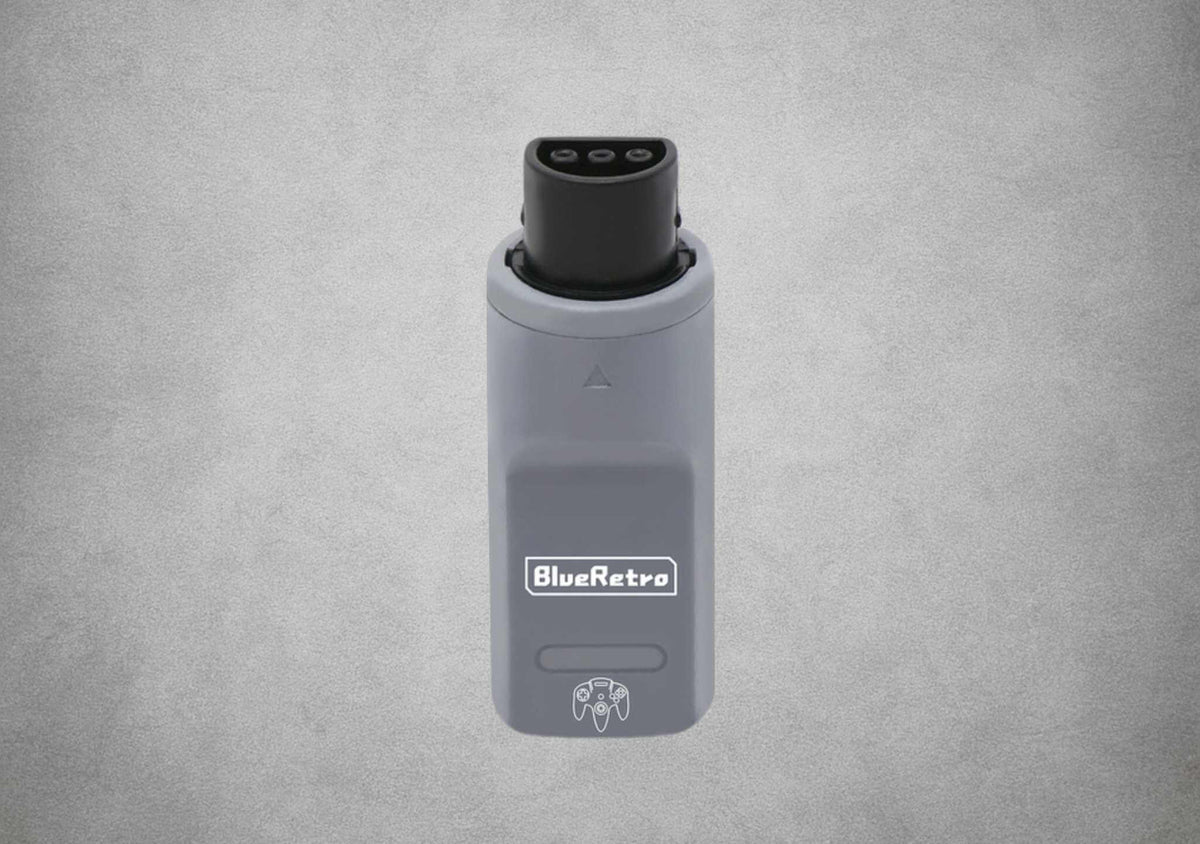

Design, Installation & Pairing
The moulded housing follows the shape of an N64 controller plug instead of hanging from a short extension cable. That keeps the installation tidy and protects the internal circuit board. Retrolize lists black, grey and clear versions, although colour availability can change.
Install Before Switching On
- With the Nintendo 64 switched off, insert the receiver straight into the required controller port.
- Switch on the console. A flashing red light indicates Bluetooth inquiry or pairing mode.
- Put the chosen controller into its Bluetooth pairing mode. Do not select a proprietary 2.4 GHz or USB-only mode.
- Wait for the receiver’s light to turn solid blue, indicating that a controller is connected.
- Open a familiar game and test the stick, D-pad, A, B, Start, shoulder controls, Z and all four C-button functions.
Do not hot-plug this receiver. Retrolize’s product instructions specifically state that it should be inserted before the console is switched on. Power down before connecting, removing or moving it between ports.
Once paired, the controller should reconnect automatically in later sessions until the stored Bluetooth keys are cleared. If the adapter keeps trying to reconnect to an old device, hold its button for three seconds to begin a new inquiry. A short press disconnects linked Bluetooth devices, while a ten-second hold performs a factory reset and erases pairing keys and customised settings.
Pairing proves that the wireless connection works; it does not prove that every control is mapped in the best place. Nintendo, Sony and Microsoft use different labels and physical arrangements, so test the result in software before diagnosing a connection fault.
Controller Compatibility & The Best Options
The official BlueRetro pairing guide documents support for a wide range of first-party and third-party controllers. Retrolize lists Nintendo’s Switch Online N64 controller, compatible Xbox One and Xbox Series models, Wii and Wii U controllers, Switch Pro and Joy-Con controllers, official PS3 and PS4 pads, PS5 controllers, plus selected 8BitDo and Retro-Bit products.
“Bluetooth controller” is not a guarantee of compatibility. Some wireless pads use only a proprietary 2.4 GHz receiver, while others offer several modes that present themselves as Switch, Android, DirectInput or XInput devices. A controller may work in one mode but not another, or pair successfully while exposing a less useful layout.
Best Match: Nintendo Switch Online N64 Controller
Nintendo’s Bluetooth N64 controller is the natural partner. It preserves the six-button face layout, central stick, Z trigger and three-handle shape, removing most of the compromises created by translating C-buttons onto a right analogue stick. For players who want the original control arrangement without a cable, it is the clearest choice.
Modern PlayStation, Xbox & Switch Controllers
DualShock 4, DualSense, compatible Xbox and Switch Pro controllers offer familiar grips, two sticks and modern shoulder controls. They work particularly well when a game concentrates on A, B, Z and the main stick. The trade-off is C-button placement: mapping the four yellow buttons to the right stick feels reasonable for camera movement, but less precise when a game treats them as rapid individual actions.
Third-Party & Retro-Styled Pads
Selected 8BitDo, Retro-Bit, Retro Fighters and other Bluetooth controllers can provide a middle ground, sometimes with six face buttons or an N64-inspired arrangement. Check the precise model and mode against BlueRetro’s pairing guide. Manufacturers occasionally change internal hardware without changing the retail name, so an unlisted revision should not be assumed compatible.
Pair with the sticks centred. BlueRetro calibrates neutral analogue values when a controller connects. Its documentation notes that Xbox, Stadia and other XInput devices may not send an idle report, so press a button a couple of times after connection while leaving sticks and triggers untouched.
N64 Controls, C-Buttons & Analogue Feel
An N64 controller provides one analogue stick, a D-pad, A and B, four C-buttons, L and R shoulders, a rear Z trigger and Start. A typical modern pad provides two sticks, four face buttons, four shoulder controls and clickable sticks. The number of inputs is usually sufficient, but the physical relationships between them are not the same.
C-buttons mapped to the right stick can feel intuitive in Super Mario 64 or another game that uses them as camera directions. The same choice is less satisfying when a title expects discrete presses for items, attacks or other actions. GoldenEye 007, F-Zero X, Mario Party and fighting games can each reward a different arrangement, which is why BlueRetro’s remapping is more than a novelty.
The Z trigger usually moves to a modern shoulder or trigger. It remains functional, but the hand position changes. A and B introduce another source of confusion because Nintendo and Xbox print the same letters in different positions, while PlayStation uses symbols. BlueRetro’s default mapping may prioritise physical position rather than the label printed on the shell.
The Stick Cannot Be Recreated In Software
The original N64 stick uses a distinctive mechanism, gate, travel and response curve. A modern controller normally uses a different physical design and may report a circular or square range with different maximum values. BlueRetro converts those readings into the range expected by the console, but conversion does not change spring tension, gate shape or mechanical travel.
Deadzone adjustment can suppress unwanted movement around the centre. Axis scaling can help a character reach full running speed when the connected controller reports a lower maximum. Both require restraint: too much deadzone removes gentle movement, while aggressive scaling compresses fine control and makes the stick feel abrupt.
Start with the default mapping, test a game you know well and change one value at a time. A comfortable setting for platforming may not be ideal for fine aiming or racing. This is a flexible translation layer, not a universal recipe for making every stick behave like Nintendo’s original.
Understanding The 4 ms Latency Claim
Retrolize advertises the receiver as providing 4 ms latency. That figure should be described as a product or receiver-level claim, not as the complete delay between touching a control and seeing a reaction on screen. No independent end-to-end benchmark is supplied on the listing.
The complete input chain includes the controller’s scanning and Bluetooth reporting behaviour, radio conditions, the receiver’s processing and N64 protocol output, the game’s polling and frame timing, any scaler or HDMI converter, and the television. Changing only the Bluetooth controller can change the result, even when the same BlueRetro receiver is used.
For normal platforming, racing and local multiplayer, the receiver’s wireless convenience is likely to matter more than a single quoted number. Players evaluating frame-perfect inputs, serious speedruns or competitive consistency should judge the complete setup and may still prefer a serviced wired controller connected to a CRT or demonstrably low-latency video chain.
Check the television first. A modern display outside its game or low-latency mode can add more delay than a controller adapter. Enable the appropriate picture mode before comparing wired and wireless controls.
Rumble & Four Virtual Controller Paks
An original N64 controller has one expansion slot. It can hold a Controller Pak for saves or a Rumble Pak for vibration, but not both at the same time. BlueRetro follows that model: its N64 output can emulate an empty slot, Memory or Rumble, while a combined setting is unavailable.
Rumble Without A Physical Pak
Set the N64 output accessory to Rumble and a supported game can send its vibration commands through the adapter to a compatible controller. The game must include Rumble Pak support and the Bluetooth controller must contain motors that BlueRetro can address. A pad without vibration hardware will not rumble merely because the output mode is enabled.
Four 32 KB Controller Pak Banks
BlueRetro reserves 128 KB for N64 memory, divided into four selectable 32 KB banks. Each bank behaves like a standard Controller Pak, but the console sees only the currently selected bank rather than one oversized memory card.
New banks are not automatically initialised. They must be formatted through the BlueRetro N64 Controller Pak Manager or by software that can initialise an unformatted Pak. The web manager can read the selected bank into an MPK backup, write a compatible MPK image or format the chosen bank.
BlueRetro also provides special mapped functions: the Home function toggles between Controller Pak and Rumble Pak modes, while the Capture or TouchPad function cycles the active memory bank under the default reference mapping. Exact physical buttons depend on the connected controller and any custom configuration. Some games inspect the accessory only at startup, so a restart may be needed after switching.
Back up before formatting or restoring. Writing an MPK file replaces the selected bank’s data. Confirm the bank number, download an existing backup and only then format or write a replacement image.
This is Controller Pak emulation, not Transfer Pak emulation. It does not provide the Game Boy cartridge functions used by titles such as Pokémon Stadium.
Using The BlueRetro Web Configuration
Basic pairing requires no browser. Advanced mapping, accessory selection, memory management and firmware installation use small web tools that communicate locally with the receiver through the Web Bluetooth API. Nothing needs to be installed as a conventional desktop programme.
Browser support is the catch. BlueRetro’s documentation calls for a Chrome-based browser, and Retrolize’s current instructions specify desktop or Android Chrome. A browser may display the configuration page while lacking the Web Bluetooth functions required to discover the receiver.
Preparing The Receiver
- Switch off the Nintendo 64 and insert the receiver.
- Switch the console on so the adapter receives power.
- Disconnect or switch off any controller currently linked to BlueRetro.
- Open the appropriate tool at blueretro.io in a compatible browser.
- Select Connect BlueRetro and choose the receiver in the browser’s device window.
Output Config selects None, Memory or Rumble for the N64 accessory. Mapping Config assigns controller buttons and axes to N64 inputs, with controls for maximum value, threshold, deadzone and turbo. Presets provide useful starting points, but they should still be tested in the intended game.
Make one adjustment, save it and test it. Changing multiple axes, buttons and accessory settings at once makes a poor result much harder to diagnose. A factory reset should be the last resort because it removes stored pairings and customised settings.

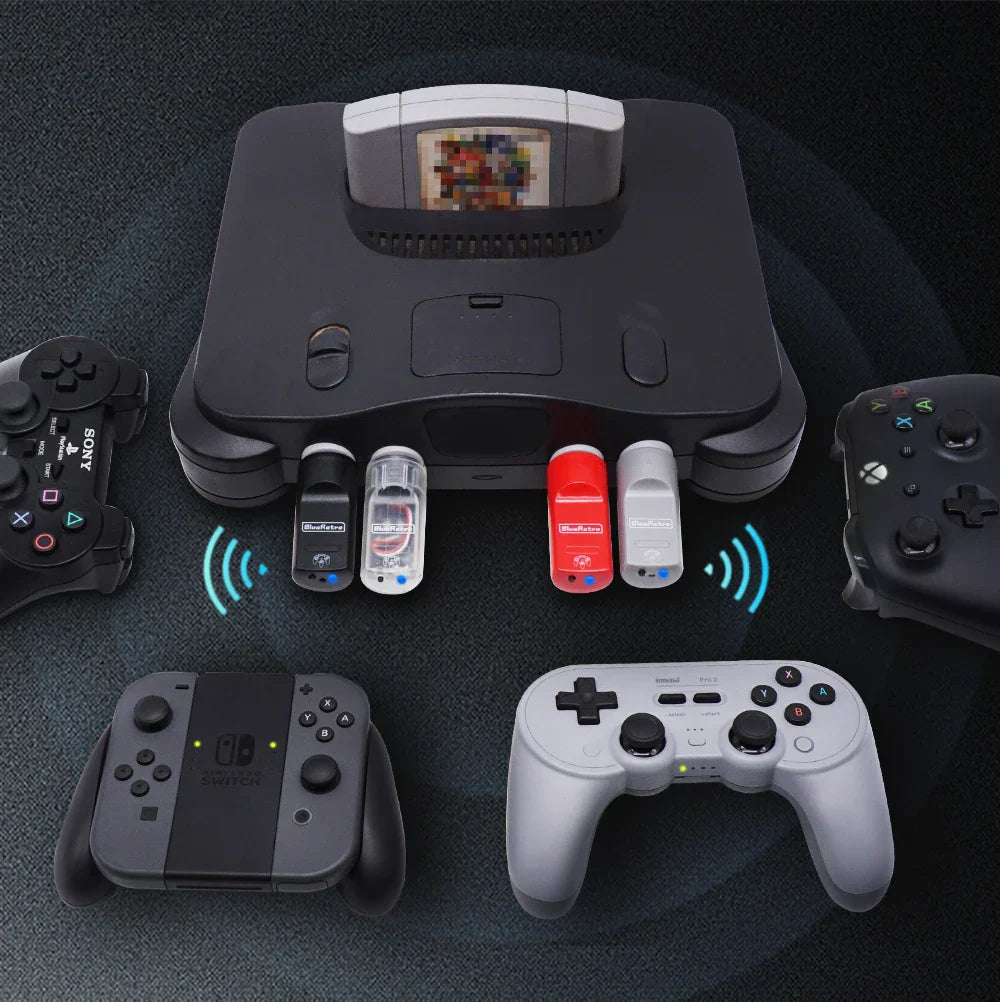

Multiplayer & Specialist Peripherals
Each external RetroScaler receiver represents one physical controller port. Two wireless players require two receivers; a fully wireless four-player setup requires four. Wired and wireless controllers can be mixed freely, so there is no requirement to convert every port at once.
When fitting several adapters, pair and test them one at a time. This makes player assignment clear and helps isolate a receiver, controller or console-port fault. Retrolize reports successful testing with four adapters, but notes that an ageing or unstable N64 power supply may struggle when several powered accessories draw from the controller ports.
BlueRetro’s N64 output also includes modes for the rare N64 mouse and Randnet keyboard. These are specialist preservation features, not general enhancements. The game or 64DD software must already understand the original peripheral; selecting Mouse or Keyboard does not add support to ordinary cartridges.
A compatible Bluetooth mouse or trackball may work with the correct preset, but exact HID behaviour varies. Treat this as an experimental capability to verify with the particular device and software, rather than a reason to expect universal mouse control.
Firmware Updates & The Archived Project
BlueRetro supports over-the-air firmware installation through its browser tools. That is useful because the receiver does not need to be opened or attached to a separate programming cable. It is also the part of the product that deserves the most caution.
The original DarthCloud BlueRetro repository was archived by its owner on 14 December 2025. Its source, documentation and existing releases remain available under their respective open-source licences, but the repository is read-only and no longer receives official features, fixes or pull requests from the original project.
Archiving does not stop an existing adapter from working. It does mean buyers should not assume indefinite compatibility updates for newly released controllers or revisions. Community forks may appear, but their firmware should not automatically be treated as an official continuation.
Update Only With A Matching Build
BlueRetro exists in several hardware arrangements. A firmware file must match this exact RetroScaler N64 receiver, not merely contain “N64” somewhere in its name. Retrolize’s product instructions identify the relevant historical build as BlueRetro_n64_spiffs.bin, but owners should confirm current seller guidance before installing anything.
During an update, keep the Nintendo 64 powered, leave the browser open and wait until the tool reaches completion and disconnects by itself. An interrupted or incompatible flash may leave the receiver misbehaving or requiring recovery. If the installed firmware already provides the features needed, there is little benefit in updating simply because another file looks newer.
Limitations & Troubleshooting
The Limitations To Know Before Buying
- One adapter serves one port. Four wireless players need four receivers.
- Controller Pak and rumble are separate modes. BlueRetro cannot present both to an N64 game at the same moment.
- There is no Transfer Pak emulation. Virtual save memory is not a substitute for a Game Boy cartridge interface.
- Not every wireless pad uses Bluetooth. A proprietary 2.4 GHz controller may work only through its own receiver.
- Modern controls remain physically different. Software cannot reproduce the original stick gate, Z-trigger position or six-button face arrangement.
- Web tools depend on compatible browser support. Do not assume that every desktop or mobile browser implements Web Bluetooth.
- Upstream development has ended. Existing functionality remains, but new official compatibility work should not be expected from the archived project.
Quick Troubleshooting
| Symptom | Likely Cause | What To Try |
|---|---|---|
| Controller will not pair | Wrong wireless mode, old pairing key or unsupported controller revision | Confirm Bluetooth mode, charge the controller, start a new inquiry with a three-second button hold and check the pairing guide. |
| Paired, but controls appear wrong | Different label convention or unsuitable preset | Test every input in a familiar game, then load a matching preset or remap individual buttons. |
| Character drifts or will not reach full speed | Neutral calibration, controller wear, deadzone or axis maximum | Reconnect with controls centred, then make small deadzone or maximum-axis changes. |
| Game cannot see a Controller Pak | Wrong accessory mode or uninitialised bank | Select Memory, format the intended bank and restart software that checks accessories only during boot. |
| No rumble | Game, output mode or controller lacks compatible vibration support | Select Rumble, use a Rumble Pak-compatible game and verify that the Bluetooth controller contains supported motors. |
| Web tool cannot find the receiver | Unsupported browser or a controller is still linked | Use desktop or Android Chrome as directed, disconnect the controller and reconnect to the web tool. |
| Instability with several receivers | Adapter, controller port or ageing power supply | Power down, test one receiver and port at a time, then add adapters individually. |
BlueRetro Versus An Original Controller
| Category | BlueRetro & A Modern Controller | Original Nintendo 64 Controller |
|---|---|---|
| Connection | Wireless Bluetooth | Direct wired controller-port connection |
| Layout | Depends on the chosen controller and mapping | Exact layout around which N64 software was designed |
| Analogue response | Modern mechanism with configurable deadzone and scaling | Original mechanism, gate and response; condition depends on wear |
| Controller Pak | Four selectable virtual banks with MPK backup and restore | Separate physical Controller Pak |
| Rumble | Uses compatible motors in the modern controller | Requires a physical battery-powered Rumble Pak |
| Customisation | Button, axis, deadzone, scaling and turbo options | Fixed original layout |
| Best For | Wireless convenience, flexible ergonomics and integrated accessories | Authentic control placement, feel and the simplest input path |
Who Should Buy It?
The receiver is easiest to recommend to N64 owners who already have a suitable Bluetooth controller, sit beyond the reach of the original cable or want integrated Controller Pak backups and wireless rumble without modifying the console. It can also make certain games more accessible by allowing buttons to move to positions a player can operate more comfortably.
It is less compelling for someone who wants Nintendo’s exact three-handle layout, relies on a Transfer Pak, demands the lowest and most predictable wired input path or does not want to use browser configuration. Nintendo’s Switch Online N64 controller removes most layout concerns, but that is an additional purchase if one is not already available.
Retrolize verdict: recommended as a flexible modern companion to original N64 hardware. BlueRetro’s real achievement is not merely removing the cable; it combines broad Bluetooth support, configurable controls, wireless rumble and four virtual Controller Paks in a compact, reversible adapter. Keep a serviced original controller nearby for the games that depend most heavily on Nintendo’s stick and button design.
Research Sources & Useful Links
-
Retrolize — BlueRetro Nintendo 64 Wireless Bluetooth Controller Receiver
Product-specific controller list, advertised latency, LED and button behaviour, hot-plug warning, browser guidance, firmware filename and four-adapter power note. -
DarthCloud — BlueRetro Repository
Original open-source project, platform overview, supported controller families, ESP32 basis, licences and archived status. -
BlueRetro System-Specific User Manual — Nintendo 64
N64 gamepad, keyboard and mouse modes; Controller Pak and Rumble Pak selection; accessory and memory-bank switching functions. -
BlueRetro BLE Web Configuration Manual
Browser requirements, output and mapping controls, presets, OTA updates and four-bank N64 memory management. -
BlueRetro Controller Pairing Guide
Tested hardware revisions, controller operating modes, pairing procedures and neutral-axis calibration advice. -
BlueRetro Web Tools and N64 Controller Pak Manager
Browser-based configuration, firmware and virtual memory utilities. -
Archived BlueRetro Firmware Releases
Existing firmware packages and changelogs. A build must match the exact receiver hardware before installation.
