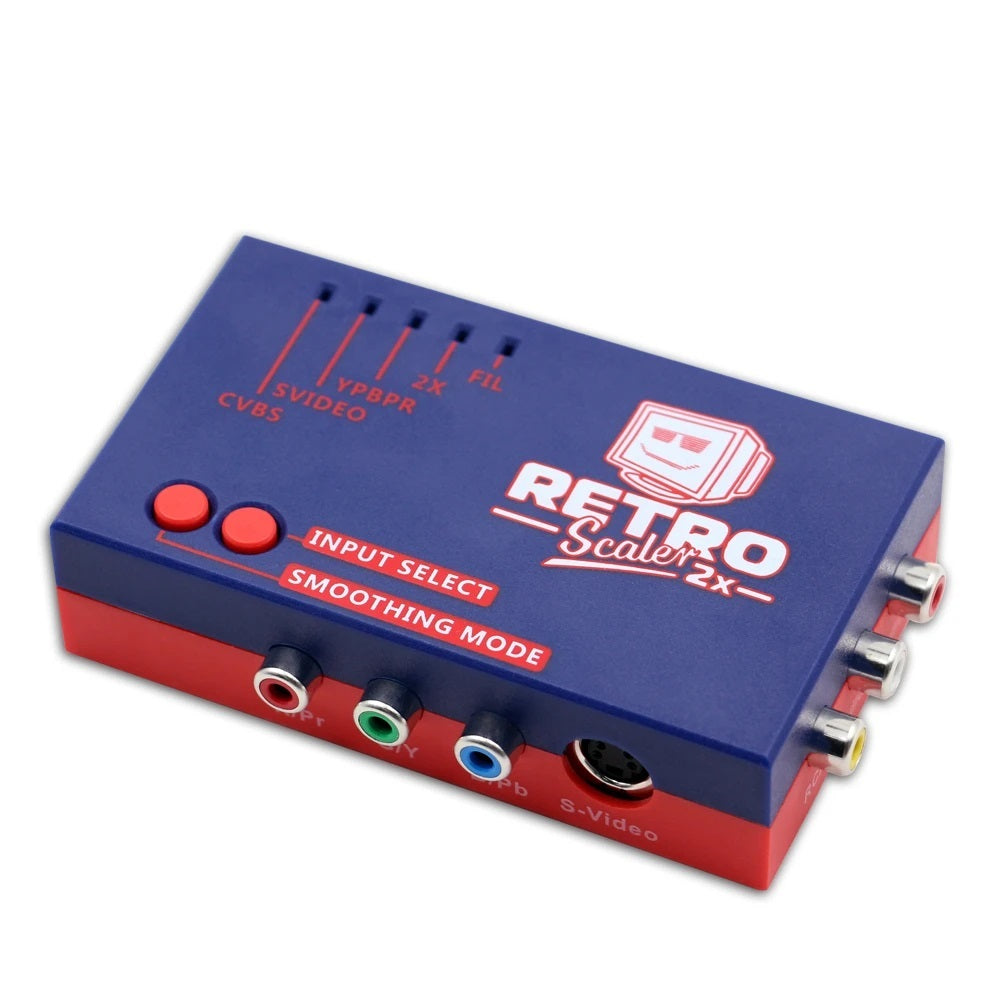

RetroScaler2x AV to HDMI Converter/Line Doubler/Upscaler

Connect classic gaming hardware to a modern HDMI television, monitor or capture device with the RetroScaler2x AV to HDMI Converter and Line Doubler.

Designed for retro systems using composite, S-Video or YPbPr component output, the RetroScaler2x converts standard-definition analogue video and stereo audio into a clean digital HDMI connection. It provides a practical alternative for modern displays that no longer include traditional AV inputs.

The RetroScaler2x correctly recognises classic 240p and 288p progressive video rather than treating it as interlaced footage. NTSC 240p sources are line-doubled to 480p, while PAL 288p sources are converted to 576p, helping retain the sharp pixel structure and responsive feel of original retro games.

Interlaced 480i and 576i content is deinterlaced and output as progressive 480p or 576p HDMI video. This improves compatibility with modern televisions, monitors and capture equipment while keeping processing latency exceptionally low.

Three analogue input options make the converter suitable for a broad range of retro gaming setups. Composite provides the widest compatibility, S-Video delivers improved colour separation where available, and YPbPr component offers the strongest picture quality supported by the device.

The optional Filter mode adds smoothing to reduce hard edges and visible aliasing. It can be useful for early polygonal 3D graphics and flicker-prone interlaced games, while leaving the filter switched off produces a sharper presentation for most 2D pixel-art titles.

A dedicated pass-through mode digitises the original incoming video signal without changing its resolution. This can be useful with specialist equipment that accepts 240p, 288p, 480i or 576i over HDMI, although standard line-doubled mode will provide wider compatibility with most modern displays.

Video and stereo audio are carried through a single HDMI cable, helping reduce the number of connections required around the display. Input selection, smoothing and operating modes are controlled directly from the buttons on the unit, with no drivers, software or network setup required.

Whether you need a composite-to-HDMI converter, an S-Video-to-HDMI adapter or a component video line doubler for original retro hardware, the RetroScaler2x provides a compact, low-latency solution without applying unnecessary 720p or 1080p scaling.

Product Type: Analogue AV to HDMI converter and 2x line doubler
Brand: RetroScaler
Model: RetroScaler2x
Primary Use: Connecting standard-definition analogue video sources to HDMI displays

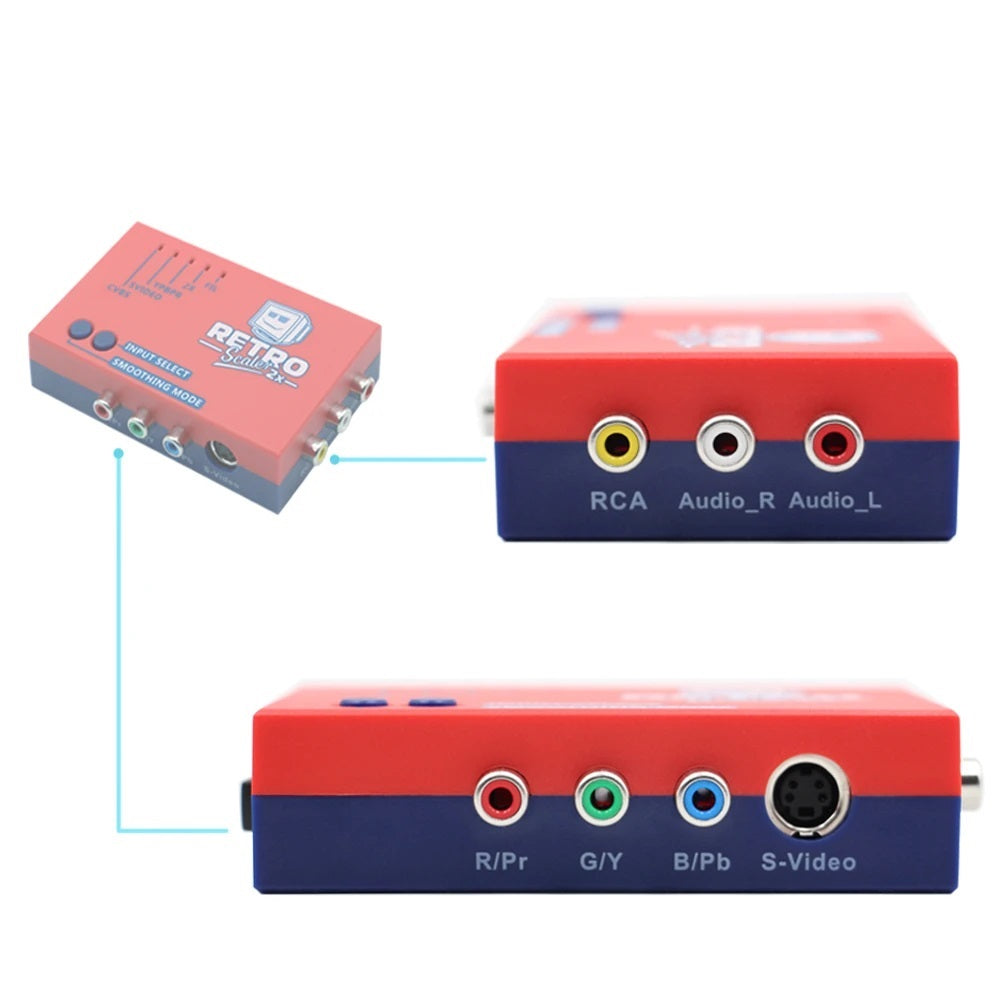

Composite Input: 1 × RCA CVBS
S-Video Input: 1 × 4-pin Mini-DIN
Component Input: 3 × RCA YPbPr
Audio Input: Stereo RCA

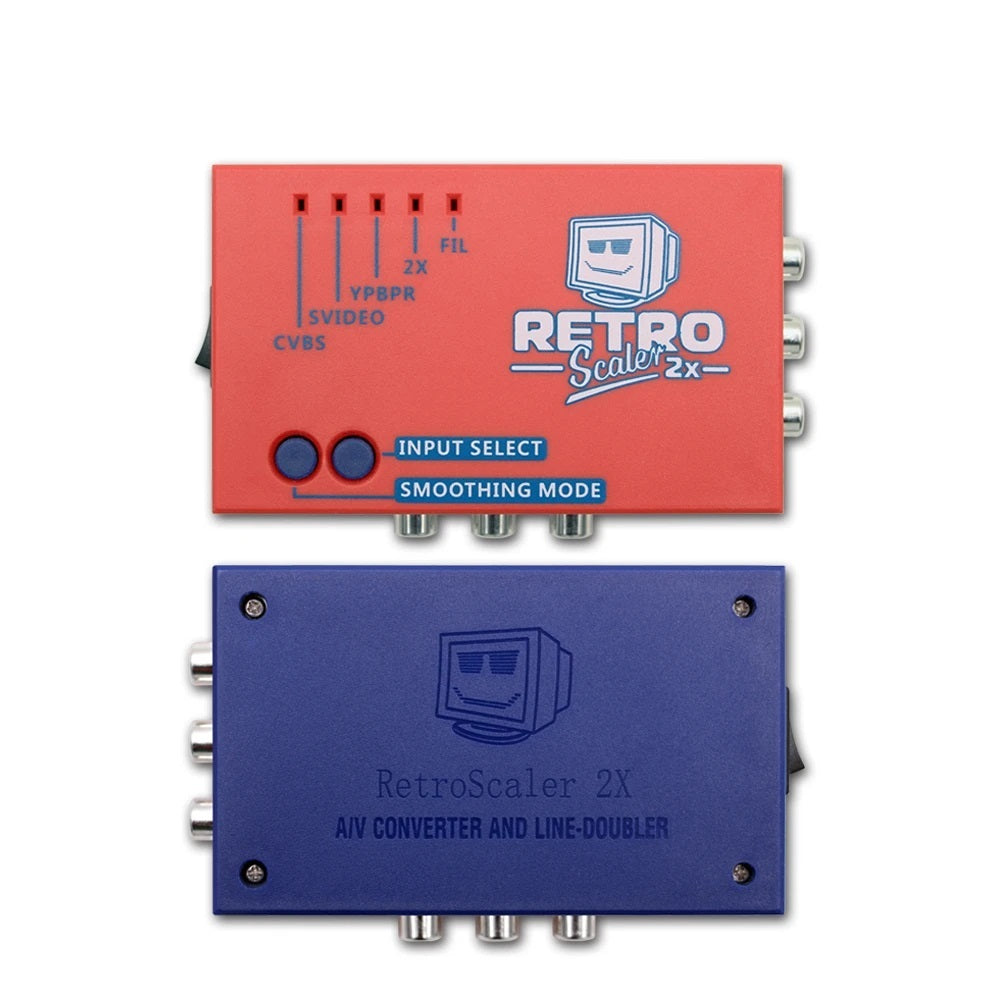

Input Selection: Manual push-button control

Supported NTSC Inputs: 240p and 480i
Supported PAL Inputs: 288p and 576i
Unsupported Inputs: 480p, 576p, 720p, 1080i and 1080p
PAL-M Support: Not guaranteed across all equipment

Processed NTSC Output: 480p HDMI
Processed PAL Output: 576p HDMI
Pass-Through Output: Original source resolution digitised through HDMI

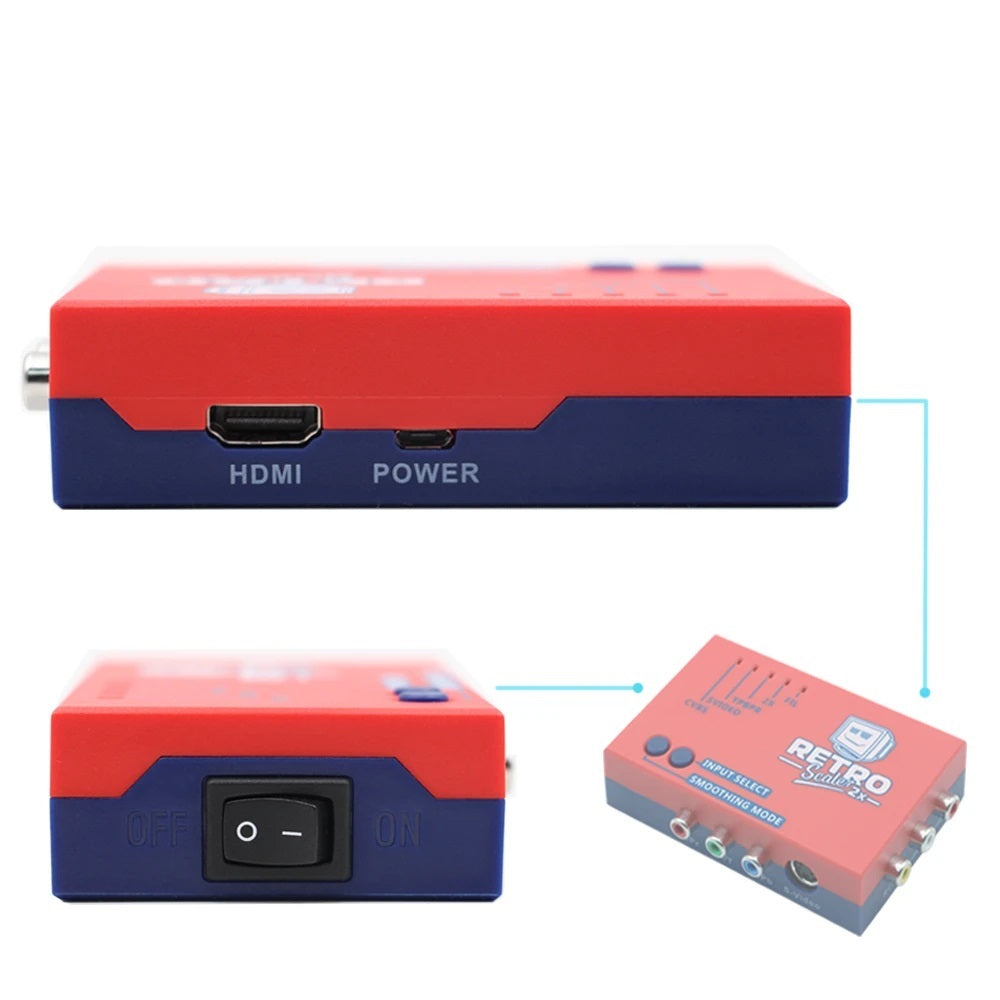

Output Connection: Standard HDMI
Audio Output: Stereo audio carried through HDMI

Processing Modes: Line2x, Filter and Pass-Through
240p Processing: Line-doubled to 480p
288p Processing: Line-doubled to 576p
480i Processing: Deinterlaced to 480p
576i Processing: Deinterlaced to 576p
Smoothing Filter: Selectable
Added Latency: Manufacturer-rated zero-lag operation

PAL To NTSC Conversion: No
NTSC To PAL Conversion: No
Aspect-Ratio Control: No
Scanline Generator: No
Remote Control: No
Firmware Updates: Not user-configurable

External Power Required: Yes
Power Input: 5V Micro USB
Power Switch: Yes
USB Power Cable Included: Yes
USB Mains Adapter Included: No
HDMI Cable Included: No

Compatibility depends on the console model, region, available video output, selected resolution and cable used. All sources must be configured for 240p, 288p, 480i or 576i.

Nintendo

Nintendo Entertainment System / NES Front Loader: Composite video through the console AV output.

Original Famicom: The stock RF-only console requires a composite, S-Video or component-output modification before it can be connected.

AV Famicom: Composite video.

NES-101 Top Loader: The stock RF-only console requires an AV-output modification.

Super Nintendo / Super Famicom: Composite or S-Video where supported by the console model and region. Compatible active YPbPr component cables can also be used.

SNES Mini / Super Famicom Jr: Composite video. Other video formats require modification.

Nintendo 64: Composite video. S-Video can be used where supported by the console revision, region and cable.

Nintendo GameCube DOL-001: Composite video, regional S-Video or compatible YPbPr component output. Component output must remain set to 480i or 576i rather than 480p.

Nintendo GameCube DOL-101: Composite video or regional S-Video where available.

Nintendo Wii RVL-001: Composite, regional S-Video or YPbPr component. Component output must be set to 480i or 576i rather than 480p.

Nintendo Wii Family Edition RVL-101: Composite, regional S-Video or YPbPr component at 480i or 576i.

Nintendo Wii Mini RVL-201: Composite video.

Sega

Master System Model 1: Composite video.

Master System Model 2: Many models are RF-only and require an AV-output modification.

Mega Drive / Genesis Model 1: Composite video or compatible active YPbPr component cable.

Mega Drive / Genesis Model 2: Composite video or compatible active YPbPr component cable.

Mega-CD / Sega CD: Video is supplied by the connected Mega Drive or Genesis console.

Sega 32X: Composite video from the 32X AV output or a compatible active component cable.

Sega Saturn: Composite, S-Video or compatible active YPbPr component cable.

Sega Dreamcast: Composite or S-Video. VGA 480p output is not supported. A component solution must provide 480i or 576i rather than 480p.

Sony

PlayStation / PS1: Composite or S-Video.

PS One: Composite or S-Video.

PlayStation 2: Composite, S-Video or YPbPr component. Component output must be configured for 480i, 576i or compatible 240p software rather than 480p.

PlayStation 3: Composite, S-Video or component only when configured for 480i or 576i output.

PSP-2000 / PSP-3000: Composite television output. Component modes that output 480p are not supported.

PSP Go: Composite television output through a compatible cable or cradle.

Microsoft

Original Xbox: Composite, S-Video or YPbPr component. Component output must remain at 480i or 576i rather than 480p, 720p or 1080i.

Xbox 360 With Analogue AV Output: Composite or component configured for 480i or 576i.

SNK

Neo Geo AES: Composite or S-Video where available.

Neo Geo CD / CDZ: Composite or S-Video.

Neo Geo MVS: Requires a properly configured Supergun or consolised system providing consumer-level composite, S-Video or YPbPr component output. Raw arcade RGB is not supported.

NEC

PC Engine / CoreGrafx Family: Composite video through models or accessories that provide a suitable AV output.

PC Engine Duo Family: Composite video.

TurboGrafx-16: Requires a compatible composite, S-Video or component-output accessory or modification.

SuperGrafx: Composite video through a suitable AV accessory.

Other Consoles & Computers

3DO Interactive Multiplayer: Composite or S-Video.

Philips CD-i: Composite or S-Video depending on the player model.

Atari Jaguar: Composite or S-Video.

Commodore 64: Composite or separated luma/chroma through a correctly wired S-Video-compatible cable.

Commodore VIC-20: Composite video through a correctly wired model-specific cable.

MSX Computers: Composite or S-Video where provided by the specific model.

Compatible Retro Computers: Supported when they provide composite, S-Video or YPbPr component at 240p, 288p, 480i or 576i.

Modification Required

Atari 2600: Stock consoles normally provide RF only and require a suitable composite, S-Video or component modification.

Atari 5200: Requires a compatible AV-output modification or adapter.

Atari 7800: Requires a compatible AV-output modification.

ColecoVision: Stock RF output is not supported. A compatible AV modification is required.

Intellivision: Stock RF output is not supported. A compatible AV modification is required.

Not Directly Supported

RF Video: Requires an external RF demodulator or console AV modification.

RGB SCART / RGBS: Not accepted.

VGA / RGBHV: Not accepted.

HDMI Sources: Not accepted.

480p, 576p, 720p, 1080i & 1080p Sources: Not accepted.

Raw JAMMA Arcade RGB: Not accepted directly.

Supported Input Resolutions: The RetroScaler2x accepts 240p, 288p, 480i and 576i analogue video signals.

480p & Higher Inputs Are Not Supported: Do not configure the connected source to output 480p, 576p, 720p, 1080i or 1080p. The source must use a supported standard-definition video mode.

Line-Doubled Output: NTSC-format sources are output at 480p, while PAL-format sources are output at 576p.

No 720p Or 1080p Output: The RetroScaler2x is a 2x line doubler rather than a high-resolution scaler. Its maximum processed output is 480p for NTSC sources or 576p for PAL sources.

No PAL To NTSC Conversion: The unit preserves the source video standard and refresh rate. It does not convert PAL 50Hz into NTSC 60Hz or NTSC into PAL.

PAL-M Compatibility Is Not Guaranteed: Compatibility with PAL-M equipment can vary and is not guaranteed across all sources.

Composite, S-Video & Component Only: The unit accepts CVBS composite, 4-pin S-Video and YPbPr component video.

RGB & VGA Are Not Supported: RGBS, RGB SCART, RGsB, RGBHV and VGA signals cannot be connected directly.

SCART Is Not Supported: A passive composite-to-SCART adapter does not create a compatible RGB connection and is unnecessary when the device already provides a direct composite input.

RF Is Not Supported: Old aerial-style RF connections cannot be connected directly. RF-only equipment requires an AV modification or external RF demodulator.

YPbPr Component Only: The red, green and blue RCA connections accept YPbPr component video. They do not accept RGB through RCA connectors.

Only One Input At A Time: Select composite, S-Video or component using the Input Select button. Disconnect unused sources where possible, even when those sources are switched off.

2x Mode Is The Default: When powered on, the unit normally starts in line-doubling mode and outputs 480p or 576p.

Pass-Through Mode Retains The Source Resolution: Pass-through digitises the original analogue signal without line doubling. Some modern televisions, monitors, HDMI switches and capture devices may not accept 240p, 288p, 480i or 576i through HDMI.

Filter Mode Is Optional: The smoothing filter softens hard pixel edges and can reduce visible aliasing. Many users prefer it switched off for sharp 2D pixel graphics and switched on for early 3D games or flicker-prone interlaced content.

480i & 576i Deinterlacing: Interlaced sources are converted into progressive 480p or 576p output. Fine text and horizontal details may still show some flicker or deinterlacing artefacts.

Aspect Ratio Is Controlled By The Display: The RetroScaler2x does not provide an aspect-ratio selector. Most classic games should be displayed at 4:3 through your television or monitor settings.

External Power Is Required: Connect the unit to a regulated 5V Micro USB power source. It can normally be powered by a television USB port or a suitable USB power adapter.

USB Power Adapter Not Included: A Micro USB power cable is supplied, but a mains USB power adapter is not included.

HDMI Cable Not Included: A standard HDMI cable is required to connect the RetroScaler2x to your television, monitor or capture device.

Connect Equipment With The Power Off: Switch off the converter and connected equipment before inserting or removing video cables.

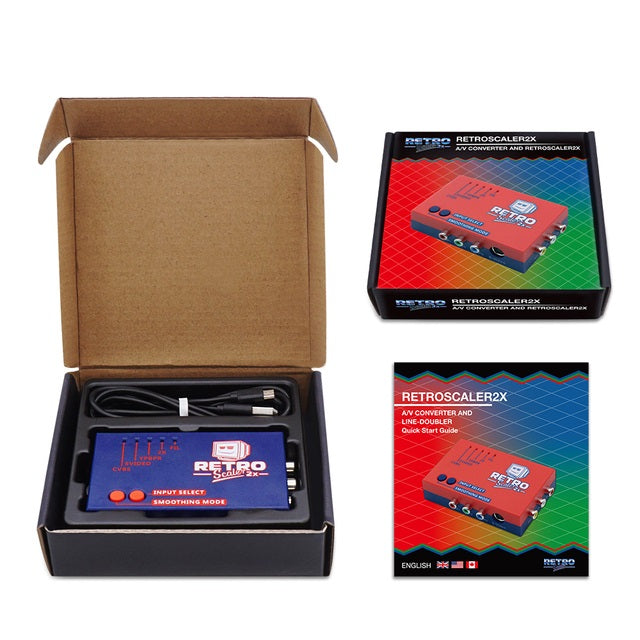

1 × RetroScaler2x AV to HDMI Converter
1 × Micro USB Power Cable
1 × Quick Start Guide / Instruction Manual
1 × Retail Box

This RetroScaler2x AV to HDMI Converter is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, damaged connectors, incorrect power supplies, excessive voltage, unauthorised modification or damage caused by incompatible cables, consoles or display equipment.

Differences caused by the original video signal, composite or S-Video picture quality, deinterlacing behaviour, filter selection, aspect-ratio settings, PAL-M compatibility or display support for passthrough signals are not considered hardware faults.

The warranty does not guarantee compatibility with every television, monitor, HDMI switch, AV receiver or capture device when using the original-resolution pass-through mode.

Warranty claims remain subject to the full Retrolize warranty terms.
