RetroScaler

RetroScaler GBS-Control Pro (GBSC PRO) Upscaler/Converter - HDMI Output

£89.99

Sale Sold out

Tax included.

Low stock: 3 left

Product variants

Supported Systems:

Sega:

Sega Genesis/Mega Drive (with RGB SCART or modded for RGB)
Sega Saturn (RGB SCART, or YPbPr with an adapter)
Sega Dreamcast (YPbPr component, VGA for RGBHV)

Nintendo:

Super Nintendo Entertainment System (SNES) (RGB SCART or modded for RGB)
Nintendo GameCube (YPbPr component video for later models)
Nintendo 64 (modded for RGB or YPbPr)

Sony:

PlayStation 1 and 2 (RGB SCART, YPbPr component)

Other:

Neo Geo AES (RGB SCART)
TurboGrafx-16/PC Engine (modded for RGB)

Supported Inputs:

RGBS (Red, Green, Blue, Sync)
RGSB (Red, Green, Sync, Blue)
RGBS SCART (Euro SCART with RGB)
RGBHV (Red, Green, Blue, Horizontal Sync, Vertical Sync)
YPbPr (Component Video)

Supported Outputs

RGBS
VGA
Component
HDMI

Resolutions:

Supports Upscaling up to 1080p.
Supports Downscaling to 240p/288p (Only through the Saturn AV Connector).
No Synchronization Loss Switching Between 240p/480i or 288p/576i.

Compatibility and Cable Tables for NTSC and PAL Systems

Nintendo (PAL)

Console	Best cable → GBSC	Alt cable	Notes
NES (PAL)	Composite RCA → Composite	—	RGB/S‑Video require mods.
SNES (PAL)	RGB SCART → SCART	Composite → Composite	Most PAL SNES don’t carry S‑Video.
Nintendo 64 (PAL)	Composite → Composite	—	S‑Video often absent/poor; RGB requires mod.
GameCube DOL‑001 (PAL)	Component (YPbPr) → Component or RGB SCART → SCART	Composite	DOL‑001 has digital‑out for component.
GameCube DOL‑101 (PAL)	RGB SCART → SCART	Composite	No digital‑out; no native component.
Wii (PAL)	Component (YPbPr) → Component	—	Listing says Wii composite not supported; PAL S‑Video uncommon.

Sega (PAL)

Console	Best cable → GBSC	Alt cable	Notes
Master System (PAL, Model 1)	RGB SCART → SCART	Composite → Composite	Model 2 often RF‑only without a mod.
Mega Drive / 32X (PAL)	RGB SCART → SCART	Composite → Composite	Model 1 = 8‑pin DIN; Model 2 = 9‑pin mini‑DIN.
Saturn (PAL)	RGB SCART → SCART	S‑Video/Composite	—
Dreamcast (PAL)	VGA (480p) → VGA	RGB SCART / S‑Video / Composite	Use VGA box/cable for best quality.

Sony / Microsoft (PAL)

Console	Best cable → GBSC	Alt cable	Notes
PlayStation (PS1, PAL)	RGB SCART → SCART	S‑Video/Composite	—
PlayStation 2 (PAL)	Component (YPbPr) → Component	RGB SCART / S‑Video / Composite	Many games support 480p over component.
PlayStation 3 (PAL)	Component (YPbPr) → Component	—	Set output to YPbPr ≤1080i/720p.
Original Xbox (PAL)	Component (YPbPr) → Component	RGB SCART → SCART	Enable 480p/720p/1080i in dashboard.
Xbox 360 pre‑HDMI (PAL)	Component (YPbPr) → Component	—	Use official/quality component lead.

SNK / Others (PAL)

Console	Best cable → GBSC	Alt cable	Notes
Neo‑Geo AES (PAL)	RGB SCART → SCART	Composite	Check cable/sync quality.
Panasonic 3DO (PAL)	S‑Video → S‑Video	Composite	Model‑dependent.
Philips CD‑i (PAL models)	RGB SCART → SCART	S‑Video/Composite	RGB availability varies by model.
Atari Jaguar (PAL)	RGB SCART → SCART	S‑Video/Composite	—
Amstrad GX4000 (PAL)	RGB SCART → SCART	—	—
Amiga CD32 (PAL)	RGB SCART → SCART	S‑Video	—
PC Engine/Turbo (imported)	Composite → Composite	—	RGB via add‑ons/mods.

——————————————————————————————

NTSC — Table view

Nintendo (NTSC)

Console	Best cable → GBSC	Alt cable	Notes
NES (NTSC)	Composite RCA → Composite	—	RGB/S‑Video require mods.
SNES / Super Famicom (NTSC)	RGB SCART → SCART or S‑Video → S‑Video	Composite → Composite	NTSC SNES carries S‑Video natively.
Nintendo 64 (NTSC)	S‑Video → S‑Video	Composite → Composite	RGB requires mod (rev‑dependent).
GameCube DOL‑001 (NTSC)	Component (YPbPr) → Component	S‑Video/Composite	Uses digital‑out component cable/adapter.
GameCube DOL‑101 (NTSC)	S‑Video → S‑Video	Composite → Composite	No digital‑out; no native component.
Wii (NTSC)	Component (YPbPr) → Component	S‑Video → S‑Video	Listing says Wii composite not supported.

Sega (NTSC)

Console	Best cable → GBSC	Alt cable	Notes
Master System (NTSC, Model 1)	RGB SCART → SCART	Composite → Composite	Model 2 often needs A/V mod.
Genesis / 32X (NTSC)	RGB SCART → SCART	Composite → Composite	Model 1 = 8‑pin DIN; Model 2 = 9‑pin mini‑DIN.
Saturn (NTSC)	RGB SCART → SCART	S‑Video/Composite	—
Dreamcast (NTSC)	VGA (480p) → VGA	RGB SCART / S‑Video / Composite	Use VGA box/cable for best quality.

Sony / Microsoft (NTSC)

Console	Best cable → GBSC	Alt cable	Notes
PlayStation (PS1, NTSC)	RGB SCART → SCART	S‑Video/Composite	—
PlayStation 2 (NTSC)	Component (YPbPr) → Component	RGB SCART / S‑Video / Composite	Many games support 480p over component.
PlayStation 3 (NTSC)	Component (YPbPr) → Component	—	Set output to YPbPr ≤1080i/720p.
Original Xbox (NTSC)	Component (YPbPr) → Component	—	Enable 480p/720p/1080i in dashboard.
Xbox 360 pre‑HDMI (NTSC)	Component (YPbPr) → Component	—	Use the official component A/V cable.

SNK / Others (NTSC)

Console	Best cable → GBSC	Alt cable	Notes
Neo‑Geo AES (NTSC)	RGB SCART → SCART	—	—
Panasonic 3DO (NTSC)	S‑Video → S‑Video	Composite	Model‑dependent.
Philips CD‑i (NTSC models)	S‑Video/Composite	—	RGB varies by model; often not present.
Atari Jaguar (NTSC)	RGB SCART → SCART	S‑Video/Composite	—
PC Engine / TurboDuo (JP/US)	Composite → Composite	—	RGB via add‑ons/mods.

Description

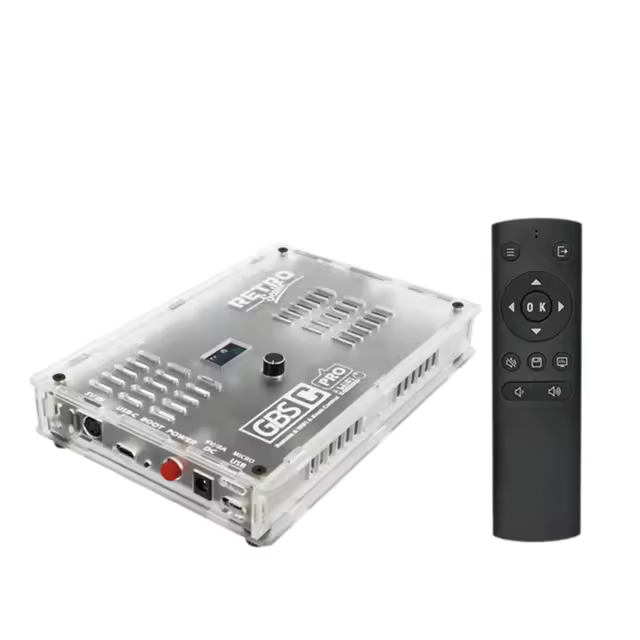

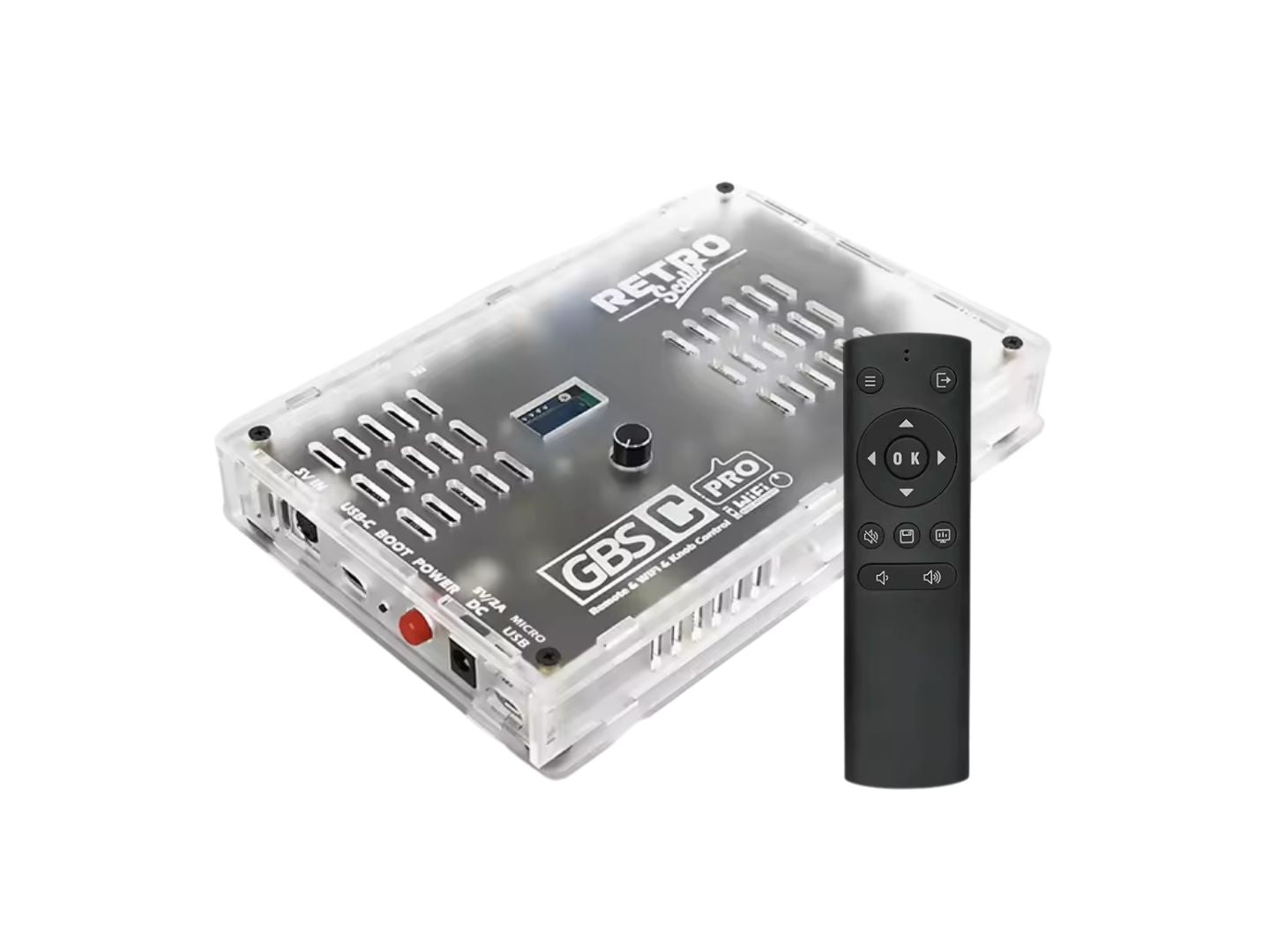

The GBSC Pro (GBS Control Pro) is a retro video scaler/upscaler built to make classic consoles look their best on modern TVs and monitors. Plug in SCART (RGBS), Component/YPbPr, S‑Video, Composite, or VGA, and the GBSC Pro converts your analogue signals to crisp digital video at 720p/960p/1024p/1080p with low‑latency, real‑time processing—so your inputs stay responsive and your 8‑bit to 128‑bit libraries shine without the blur, noise, or lag you get from basic adapters.

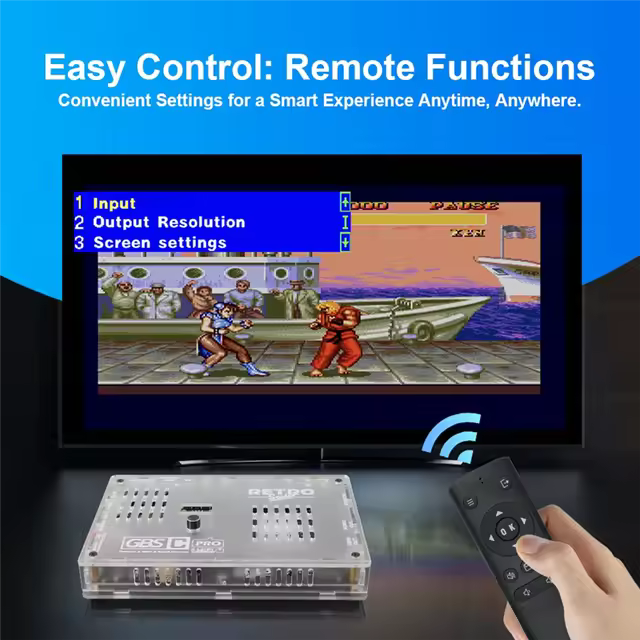

Dial in the image exactly how you like it using built‑in scanlines for 240p/288p sources plus RGB/ADC gain, linear filtering, and sharpening for a clean, authentic look. Control is effortless: tweak settings from the OLED display and front‑panel knob, navigate the on‑screen display via the IR remote, or jump into the Wi‑Fi web UI to save and load profiles per console so your favourite presets are always one click away. Manual input selection keeps switching sources fast and frustration‑free.

With broad PAL & NTSC compatibility, GBSC Pro is a perfect match for systems like SNES/Super Famicom, Mega Drive/Genesis (incl. 32X), Saturn, PlayStation/PS2, Dreamcast (VGA), GameCube, Wii (Component), Neo‑Geo AES, original Xbox, and pre‑HDMI Xbox 360, plus 15 kHz JAMMA arcade boards via RGBS.

Note: Wii composite is not supported (use Component, NTSC S‑Video is fine);

Atari 2600/800 and Commodore 64 are not supported.
