BitFunx 1080p RGBS HDMI Adapter & Upscaler For Sega Mega Drive / Genesis 1 & 2 And Neo Geo AES

Connect your original Sega Mega Drive, Sega Genesis or SNK Neo Geo AES to a modern HDMI television with this compact RGBS HDMI adapter and 1080p upscaler. Designed for original console hardware, it converts the console’s analogue RGB picture and audio into an HDMI signal for a compatible TV, monitor or projector, allowing you to keep enjoying your cartridges on a display without a suitable legacy AV input.

The adapter uses the console’s RGBS video output, carrying separate red, green and blue picture signals alongside synchronisation. It connects directly to the supported console’s AV port rather than using its yellow composite-video connection, and removes the need for a separate RGB SCART cable and SCART-to-HDMI converter in this setup.

It offers wide compatibility with original Sega Mega Drive 1 and 2, Sega Genesis 1 and 2 and SNK Neo Geo AES consoles. The attached 9-pin Mini-DIN lead connects directly to a Mega Drive 2 or Genesis 2, while the two included conversion leads provide the appropriate connections for Mega Drive 1, Genesis 1 and Neo Geo AES. Select MD mode for the Sega consoles or SNK mode for Neo Geo AES using the dedicated switch. French SECAM Mega Drive models MD1600-09 and MD160-01 are excluded.

A built-in upscaler converts the incoming picture into a 1080p HDMI output. This makes the original console signal suitable for a compatible modern display while retaining the game’s original graphics. Upscaling changes the output resolution; it does not add new textures, redraw sprites or turn the original artwork into native Full HD graphics.

The separate aspect-ratio switch lets you choose between 4:3 and 16:9. Select 4:3 to retain the original proportions of most games, keeping characters and scenery from being stretched across the screen. The 16:9 setting is available if you prefer a picture that fills a widescreen display, although it stretches the existing image rather than creating additional widescreen game content.

Console audio travels through the HDMI connection alongside the picture, providing a single connection to your display for both. On an original Mega Drive 1 or Genesis 1, the rear AV port supplies mono audio. The included conversion lead uses that connection and does not have a separate lead for the console’s front headphone socket, so it does not capture the stereo output available there.

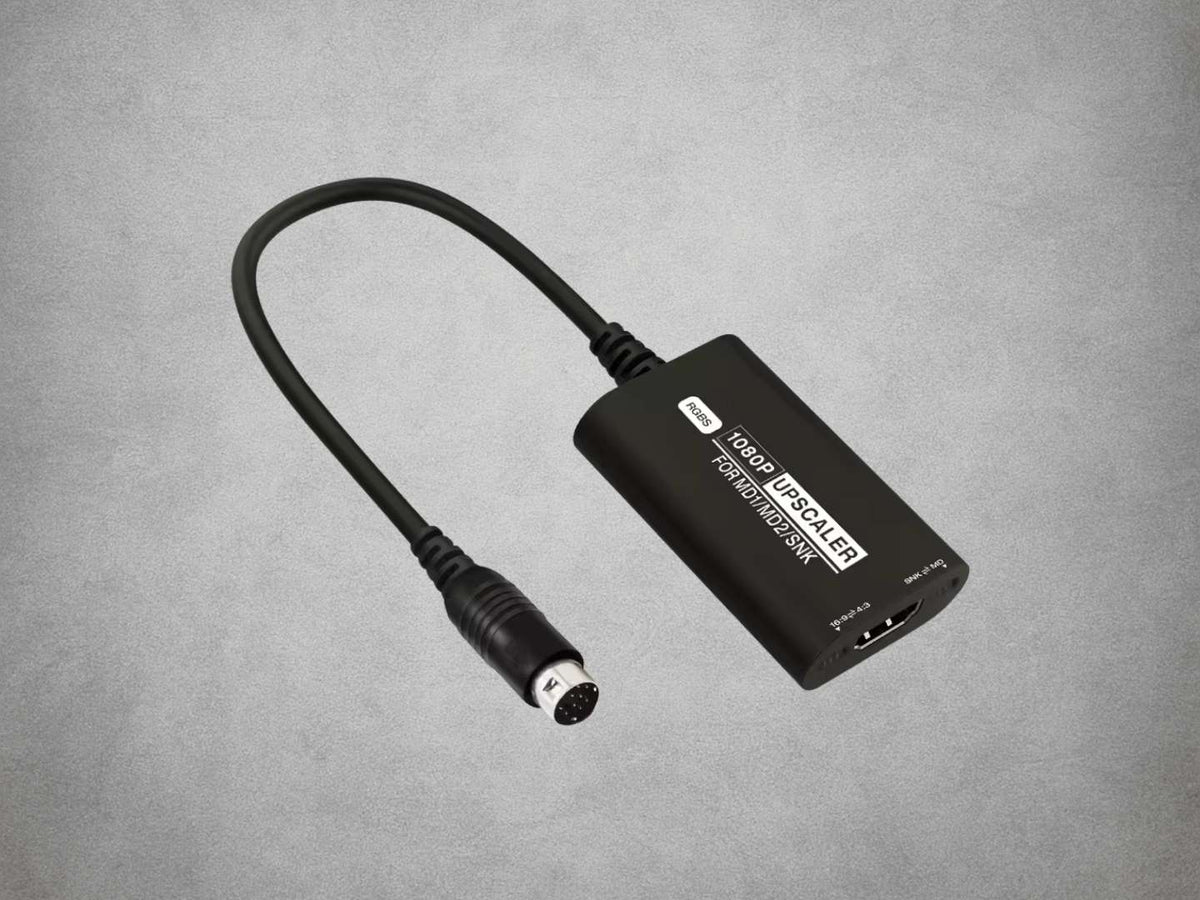

Measuring 75 × 45 × 15mm, the compact adapter fits into a console setup without the space requirements of a larger standalone scaler. Its attached console lead is 240mm long, and the supplied HDMI cable provides the onward connection to your display. The physical console-mode and aspect-ratio switches keep the main settings accessible without a computer or configuration software.

The package includes the upscaler, HDMI cable, Micro-USB power cable and both console conversion leads. A separate 5V USB power source rated for at least 1A is required. You can use a suitable USB mains adapter or a television USB port that meets this requirement; a USB mains adapter is not included.

Setup is straightforward: connect the appropriate console lead, select the matching MD or SNK mode, attach HDMI and USB power, then choose your preferred aspect ratio. Plug and play with no console modification required, making it a practical external upgrade for supported original hardware.

Supplied with a 12-month Retrolize warranty and expert support, with fast UK delivery and delivery to supported international destinations. Explore our retro gaming upscalers and HDMI adapters for more options to connect your original consoles to modern displays.

Product Name: Mega Drive / Genesis 1 & 2 And Neo Geo AES RGBS HDMI Adapter
Product Type: HDMI Adapter & Video Upscaler
Video Input: Analogue RGBS
Video Output: 1080p HDMI
Audio Output: Console audio carried through HDMI
Aspect Ratio Settings: 4:3 & 16:9
Console Mode Settings: MD & SNK
Direct Console Connection: Mega Drive 2 / Genesis 2 9-Pin Mini-DIN AV Port
Included Console Conversion Leads: Mega Drive 1 / Genesis 1 & Neo Geo AES
Supplier-Listed Input Resolutions: 240p, 288p, 480i, 480p, 576i & 576p
Power Connection: Micro-USB
Power Requirement: 5V USB Supply Rated For At Least 1A
Dimensions: 75 × 45 × 15mm
Attached Cable Length: 240mm
Product Weight: 46g
Colour: Black
Console Modification Required: No
SKU: HDMI-MD12-NEOGEO-1080P

Compatible Consoles

Sega Mega Drive 1 / Genesis 1: Supported using the included Mega Drive 1 conversion lead
Sega Mega Drive 2 / Genesis 2: Supported through the attached console lead
SNK Neo Geo AES: Supported using the included Neo Geo conversion lead and SNK mode
French SECAM Mega Drive Models MD1600-09 & MD160-01: Not supported

Connection Requirements

Console Video Output: Compatible RGBS AV output required
Display: HDMI input accepting the adapter’s 1080p output
Power: Separate 5V USB supply rated for at least 1A
Other Console Models: Compatibility is not confirmed for Genesis 3, Nomad, 32X, Neo Geo CD/CDZ or consolised MVS systems

Check Your Console Model: This adapter is intended for the original Mega Drive 1 and 2, Genesis 1 and 2 and Neo Geo AES. Do not assume compatibility with other consoles because they use a similar-looking connector.

French SECAM Exception: Mega Drive models MD1600-09 and MD160-01 are excluded. Check the console’s model label before ordering.

USB Power Required: The adapter needs a separate 5V USB supply rated for at least 1A. The Micro-USB cable is included; a USB mains power adapter is not included. A television’s USB port is suitable only if it supplies the required power.

Mega Drive 1 / Genesis 1 Audio: The original console’s rear AV connection supplies mono audio. The supplied connection lead does not include a separate connection to the front headphone socket, so this setup does not capture that socket’s stereo output.

Aspect Ratio: Select 4:3 for the original proportions of most games. The 16:9 setting stretches the picture; it does not add widescreen support to the game itself.

1080p Output: The adapter scales the original console signal to 1080p. This does not turn the console’s graphics into native Full HD artwork.

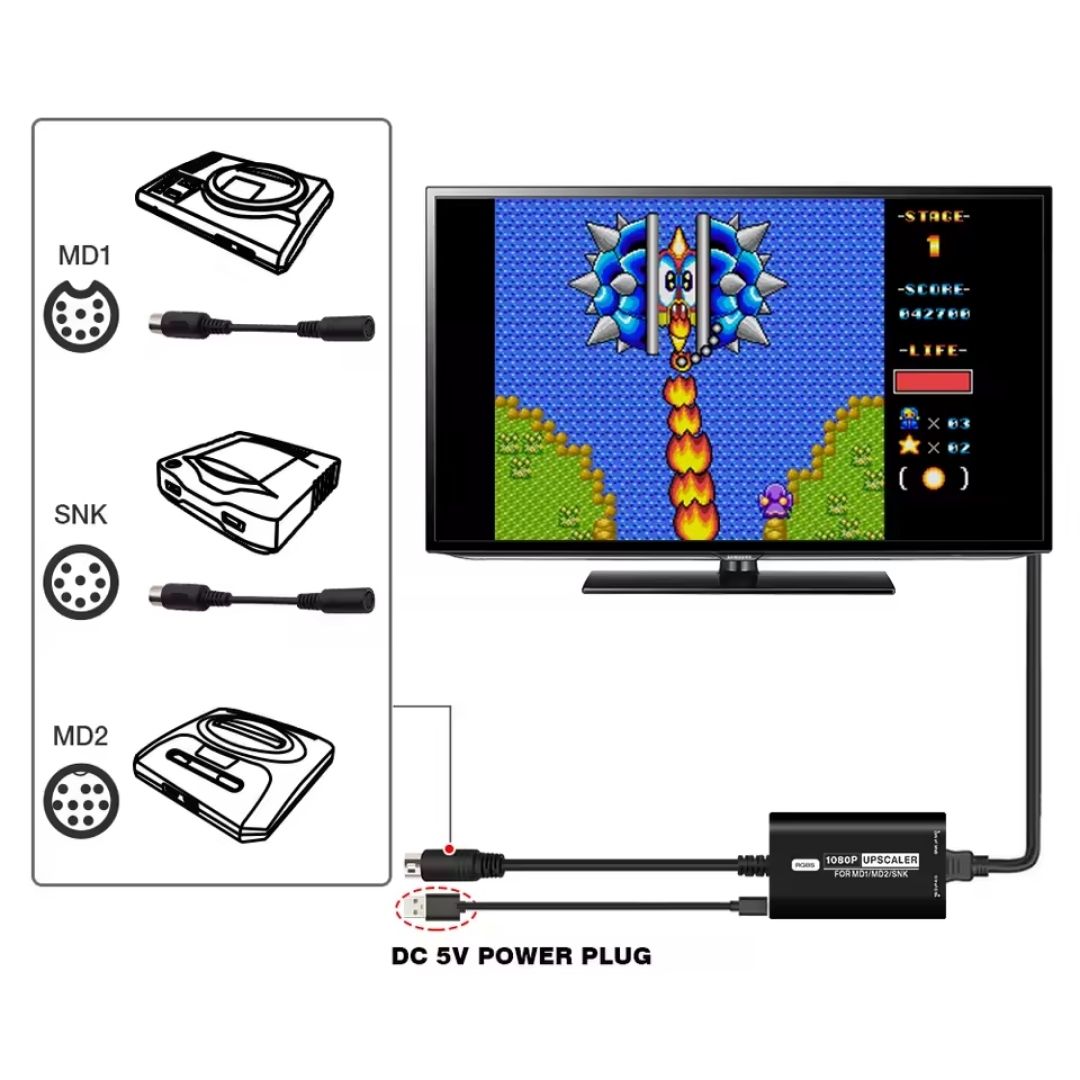

Initial Setup

1. Switch off the console before connecting the adapter.
2. For Mega Drive 2 or Genesis 2, connect the attached lead directly to the console’s AV port. For Mega Drive 1, Genesis 1 or Neo Geo AES, fit the appropriate included conversion lead first.
3. Set the console-mode switch to MD for Mega Drive or Genesis, or SNK for Neo Geo AES.
4. Connect the included HDMI cable between the adapter and your display.
5. Connect the Micro-USB power cable to the adapter and a suitable 5V USB supply rated for at least 1A.
6. Select 4:3 or 16:9, then switch on the console and choose the correct HDMI input on your display.
7. Check the picture and audio. Enable your display’s Game Mode where available.

Switch Functions

MD / SNK: Selects the console mode
4:3 / 16:9: Selects the output aspect ratio

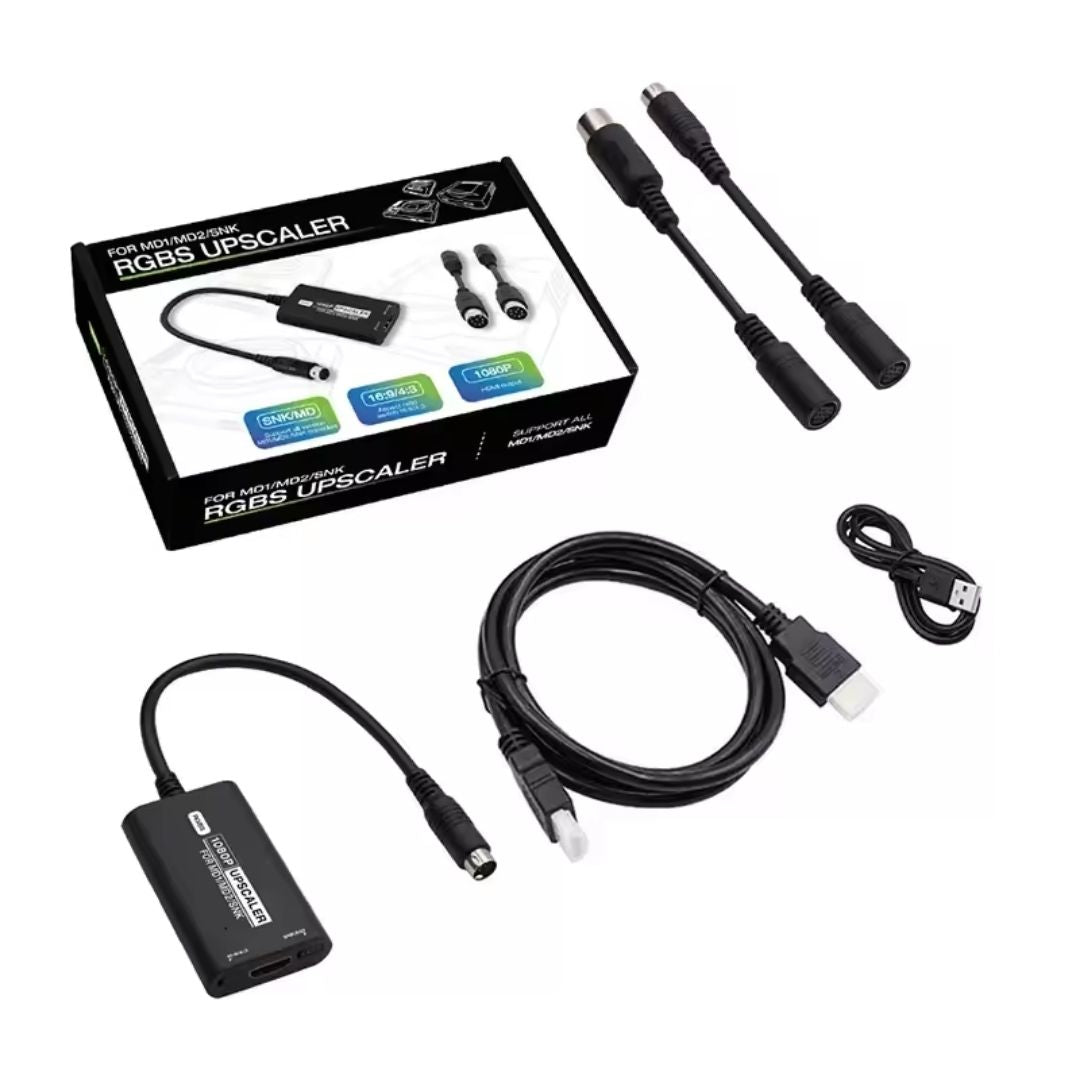

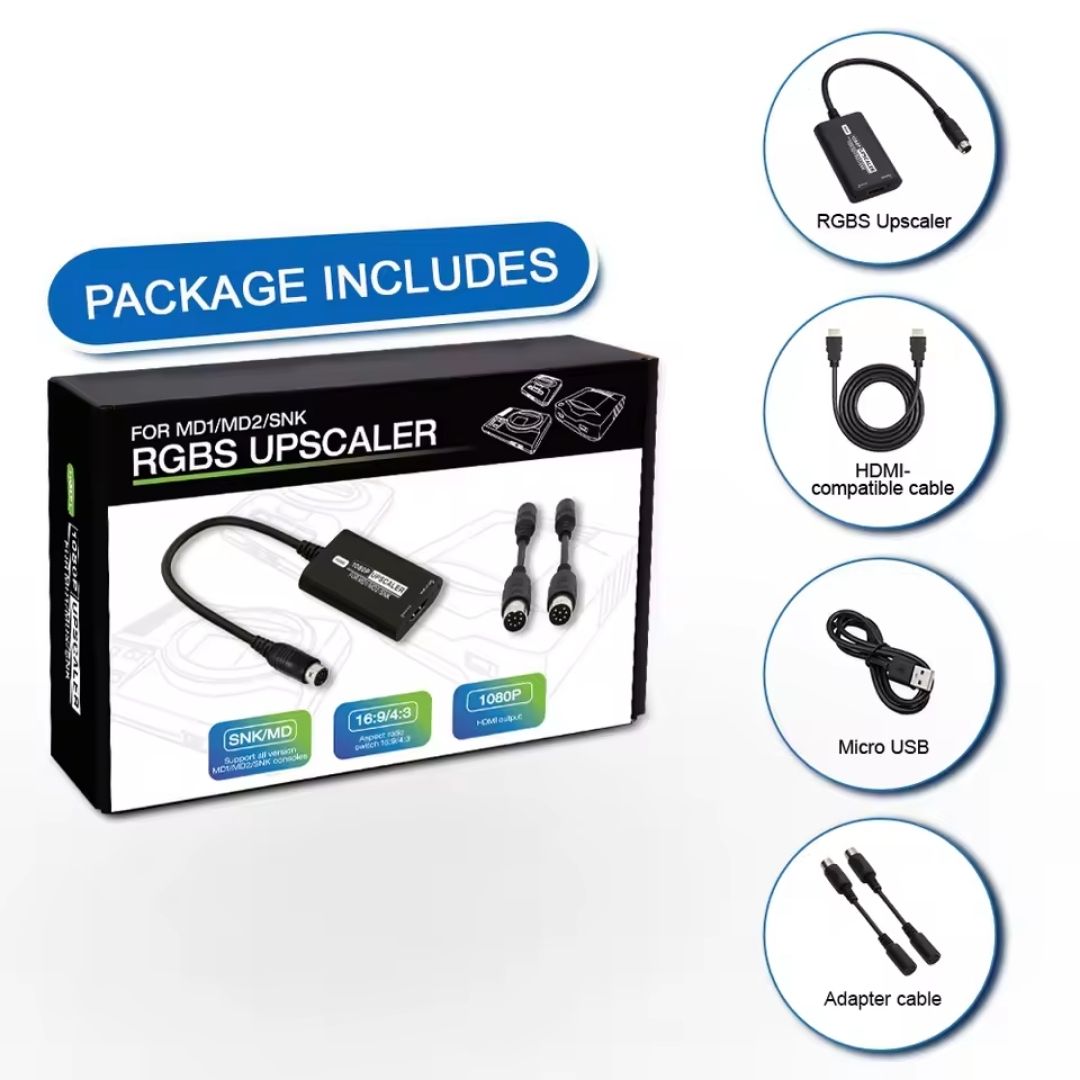

1 × RGBS HDMI Adapter & 1080p Upscaler With Attached Console Lead
1 × Mega Drive 1 / Genesis 1 Conversion Lead
1 × Neo Geo Conversion Lead
1 × HDMI Cable
1 × Micro-USB Power Cable
1 × Retail Box

This 1080p RGBS HDMI Adapter & Upscaler For Sega Mega Drive / Genesis 1 & 2 And Neo Geo AES is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, misuse, damaged connectors, excessive strain placed on the adapter, unauthorised modification or faults caused by an incompatible console, HDMI cable or display.

Display compatibility, television scaling, aspect-ratio behaviour and differences between supported video modes are not considered product faults. Warranty claims remain subject to the full Retrolize warranty terms.

How Do I Connect A Mega Drive To A Modern HDMI TV?

Connect this adapter to the console’s AV port, attach the HDMI cable to your television and supply 5V USB power. Mega Drive 2 connects directly; Mega Drive 1 uses the included conversion lead. Select MD mode and the correct HDMI input on your television.

Does It Work With Both Mega Drive 1 And Mega Drive 2?

Yes, with the listed French SECAM exceptions. The adapter includes the conversion lead required for Mega Drive 1, while Mega Drive 2 connects through the attached lead. The corresponding original Genesis 1 and 2 models are also supported.

Can I Use It With A Neo Geo AES?

Yes. Use the included Neo Geo conversion lead and select SNK mode. Compatibility with Neo Geo CD, CDZ and consolised MVS systems is not confirmed for this adapter.

Does It Use RGB Or Composite Video?

It uses the console’s RGBS video output. It is not a converter for the yellow composite-video connection.

Do I Need A Separate RGB SCART Cable?

No. The adapter connects to the supported console’s AV port using its attached lead and the included conversion leads.

Does It Carry Sound Through HDMI?

Yes. Console audio is carried alongside the picture through HDMI. On an original Mega Drive 1 or Genesis 1, this connection uses the mono audio available from the rear AV port.

Should I Choose 4:3 Or 16:9?

Choose 4:3 to retain the original proportions of most games. Choose 16:9 if you prefer the picture stretched across a widescreen display.

Will 1080p Output Add More Detail To My Games?

No. The adapter scales the console’s original picture into a 1080p HDMI signal. The original game graphics remain unchanged.

Is A USB Power Adapter Included?

The Micro-USB power cable is included. A separate 5V USB supply rated for at least 1A is required, and a USB mains power adapter is not included.
