USB-C Power Supply (PD3.0) | N64 Type-C PSU Board – Compact Replacement - Nintendo 64

Modernise the power setup of your Nintendo 64 with this compact USB-C PD3.0 Power Supply Adapter, designed as a direct replacement for the large original N64 power brick.

The original Nintendo 64 PSU supplies the console with separate 3.3V and 12V DC power rails through Nintendo's proprietary rear power connection. This modern N64 USB-C PSU adapter replaces the ageing mains-powered brick while continuing to provide the power rails required by original Nintendo 64 hardware.

Instead of connecting the console directly to mains electricity through a region-specific power brick, the adapter takes power from a modern USB-C Power Delivery charger. This makes it easier to use readily available USB-C power supplies while substantially reducing the size and weight of the original setup.

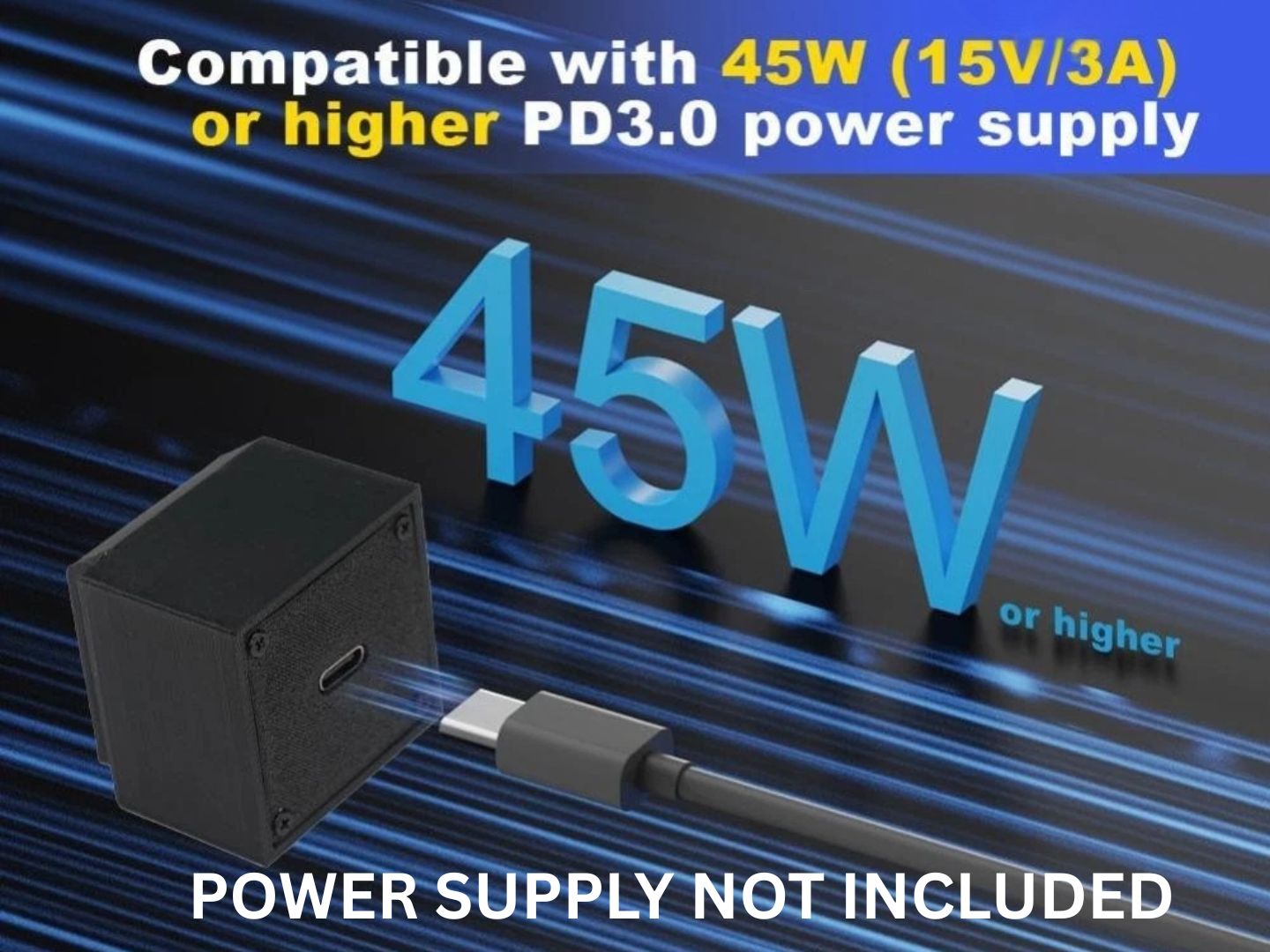

The adapter uses USB Power Delivery 3.0 and is designed for a 15V/3A input profile. A quality 45W USB-C PD charger that explicitly supports 15V/3A is recommended, although higher-wattage PD chargers can also be used where they provide the required 15V profile.

Because USB-C Power Delivery automatically negotiates the required input with a compatible charger, there is no need for a large dedicated Nintendo 64 mains transformer. The same N64 PSU adapter can also be paired with suitable locally compliant USB-C PD chargers when travelling between countries.

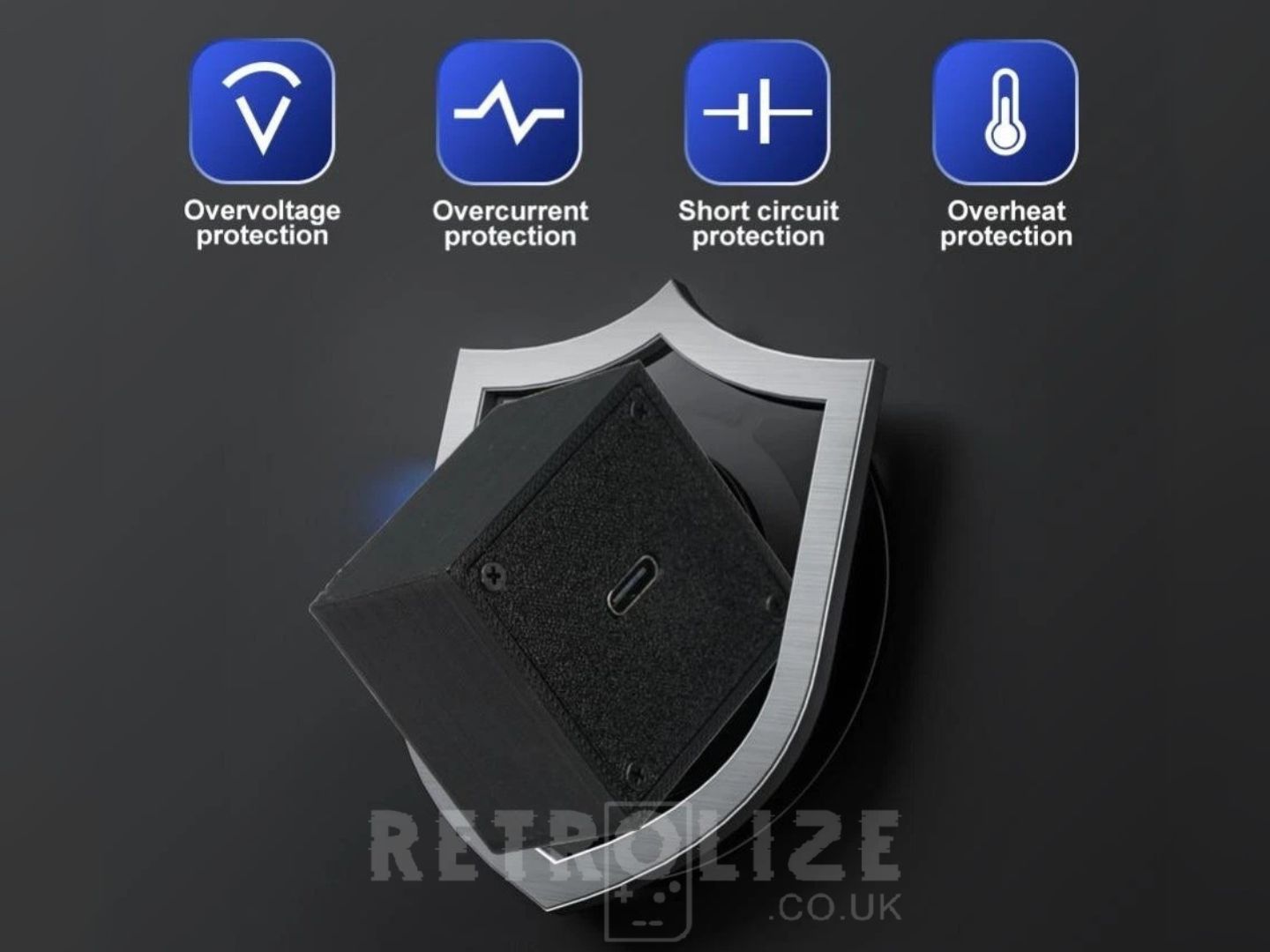

Built-in electrical protection includes overvoltage protection, overcurrent protection, short-circuit protection and overheat protection, helping provide a stable modern power solution for original Nintendo 64 hardware.

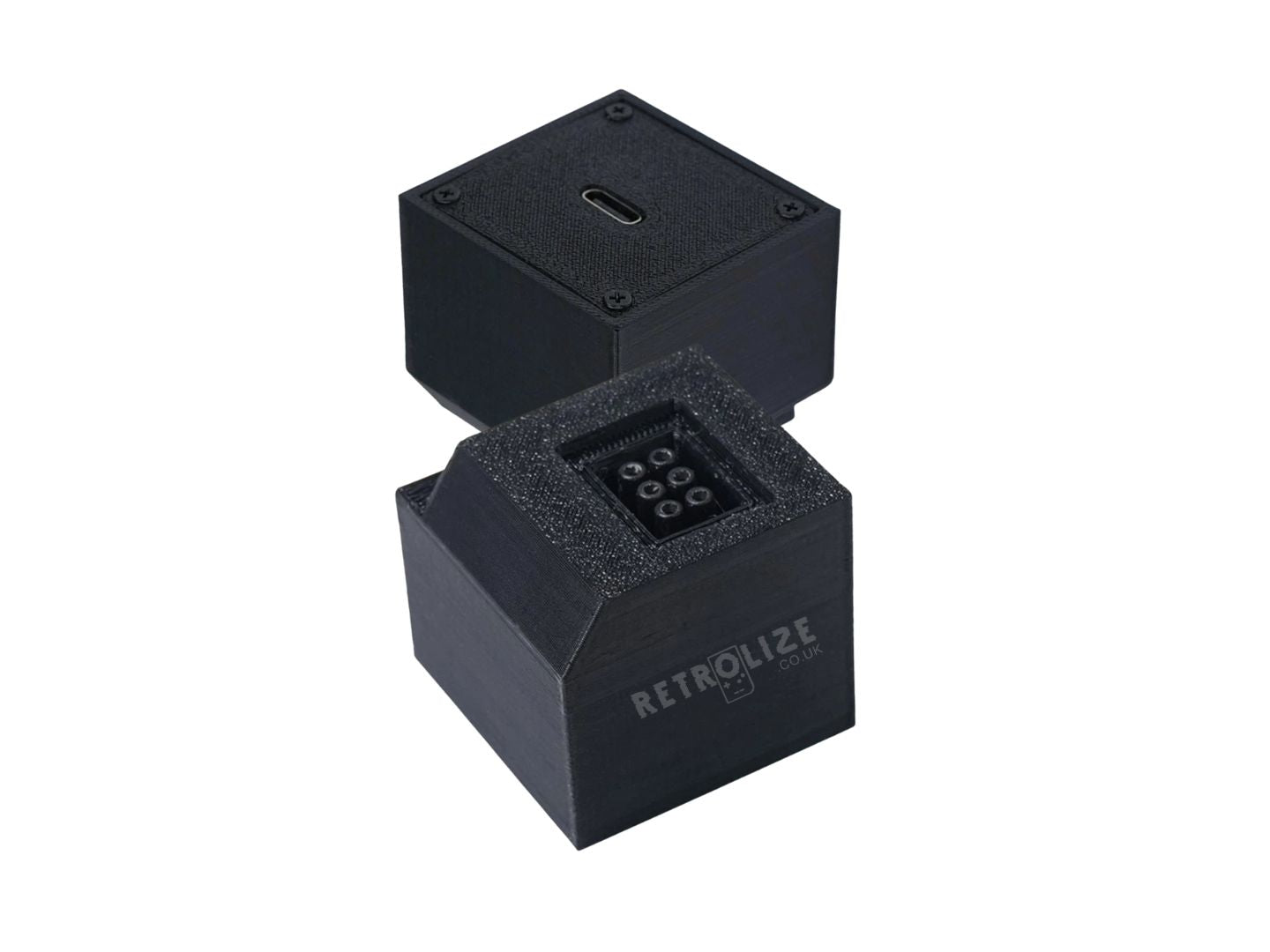

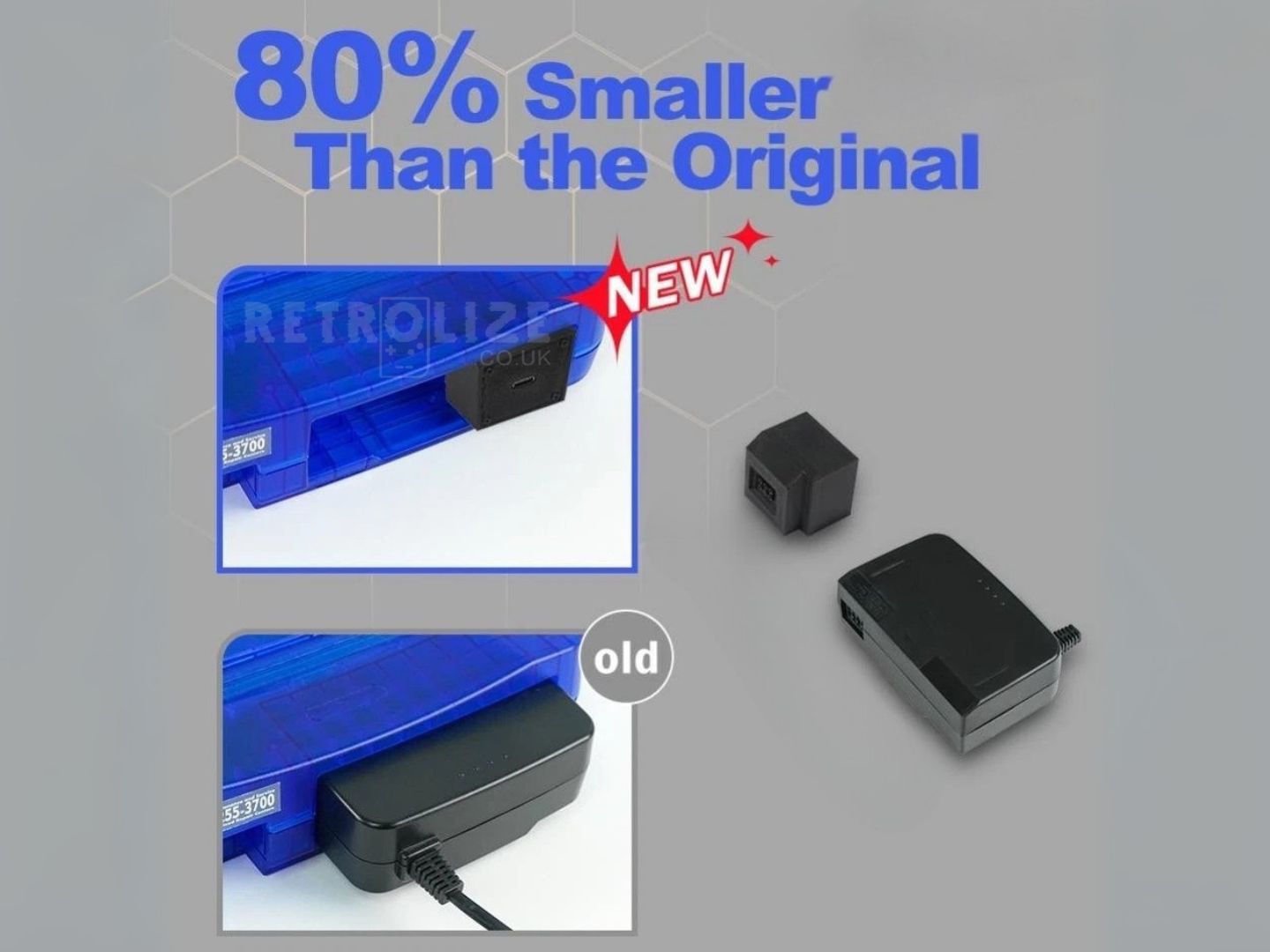

The compact housing measures approximately 4 × 3.5 × 3.7cm and is around 80% smaller than the original Nintendo 64 power supply. Once fitted into the rear of the console, only the USB-C cable needs to run from the N64 to the external charger, reducing the amount of bulky power hardware behind the television.

Installation requires no soldering, console disassembly or internal modification. Remove the original Nintendo 64 power supply, fit the USB-C PSU adapter into the rear power connection and connect a compatible USB-C PD charger and cable.

The adapter is particularly useful as a replacement for an ageing, faulty or missing Nintendo 64 power supply, but it also provides a cleaner alternative for modern retro gaming setups where several consoles may already share high-quality USB-C PD charging equipment.

Unlike the original region-specific mains supplies, the USB-C adapter itself is isolated from the local AC mains standard by the external PD charger. This makes it suitable for compatible PAL, NTSC-U and NTSC-J Nintendo 64 consoles when paired with a suitable USB-C PD charger for the country in which it is being used.

A USB-C PD power setup can also make an N64 easier to transport for gaming events, exhibitions or travel, eliminating the need to carry the considerably larger original Nintendo power brick.

For anyone looking for a modern Nintendo 64 power supply replacement, compact N64 PSU or USB-C power solution for original Nintendo 64 hardware, this PD3.0 adapter provides a straightforward upgrade without permanently altering the console.

Product Type: Nintendo 64 USB-C power supply adapter
Compatible Console: Nintendo 64
Original PSU Replacement: Nintendo NUS-002-style power supply
Console Connection: Original Nintendo 64 rear power connection
Power Input: USB Type-C
USB Protocol: USB Power Delivery 3.0
Required PD Profile: 15V/3A
Recommended Charger: 45W USB-C PD or higher with 15V/3A output support
Required Cable: USB-C to USB-C cable rated for at least 3A Power Delivery
Console Power Rails: 3.3V DC & 12V DC
Overvoltage Protection: Yes
Overcurrent Protection: Yes
Short-Circuit Protection: Yes
Overheat Protection: Yes
Console Modification Required: No
Console Disassembly Required: No
Soldering Required: No
Installation: Direct plug-in replacement
Approximate Dimensions: 4 × 3.5 × 3.7cm
Size Reduction: Approximately 80% smaller than the original N64 power supply
Housing Material: ABS
Colour: Black
USB-C Charger Included: No
USB-C Cable Included: No

Nintendo 64

PAL Nintendo 64: Supported

NTSC-U Nintendo 64: Supported

NTSC-J Nintendo 64: Supported

The Nintendo 64 power connection uses the same required 3.3V and 12V console-side power rails across supported regions. The external USB-C charger must be suitable for the local mains supply and provide the required 15V/3A USB-C PD profile.

Compatible USB-C Power Equipment

45W USB-C PD Charger With 15V/3A Output: Supported

65W USB-C PD Charger With 15V/3A Output: Supported

Higher-Wattage USB-C PD Chargers With 15V/3A Output: Supported

USB-C GaN Chargers: Supported where the required 15V/3A PD profile is provided

USB-C To USB-C 3A / 60W Cable: Supported

Higher charger wattage does not cause the Nintendo 64 to draw additional power. Compatibility depends on the charger providing the required USB Power Delivery profile.

15V/3A USB-C PD Required: Your USB-C charger must support the 15V/3A Power Delivery profile. Charger wattage alone does not guarantee compatibility, so check the charger's listed output profiles before use.

USB-C To USB-C Cable Required: Use a good-quality USB-C cable rated for at least 3A Power Delivery. USB-A chargers and USB-A to USB-C cables cannot provide the required PD negotiation.

Charger & Cable Not Included: The Nintendo 64 USB-C PSU adapter is supplied without a USB-C power adapter or cable.

Replaces The Original N64 PSU: This unit plugs directly into the Nintendo 64 power connection and replaces the original external NUS-002-style power brick. No internal console modification is required.

1 × Nintendo 64 USB-C PD3.0 Power Supply Adapter

Please Note: USB-C PD wall plug and USB-C cable are not included.

This Nintendo 64 USB-C PD Power Supply Adapter is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, damaged USB-C or console connectors, excessive force, unauthorised modification or faults caused by unsuitable power equipment.

Damage caused by using an incompatible power supply, incorrect voltage profile, damaged USB-C cable, non-compliant charger or other unsuitable power source is not covered.

The adapter requires a USB-C Power Delivery charger supporting the 15V/3A profile. Failure to operate with USB-A chargers, basic 5V USB-C supplies or PD chargers that do not provide the required 15V profile is not considered a product fault.

Faults caused by the Nintendo 64 console, damaged power connectors, internal motherboard problems, other connected accessories or modifications are not considered faults with the USB-C PSU adapter.

The Retrolize warranty is provided in addition to your statutory consumer rights.

Warranty claims remain subject to the full Retrolize warranty terms.
