SummerCart64 Elite 6TG N64 Flash Cartridge With 64DD Emulation

The SummerCart64 Elite 6TG N64 Flash Cartridge provides high-performance microSD loading, hardware-level Nintendo 64DD emulation, automatic save management and advanced USB-C functionality for original Nintendo 64 consoles.

A preconfigured 16GB microSD card is included with N64FlashcartMenu, emulator applications, supporting files and content organised across multiple classic systems. The cartridge is ready to use straight from the box while still allowing compatible files to be added or reorganised using a computer.

N64FlashcartMenu provides a graphical interface for browsing software stored on the card, with support for organised folders, favourites and recently accessed titles.

The included emulator applications extend the available system support to selected Game Boy, Game Boy Color, NES, Famicom, PC Engine, TurboGrafx-16, Fairchild Channel F, Master System, Game Gear, SG-1000, Super Nintendo and Super Famicom software. Performance varies between individual titles and emulator builds.

At the centre of the cartridge is a Lattice MachXO2-7000HC speed-grade -6 FPGA supported by 64MiB of SDRAM and 16MiB of onboard flash memory. Approximately 14MiB of the flash memory can supplement the SDRAM, allowing compatible Nintendo 64 software with a combined size of up to approximately 78MiB to be loaded.

EEPROM, SRAM and FlashRAM save types are supported with automatic write-back to the microSD card. Unlike flash cartridges that require the console Reset button to be pressed before switching off, SummerCart64 can store compatible save data automatically.

A battery-backed real-time clock supports compatible software that uses date or time functions. The installed CR2032 battery can be replaced when required.

Hardware-level Nintendo 64DD emulation allows compatible .ndd disk images to be used with the appropriate DD IPL file and configuration. Compatibility remains dependent on the software image, region, menu configuration and individual title.

Both the microSD and USB-C interfaces can provide transfer speeds of up to approximately 23.8MiB/s under suitable conditions. The cartridge supports microSD cards with capacities up to 2TB.

USB-C connectivity provides compatible data-transfer, software-development, debugging and firmware-deployment functions. It can be used with supported SummerCart64 computer software, including compatible sc64deployer, UNFLoader and IS-Viewer 64 development workflows.

The USB-C port is not a charging connection. The cartridge receives the power required for normal operation through the Nintendo 64 cartridge slot.

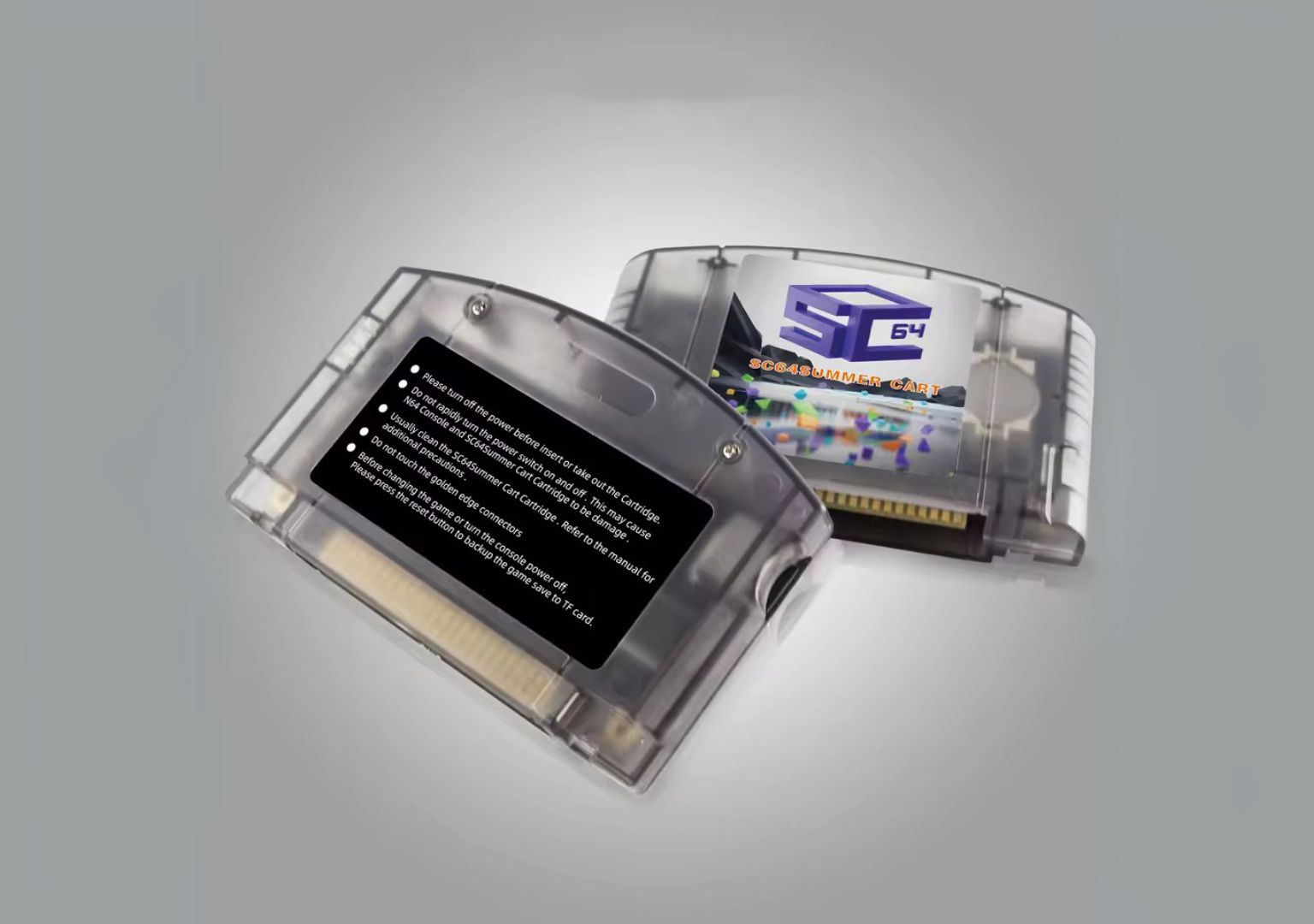

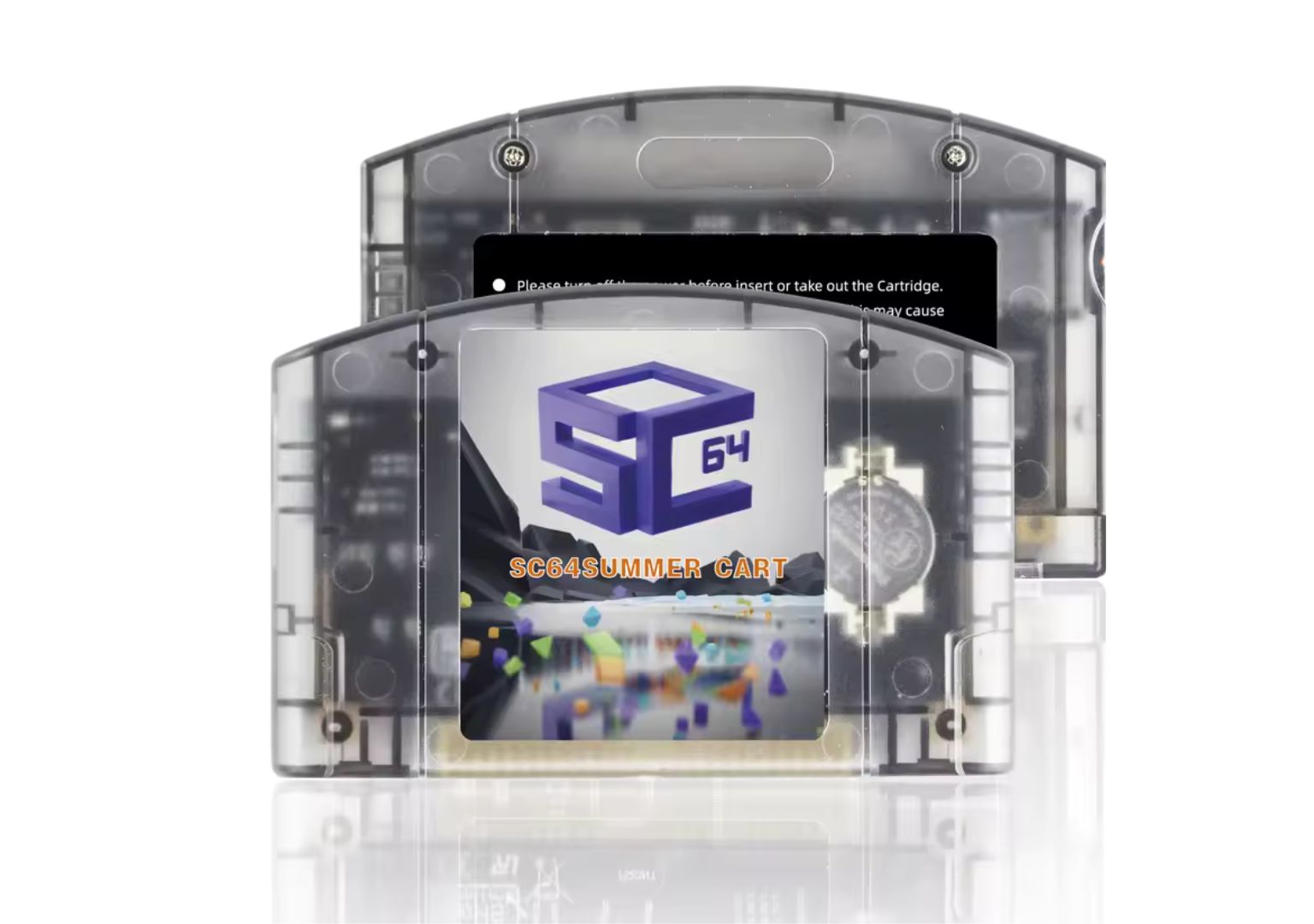

Finished in a Translucent Smoke Grey/Clear shell, the SummerCart64 Elite 6TG is dispatched from UK stock with fast delivery, international tracked delivery to supported destinations and a 12-month Retrolize warranty.

Brand: SummerCart64
Product Name: SummerCart64 Elite 6TG N64 Flash Cartridge
Product Type: Nintendo 64 Flash Cartridge
Model: SummerCart64 Elite
Hardware Revision: 6TG
FPGA: Lattice MachXO2-7000HC
FPGA Speed Grade: -6
Hardware Architecture: FPGA-Based Flash Cartridge
Console Connection: Nintendo 64 Cartridge Slot
System Memory: 64MiB SDRAM
Onboard Flash Memory: 16MiB QSPI Flash
Reserved Flash Memory: Approximately 2MiB
Extended Game Data Memory: Approximately 14MiB
Maximum Combined Software Size: Approximately 78MiB
On-Chip Buffer: 8KiB
Removable Storage: microSD Card
Maximum microSD Capacity: Up To 2TB
Included Storage: Preconfigured 16GB microSD Card
Included Card Configuration: N64FlashcartMenu, Emulator Applications, Supporting Files & Preconfigured Multi-System Content
Menu System: N64FlashcartMenu
Menu Features: Folder Browsing, Favourites & Recently Accessed Titles
Nintendo 64 ROM Formats: Z64, N64 & V64
64DD Image Support: NDD Disk Images With Compatible DD IPL & Configuration
64DD Emulation: Hardware-Level
Save Types: 4Kbit EEPROM, 16Kbit EEPROM, 256Kbit SRAM & 1Mbit FlashRAM
Save Management: Automatic Save Write-Back Without Reset
Real-Time Clock: Battery-Backed RTC
RTC Battery: Replaceable CR2032
Console Region Support: PAL, NTSC-U & NTSC-J
CIC Handling: UltraCIC_C With Automatic Region Handling
microSD Transfer Speed: Up To Approximately 23.8MiB/s
USB Transfer Speed: Up To Approximately 23.8MiB/s
Computer Connection: USB-C
USB-C Charging: Not Supported
USB Functions: Data Transfer, Development, Debugging & Supported Firmware Deployment
Firmware Updating: Supported Through A Compatible USB-C Connection
Firmware Deployment Software: Compatible sc64deployer Software
UNFLoader Support: Supported
IS-Viewer 64 Debug Interface: Supported
Game Boy Emulator File: gb.v64
Game Boy Color Emulator File: gbc.v64
NES & Famicom Emulator: Neon64 – neon64bu.rom
SNES & Super Famicom Emulator: Sodium64 – sodium64.z64
PC Engine & TurboGrafx-16 Emulator: POMPCE99 – POMPCE99.BIN & POMPCE99.z64
Master System, Game Gear & SG-1000 Emulator: smsPlus64 – smsPlus64.z64
Fairchild Channel F Emulator: Press-F Ultra – Press-F.z64
Included Conversion Utility: rom-converter.py
Expansion Pak Replacement: Not Supported
Controller Accessory Emulation: Not Supported
Console Modification Required: No
External Power Required: No
Power Source: Nintendo 64 Cartridge Slot
Shell Colour: Translucent Smoke Grey/Clear
SKU: SC64-6TG-16GB

Nintendo 64 Console Hardware

Original Nintendo 64 PAL Consoles: Supported
Original Nintendo 64 NTSC-U Consoles: Supported
Original Nintendo 64 NTSC-J Consoles: Supported
Nintendo 64 Expansion Pak: Supported When Required By Compatible Software
Permanent Console Modification: Not Required

Nintendo 64 & 64DD Software

Nintendo 64 Z64 ROM Format: Supported
Nintendo 64 N64 ROM Format: Supported
Nintendo 64 V64 ROM Format: Supported
Compatible Nintendo 64 Homebrew Software: Supported
Compatible 64DD NDD Disk Images: Supported With Required DD IPL & Configuration
Original Physical Nintendo 64DD Disks: Not Supported
Maximum Individual ROM Size: Approximately 78MiB

Emulated Systems

Nintendo Game Boy: Supported Through gb.v64
Nintendo Game Boy Color: Supported Through gbc.v64
Nintendo Entertainment System & Famicom: Supported Through Neon64
Super Nintendo & Super Famicom: Supported Through Sodium64
PC Engine & TurboGrafx-16: Supported Through POMPCE99
Sega Master System: Supported Through smsPlus64
Sega Game Gear: Supported Through smsPlus64
Sega SG-1000: Supported Through smsPlus64
Fairchild Channel F: Supported Through Press-F Ultra
Universal Compatibility Across Every Title: Not Guaranteed

Save & Accessory Support

4Kbit EEPROM Saves: Supported
16Kbit EEPROM Saves: Supported
256Kbit SRAM Saves: Supported
1Mbit FlashRAM Saves: Supported
Automatic Save Write-Back: Supported
Battery-Backed Real-Time Clock: Supported
Expansion Pak Replacement: Not Supported
Controller Pak Replacement: Not Supported
Rumble Pak Replacement: Not Supported
Transfer Pak Replacement: Not Supported
Nintendo 64 Microphone Replacement: Not Supported

USB-C & Development Functions

USB-C Data Connection: Supported
USB-C Charging: Not Supported
USB-C Data Transfer: Supported
Compatible Firmware Deployment: Supported
Compatible sc64deployer Software: Supported
Compatible Development & Debugging Functions: Supported
UNFLoader: Supported
IS-Viewer 64 Debug Interface: Supported

Connection Requirements

Nintendo 64 Cartridge Slot: Required
Compatible microSD Card: Required
External Power Supply: Not Required
Console Modification: Not Required
Hot Plugging: Not Supported

Important Supported-Systems Information

A platform being listed as supported does not guarantee that games for that platform are included on the supplied microSD card. Performance and compatibility vary between individual titles, emulator applications, software revisions and selected settings.

Elite 6TG Version: This is the SummerCart64 Elite version built around a Lattice MachXO2-7000HC speed-grade -6 FPGA.

Preconfigured 16GB microSD Card: The supplied card is prepared with N64FlashcartMenu, emulator applications, supporting files and content arranged across multiple supported systems.

Preconfigured Content May Vary: The exact selection and organisation of content can change between production batches. A system being listed as supported does not guarantee that games for that system are present on the supplied card.

Included Emulator Applications: The supplied microSD card includes emulator applications for Game Boy, Game Boy Color, NES, Famicom, PC Engine, TurboGrafx-16, Fairchild Channel F, Master System, Game Gear, SG-1000, Super Nintendo and Super Famicom software.

Emulator File Identification: gb.v64 is the Game Boy build, gbc.v64 is the Game Boy Color build, neon64bu.rom is Neon64 for NES and Famicom, POMPCE99.BIN and POMPCE99.z64 are two formats of the POMPCE99 PC Engine and TurboGrafx-16 emulator, Press-F.z64 is Press-F Ultra for Fairchild Channel F, smsPlus64.z64 supports Master System, Game Gear and SG-1000, and sodium64.z64 supports Super Nintendo and Super Famicom software.

ROM Converter Utility: rom-converter.py is a supporting file-conversion utility and is not an emulator or game.

Back Up The Supplied Card: Create a complete backup of the supplied microSD card before adding, deleting, reorganising or replacing any files.

6TG & 4TG Differences: This Elite 6TG version uses the faster speed-grade -6 FPGA specified by the SummerCart64 reference design and includes USB-C connectivity for supported data-transfer, development, debugging and firmware-deployment functions. The separate 4TG version uses a speed-grade -4 FPGA and does not provide these USB-C functions.

USB-C Is Not A Charging Connection: The USB-C port is used for compatible data-transfer, development, debugging and firmware-deployment functions. It does not charge or power the cartridge for normal console use.

Menu & Firmware Are Separate: N64FlashcartMenu is stored on the microSD card, while the cartridge firmware is installed on the SummerCart64 hardware. They use different procedures and must not be confused.

Firmware Compatibility: Only install firmware explicitly confirmed as compatible with SummerCart64 and this 6TG hardware revision. Incorrect, incompatible or interrupted firmware installation can leave the cartridge unresponsive.

Expansion Pak Requirements Still Apply: Games and homebrew that require the Nintendo 64 Expansion Pak will still require a working Expansion Pak to be installed in the console.

Controller Accessories Not Replaced: The cartridge does not replace a Controller Pak, Rumble Pak, Transfer Pak, microphone or another controller-port accessory required by compatible software.

64DD Requirements: Nintendo 64DD emulation requires compatible .ndd disk images, the appropriate DD IPL file and the correct configuration. Original physical 64DD disks cannot be inserted or read.

Emulation Performance Varies: Performance varies between individual titles, emulator applications and settings. A system being supported does not mean that every title will run perfectly.

Regional Compatibility: PAL, NTSC-U and NTSC-J consoles are supported. Regional and CIC handling does not convert a game’s original video standard, timing or software region.

Automatic Save Write-Back: EEPROM, SRAM and FlashRAM saves can be written automatically to the microSD card without pressing the console Reset button. Allow storage activity to finish before switching the console off.

Hot Plugging: Always switch the Nintendo 64 off before inserting or removing the cartridge, microSD card or Expansion Pak.

First-Time Setup

1. Create a complete backup of the supplied 16GB microSD card using a computer.
2. Ensure that the microSD card is fully inserted into the SummerCart64 cartridge.
3. Switch the Nintendo 64 off.
4. Insert the SummerCart64 firmly into the cartridge slot.
5. Install an Expansion Pak if the selected title requires one.
6. Switch the Nintendo 64 on.
7. Allow N64FlashcartMenu to load.
8. Browse the available folders and select the required title or emulator application.
9. After saving, allow the cartridge time to complete save-data write-back before switching the console off.
10. Always switch the console off before removing the cartridge or microSD card.

Managing Files On The microSD Card

1. Switch the Nintendo 64 off.
2. Remove the SummerCart64 cartridge from the console.
3. Remove the microSD card from the cartridge.
4. Connect the card to a compatible computer using a suitable microSD card reader.
5. Create a complete backup before changing its contents.
6. Add, remove or organise compatible files as required.
7. Safely eject the microSD card from the computer.
8. Reinsert the card fully into the SummerCart64 before use.

Updating N64FlashcartMenu

1. Back up the supplied microSD card and all important save data.
2. Download a compatible N64FlashcartMenu release.
3. Follow the instructions supplied with that release when replacing the menu files.
4. Safely eject the microSD card from the computer.
5. Reinsert the card into the SummerCart64 and test the menu before making further changes.

Replacing N64FlashcartMenu files on the microSD card does not update the cartridge firmware.

Updating SummerCart64 Firmware

1. Confirm that the firmware is intended for SummerCart64 and compatible with the Elite 6TG hardware revision.
2. Connect the cartridge to a compatible computer using a data-capable USB-C cable.
3. Use the supported SummerCart64 deployment method or compatible sc64deployer software.
4. Maintain a stable USB connection throughout the process.
5. Do not disconnect the cartridge, interrupt the software or remove power while the update is in progress.
6. Test the cartridge after the deployment process has completed successfully.

Damage caused by installing incorrect or incompatible firmware, interrupting an update or carrying out the procedure incorrectly is not covered by the Retrolize warranty.

1 × SummerCart64 Elite 6TG N64 Flash Cartridge In Translucent Smoke Grey/Clear
1 × Preconfigured 16GB microSD Card With N64FlashcartMenu, Emulator Applications, Supporting Files & Multi-System Content

This SummerCart64 Elite 6TG N64 Flash Cartridge is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use from the date of delivery.

The warranty does not cover accidental damage, liquid damage, misuse, forced insertion, damaged cartridge contacts, damaged USB-C or microSD connections, unauthorised modification, corrupted storage, deleted files or user-added content.

Damage, loss of function or bricking caused by installing incorrect or incompatible firmware, interrupting a firmware update or carrying out the procedure incorrectly is not covered by the warranty.

Software compatibility, emulator performance, game-specific behaviour, regional differences, save-data loss, microSD card corruption and changes made to the contents of the supplied microSD card are not considered hardware faults. Customers should create and retain a backup of the supplied card and important save data.

The cartridge must always be inserted and removed while the Nintendo 64 is switched off. Damage caused by hot plugging, incorrect insertion or operation outside the stated requirements is not covered.

Warranty claims remain subject to the full Retrolize warranty terms and are provided in addition to the customer’s statutory rights.

Is The SummerCart64 Elite 6TG Ready To Play?

Yes. The supplied 16GB microSD card is preconfigured with N64FlashcartMenu, emulator applications, supporting files and content organised across multiple supported systems, allowing the cartridge to be used without an initial menu installation.

What Is Included On The 16GB microSD Card?

The card includes N64FlashcartMenu, emulator applications, supporting utilities and preconfigured content arranged across multiple supported systems. The exact selection can vary between production batches.

Which Emulator Applications Are Included?

The supplied emulator applications provide support for selected Game Boy, Game Boy Color, NES, Famicom, PC Engine, TurboGrafx-16, Fairchild Channel F, Master System, Game Gear, SG-1000, Super Nintendo and Super Famicom software.

What Is The Difference Between The Elite 6TG & 4TG Versions?

The Elite 6TG uses a Lattice MachXO2-7000HC speed-grade -6 FPGA and includes USB-C connectivity for compatible data-transfer, development, debugging and firmware-deployment functions.

The separate 4TG version uses a speed-grade -4 FPGA and does not include USB connectivity or user-updatable cartridge firmware. Both versions retain the principal microSD, automatic-save, RTC and 64DD functions.

Why Are There Two POMPCE99 Files?

POMPCE99.BIN and POMPCE99.z64 are two file formats of the same PC Engine and TurboGrafx-16 emulator. They are not two different emulators.

What Is rom-converter.py?

It is a supporting file-conversion utility included on the microSD card. It is not an emulator or game and normally requires a compatible Python environment on a computer.

Is Content Included For Every Supported Platform?

Not necessarily. A system being listed as supported does not guarantee that games for that system are present on the supplied microSD card.

Can I Add My Own Compatible Files?

Yes. Compatible files can be added to the microSD card using a computer. Back up the supplied card before making changes.

Does The SummerCart64 Require An Expansion Pak?

The cartridge itself does not require an Expansion Pak for normal operation. However, software that originally required or benefited from the Expansion Pak will still require one.

Can It Replace A Controller Pak Or Transfer Pak?

No. The SummerCart64 cannot replace a Controller Pak, Rumble Pak, Transfer Pak, microphone or another controller-port accessory.

Does It Support Nintendo 64DD Software?

Yes. The cartridge provides hardware-level 64DD emulation for compatible .ndd disk images. The correct DD IPL file and supporting configuration are required, and compatibility can vary between titles.

Does It Save Automatically?

Yes. Compatible EEPROM, SRAM and FlashRAM save data is written back automatically without requiring a console reset. Allow sufficient time for the write-back process before switching the console off.

Does It Work With PAL, NTSC-U & NTSC-J Consoles?

Yes. The cartridge provides compatible regional and CIC handling for PAL, NTSC-U and NTSC-J consoles. This does not convert video standards or eliminate every software, timing or display difference between regions.

Can Developers Use The USB-C Port?

Yes. The USB-C connection supports compatible data-transfer, development, debugging and firmware-deployment functions.

Does The USB-C Port Charge The Cartridge?

No. It is a data connection and is not used for charging. The cartridge receives its normal operating power from the Nintendo 64 cartridge slot.

Can The Cartridge Firmware Be Updated?

Yes. Compatible SummerCart64 firmware can be deployed through the USB-C connection using supported software such as sc64deployer.

Only firmware explicitly confirmed as compatible with SummerCart64 and the Elite 6TG hardware revision should be installed.

Is International Delivery Available?

Yes. International tracked delivery is available to supported destinations, with available services calculated at checkout.
