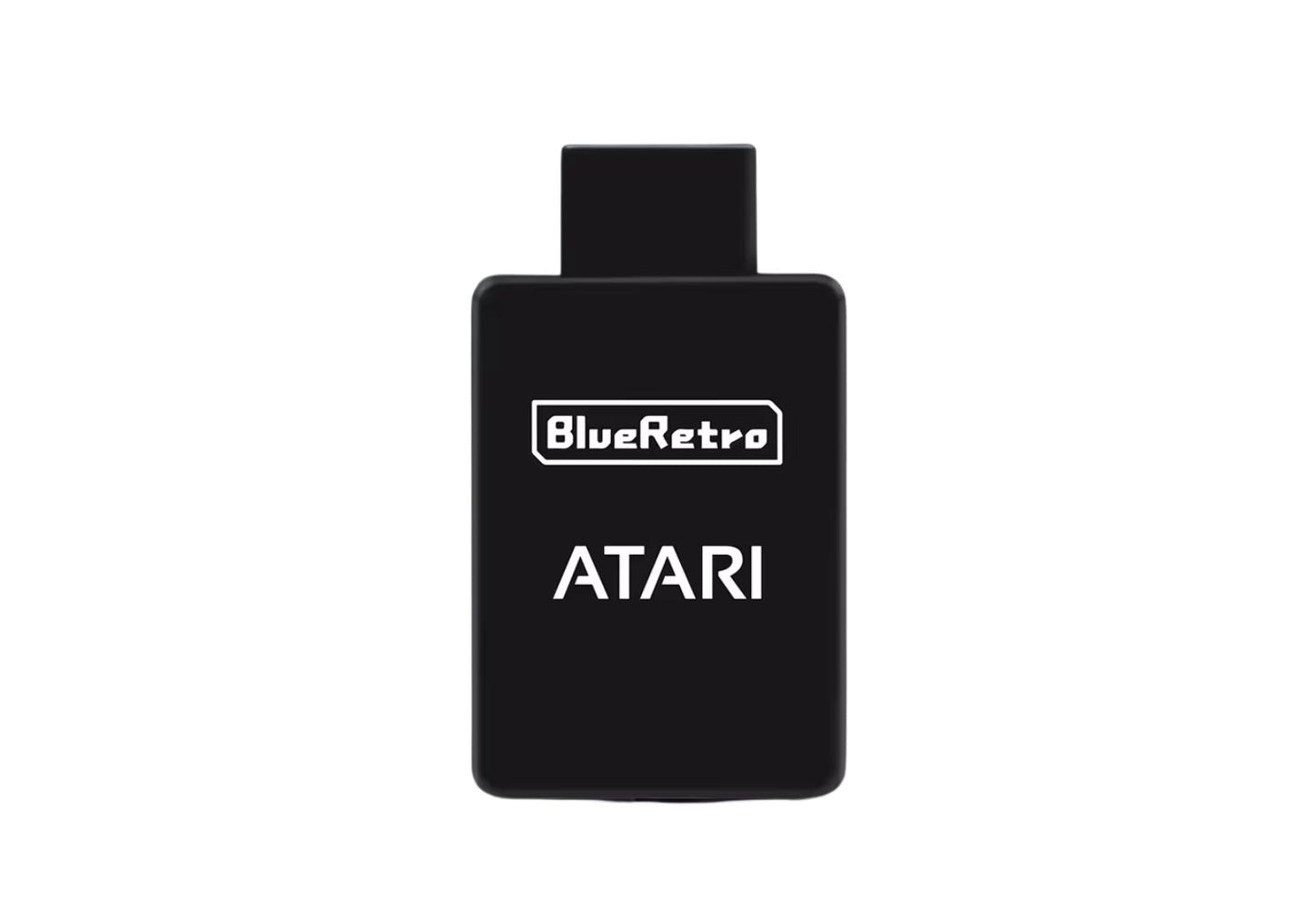

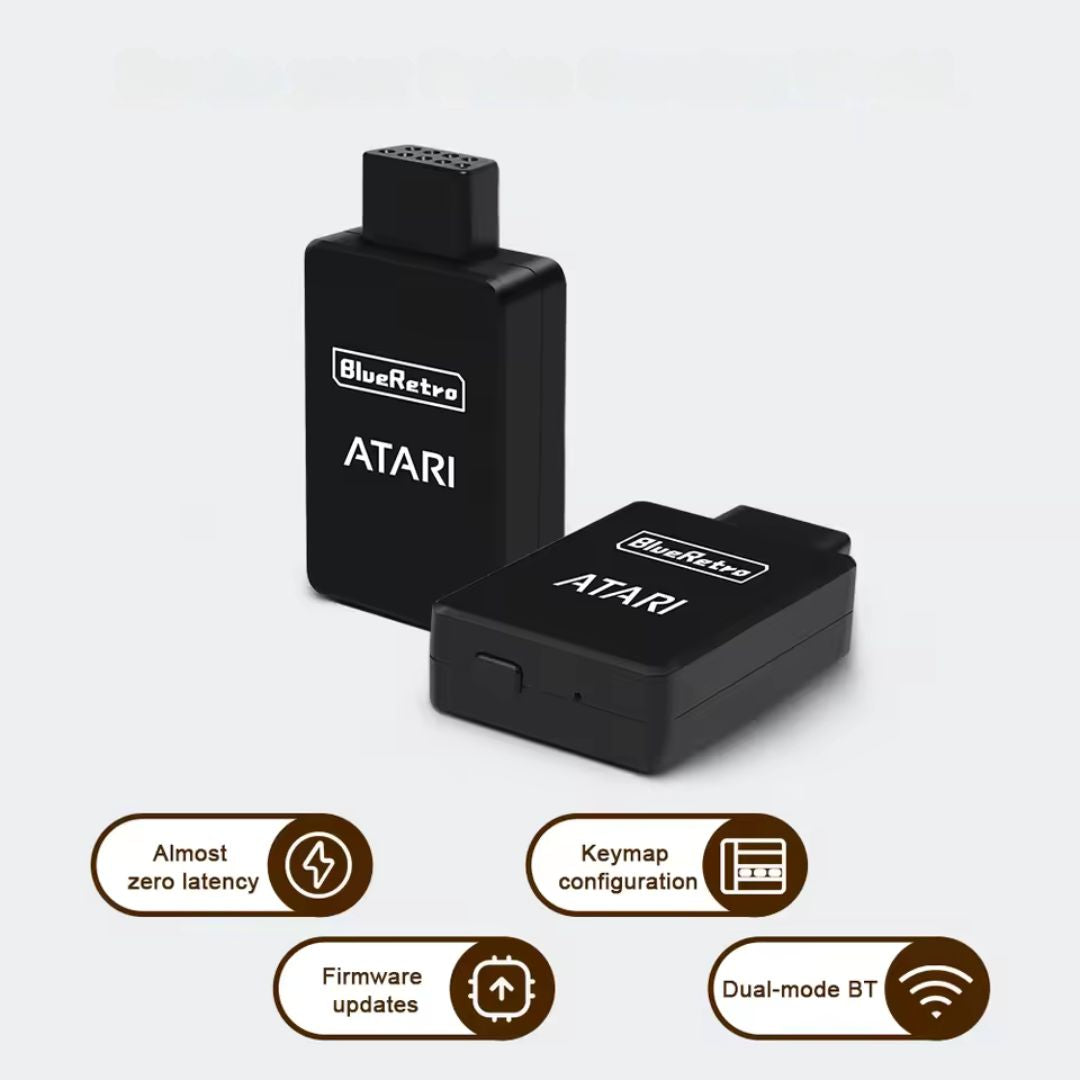

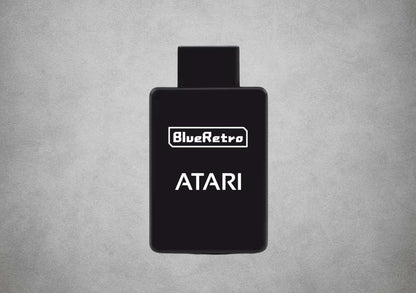

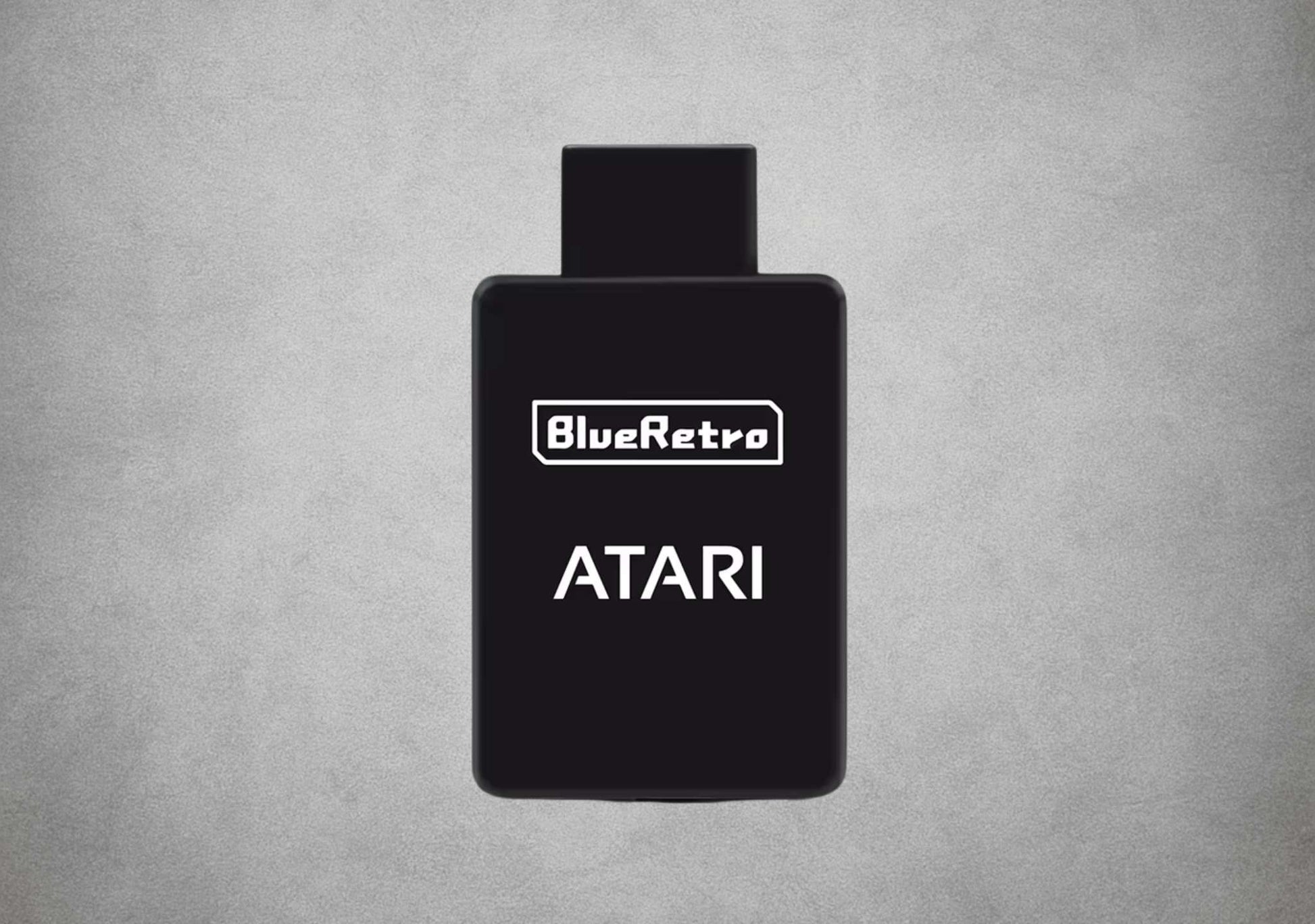

BlueRetro Atari 2600 Bluetooth Controller Adapter

This RetroScaler BlueRetro Atari 2600 Bluetooth Controller Adapter connects selected modern Bluetooth controllers to an original Atari Video Computer System or Atari 2600 console. The compact wireless receiver connects to a standard 9-pin controller port, providing plug and play with no console modification required and drawing power from the console.

Built around the ESP32-based BlueRetro platform, the adapter translates compatible Bluetooth controller inputs into the digital directions and primary fire-button command used by a standard Atari 2600 joystick. It is designed for games that use this joystick interface.

It offers wide compatibility with official Sony DualShock 3, DualShock 4 and DualSense controllers, Bluetooth-enabled Xbox One and Xbox Series X|S controllers, Nintendo Switch Pro Controllers and Joy-Con, Wii Remotes, Wii U Pro Controllers and selected 8BitDo, Retro-Bit and Bluetooth HID controllers. Support depends on the exact controller, firmware and operating mode. Official DualShock 3 and Sixaxis controllers require additional first-time pairing setup.

A suitable controller’s analogue stick can be mapped to digital directional controls, allowing you to play standard joystick games with a modern gamepad. The Atari still receives digital directions; analogue-stick support does not provide variable paddle movement or reproduce specialist Atari controllers.

Button assignments can be adjusted through BlueRetro Web Config, letting you choose suitable directional inputs and a convenient fire button. Configuration uses a Bluetooth-enabled computer or Android device with a compatible browser supporting Web Bluetooth. Disconnect the controller before opening a configuration session, save the changes and reconnect to test the layout.

This adapter provides standard digital joystick emulation. Paddle, driving, keypad and other specialist controller functions are not supported, and the original Atari 2600 joystick interface does not provide game-controlled rumble.

The receiver is specified for original six-switch and four-switch Atari 2600 consoles, including Atari 2600 Jr models. Each adapter supports one wireless controller. For compatible two-player games, use a separate adapter in each controller port. The included 9-pin extension cable provides an alternative connection position where access to the console’s port is awkward.

Over-the-air firmware updating is available through BlueRetro’s browser-based updater. Firmware must be confirmed compatible with this exact RetroScaler adapter; builds intended for another model should not be substituted.

Finished in Black, the adapter is supplied from UK stock with fast UK delivery, tracked international delivery to supported destinations and a 12-month Retrolize warranty.

Explore our complete range of Bluetooth controller adapters for retro consoles.

If you also need a controller, explore our wireless controllers for retro consoles. Choose a compatible Bluetooth model for use with this adapter.

Brand: RetroScaler
Product Name: BlueRetro Atari 2600 Bluetooth Controller Adapter
Product Type: Bluetooth controller adapter & wireless receiver
Model: BlueRetro for Atari 2600
Manufacturer Product Code: XLL-BR-Atari 2600-1TO1-BK
Platform: BlueRetro open-source hardware & software
Core Hardware: ESP32
Wireless Technology: Bluetooth Classic BR/EDR & Bluetooth Low Energy
Wireless Receiver: Integrated BlueRetro receiver
Receiver Connection: Original Atari 2600 9-pin controller port
Receiver Power: Console controller port
Controllers Per Receiver: 1
Maximum Direct Adapters Per Console: 2
Console Compatibility: Original Atari VCS / Atari 2600 six-switch, four-switch & Atari 2600 Jr consoles
Controller Output: Standard Atari 2600 digital joystick emulation
Directional Input: Digital Up, Down, Left & Right
Primary Fire Button: Supported
Analogue Stick Input: Converted into digital directional commands
Rumble: Not supported by the original Atari 2600 joystick interface
Specialist Controller Support: Paddle, driving, keypad & other specialist controller functions not supported
Button Mapping: Configurable
Configuration: BlueRetro Web Config
Firmware Updating: OTA through BlueRetro Web Updater with hardware-compatible firmware
Console Modification Required: No
External Power Required: No
Colour: Black
SKU: BR-ATARI2600-BLK

Original Atari 2600 Consoles

Original Atari Video Computer System / Atari 2600 Six-Switch Consoles: Supported
Atari 2600 Four-Switch Consoles: Supported
Atari 2600 Jr Consoles: Supported

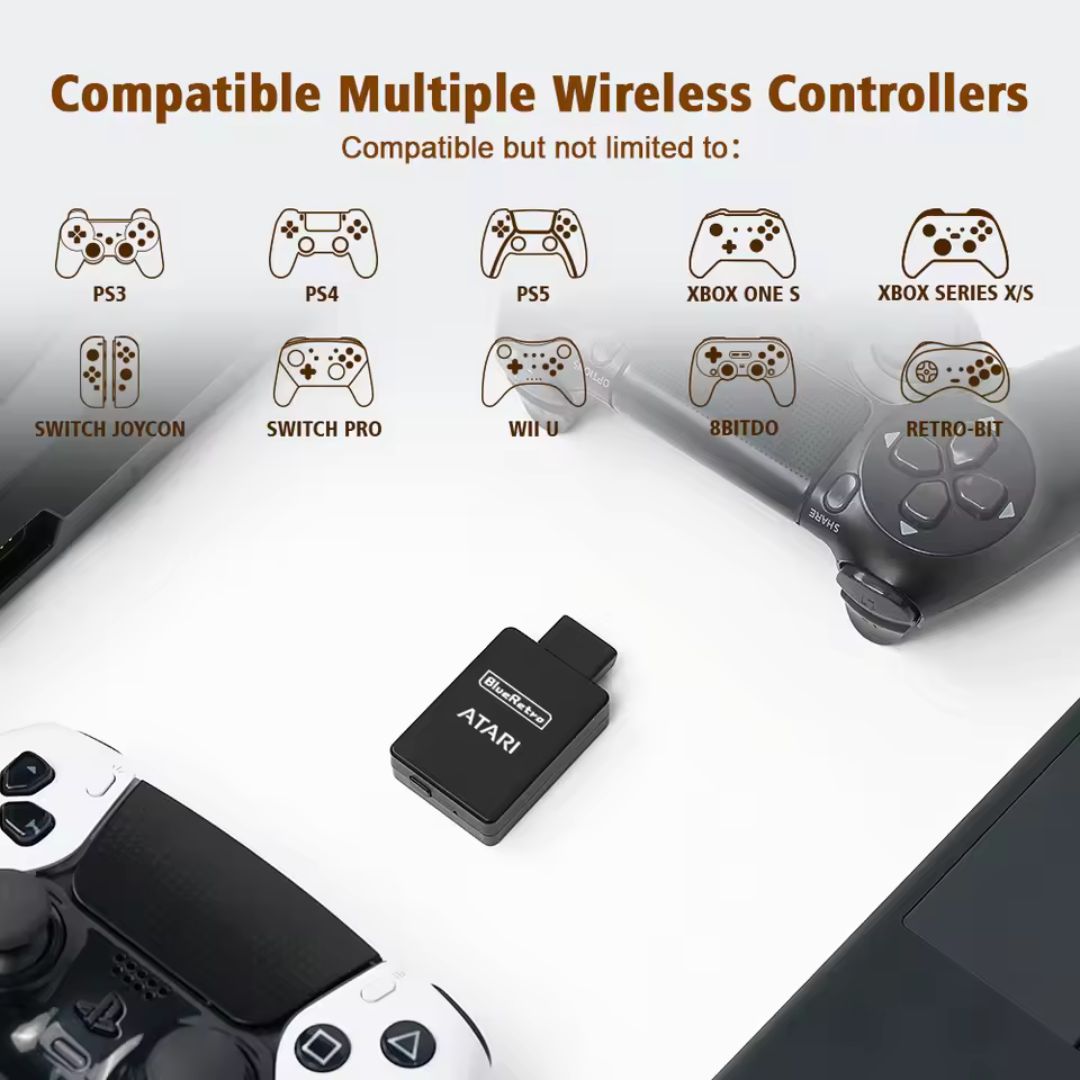

Compatible Bluetooth Controllers

Official Sony DualShock 4 Controllers: Supported
Official Sony DualSense Controllers: Supported
Official Sony DualShock 3 & Sixaxis Controllers: Supported with additional first-time pairing setup
Bluetooth-Enabled Xbox One Controllers: Supported
Xbox Series X|S Wireless Controllers: Supported
Nintendo Switch Pro Controllers & Joy-Con: Supported with appropriate mapping and configuration
Nintendo Wii Remotes & Wii U Pro Controllers: Supported
Selected 8BitDo Bluetooth Controllers: Support varies by model, firmware and operating mode
Selected Retro-Bit Bluetooth Controllers: Support varies by model, firmware and operating mode
Selected Bluetooth HID Controllers: Support varies by controller hardware, firmware and operating mode

Atari Controller Functions & Output

Digital Directional Controls: Supported
Primary Fire Button: Supported
Standard Atari 2600 Joystick Emulation: Supported
Analogue Stick Input: Supported through conversion into digital directional commands
Button Remapping: Supported through BlueRetro Web Config

Connection Requirements

Controllers Per Adapter: One
Adapters Required For Multiplayer: One adapter for each wireless controller
Maximum Direct Adapters Per Console: Two
Console Modification: Not required
Standard Power Source: Console controller port
Insertion & Removal: Switch the console off first
Web Config: Compatible browser with Web Bluetooth support on a Bluetooth-enabled computer or Android device
Firmware Updating: Only use firmware confirmed compatible with this exact RetroScaler adapter

Compatible Controller Required: A supported Bluetooth controller is required and is not included. Compatibility can vary between controller models, hardware revisions, firmware versions and operating modes.

Compatible Consoles: Specified for original Atari Video Computer System / Atari 2600 six-switch and four-switch consoles, including Atari 2600 Jr models.

Original Atari VCS: References to Atari VCS in this listing mean the original Atari Video Computer System, later named Atari 2600. They do not refer to the modern Atari VCS console.

One Adapter Per Controller: A separate adapter and available controller port are required for each wireless controller. Up to two adapters can be connected to the console’s two controller ports.

Standard Joystick Emulation: This adapter reproduces the digital directions and primary fire button of a standard Atari 2600 joystick. It does not reproduce paddle, driving, keypad or other specialist controller functions.

Analogue Stick Input: A compatible controller’s analogue-stick movement can be converted into digital directional commands. This does not provide analogue paddle control or change the original game’s input functions.

Bluetooth Controllers Only: Controllers that operate exclusively through a proprietary 2.4GHz receiver or USB dongle cannot connect through Bluetooth. For controllers with multiple connection modes, use the supported Bluetooth mode.

Xbox Compatibility: Xbox Series X|S and Bluetooth-enabled Xbox One controllers are supported. Xbox 360 controllers and original Xbox One controllers without Bluetooth are not supported.

PlayStation 3 Pairing: Official Sony DualShock 3 and Sixaxis controllers require additional first-time setup using a compatible computer. Follow the BlueRetro controller pairing guide. They do not use the standard DualShock 4 or DualSense pairing procedure.

Rumble: The original Atari 2600 joystick interface does not provide game-controlled rumble.

Other Consoles: Atari 7800, Atari 2600+, Atari 7800+, modern Atari VCS and other systems are not included in this listing’s verified compatibility. A matching 9-pin connector does not establish full compatibility. Contact Retrolize before ordering for hardware not listed under Supported Systems.

Hot Plugging: Always switch the Atari 2600 off before inserting or removing the adapter or controller extension cable.

Firmware Compatibility: Only install firmware explicitly confirmed as compatible with this exact RetroScaler Atari 2600 adapter. Do not assume that a universal BlueRetro build or firmware intended for another console-specific adapter is suitable.

First-Time Pairing

1. Switch the Atari 2600 off.
2. Connect the BlueRetro adapter to the required controller port. Use the included 9-pin extension cable if needed for access.
3. Switch the console on. The adapter should enter pairing mode.
4. If pairing mode is not active, use the adapter’s BOOT control according to the supplied instruction booklet.
5. Place the supported Bluetooth controller into its pairing mode, using the correct operating mode for that model.
6. Wait for the controller and adapter to connect.
7. Test the directional controls and mapped fire button with a game that uses a standard joystick.
8. Once pairing information has been stored, the controller can normally reconnect by being switched on again.
9. Always switch the Atari 2600 off before removing or changing the adapter.

Controller-Specific Pairing Information

DualShock 4: With the controller switched off, hold Share + PS until its light flashes.
DualSense: With the controller switched off, hold Create + PS until its light flashes.
Xbox Controllers: Switch the supported controller on and use its pairing button. It must be a Bluetooth-enabled model.
Nintendo Switch Controllers: Use the controller’s physical SYNC button to start pairing.
8BitDo Controllers: Select the Bluetooth operating mode documented for the exact model. Many supported models use XInput mode, but this is not universal across the range.
Retro-Bit Bluetooth Controllers: Use the compatible Bluetooth operating mode documented for the exact model.
DualShock 3 & Sixaxis: Complete the additional Bluetooth-address setup described in the BlueRetro controller pairing guide.

Using BlueRetro Web Config

1. Switch the Atari 2600 on with the adapter connected.
2. Ensure that no Bluetooth controller is currently connected to the adapter.
3. Open BlueRetro Web Config using a compatible Chrome-based browser on a Bluetooth-enabled computer or Android device with Web Bluetooth support.
4. Connect to the adapter through the browser.
5. Configure the directional inputs and primary fire-button mapping as required.
6. Save the changes.
7. Disconnect the browser session, reconnect the controller and test the controls.

Digital Direction And Fire-Button Mapping

Map suitable controller inputs to the Atari joystick’s Up, Down, Left, Right and Fire functions.

An analogue stick can be used as the source for digital directions. The game still receives digital joystick commands rather than variable analogue movement.

Additional buttons on the Bluetooth controller can be assigned to supported functions, but the adapter does not add extra game actions beyond those accepted by the original Atari joystick interface.

Adapter Button And Reset Behaviour

Use the BOOT button as described in the instruction booklet for the adapter and its installed firmware.

Pairing and reset behaviour can differ between firmware versions. A configuration reset must not be assumed to restore the original firmware supplied with the adapter. Contact Retrolize if you need help resetting or recovering the unit.

Firmware Updating

The adapter supports updating through the BlueRetro OTA Firmware Updater while powered and with no Bluetooth controller connected.

Only use a firmware file explicitly confirmed as compatible with this exact RetroScaler Atari 2600 adapter. Keep the adapter powered throughout the update and wait for the updater to complete before disconnecting or switching off the console.

Connection & Control Troubleshooting

Controller Will Not Pair: Check that it supports Bluetooth, is using the correct operating mode and is actively pairing. Disconnect it from another device if necessary.

Web Config Cannot Find The Adapter: Disconnect the controller first. Check that Bluetooth is enabled and that the browser supports Web Bluetooth.

Directions Or Fire Do Not Work: Check the input mapping and test with a game designed for a standard Atari joystick. Paddle, driving and keypad games require different controller functions.

Analogue Stick Does Not Centre Correctly: Leave sticks and triggers untouched while connecting. With supported Xbox and XInput devices, press a face button a few times after connection while the sticks and triggers remain neutral.

Controller Connects But A Paddle Game Does Not Respond Correctly: This adapter does not emulate paddle input. Use the controller type required by the game.

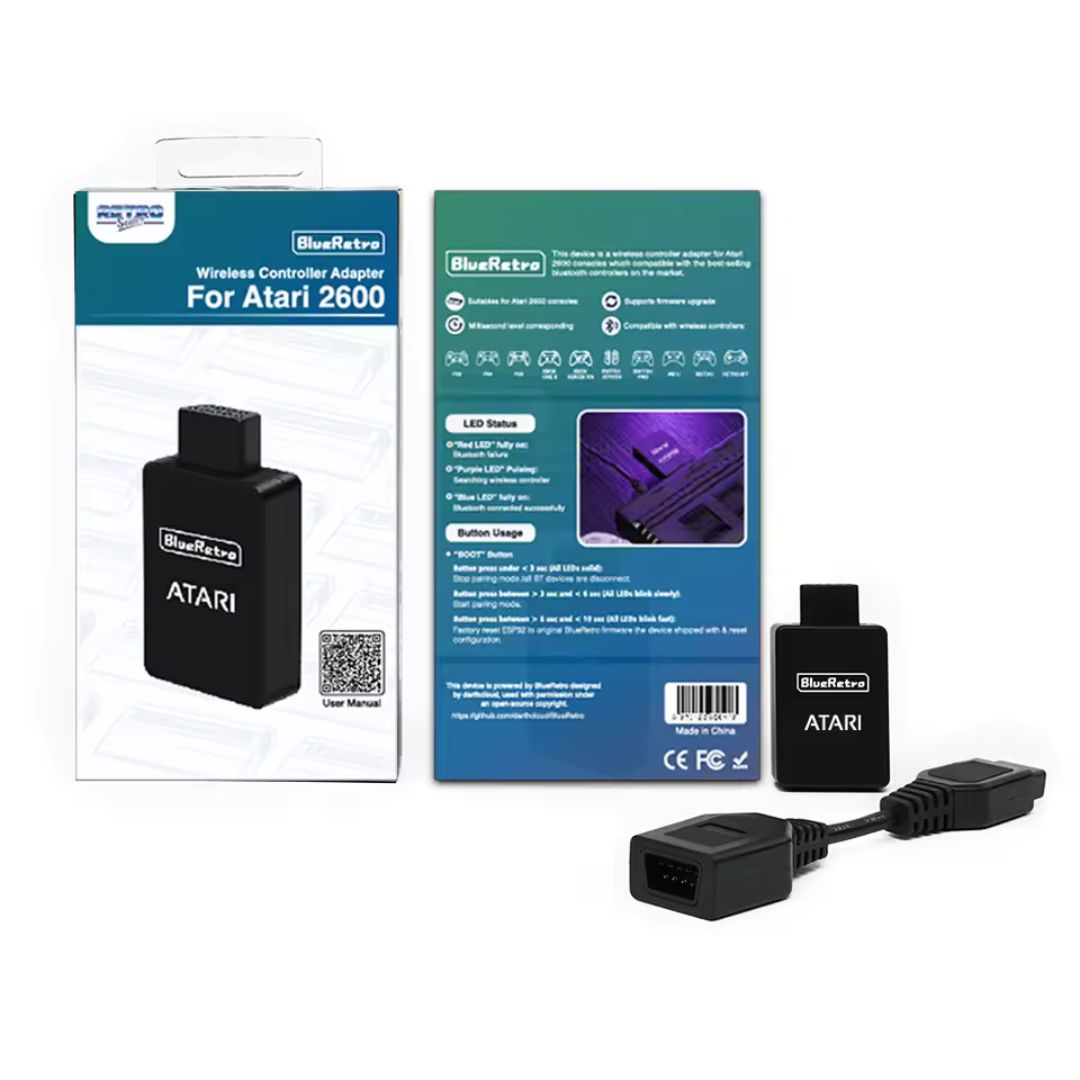

1 × RetroScaler BlueRetro Atari 2600 Bluetooth Controller Adapter in Black
1 × 9-pin controller extension cable
1 × Instruction booklet
1 × Retail box

This RetroScaler BlueRetro Atari 2600 Bluetooth Controller Adapter is covered by a 12-month Retrolize warranty against manufacturing defects and hardware faults arising during normal use from the date of delivery.

The warranty does not cover accidental damage, liquid damage, forced insertion, hot plugging, unauthorised modification, incorrect external power, incorrectly performed or interrupted firmware updates, or firmware not explicitly confirmed as compatible with this exact adapter.

Compatibility differences caused by unsupported controllers, proprietary 2.4GHz receivers, third-party controller firmware, individual games or unsupported operating modes are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms and are additional to the customer’s statutory rights.

Can I Use A PS5 DualSense Controller On An Atari 2600?

Yes. An official Sony DualSense controller can be paired with the adapter and used for standard Atari 2600 digital joystick controls.

Can I Use A PS4 DualShock 4 Controller?

Yes. Pair it using Share + PS, then check the directional and fire-button mapping.

Can I Use A PS3 Controller?

Official Sony DualShock 3 and Sixaxis controllers are supported with additional first-time pairing setup. They do not use the same standard wireless pairing process as DualShock 4 or DualSense controllers.

Can I Use An Xbox Controller On An Atari 2600?

Yes. Xbox Series X|S controllers and Bluetooth-enabled Xbox One controllers are supported. Xbox 360 controllers and original Xbox One controllers without Bluetooth are not supported.

Can I Use An 8BitDo Controller?

Selected 8BitDo Bluetooth controllers are supported. Compatibility depends on the controller model, firmware and operating mode. A controller that only uses a proprietary 2.4GHz receiver cannot connect through Bluetooth.

Can An Analogue Stick Control Atari 2600 Games?

Yes. The adapter converts suitable analogue-stick movement into the digital directional commands used by a standard Atari 2600 joystick. It does not provide analogue paddle control.

Does It Support Atari Paddle Or Driving Controllers?

No. The adapter emulates a standard digital Atari 2600 joystick and does not reproduce paddle, driving, keypad or other specialist controller functions.

Can I Remap The Fire Button?

Yes. Use BlueRetro Web Config to assign a suitable controller button to the Atari joystick’s fire command, then save and test the mapping.

Can I Connect Two Wireless Controllers?

Yes, but each wireless controller requires its own adapter. Connect one adapter to each Atari 2600 controller port for compatible two-player games.

Does Rumble Work?

No. The original Atari 2600 joystick interface does not provide game-controlled rumble.

Can I Use A Controller’s 2.4GHz USB Receiver?

No. Controllers that work only through a proprietary 2.4GHz USB receiver cannot connect through Bluetooth.

Does It Work With An Atari 7800, Atari 2600+ Or Modern Atari VCS?

This listing is specified for original Atari 2600 and original Atari VCS hardware. Other systems are not included in the verified compatibility list.

Contact Retrolize before ordering specifically for an Atari 7800, Atari 2600+, Atari 7800+, modern Atari VCS or another system.

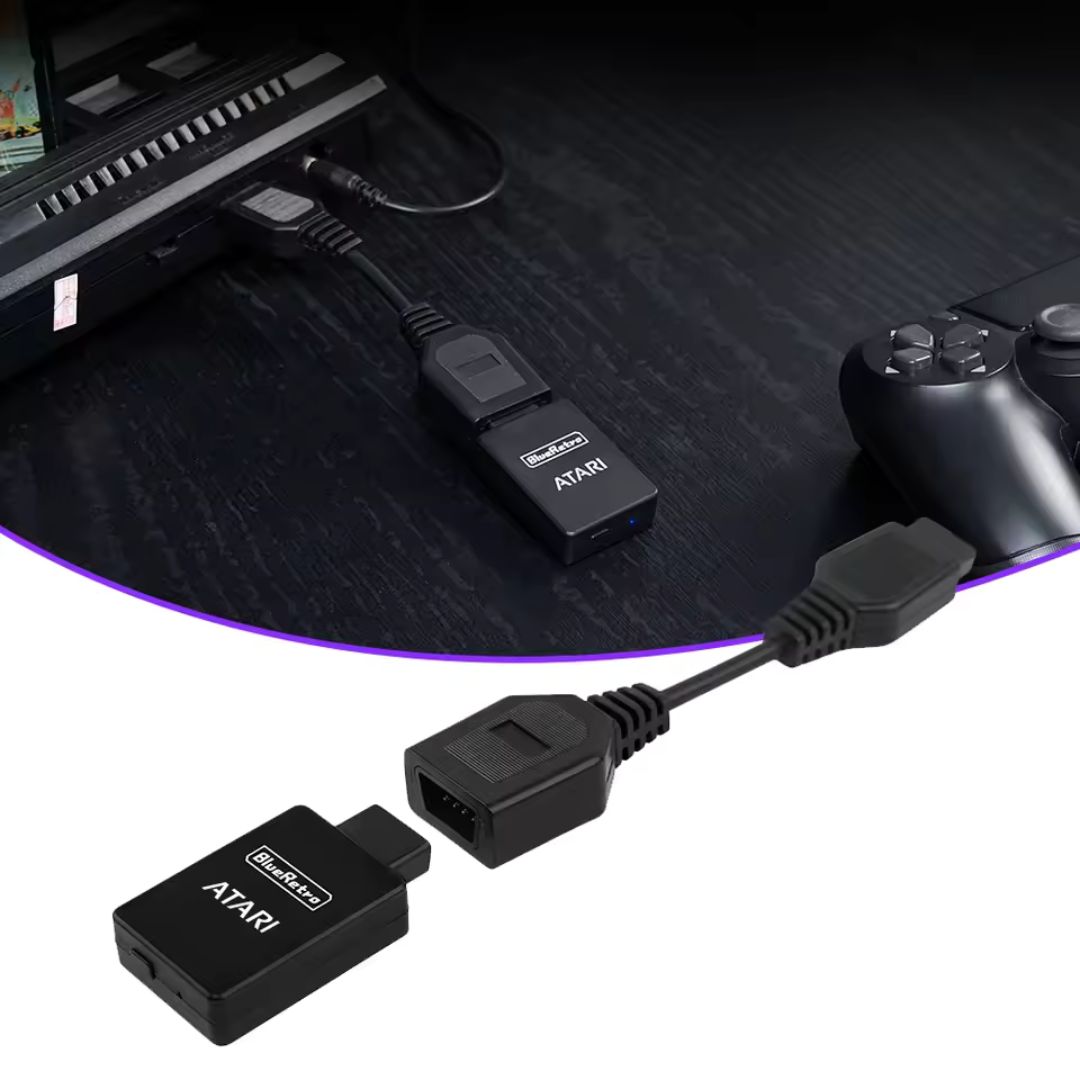

What Is The Included Extension Cable For?

The 9-pin extension cable lets you position the adapter away from the console’s controller port where direct access is awkward. Switch the console off before connecting or removing it.

Does Resetting Restore The Original Firmware?

Not necessarily. Reset behaviour depends on the installed firmware. A configuration reset and a factory-firmware restoration are different operations; follow the instructions for the exact adapter and firmware.

Is International Delivery Available?

Yes. International tracked delivery is available to supported destinations, with delivery options calculated at checkout.
