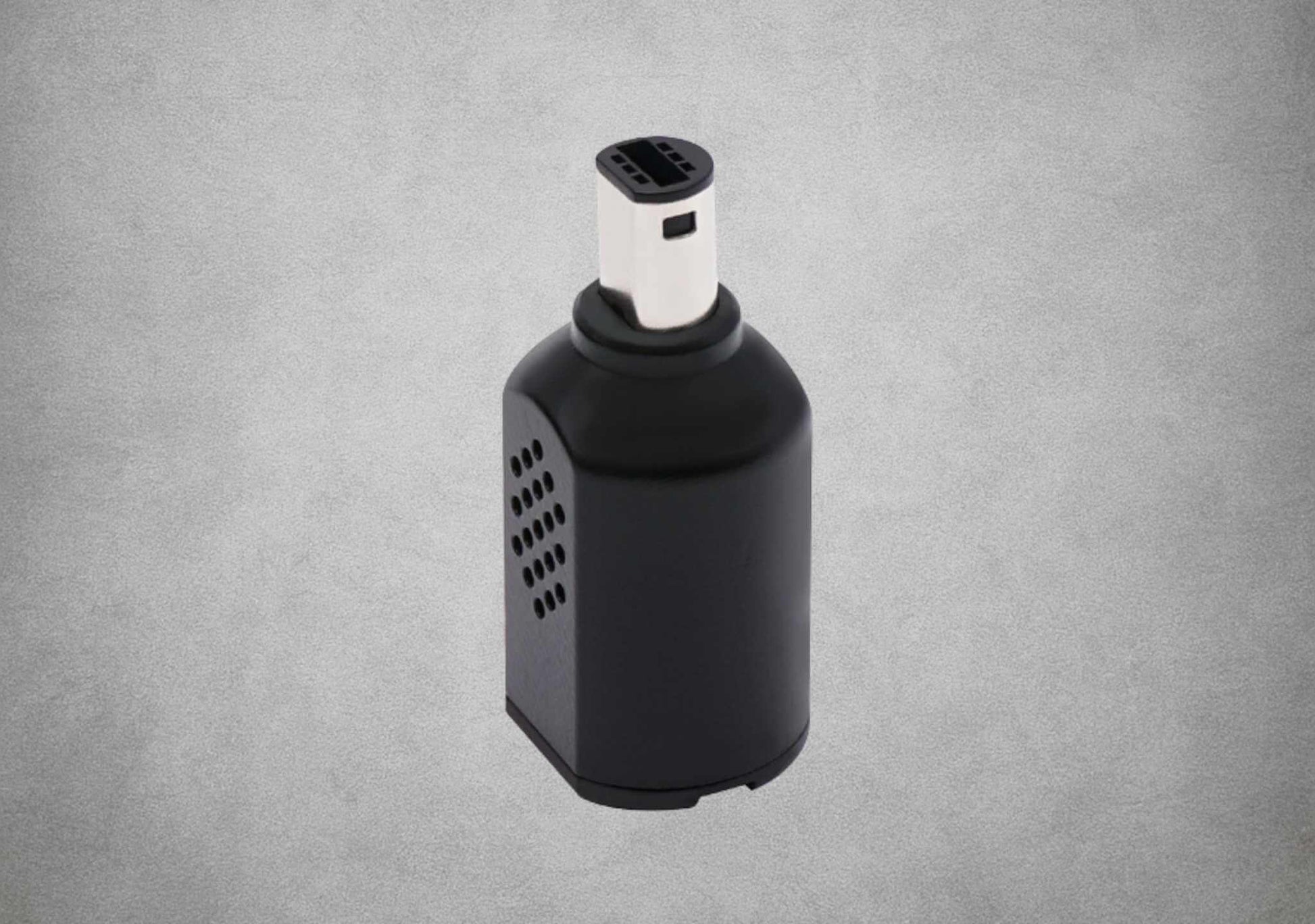

BlueRetro GameCube Bluetooth Controller Adapter

This RetroScaler BlueRetro GameCube Bluetooth Controller Adapter connects selected modern Bluetooth controllers to original Nintendo GameCube consoles. The compact wireless controller receiver plugs directly into a GameCube controller port, providing plug and play with no console modification required and drawing power from the console.

The adapter uses an ESP32-based implementation of the open-source BlueRetro hardware and software platform. It translates compatible Bluetooth controller inputs into standard GameCube controller commands, supporting digital buttons, analogue sticks and appropriately configured L and R trigger functions.

It offers wide compatibility with official Sony DualShock 3, DualShock 4 and DualSense controllers, Bluetooth-enabled Xbox One and Xbox Series X|S controllers, Nintendo Switch Pro Controllers, Joy-Con, Wii Remotes and Wii U Pro Controllers. Selected 8BitDo, Retro-Bit and Bluetooth HID gamepads are also supported. Compatibility and available functions depend on the controller model, firmware and operating mode; official PlayStation 3 controllers require additional initial pairing setup.

Original GameCube triggers use both analogue movement and a digital end click. BlueRetro Web Config provides a dedicated trigger-merge preset for modern controllers with analogue triggers, allowing one trigger to reproduce both stages. Controllers with digital-only triggers cannot provide variable analogue input, so choosing suitable controller hardware matters for games that use partial trigger presses.

Button remapping and adjustable analogue settings let you adapt the controller layout to your games. Configure button assignments, analogue dead zones and trigger presets through the browser-based BlueRetro Web Config. Supported firmware also provides a shortcut for switching between standard positional and rotated face-button layouts.

Rumble is supported with compatible controllers and games when the correct output accessory is enabled. Select GamePad output and the Rumble accessory through Web Config if vibration is not already configured.

The adapter also supports the 8BitDo GameCube Mod Kit in Android mode, allowing a suitably upgraded original GameCube controller to connect wirelessly. Use the appropriate preset to retain the mod kit’s separate analogue trigger and digital end-click inputs.

For compatible software, ASCII/Sammy keyboard emulation is available with supported Bluetooth keyboard hardware and the correct output mode and preset. Game saves continue to use a separate GameCube memory card; the adapter does not provide memory-card storage.

The receiver can also be used with Nintendo Wii consoles fitted with physical GameCube controller ports when playing GameCube software. Each adapter operates one controller port. Use a separate receiver for each wireless player, with up to four adapters connected to the console’s four ports.

Available in Black, Grey and Smokey Black, the adapter is supplied from UK stock with fast UK delivery, delivery to supported international destinations, a 12-month Retrolize warranty and UK-based customer support.

Explore our GameCube parts, mods and upgrades and our complete range of Bluetooth controller adapters for retro consoles.

If you also need a controller, explore our wireless controllers for retro consoles. Choose a compatible Bluetooth model with the controls your GameCube games require.

Brand: RetroScaler
Product Name: BlueRetro GameCube Bluetooth Controller Adapter
Product Type: Bluetooth controller adapter & wireless receiver
Platform: BlueRetro open-source hardware & software
Core Hardware: ESP32
Wireless Technology: Bluetooth BR/EDR & Bluetooth Low Energy
Wireless Receiver: BlueRetro GameCube receiver
Receiver Connection: Original Nintendo GameCube controller port
Receiver Power: Console controller port
Controllers Per Receiver: 1
Maximum Direct Receivers Per Console: 4
Console Modification Required: No
External Power Required: No
Console Compatibility: Nintendo GameCube DOL-001, DOL-101 & compatible Wii consoles with physical GameCube controller ports
Console Region Compatibility: PAL, NTSC-U & NTSC-J
Wireless Compatibility: Selected Nintendo, Sony, Microsoft, 8BitDo, Retro-Bit & Bluetooth HID controllers
Controller Output: Standard GameCube controller emulation
Digital Control Support: Supported
Analogue Stick Support: Supported with compatible controllers
Analogue Trigger Support: Supported with compatible controller hardware and the correct mapping or preset
Digital Trigger Click Support: Supported with the correct mapping or preset
Rumble Support: Supported with compatible controllers, games and output settings
Keyboard Output: ASCII/Sammy keyboard emulation with compatible input hardware, software and preset
Mouse Output: Not supported
Memory Card Emulation: Not supported
Button Mapping: Configurable
Analogue Settings: Configurable
Configuration: BlueRetro Web Config
Firmware Updating: Over the air with hardware-compatible firmware
Available Colours: Black, Grey & Smokey Black
SKU — Black: BR-GC-BLK
SKU — Grey: BR-GC-GRY
SKU — Smokey Black: BR-GC-SMK

Original Nintendo GameCube & Compatible Wii Consoles

Nintendo GameCube DOL-001: Supported
Nintendo GameCube DOL-101: Supported
PAL GameCube Consoles: Supported
NTSC-U GameCube Consoles: Supported
NTSC-J GameCube Consoles: Supported
Nintendo Wii With Physical GameCube Controller Ports: Supported when playing GameCube software

Compatible Bluetooth Controllers

Official Sony DualShock 4 Controllers: Supported
Official Sony DualSense Controllers: Supported
Official Sony DualShock 3 & Sixaxis Controllers: Supported with additional first-time pairing setup
Bluetooth-Enabled Xbox One Controllers: Supported
Xbox Series X|S Wireless Controllers: Supported
Nintendo Switch Pro Controllers: Supported; digital-only trigger input
Nintendo Switch Joy-Con: Supported with appropriate mapping and configuration
Nintendo Wii Remotes: Supported
Nintendo Wii U Pro Controllers: Supported
8BitDo GameCube Mod Kit: Supported in Android mode with the appropriate preset
Selected 8BitDo Bluetooth Controllers: Support varies by controller model, firmware and operating mode
Selected Retro-Bit Bluetooth Controllers: Support varies by controller model, firmware and operating mode
Selected Bluetooth HID Controllers: Support varies by controller hardware, firmware and operating mode

GameCube Functions & Output Modes

Digital Controls: Supported
Analogue Sticks: Supported with compatible controllers
Standard GameCube Controller Emulation: Supported
Analogue L & R Trigger Input: Supported with compatible hardware and the correct mapping or preset
Digital L & R Trigger Click: Supported with the correct mapping or preset
Standard & Rotated Face-Button Mapping: Supported on compatible firmware through the mapped Select, View, Share or Minus function
Rumble: Supported with compatible controllers and games when GamePad output and the Rumble accessory are selected
ASCII/Sammy Keyboard Output: Supported with compatible input hardware, software and the Default Gamepad/Keyboard preset

Connection Requirements

Controllers Per Adapter: One
Adapters Required For Multiplayer: One adapter for each wireless controller
Maximum Direct Adapters Per Console: Four
Console Modification: Not required
Standard Power Source: Console controller port
Insertion & Removal: Switch the console off first
Web Config: Compatible browser with Web Bluetooth support on a Bluetooth-enabled computer or Android device
Firmware Updating: Only use firmware confirmed compatible with this exact RetroScaler adapter

Compatible Controller Required: A supported Bluetooth controller is required and is not included. Compatibility can vary between controller models, hardware revisions, firmware versions and operating modes.

Compatible Consoles: Designed for Nintendo GameCube DOL-001 and DOL-101 consoles. Also compatible with Nintendo Wii consoles featuring physical GameCube controller ports when playing GameCube software. Wii consoles without these ports cannot use the adapter directly.

One Adapter Per Controller: Each adapter connects one wireless controller. A separate adapter and available controller port are required for every wireless player.

Bluetooth Controllers Only: Controllers that operate exclusively through a proprietary 2.4GHz receiver or USB dongle cannot connect through Bluetooth. For controllers with multiple connection modes, use the supported Bluetooth mode.

Xbox Compatibility: Xbox Series X|S and Bluetooth-enabled Xbox One controllers are supported. Xbox 360 controllers and original Xbox One controllers without Bluetooth are not supported.

PlayStation 3 Pairing: Official Sony DualShock 3 and Sixaxis controllers require additional first-time pairing setup using a compatible computer. Follow the BlueRetro controller pairing guide.

Hot Plugging: Not supported. Always switch the console off before inserting or removing the adapter.

GameCube Trigger Configuration: Original GameCube L and R triggers combine analogue movement with a digital end click. Most modern controllers with analogue triggers require the GameCube Merge analog & digital trigger preset to reproduce both functions. Controllers with digital-only triggers cannot provide variable analogue trigger input.

Rumble Configuration: Rumble may need to be enabled manually by selecting GamePad output with the Rumble accessory in BlueRetro Web Config. The controller must support compatible vibration, and the game must support rumble.

8BitDo GameCube Mod Kit: Connect the mod kit in Android mode using Start + B. Its Switch mode does not operate correctly with BlueRetro. Use the appropriate preset for its separate analogue trigger and digital end-click functions.

Game Saves: This adapter does not emulate a GameCube memory card. Continue using a compatible memory card in the console’s memory-card slot.

Nintendo Switch 2 GameCube Controller: Compatibility is not guaranteed as a standard out-of-box feature. Support depends on the exact adapter hardware and installed firmware. Contact Retrolize before ordering specifically for this controller.

Firmware Compatibility: BlueRetro firmware is hardware-specific. Only install firmware explicitly confirmed as compatible with this exact RetroScaler GameCube adapter. Firmware for an internal installation, a RetroTime receiver or the RetroScaler four-controller model must not be assumed compatible.

First-Time Pairing

1. Switch the Nintendo GameCube or compatible Wii console off.
2. Connect the BlueRetro adapter to the required GameCube controller port.
3. Switch the console on. The adapter should enter pairing mode. If required, use its pairing control as described in the supplied instruction booklet.
4. Place the supported Bluetooth controller into its pairing mode, using the correct operating mode for that controller.
5. Wait for the controller and adapter to connect.
6. Test the controls before starting a game.
7. Once its pairing information has been stored, the controller can normally reconnect by being switched on again.
8. Always switch the console off before removing or changing the adapter.

Using GameCube Trigger & Rumble Modes

An original GameCube controller’s L and R triggers combine analogue travel with a digital button press at the end of their movement.

For most modern controllers with analogue triggers, load the GameCube Merge analog & digital trigger preset through BlueRetro Web Config. This allows an analogue trigger to reproduce the variable input and simulate the final digital press.

Controllers with digital-only triggers, such as the standard Nintendo Switch Pro Controller, cannot reproduce a gradual analogue squeeze. Mapping can provide a trigger action, but it does not add analogue travel to the controller.

To enable compatible controller vibration, select GamePad as the output mode and Rumble as the accessory, then save the setting.

On firmware supporting the function, the mapped Select, View, Share or Minus input can toggle the face-button mapping between its standard positional layout and a rotated name-based layout. This is useful for compatible controllers with a GameCube-style button arrangement.

Using The 8BitDo GameCube Mod Kit

1. Switch the console on with the BlueRetro adapter connected and in pairing mode.
2. Start pairing on the 8BitDo GameCube Mod Kit in Android mode by holding Start + B until its LED flashes rapidly. Do not use Switch mode.
3. Wait for pairing to complete.
4. Leave the sticks and triggers in their neutral positions and press A several times to initialise the analogue stick’s centre position.
5. Use the Default Gamepad or Default Gamepad/Keyboard preset to retain the mod kit’s separate trigger end-button input. The trigger-merge preset instead simulates the final digital press from analogue position.
6. After pairing, hold Start to switch the controller on and reconnect during normal use.

Using BlueRetro Web Config

1. Switch the console on with the adapter connected.
2. Ensure that no Bluetooth controller is currently connected to the adapter.
3. Open BlueRetro Web Config using a compatible Chrome-based browser on a Bluetooth-enabled computer or Android device with Web Bluetooth support.
4. Connect to the adapter through the browser.
5. Configure button mappings, trigger presets, analogue dead zones and output settings as required.
6. Select GamePad output with the Rumble accessory if compatible vibration is required.
7. Save the changes, disconnect the browser session and reconnect the controller.
8. Test the controls and trigger behaviour before playing.
9. Only install firmware explicitly confirmed as compatible with this exact RetroScaler adapter.

Optional ASCII / Sammy Keyboard Emulation

Keyboard output requires a compatible Bluetooth keyboard, the Keyboard output mode and the Default Gamepad/Keyboard preset.

The game or software must support the original ASCII/Sammy keyboard peripheral. This mode does not add keyboard control to every GameCube game.

Connection & Control Troubleshooting

Controller Will Not Pair: Check that it supports Bluetooth, is in the correct operating mode and is actively pairing. Disconnect it from another device if necessary.

Web Config Cannot Find The Adapter: Disconnect the controller first. Check that Bluetooth is enabled and that the browser supports Web Bluetooth.

L Or R Does Not Behave Correctly: Check the trigger mapping and preset. Use a controller with analogue triggers when the game requires variable trigger input.

Rumble Does Not Work: Check that the controller and game support vibration, then select GamePad output and the Rumble accessory in Web Config.

Analogue Stick Does Not Centre Correctly: Leave sticks and triggers untouched while connecting. With supported Xbox and XInput devices, press a face button a few times after connection while the sticks and triggers remain neutral.

1 × RetroScaler BlueRetro GameCube Bluetooth Controller Adapter in the selected colour
1 × Instruction booklet
1 × Retail box

This RetroScaler BlueRetro Nintendo GameCube Bluetooth Controller Adapter is covered by a 12-month Retrolize warranty against manufacturing defects and hardware faults arising during normal use from the date of delivery.

The warranty does not cover accidental damage, liquid damage, forced insertion, hot plugging, unauthorised modification, incorrect external power, interrupted firmware updates or firmware that has not been explicitly confirmed as compatible with this exact adapter.

An adapter rendered unresponsive or unusable by installing incorrect or incompatible firmware is not covered by the Retrolize warranty.

Compatibility differences caused by unsupported controllers, proprietary 2.4GHz receivers, third-party controller firmware, individual games or unsupported controller modes are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms and are additional to the customer’s statutory rights.

Can I Use A PS5 DualSense Controller On A Nintendo GameCube?

Yes. An official Sony DualSense controller can be paired with an original Nintendo GameCube through this BlueRetro adapter.

Can I Use An Xbox Series Controller On A Nintendo GameCube?

Yes. Xbox Series X|S controllers and Bluetooth-enabled Xbox One controllers are supported. Original Xbox One controllers without Bluetooth are not supported.

Can The Adapter Be Used With A Nintendo Wii?

Yes, provided the Wii has physical GameCube controller ports and is being used to play Nintendo GameCube software. Wii consoles without GameCube controller ports cannot use this adapter directly.

Does It Work With The 8BitDo GameCube Mod Kit?

Yes, but the 8BitDo GameCube Mod Kit must be started in Android mode using Start + B. Its Switch mode does not operate correctly with BlueRetro.

Do GameCube Analogue Triggers Work?

Yes. However, most modern Bluetooth controllers require the GameCube Merge analog & digital trigger preset to reproduce both the analogue trigger movement and the digital button press at the end of its travel.

Does GameCube Rumble Work?

Yes. Rumble is supported with compatible controllers and games. GamePad output and the Rumble accessory may need to be selected through BlueRetro Web Config.

Can I Remap The Controls?

Yes. Button assignments, analogue dead zones, trigger presets, output settings and other compatible options can be adjusted through BlueRetro Web Config using a compatible Chrome-based browser.

Can I Use The Nintendo Switch 2 GameCube Controller?

Compatibility is not guaranteed as a standard out-of-box feature. BlueRetro support was introduced through beta firmware and depends on the exact adapter hardware and installed firmware build.

Contact Retrolize before ordering specifically for this controller. Never install firmware that has not been explicitly confirmed as compatible with this exact RetroScaler adapter.

Does The Adapter Replace A GameCube Memory Card?

No. Memory card emulation is not supported. Game saves continue to use a standard Nintendo GameCube memory card connected to the console.

Can I Connect More Than One Wireless Controller?

Yes, but every wireless controller requires its own adapter. Up to four adapters can be connected directly to the four controller ports on a Nintendo GameCube.

Can I Use A Controller’s 2.4GHz USB Receiver?

No. Controllers that depend on their own proprietary 2.4GHz USB receiver cannot connect through Bluetooth.

Is International Delivery Available?

Yes. Tracked international delivery is available to supported destinations, with the available services, delivery times, duties and taxes shown at checkout.
