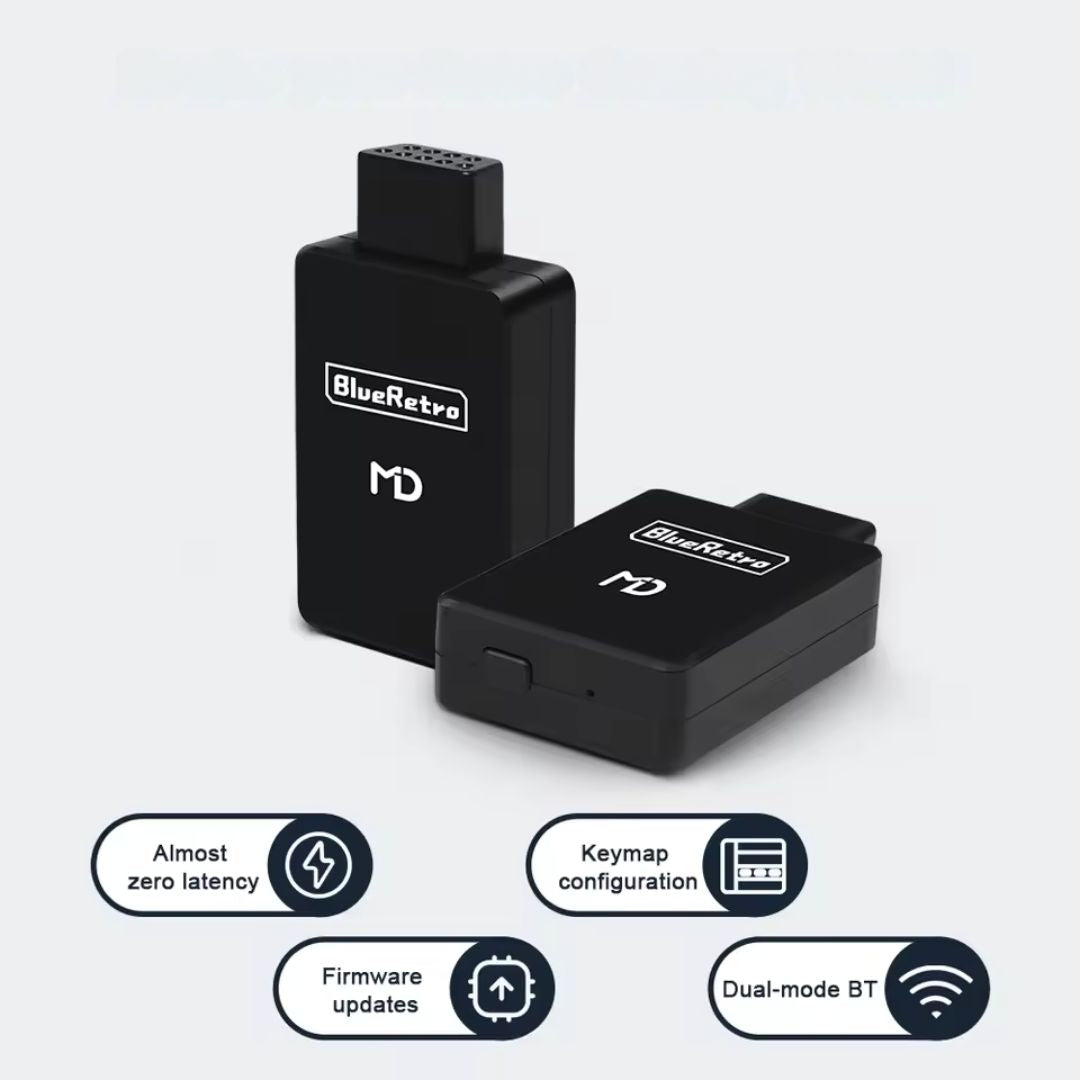

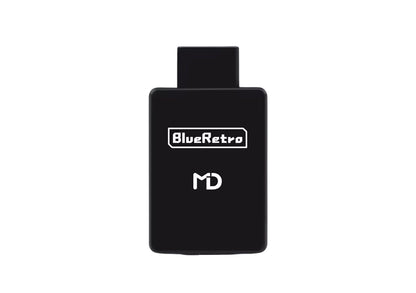

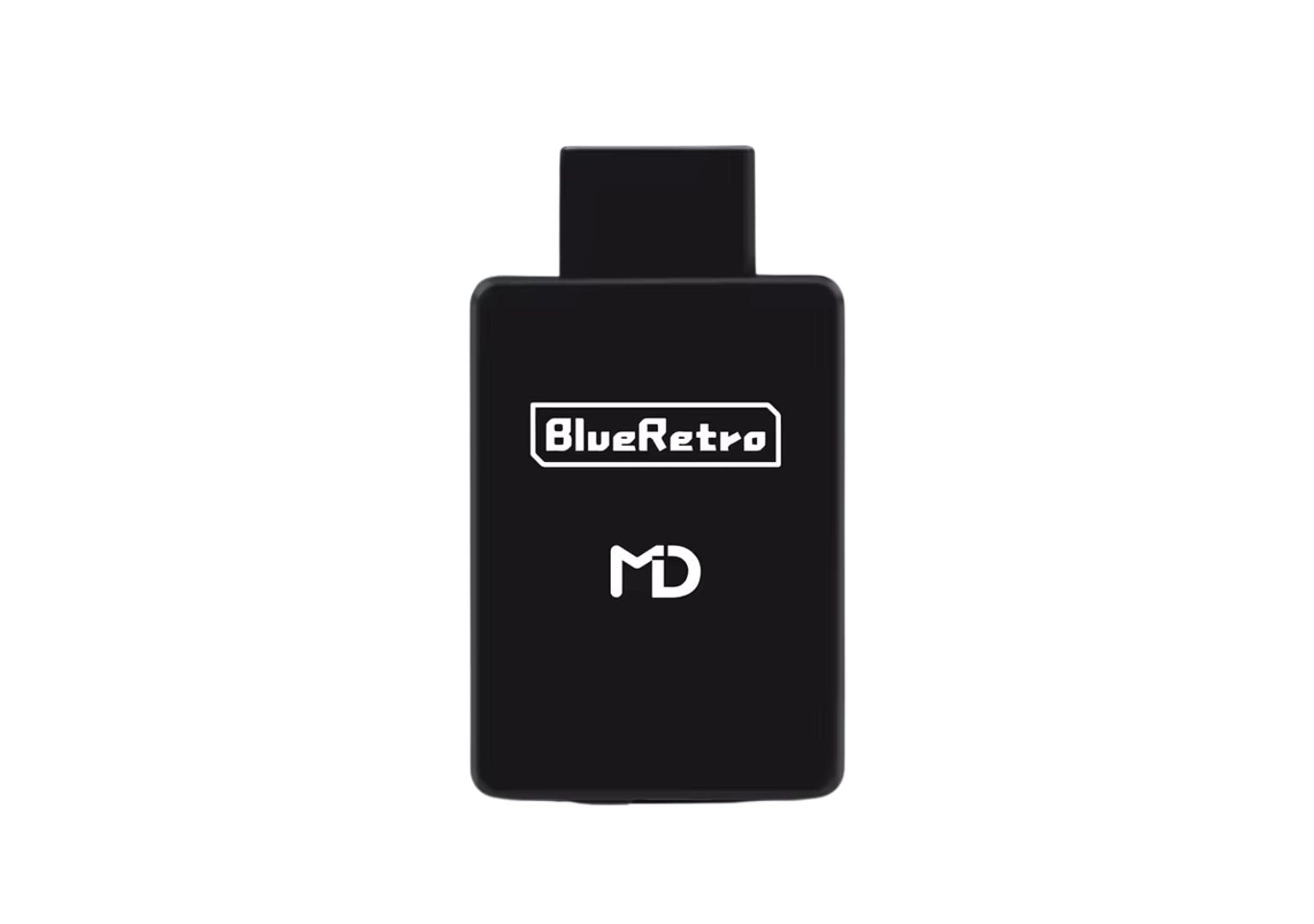

BlueRetro Sega Mega Drive & Genesis Bluetooth Controller Adapter

The RetroScaler BlueRetro Sega Mega Drive & Genesis Bluetooth Controller Adapter connects selected modern Bluetooth controllers to original Sega Mega Drive Model 1, Mega Drive Model 2, Genesis Model 1 and Genesis Model 2 consoles. This compact wireless receiver connects through the console’s original 9-pin controller port, providing wireless control without permanently modifying the console or requiring a separate power supply.

Built around the open-source BlueRetro platform and ESP32 hardware, the adapter translates compatible Bluetooth controller inputs into the commands expected by the original console. Standard 3-button output provides the D-pad, A, B, C and Start controls. Selectable 6-button output adds X, Y, Z and Mode for games supporting the expanded controller layout.

With the default mapping, the connected controller’s mapped Home function switches between 3-button and 6-button output. The modes can also be selected through BlueRetro Web Config. This lets you use the additional controls in compatible games while retaining a standard 3-button option for titles that need it.

Supported controller options include official Sony DualShock 4 and DualSense controllers, Bluetooth-enabled Xbox One and Xbox Series X|S controllers, Nintendo Switch Pro Controllers and Joy-Con, Wii Remotes and Wii U Pro Controllers. Official DualShock 3 and Sixaxis controllers are also supported with additional first-time pairing setup. Selected 8BitDo, Retro-Bit and Bluetooth HID controllers can be used, with compatibility depending on the exact model, firmware and operating mode.

The supported 8BitDo M30 Bluetooth model offers a six-face-button layout suited to Mega Drive and Genesis controls. Other compatible controllers can also be used, with button assignments adjusted to suit their layouts. Bluetooth support is essential: proprietary 2.4GHz-only controllers cannot connect to this receiver.

BlueRetro provides responsive, low-latency wireless input. Actual end-to-end latency and controller behaviour can vary according to the connected controller, its operating mode, installed firmware and surrounding wireless conditions.

BlueRetro Web Config provides browser-based control over button assignments and supported output modes using a compatible Bluetooth-equipped device. The adapter also offers optional Genesis Mouse emulation with compatible input hardware, the Default Mouse preset and software supporting the original peripheral. Firmware can be updated over the air using a build confirmed as compatible with this exact adapter.

A 9-pin controller extension cable is included, allowing more convenient positioning and access to the receiver. One adapter connects one wireless controller; compatible two-player games require a separate adapter for each player.

Finished in Black, the adapter is supplied from UK stock with fast UK delivery, international tracked delivery to supported destinations and a 12-month Retrolize warranty.

Explore our Bluetooth controller adapters, wireless controllers and Sega Mega Drive & Genesis parts and mods.

Brand: RetroScaler
Product Name: BlueRetro Sega Mega Drive & Genesis Bluetooth Controller Adapter
Product Type: Bluetooth controller adapter & wireless receiver
Model: BlueRetro for Sega Mega Drive & Genesis
Manufacturer Product Code: XLL-BLUERETRO-MD-1TO1-BK
Platform: BlueRetro open-source hardware & software
Core Hardware: ESP32
Wireless Technology: Bluetooth Classic BR/EDR & Bluetooth Low Energy
Bluetooth: Supported
Wireless Receiver: Integrated BlueRetro receiver
Receiver Connection: Original Sega Mega Drive / Genesis 9-pin controller port
Receiver Power: Console controller port
Controllers Per Receiver: 1
Maximum Direct Adapters Per Console: 2
Console Compatibility: Original Sega Mega Drive Model 1, Mega Drive Model 2, Genesis Model 1 & Genesis Model 2 consoles
Console Regions: PAL, NTSC-U & NTSC-J
Wireless Compatibility: Selected Sony, Microsoft, Nintendo, 8BitDo, Retro-Bit & Bluetooth HID controllers
Controller Output: Sega Mega Drive / Genesis controller emulation
Default Output Mode: Standard 3-button controller — GamePad
Alternate Output Mode: 6-button controller — GamePadAlt
3-Button Controls: D-pad, A, B, C & Start
6-Button Controls: D-pad, A, B, C, X, Y, Z, Start & Mode
Output Mode Switching: Mapped Home function
Mouse Output: Genesis Mouse emulation with compatible input hardware, supported software & the Default Mouse preset
Keyboard Output: Not supported
Rumble: Not supported by the original Mega Drive / Genesis controller interface
Button Mapping: Configurable
Configuration: BlueRetro Web Config
Configuration Requirements: Bluetooth-equipped device & compatible Web Bluetooth browser
Firmware Updating: OTA updating with hardware-compatible firmware
Console Modification Required: No
External Power Required: No
Included Connection Accessory: 9-pin controller extension cable
Colour: Black
SKU: BR-MD-BLK

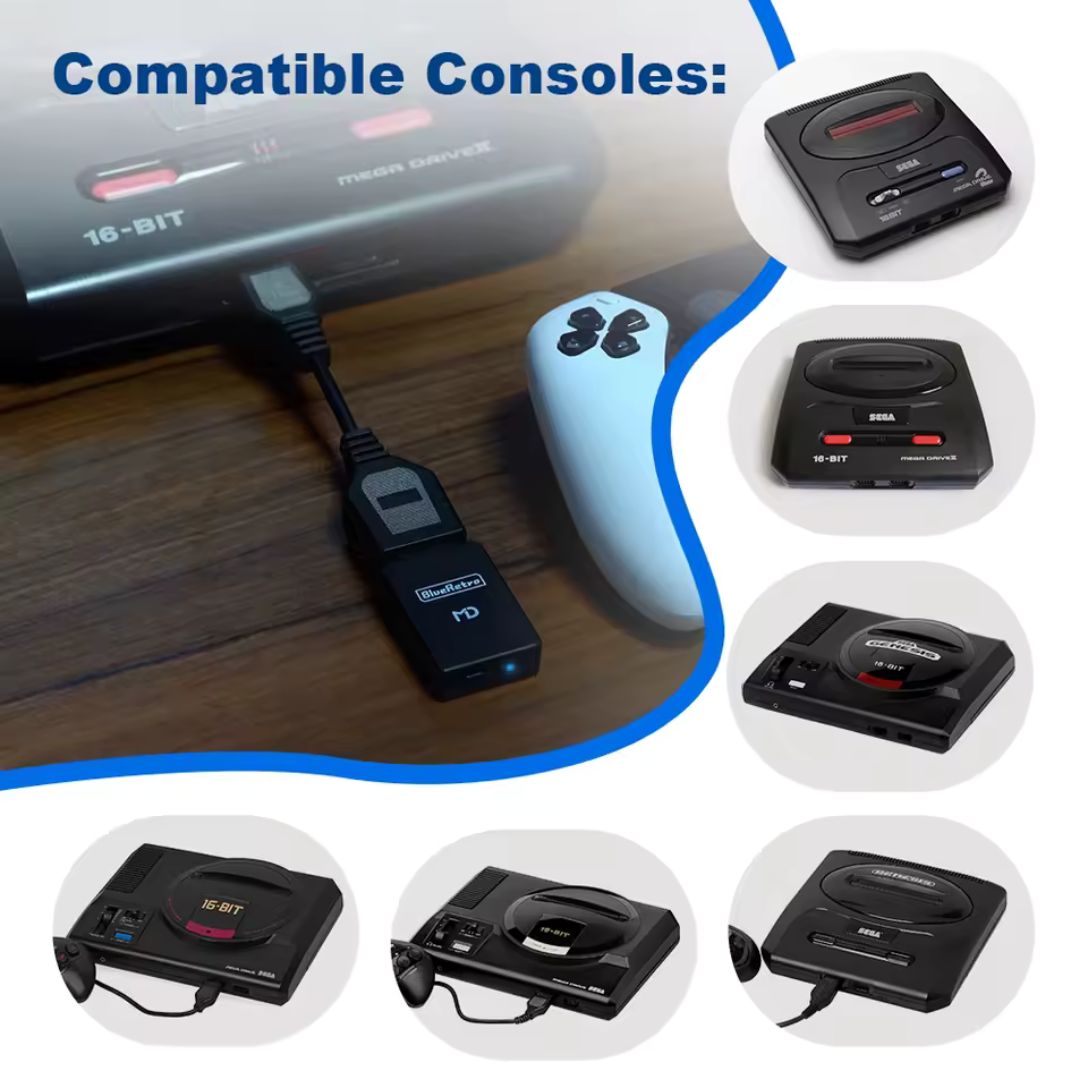

Original Sega Mega Drive & Genesis Consoles

Original Sega Mega Drive Model 1 Consoles: Supported
Original Sega Mega Drive Model 2 Consoles: Supported
Original Sega Genesis Model 1 Consoles: Supported
Original Sega Genesis Model 2 Consoles: Supported
PAL, NTSC-U & NTSC-J Console Regions: Supported on the listed original console models

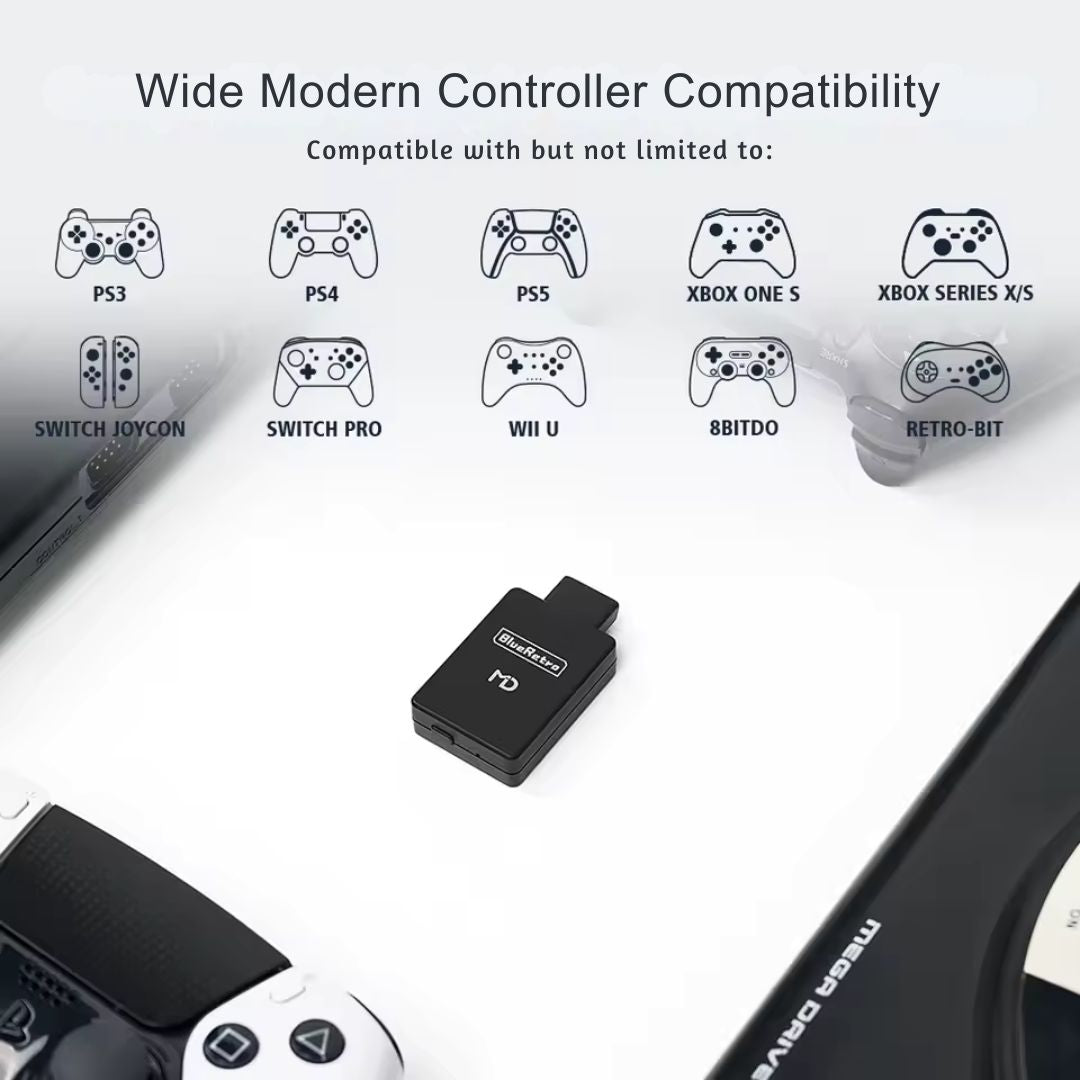

Compatible Bluetooth Controllers

Official Sony DualShock 4 Controllers: Supported
Official Sony DualSense Controllers: Supported
Official Sony DualShock 3 & Sixaxis Controllers: Supported with additional first-time pairing setup
Bluetooth-Enabled Xbox One Controllers: Supported
Xbox Series X|S Wireless Controllers: Supported
Nintendo Switch Pro Controllers & Joy-Con: Supported
Nintendo Wii Remotes & Wii U Pro Controllers: Supported
Documented 8BitDo M30 Bluetooth Model: Supported in XInput mode with appropriate mapping
Selected 8BitDo Bluetooth Controllers: Supported depending on model, firmware & operating mode
Selected Retro-Bit Bluetooth Controllers: Supported depending on model, firmware & operating mode
Selected Bluetooth HID Controllers: Supported depending on hardware & firmware

Mega Drive & Genesis Controller Functions

Standard 3-Button Controller Emulation: Supported — default GamePad output
Six-Button Controller Emulation: Supported — GamePadAlt output
D-Pad, A, B, C & Start Controls: Supported
X, Y, Z & Mode Controls: Supported in 6-button mode
Mapped Home Function: Toggles 3-button & 6-button output with the default mapping
Custom Button Mapping: Supported through BlueRetro Web Config
Genesis Mouse Emulation: Supported with compatible input hardware, supported software & the Default Mouse preset
OTA Firmware Updating: Supported with firmware confirmed compatible with this exact adapter

Connection Requirements

Controllers Per Adapter: One
Adapters Required For Multiplayer: One adapter for each wireless controller
Maximum Direct Adapters Per Console: Two
Console Modification: Not required
Standard Power Source: Console controller port
Separate Power Supply: Not required
Extension Cable: Included
Safe Connection & Removal: Switch the console off before inserting or removing the adapter or extension cable

Compatible Controller Required: A supported Bluetooth controller is required and is not included. Compatibility can vary between controller models, hardware revisions, firmware versions and operating modes.

Compatible Consoles: Designed for original Sega Mega Drive Model 1, Mega Drive Model 2, Genesis Model 1 and Genesis Model 2 consoles from PAL, NTSC-U and NTSC-J regions.

One Adapter Per Controller: Each adapter connects one wireless controller. A separate adapter and available console controller port are required for every wireless player. Up to two adapters can be connected directly to the console.

Original Console Connection: This adapter uses the original Mega Drive and Genesis 9-pin controller-port connection. Mega Drive Mini and Genesis Mini consoles use USB controller connections and are not compatible.

Other 9-Pin Consoles: A matching connector does not guarantee compatibility. This adapter is configured for original Mega Drive and Genesis hardware and should not be used with a Master System, SG-1000, Atari console or another unsupported 9-pin system.

Other Sega Hardware: Compatibility with Genesis Model 3, Nomad, Multi-Mega, CDX, clone consoles, FPGA systems and other hardware not listed under Supported Systems is not confirmed by this listing. Contact Retrolize before ordering for an unlisted system.

Default 3-Button Mode: Standard GamePad output emulates a 3-button controller with the D-pad, A, B, C and Start controls.

Six-Button Mode: GamePadAlt output emulates a 6-button controller, adding X, Y, Z and Mode for compatible games. The connected controller needs suitable inputs and an appropriate button mapping.

Switching Controller Modes: With the default BlueRetro mapping, the mapped Home function toggles between 3-button and 6-button output. The physical button providing this function depends on the controller and its mapping. The Home mode-switching function is separate from the emulated Mega Drive Mode button.

Game Compatibility: Use 3-button mode for games designed around the original standard controller or if a game behaves incorrectly in 6-button mode. Use 6-button mode for compatible games requiring the additional inputs.

Controller Mapping: Physical button positions and labels vary between Bluetooth controllers. Controls can be remapped through BlueRetro Web Config if the default layout is unsuitable.

Bluetooth Controllers Only: Controllers that operate exclusively through a proprietary 2.4GHz receiver or USB dongle cannot connect through Bluetooth. For controllers with multiple connection modes, use the supported Bluetooth mode.

Xbox Compatibility: Xbox Series X|S and Bluetooth-enabled Xbox One controllers are supported. Xbox 360 controllers and original Xbox One controllers without Bluetooth are not supported.

PlayStation 3 Pairing: Official Sony DualShock 3 and Sixaxis controllers require additional first-time setup using a compatible computer. Follow the official BlueRetro Controller Pairing Guide.

Genesis Mouse Mode: This requires compatible Bluetooth input hardware, Mouse output mode, the Default Mouse preset and software supporting the original Genesis Mouse. It does not add mouse controls to every game.

Controller Rumble: Not supported by this adapter’s Mega Drive and Genesis output.

Keyboard Output: Genesis keyboard output is not currently supported by BlueRetro.

Hot Plugging: Always switch the Mega Drive or Genesis off before inserting, removing or changing the adapter or extension cable.

Firmware Compatibility: Firmware is hardware-specific. Only install firmware explicitly confirmed as compatible with this exact RetroScaler Mega Drive and Genesis adapter and hardware revision.

First-Time Pairing

1. Switch the Mega Drive or Genesis off.
2. Connect the BlueRetro adapter to the required controller port, using the supplied 9-pin extension cable if needed.
3. Switch the console on. The adapter should enter pairing mode.
4. If pairing mode does not begin automatically, use the adapter’s pairing control as described in the supplied instruction booklet.
5. Place the supported Bluetooth controller into its pairing mode, using the correct operating mode for that model.
6. Wait for the controller and adapter to connect.
7. Test the directional controls, A, B, C and Start before starting a game.
8. Select 6-button output when required and check the additional X, Y, Z and Mode inputs.
9. Once pairing information has been stored, the controller can normally reconnect by being switched on again.
10. Always switch the console off before removing or changing the adapter.

Controller-Specific Pairing Information

DualShock 4: With the controller switched off, hold Share + PS until its light flashes.

DualSense: With the controller switched off, hold Create + PS until its light flashes.

Xbox Controllers: Switch the supported controller on and use its pairing button. It must be a Bluetooth-enabled model.

Nintendo Switch Controllers: Use the controller’s physical SYNC button to start pairing.

8BitDo Bluetooth Controllers: Use the supported operating mode for the exact model. The documented 8BitDo M30 Bluetooth model uses XInput mode. Its 2.4G versions are different products and cannot connect to this adapter through Bluetooth.

Retro-Bit Bluetooth Controllers: Use the supported operating mode for the exact model, as documented in the official BlueRetro pairing guide.

DualShock 3 & Sixaxis: Complete the additional Bluetooth-address setup described in the BlueRetro Controller Pairing Guide.

Keep analogue sticks and triggers in their neutral positions while connecting. With supported Xbox and XInput devices, press a face button a few times after connection while leaving the sticks and triggers untouched.

Using 3-Button & 6-Button Modes

GamePad: Emulates a standard 3-button Mega Drive or Genesis controller with the D-pad, A, B, C and Start controls.

GamePadAlt: Emulates a 6-button controller, adding X, Y, Z and Mode for compatible games.

Mode Shortcut: The connected controller’s mapped Home function toggles between these two gamepad modes with the default BlueRetro mapping.

Use the output mode appropriate to the game. If an older game behaves incorrectly in 6-button mode, return to 3-button mode and restart the game if required.

You can also select the required output mode through BlueRetro Web Config. Check the mapping if the connected controller has no accessible Home function or if its physical layout does not match the Mega Drive button arrangement.

Using BlueRetro Web Config

1. Switch the Mega Drive or Genesis on with the adapter connected.
2. Ensure that no Bluetooth controller is currently connected to the adapter.
3. Open BlueRetro Web Config using a compatible Chrome-based browser on a Bluetooth-enabled computer or Android device with Web Bluetooth support.
4. Connect to the adapter through the browser.
5. Configure button assignments and output modes as required.
6. Select GamePad for 3-button output or GamePadAlt for 6-button output.
7. Save the changes.
8. Disconnect the browser session and reconnect the controller.
9. Test the controls and selected output mode before playing.

Optional Sega Genesis Mouse Mode

Mouse Emulation: Select Mouse output and the Default Mouse preset, using compatible Bluetooth input hardware. The game must support the original Genesis Mouse.

1. Power the adapter through the console with no Bluetooth controller connected.
2. Open BlueRetro Web Config using a compatible browser.
3. Select Mouse as the output mode.
4. Load the Default Mouse preset.
5. Save the configuration and disconnect the browser session.
6. Pair a compatible Bluetooth mouse or pointing device.
7. Test it with software designed to support the original Genesis Mouse.

Mouse is an alternative output mode. Selecting it changes the type of peripheral emulated through the controller port. Restore GamePad or GamePadAlt output for controller use.

Adapter Button And Reset Behaviour

Use the adapter button according to the supplied instruction booklet and the installed firmware.

Pairing and reset behaviour can differ between firmware versions. A configuration reset must not be assumed to restore the original firmware supplied with the adapter. Contact Retrolize if you need help resetting or recovering the unit.

Firmware Updating

The adapter supports updating through the BlueRetro OTA Firmware Updater while powered by the console and with no Bluetooth controller connected.

Only use firmware explicitly confirmed as compatible with this exact RetroScaler Mega Drive and Genesis adapter and hardware revision. Keep the adapter powered throughout the update and wait for the updater to complete before switching off the console.

Installing incompatible firmware or interrupting an update can leave the adapter unresponsive and is not covered by the Retrolize warranty.

Connection & Control Troubleshooting

Controller Will Not Pair: Check that it supports Bluetooth, is using the correct operating mode and is actively pairing. Disconnect it from another device if necessary.

Previously Paired Controller Will Not Reconnect: Close any active BlueRetro Web Config or OTA connection, switch the console off and restart it. Switch the controller on again. If necessary, repeat the pairing procedure using the supplied instructions.

Web Config Cannot Find The Adapter: Disconnect the controller first. Check that Bluetooth is enabled and that the browser supports Web Bluetooth. Close other configuration or updater sessions before retrying.

Only Three Face Buttons Work: Check that GamePadAlt output is selected for 6-button operation. Confirm that X, Y, Z and Mode are mapped to suitable inputs and that the game supports the additional controls.

Home Does Not Switch Controller Modes: Check which physical button provides the mapped Home function. This is separate from the emulated Mega Drive Mode button. Select GamePad or GamePadAlt directly through Web Config if needed.

An Older Game Has Unusual Controls: Return to GamePad output for standard 3-button operation and restart the game if required.

Button Layout Is Incorrect: Check the controller’s operating mode and adjust the assignments through BlueRetro Web Config. Save the changes and disconnect the browser session before reconnecting the controller.

8BitDo M30 D-Pad Does Not Respond Correctly: Check the controller’s supported XInput mode and D-pad configuration. The official BlueRetro pairing guide documents holding Up + Select for five seconds to configure the documented M30 Bluetooth model’s D-pad as digital directional input.

DualShock 3 Or Sixaxis Will Not Pair: Complete the additional Bluetooth-address setup in the official BlueRetro Controller Pairing Guide.

Genesis Mouse Mode Does Not Respond: Check that Mouse output and the Default Mouse preset are selected, the input device is compatible and the software supports the original Genesis Mouse.

Rumble Does Not Work: Controller rumble is not supported by this adapter’s Mega Drive and Genesis output.

Persistent Connection Problems: Switch the console off before checking or reseating the adapter and extension cable. Retry with a known supported controller. Contact Retrolize before attempting an unfamiliar reset procedure or firmware update.

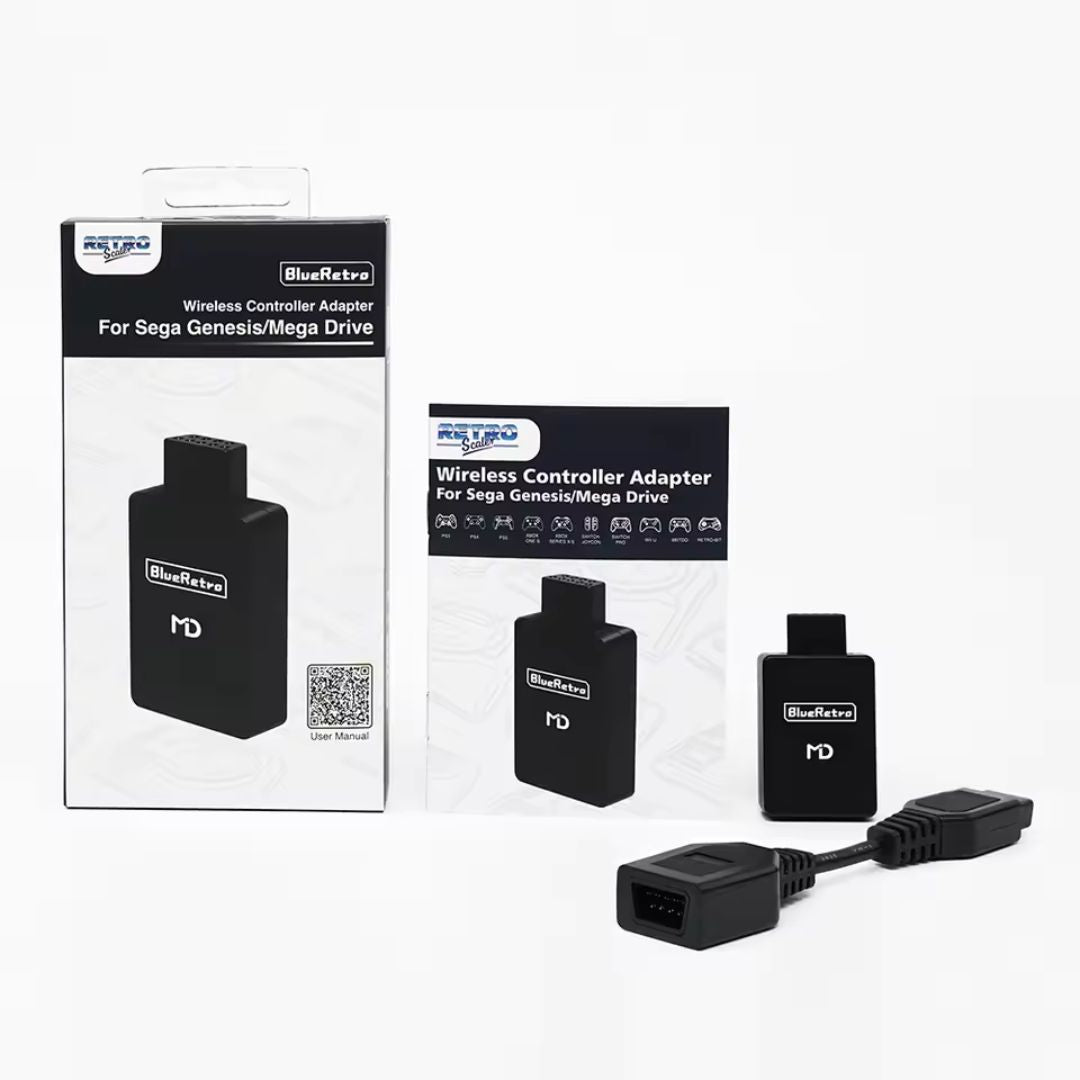

1 × RetroScaler BlueRetro Sega Mega Drive & Genesis Bluetooth Controller Adapter in Black
1 × 9-Pin Controller Extension Cable
1 × Instruction Booklet
1 × Retail Box

This RetroScaler BlueRetro Sega Mega Drive & Genesis Bluetooth Controller Adapter is covered by a 12-month Retrolize warranty against manufacturing defects and hardware faults arising during normal use from the date of delivery.

The warranty does not cover accidental damage, liquid damage, forced insertion, hot plugging, unauthorised modification, incorrect external power, use with an unsupported console, incorrectly performed or interrupted firmware updates, or firmware not explicitly confirmed as compatible with this exact adapter.

Compatibility differences caused by unsupported controllers, proprietary 2.4GHz receivers, third-party controller firmware, individual games, custom mappings or unsupported operating modes are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms and are additional to the customer’s statutory rights.

Can I Use A PS5 DualSense Controller On A Mega Drive Or Genesis?

Yes. An official Sony DualSense controller can be paired with the adapter and used for supported Mega Drive and Genesis controls.

Can I Use A PS4 DualShock 4 Controller?

Yes. Official Sony DualShock 4 controllers are supported. Button assignments can be adjusted through BlueRetro Web Config.

Can I Use An Xbox Controller?

Yes. Xbox Series X|S controllers and Bluetooth-enabled Xbox One controllers are supported. Xbox 360 controllers and original Xbox One controllers without Bluetooth are not supported.

Can I Use A PS3 Controller?

Official Sony DualShock 3 and Sixaxis controllers are supported, but require additional first-time pairing setup using a compatible computer. Follow the official BlueRetro Controller Pairing Guide.

Can I Use An 8BitDo Or Retro-Bit Controller?

Selected 8BitDo and Retro-Bit Bluetooth controllers are supported. Compatibility can vary according to the controller model, installed firmware and selected operating mode.

Can I Use An 8BitDo M30?

The documented 8BitDo M30 Bluetooth model is supported in XInput mode. Check the controller’s D-pad configuration and button mapping, and select GamePadAlt output when you need 6-button controls. M30 2.4G versions use a different connection system and cannot pair with this receiver through Bluetooth.

Does The Adapter Support Six-Button Games?

Yes. GamePadAlt output provides 6-button controller emulation, including X, Y, Z and Mode. With the default BlueRetro mapping, the mapped Home function toggles between 3-button and 6-button output.

Why Would I Use 3-Button Mode?

Some games were designed around the original standard controller and may not respond correctly when a 6-button controller is detected. Return to GamePad output for 3-button operation if a game displays unusual controls or input behaviour.

Is The Home Shortcut The Same As The Mega Drive Mode Button?

No. The mapped Home function switches between BlueRetro’s 3-button and 6-button output modes. The emulated Mega Drive Mode button is a separate input available in 6-button mode.

Can I Remap The Controls?

Yes. Button assignments and compatible output modes can be configured through BlueRetro Web Config using a compatible Chrome-based browser. Save the configuration, disconnect the browser session and reconnect the controller before testing.

Can I Use An Analogue Stick For Directional Control?

Compatible analogue-stick inputs can be mapped to the Mega Drive’s digital directional commands. This does not add true analogue movement to games using the standard digital controller interface.

Does The Adapter Support Controller Rumble?

No. Standard Sega Mega Drive and Genesis controller ports do not provide a conventional rumble-feedback system.

Can It Emulate A Sega Genesis Mouse?

Yes. Select Mouse output and the Default Mouse preset through BlueRetro Web Config. Compatible Bluetooth input hardware and software supporting the original Genesis Mouse are required. Compatibility is not guaranteed for every Bluetooth mouse.

Can I Connect Two Wireless Controllers?

Yes, but each wireless controller requires its own adapter. Connect one adapter to each controller port for compatible two-player games.

Does It Support Four-Player Multitap Configurations?

This listing is supplied as a one-controller-per-adapter receiver. Standard direct use supports up to two adapters through the console’s two controller ports. Advanced BlueRetro multitap configurations are not guaranteed as part of this product listing.

Can I Use A Controller’s 2.4GHz USB Receiver?

No. Controllers that operate only through a proprietary 2.4GHz USB receiver cannot connect through Bluetooth. If your controller offers both Bluetooth and 2.4GHz modes, use a supported Bluetooth mode.

Does It Work With A Sega Mega Drive Mini Or Genesis Mini?

No. Mega Drive Mini and Genesis Mini consoles use USB controller connections and are not compatible with this original 9-pin controller-port adapter.

Does It Work With A Master System, SG-1000 Or Atari Console?

No. Although several consoles use physically similar 9-pin connectors, their controller interfaces and electrical configurations can differ. Use the BlueRetro adapter produced specifically for the required console.

Is The Extension Cable Included?

Yes. A 9-pin controller extension cable is included with the adapter.

Does Resetting Restore The Original Firmware?

No. A configuration reset must not be assumed to restore the original firmware supplied with the adapter. Reset behaviour depends on the installed firmware. Contact Retrolize if you need help resetting or recovering the unit.

Is International Delivery Available?

Yes. Tracked international delivery is available to supported destinations, with the available services, delivery times, duties and taxes shown at checkout.
