GC2SD (SDGECKO) - SD Card Loader Mod - Nintendo GameCube / Wii

Expand the storage available to Swiss and GameCube homebrew with the Bitfunx GC2SD Gen2, a compact microSD card adapter designed to connect directly to the Nintendo GameCube memory card interface.

Also commonly known as an SD Gecko-style adapter, GC2SD allows compatible GameCube software to access files stored on a microSD card through the console's External Interface memory card bus.

It is particularly useful with Swiss, the established GameCube homebrew utility that can browse SD storage connected through SD Gecko-compatible adapters and access compatible GameCube software, homebrew applications, utilities and other supported files.

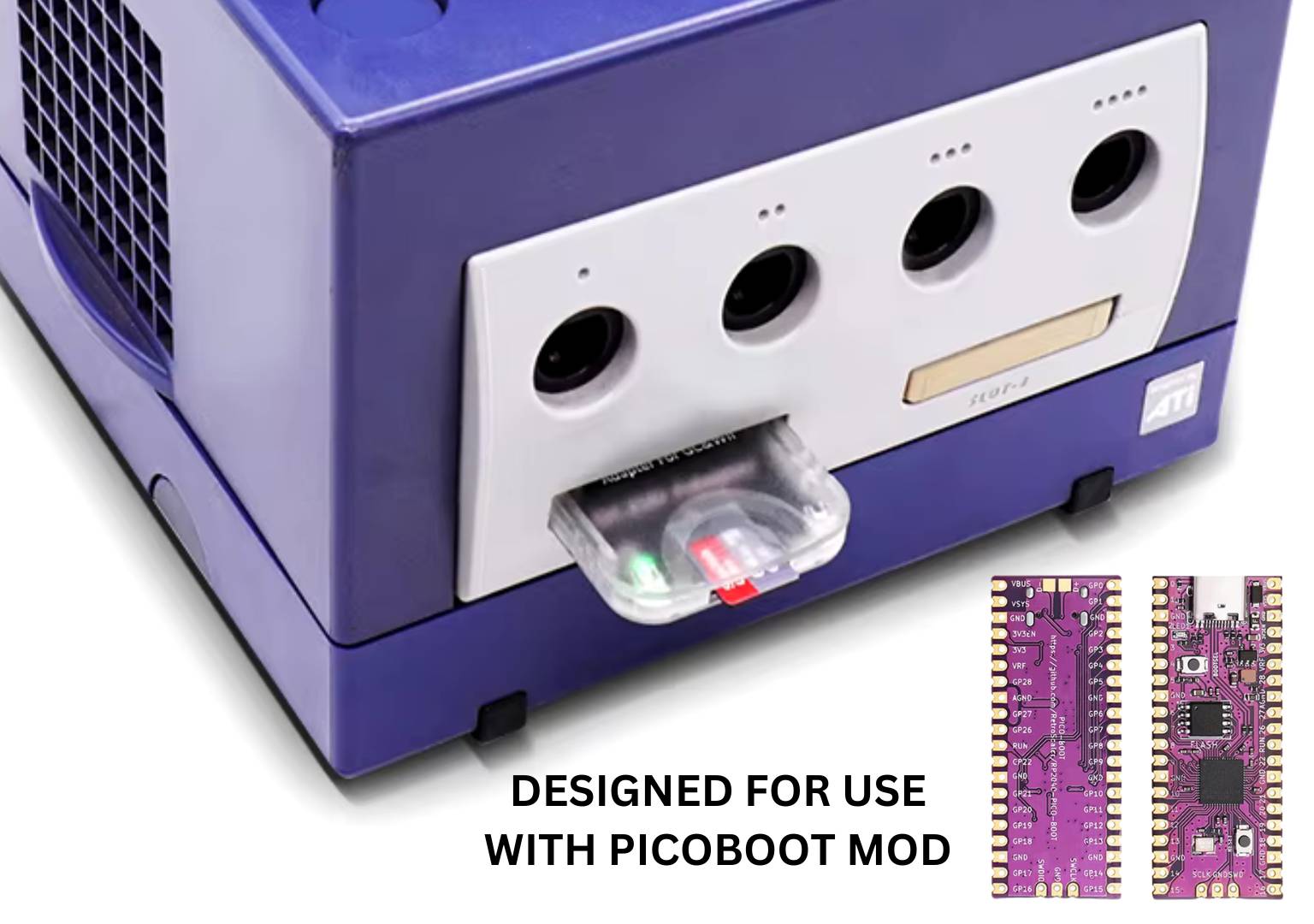

For PicoBoot-modified GameCube consoles, GC2SD provides a simple external microSD storage option without requiring Serial Port 2. This makes it particularly useful with DOL-101 consoles, which do not have the external Serial Port 2 connection required for a conventional SD2SP2 adapter.

GC2SD can also be used with DOL-001 consoles and provides an easily accessible alternative to SD2SP2 because the microSD card can be reached directly from the front of the console rather than from underneath.

The Gen2 adapter supports microSD cards up to 512GB, providing plenty of capacity for Swiss files, homebrew applications, utilities and compatible software.

Installation requires no soldering, console disassembly or permanent modification. Insert a compatible microSD card into the GC2SD and plug the adapter directly into one of the GameCube memory card slots.

Memory Card Slot B is generally the most practical position because Slot A can remain available for a conventional Nintendo GameCube Memory Card used for game saves.

GC2SD itself is not a boot device. The GameCube still requires a compatible method of launching Swiss or other homebrew software before files stored on the microSD card can be accessed.

Compatible launch methods can include PicoBoot, Action Replay and other established GameCube homebrew or modification setups. Once Swiss is running, the GC2SD can be selected as an available SD storage device.

Unlike an optical drive emulator such as CUBEODE, GC2SD does not replace the original GameCube disc drive. The optical drive can remain fully installed and operational, making GC2SD suitable for setups where the user wants to retain physical-disc functionality.

It can also complement other GameCube modifications and homebrew solutions where accessible external microSD storage is useful for applications, configuration files, utilities and compatible software.

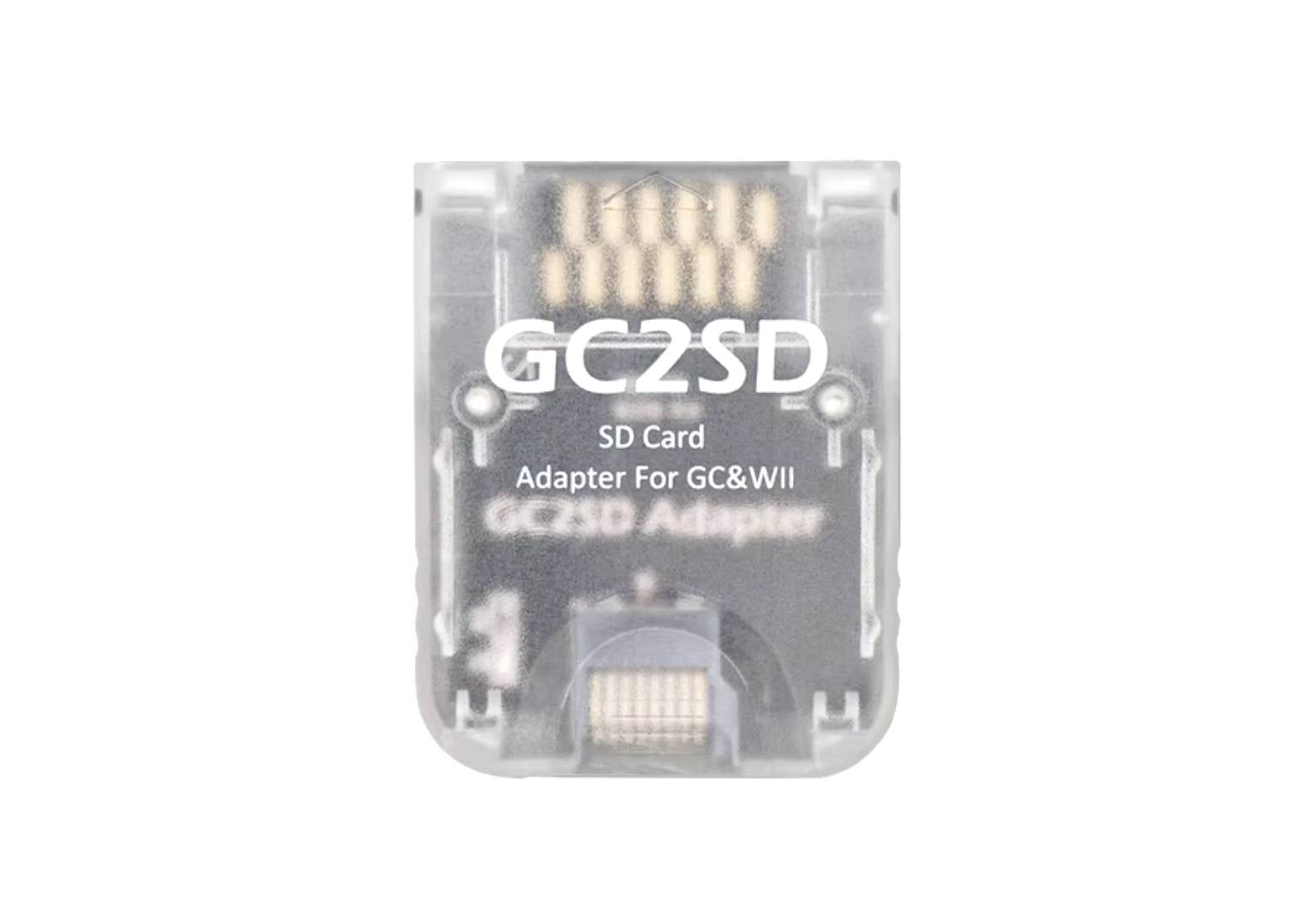

The adapter uses a microSD / TF card rather than a full-size SD card, keeping the unit compact when installed in the front of the GameCube.

Original Nintendo Wii RVL-001 consoles with GameCube compatibility can also use the GC2SD through their GameCube memory card ports with compatible software. Later Wii revisions that removed the GameCube ports are not supported.

For users looking for a GameCube SD Gecko, GC2SD adapter, Swiss microSD reader or accessible SD storage solution for a PicoBoot GameCube, the GC2SD Gen2 provides a straightforward plug-in option without modifying the console.

Product Type: GameCube microSD card adapter
Product: GC2SD Gen2
Brand: Bitfunx
Alternative Name: SD Gecko-style adapter
Primary Use: Swiss, homebrew & compatible GameCube software
Storage Type: microSD / TF card
Maximum Advertised Capacity: Up to 512GB
GameCube Connection: Memory card slot
Recommended Slot: Memory Card Slot B
Swiss Support: Yes
PicoBoot Compatibility: Yes
Homebrew Support: Yes
GameCube Memory Card Function: No
Optical Drive Replacement: No
Original Optical Drive Retained: Yes
Console Disassembly Required: No
Soldering Required: No
Permanent Console Modification Required: No
Installation Type: External plug-in adapter
Adapter Dimensions: Approximately 50 × 35 × 7mm
Adapter Weight: Approximately 10g
Available Shell Colours: White, Black & Transparent
MicroSD Card Included: No, unless specifically stated in the selected option

Nintendo GameCube

PAL Nintendo GameCube DOL-001: Supported

NTSC-U Nintendo GameCube DOL-001: Supported

NTSC-J Nintendo GameCube DOL-001: Supported

PAL Nintendo GameCube DOL-101: Supported

NTSC-U Nintendo GameCube DOL-101: Supported

NTSC-J Nintendo GameCube DOL-101: Supported

GC2SD connects through the GameCube memory card slot, so Serial Port 2 is not required.

Nintendo Wii

Nintendo Wii RVL-001: Supported

Original RVL-001 Wii consoles with GameCube controller and memory card ports can use GC2SD with compatible software.

Later Wii Revisions Without GameCube Ports: Not supported

Compatible Software & Setups

Swiss: Supported

PicoBoot: Supported

Action Replay / Compatible Homebrew Launch Methods: Supported

GameCube Homebrew Applications: Supported

Compatible GameCube Software Files: Supported through suitable software such as Swiss

Does Not Boot Swiss By Itself: GC2SD provides microSD storage but requires an existing method of launching Swiss or compatible homebrew, such as PicoBoot, Action Replay or another compatible GameCube homebrew setup.

Not A GameCube Memory Card: The GC2SD occupies a GameCube memory card slot but does not function as a standard Nintendo GameCube Memory Card for conventional game saves.

MicroSD Card Not Included: A microSD / TF card is required and is not included unless specifically stated in the selected product option.

Original Optical Drive Retained: GC2SD does not replace or disable the GameCube optical drive.

Wii Compatibility: Compatible with original Nintendo Wii RVL-001 consoles equipped with GameCube controller and memory card ports. Later Wii revisions without GameCube hardware connections are not supported.

1 × Bitfunx GC2SD Gen2 MicroSD Card Adapter
