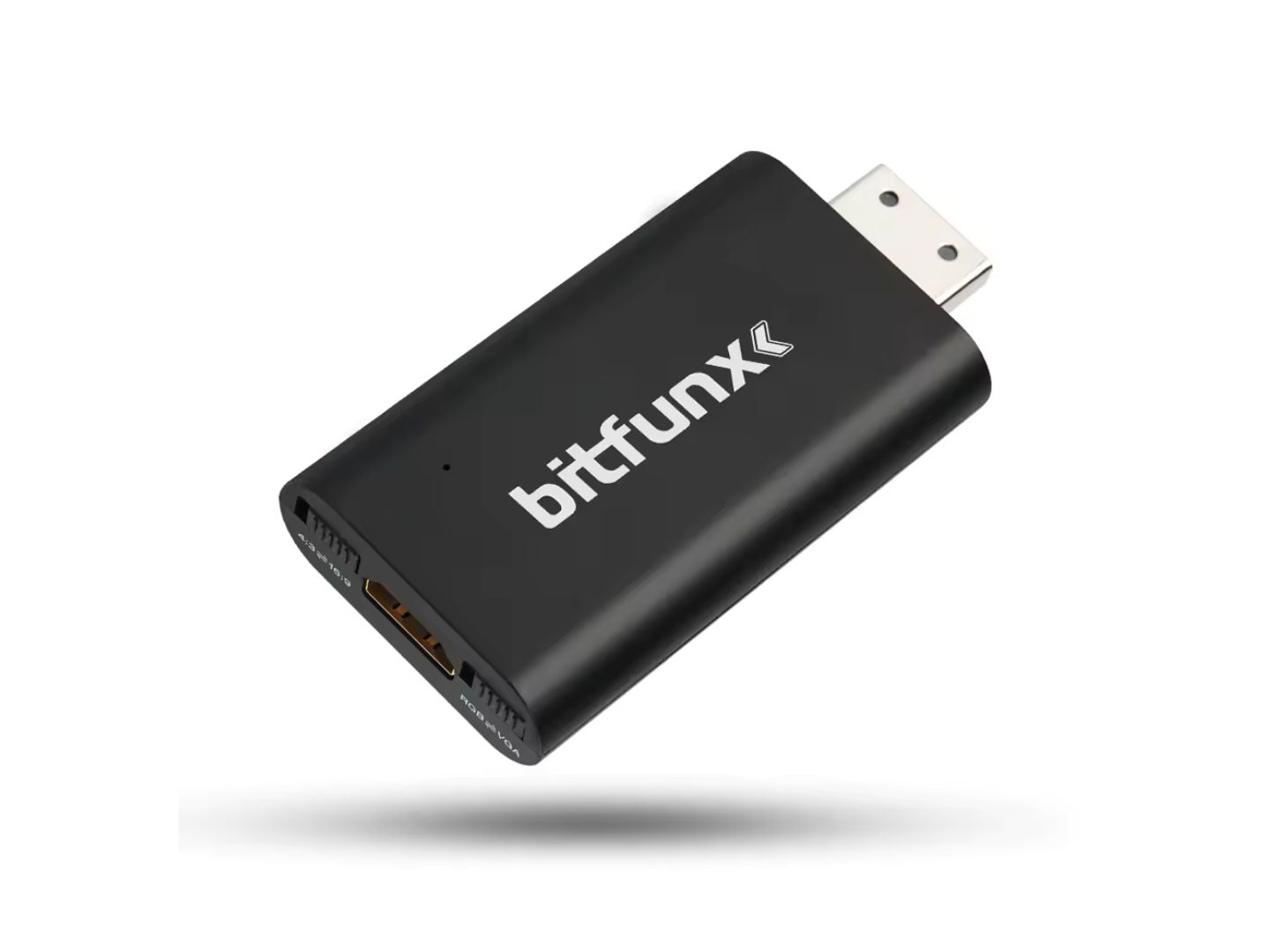

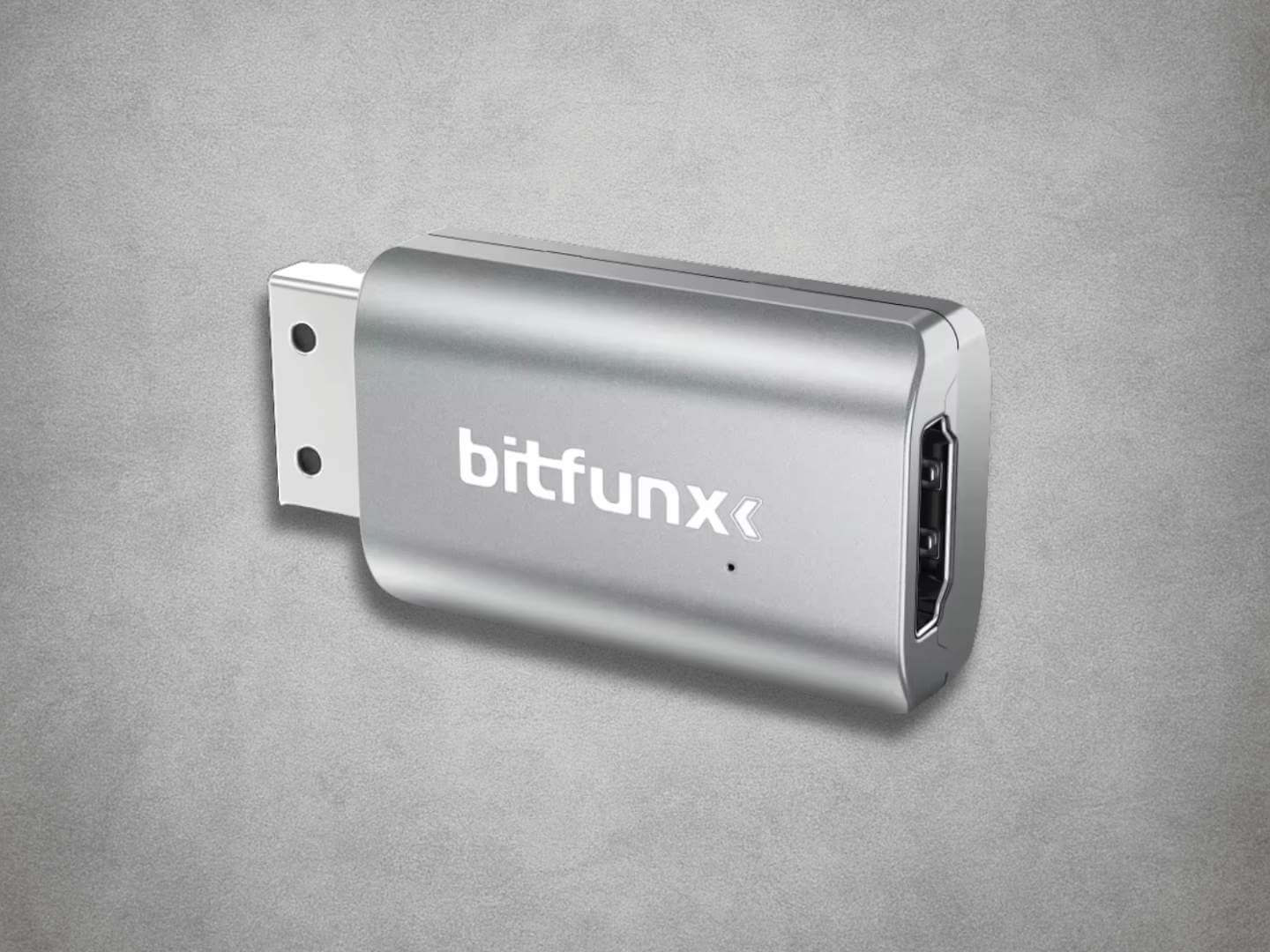

BitFunx Mini VGA To HDMI Adapter For Sega Dreamcast

The BitFunx Mini VGA To HDMI Adapter For Sega Dreamcast connects an original PAL, NTSC-U or NTSC-J Dreamcast console to a modern HDMI television, monitor, projector or compatible capture device.

The compact adapter connects directly to the console’s AV port and converts the Dreamcast’s analogue VGA video and stereo audio into a convenient digital HDMI connection. Video and sound are carried through a single HDMI cable, removing the need for a separate VGA box, audio lead or externally powered converter.

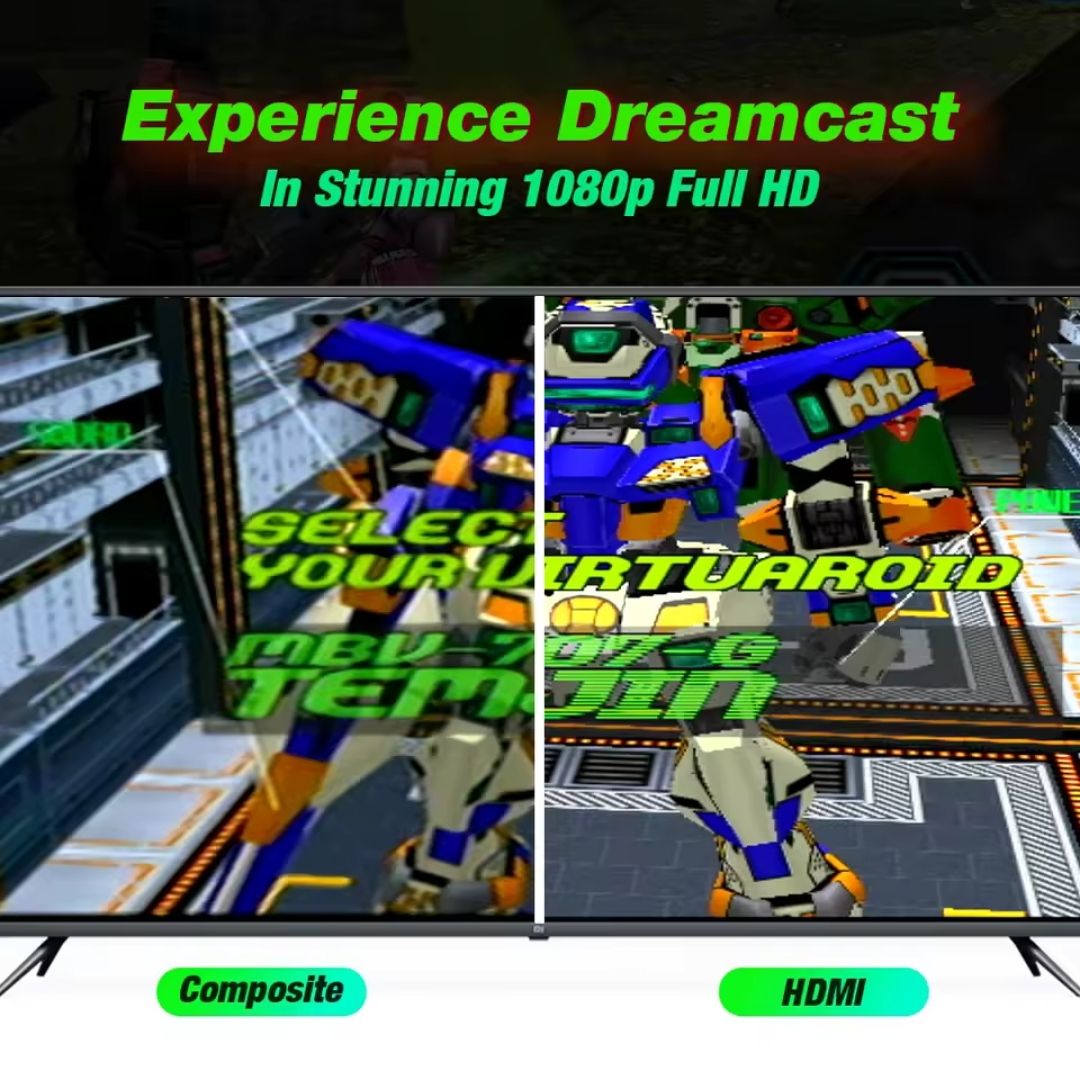

Compatible Dreamcast software can use the console’s clear 640 × 480 progressive-scan VGA output. This provides a noticeably cleaner source signal than a standard composite-video connection while retaining the appearance and resolution produced by the original console.

This Mini model is intended for VGA-compatible Dreamcast games. It does not include the RGBS fallback mode found on larger dual-mode Dreamcast adapters, so games without VGA support may not display. BitFunx advises that fewer than 20 Dreamcast games lack VGA compatibility, although support can vary between regional releases and software revisions.

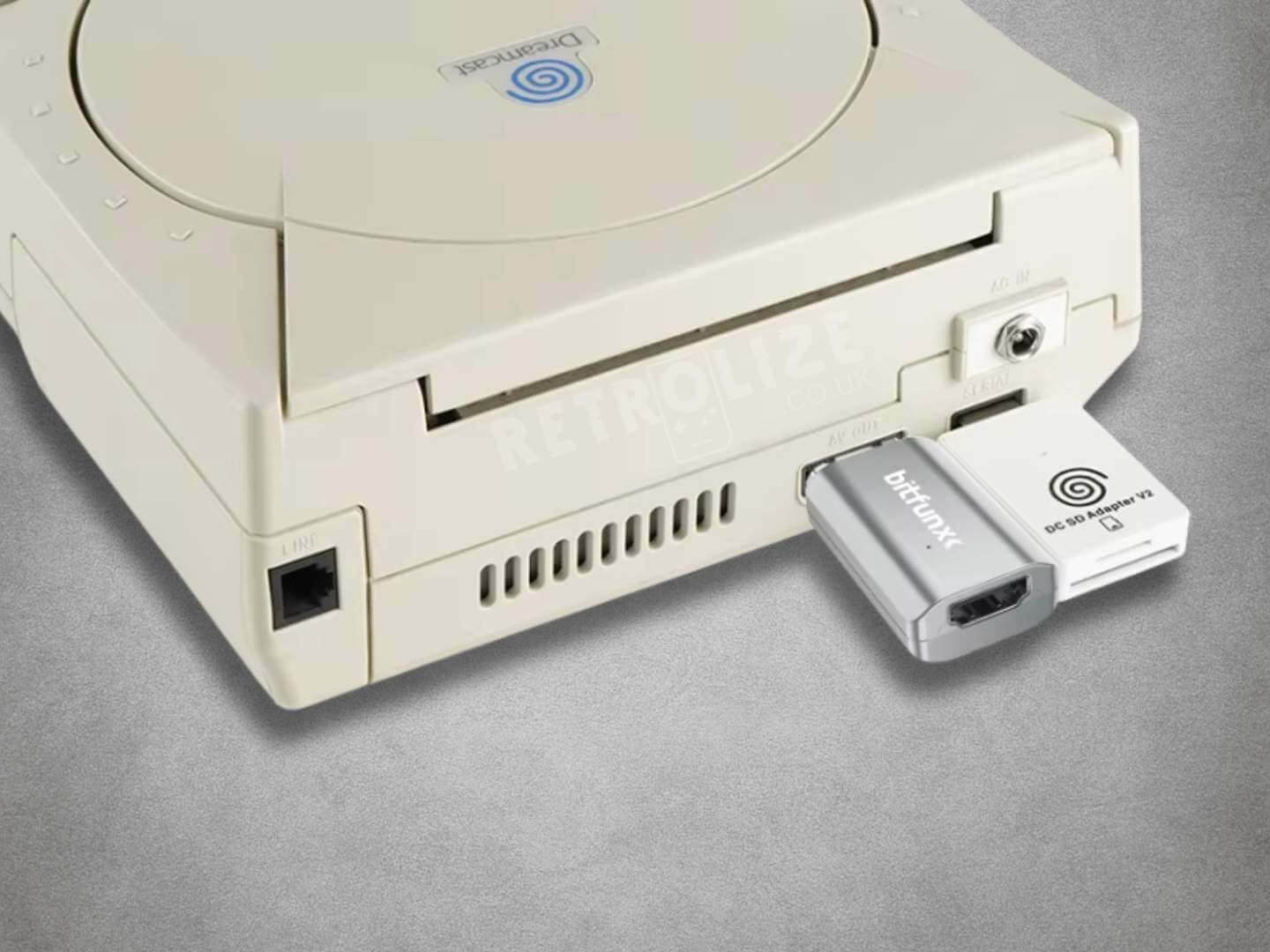

The adapter is powered through the Dreamcast AV port and requires no USB cable, external power supply, drivers or internal console modification. Its 57mm direct-fit design also provides clearance for compatible Dreamcast SD adapters connected alongside it.

This is a VGA-to-HDMI converter rather than a user-selectable 720p or 1080p upscaler. It cannot increase the internal rendering resolution of Dreamcast software, and final scaling to the display’s native resolution is performed by the connected television or monitor.

The adapter is dispatched from UK stock with fast delivery, international tracked delivery to supported destinations and a 12-month Retrolize warranty.

Browse our complete range of retro gaming upscalers and HDMI adapters.

Find more Sega Dreamcast parts and mods.

Brand: BitFunx
Product Name: BitFunx Mini VGA To HDMI Adapter For Sega Dreamcast
Product Type: Sega Dreamcast VGA To HDMI Adapter & Converter
Model: Dreamcast Mini HDMI Adapter
Manufacturer Product Code: XLL-BF-DC-Mini-HDMI-Adapter
Compatible Console: Original Sega Dreamcast

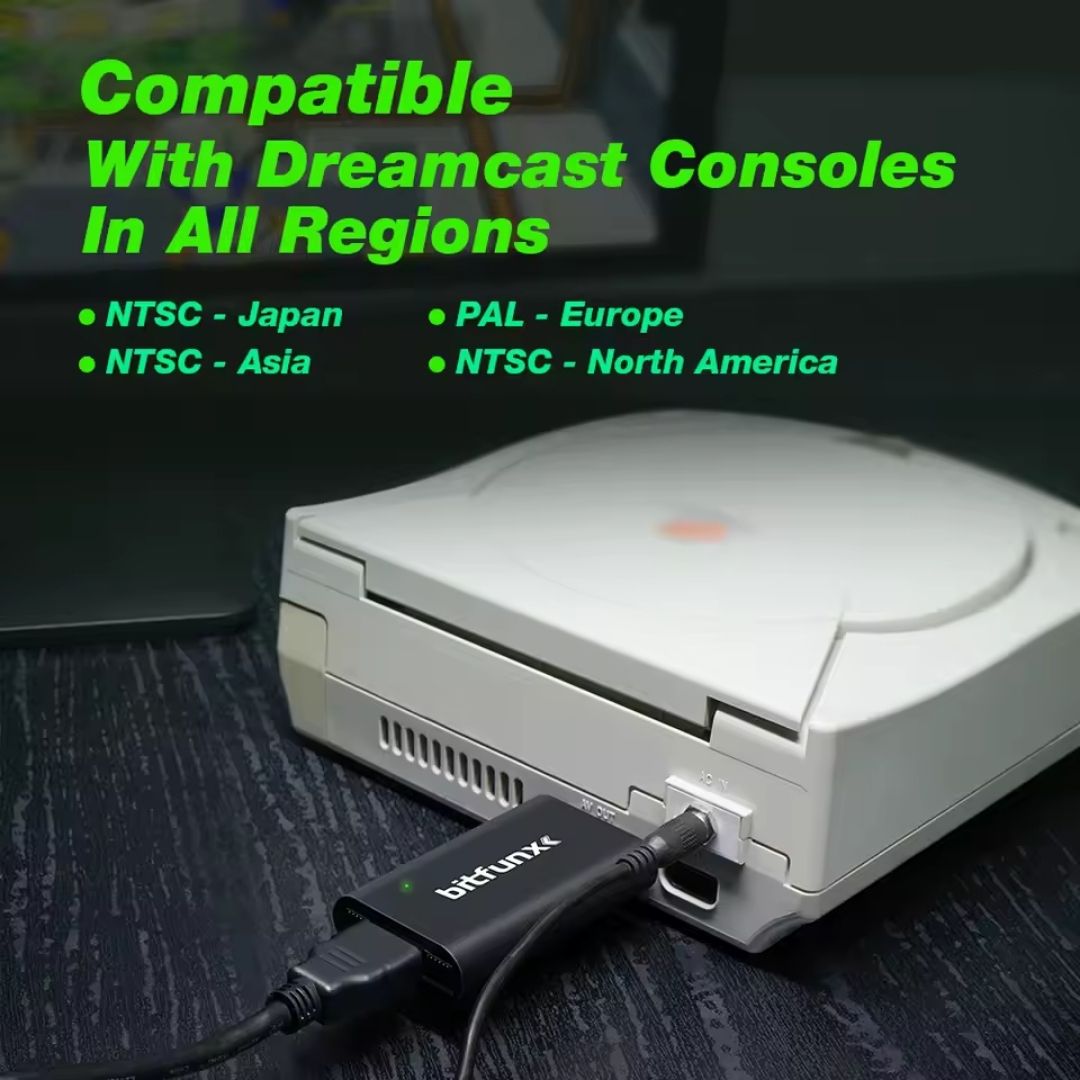

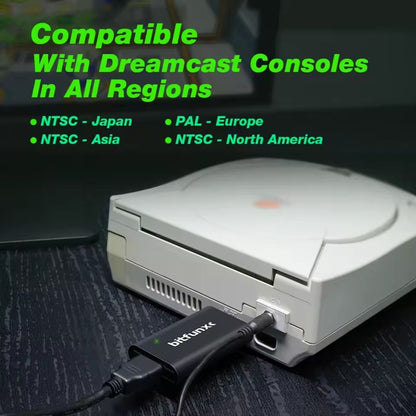

Console Regions: PAL, NTSC-U/C & NTSC-J
Console Connection: Dreamcast AV Port Male Plug
Video Input: Dreamcast VGA
Audio Input: Analogue Stereo Audio Through The Dreamcast AV Port
Signal Conversion: Analogue VGA Video & Stereo Audio To Digital HDMI
Output Connector: Full-Size HDMI Type-A Female Port
Video Output: Digital HDMI
Audio Output: Stereo Audio Via HDMI
Typical VGA Output: 640 × 480 Progressive Scan / 480p / 31kHz
Manufacturer-Listed Input Resolutions: 480i, 480p, 288p & 576i; Game-Level VGA Compatibility Still Required
VGA-Compatible Games Required: Yes
RGBS Input: Not Supported
Composite Video Input: Not Supported
S-Video Input: Not Supported
Component YPbPr Input: Not Supported
Selectable 15kHz / 31kHz Mode: Not Supported
Aspect Ratio Control: Not Included
Native HD Upscaling: Not Supported
Latency: Low-Latency Conversion; Total Display Lag Depends On The Connected Display
Power Source: Dreamcast AV Port
External Power Required: No
USB Power Required: No
Drivers Required: No
Installation: Plug & Play
Console Modification Required: No
HDMI Cable Required: Yes
HDMI Cable Included: No
Dreamcast SD Adapter Clearance: Supported By The Compact Direct-Fit Design
Dimensions: 57 × 28.5 × 14.1mm
Weight: Approximately 18.8g
Colour: Silver
SKU: BFX-DC-MINI-HDMI-SLV

Original Sega Dreamcast Consoles

Original Sega Dreamcast PAL Consoles: Supported
Original Sega Dreamcast NTSC-U/C Consoles: Supported
Original Sega Dreamcast NTSC-J Consoles: Supported

Dreamcast Video & Audio

VGA-Compatible Dreamcast Games: Supported
Standard Dreamcast 480p VGA Output: Supported
Manufacturer-Listed 480i, 480p, 288p & 576i Input Resolutions: Supported Subject To VGA Game & Display Compatibility
Non-VGA Dreamcast Games: Not Supported Through This Mini Adapter
Dreamcast RGBS 15kHz Input: Not Supported
Dreamcast Composite Video Input: Not Supported
Dreamcast S-Video Input: Not Supported
Component YPbPr Input: Not Supported
Digital HDMI Video Output: Supported
Stereo Audio Through HDMI: Supported
User-Selectable 720p Or 1080p Upscaling: Not Supported
Built-In Aspect-Ratio Selection: Not Supported

Connection Requirements

Standard Full-Size HDMI Cable: Required & Not Included
HDMI Television, Monitor, Projector Or Capture Device: Required
Display Supporting Compatible Dreamcast HDMI Timing: Required
External Power Supply: Not Required
USB Power Connection: Not Required
Drivers Or Software: Not Required
Console Modification: Not Required
Compatible Dreamcast SD Adapter Used Alongside The HDMI Adapter: Supported
Original Dreamcast Light Guns On Modern Flat-Panel Displays: Not Supported
Hot Plugging: Not Supported

VGA-Compatible Games Required: This Mini adapter uses the Dreamcast’s VGA output. Games that do not support VGA may display a compatibility message, produce a blank screen or fail to start correctly.

Not Compatible With Every Dreamcast Game: BitFunx advises that fewer than 20 Dreamcast games do not support VGA output. Compatibility can vary between regional releases, revisions and patched versions of the same game.

VGA Input Only: This Mini model accepts the Dreamcast’s VGA signal. It does not support RGBS, composite video, S-Video or component YPbPr input and does not provide a 15kHz fallback mode for non-VGA games.

Not A 720p Or 1080p Upscaler: The adapter converts the Dreamcast’s original VGA video and stereo audio into HDMI. It does not render games at a higher internal resolution or create additional graphical detail. Final scaling to the television’s panel resolution is handled by the connected display.

Manufacturer-Listed Signal Support: BitFunx lists 480i, 480p, 288p and 576i input-resolution support. This does not remove the requirement for the game to support the adapter’s VGA operating mode.

HDMI Cable Required: A standard full-size HDMI cable is required and is not included.

Aspect Ratio: Most Dreamcast software was designed for a 4:3 display. This Mini adapter does not include an aspect-ratio switch, so the connected television, monitor or capture device should be set to 4:3 where required.

Display Compatibility: The connected display or capture device must accept the adapter’s HDMI output. Compatibility with every television, monitor, projector or capture device cannot be guaranteed.

Dreamcast Light Guns: Original Dreamcast light guns rely on CRT display technology and will not normally function with a modern flat-panel HDMI television.

Hot Plugging: Always switch the Dreamcast off before inserting or removing the adapter.

First-Time Setup

1. Switch the Sega Dreamcast and HDMI display off.
2. Connect the BitFunx Mini VGA To HDMI Adapter directly to the Dreamcast AV port.
3. Connect a standard full-size HDMI cable between the adapter and the television, monitor, projector or capture device.
4. Switch the display on and select the corresponding HDMI input.
5. Set the display to a 4:3 aspect ratio where required.
6. Switch the Dreamcast on with a VGA-compatible game inserted.
7. If no picture or sound appears, switch the console off before checking the adapter and HDMI connections.
8. Confirm that the selected game and regional release support Dreamcast VGA output.
9. Always switch the console off before removing the adapter.

1 × BitFunx Mini VGA To HDMI Adapter For Sega Dreamcast In Silver
1 × Retail Box

This BitFunx Sega Dreamcast VGA To HDMI Adapter is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, misuse, damaged connectors, excessive strain placed on the adapter, unauthorised modification or faults caused by an incompatible console, game, HDMI cable or display.

VGA game compatibility, display compatibility, television scaling, aspect-ratio behaviour and differences between supported video modes are not considered product faults. Warranty claims remain subject to the full Retrolize warranty terms.

Does The Adapter Work With Every Dreamcast Game?

No. This Mini model requires the game to support Dreamcast VGA output. BitFunx advises that fewer than 20 Dreamcast games lack VGA support, although compatibility can vary between regional releases and software revisions.

Can Non-VGA Games Be Forced To Work?

Some Dreamcast games can potentially be forced or patched to operate in VGA mode, but this depends on the exact game, region and software being used. Forced or patched compatibility is not guaranteed and is not a feature of the adapter itself.

Does The Adapter Upscale Dreamcast Games To 1080p?

No. It converts the Dreamcast’s original VGA signal into HDMI. It does not render games at 1080p or add graphical detail that was not present in the original software.

What Resolution Does Dreamcast VGA Use?

Standard Dreamcast VGA output is approximately 640 × 480 progressive scan, commonly described as 480p. The connected display then scales that signal to its own panel resolution.

Does The Dreamcast HDMI Adapter Add Input Lag?

The adapter performs straightforward VGA-to-HDMI conversion rather than user-selectable frame scaling, but BitFunx does not publish a measured millisecond latency figure for this Mini model. Total perceived delay also depends on the connected display and its picture-processing settings, so Game Mode is recommended where available.

Does It Work With PAL And NTSC Dreamcast Consoles?

Yes. Original PAL, NTSC-U/C and NTSC-J Dreamcast consoles are supported. Game-level VGA compatibility can still vary between regional releases.

Does The Adapter Carry Sound Through HDMI?

Yes. Stereo audio from the Dreamcast is converted and carried through the HDMI connection alongside the video.

Is An HDMI Cable Included?

No. A standard full-size HDMI cable is required and must be purchased separately if one is not already available.

Does It Require External Power?

No. The adapter receives the power it requires through the Dreamcast AV port.

Which Aspect Ratio Should I Use?

A 4:3 setting is recommended for most Dreamcast games because it preserves their intended proportions. The adapter does not include an aspect-ratio switch, so this must be selected through the connected display where necessary.

Does It Fit Alongside A Dreamcast SD Adapter?

Yes. BitFunx designed the compact housing to provide clearance for compatible Dreamcast SD adapters connected alongside it.

Is This The Same As The Larger RGBS/VGA Dreamcast Adapter?

No. This Mini model accepts VGA input only. The larger dual-mode model also accepts RGBS signals and can provide broader compatibility with games that do not support VGA.

Is This The Same As An Internal Dreamcast HDMI Modification?

No. This is an external plug-in adapter that converts the console’s analogue VGA output. An internal digital HDMI modification connects inside the console and provides different processing and configuration features.

Will Original Dreamcast Light Guns Work On An HDMI Television?

No. Original Dreamcast light guns require a compatible CRT display and will not normally function on a modern LCD, LED or OLED television.

Can I Use It With A Capture Card?

Possibly. The capture device must accept the adapter’s HDMI signal and Dreamcast video timing. Compatibility with every capture card cannot be guaranteed.
