Nintendo Game Boy Advance IPS Recharge 1800mAh - Recapped + Reflowed + Upgraded Audio - Black DMG

This professionally restored and modified Nintendo Game Boy Advance combines original Nintendo hardware with a HighSpeedido V5 IPS display, built-in 1800mAh USB-C rechargeable battery, upgraded audio and a meticulous restoration process.

At the centre of every console is an original Nintendo Game Boy Advance motherboard. Rather than simply installing an ageing motherboard into a replacement shell, each system is fully disassembled, inspected, cleaned and carefully rebuilt with modern display, power and audio upgrades.

The finished console retains the cartridge-based operation, familiar controls and distinctive horizontal design of the original Game Boy Advance while addressing some of the biggest limitations of Nintendo's original hardware. The unlit display is replaced with a bright modern IPS panel, disposable AA batteries are replaced by an internal rechargeable battery and the audio system is refreshed with an upgraded 2W speaker.

For anyone looking for a modified Game Boy Advance in the UK, the result is a console that still behaves like an original Nintendo GBA but benefits from carefully selected modern upgrades and comprehensive restoration work.

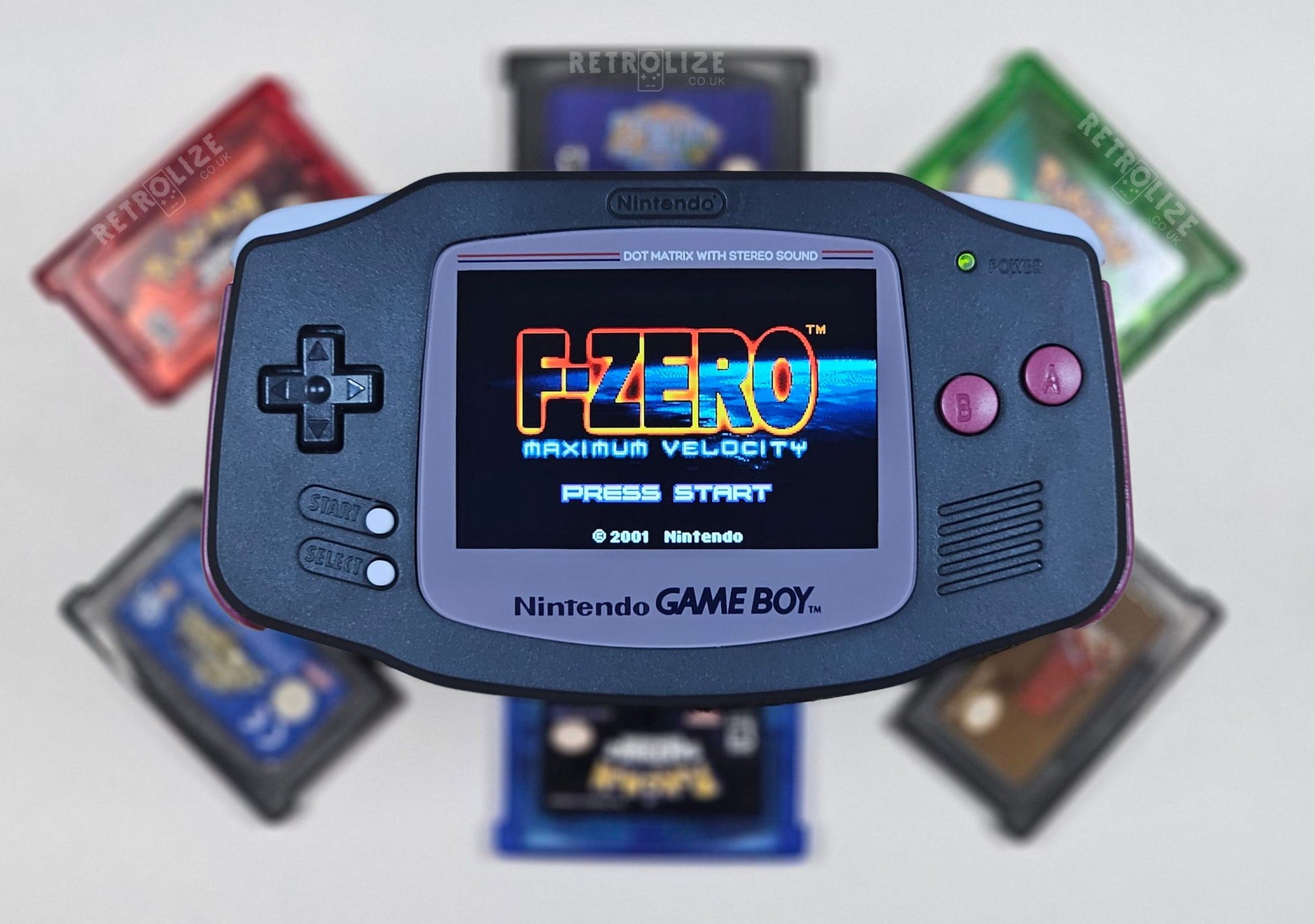

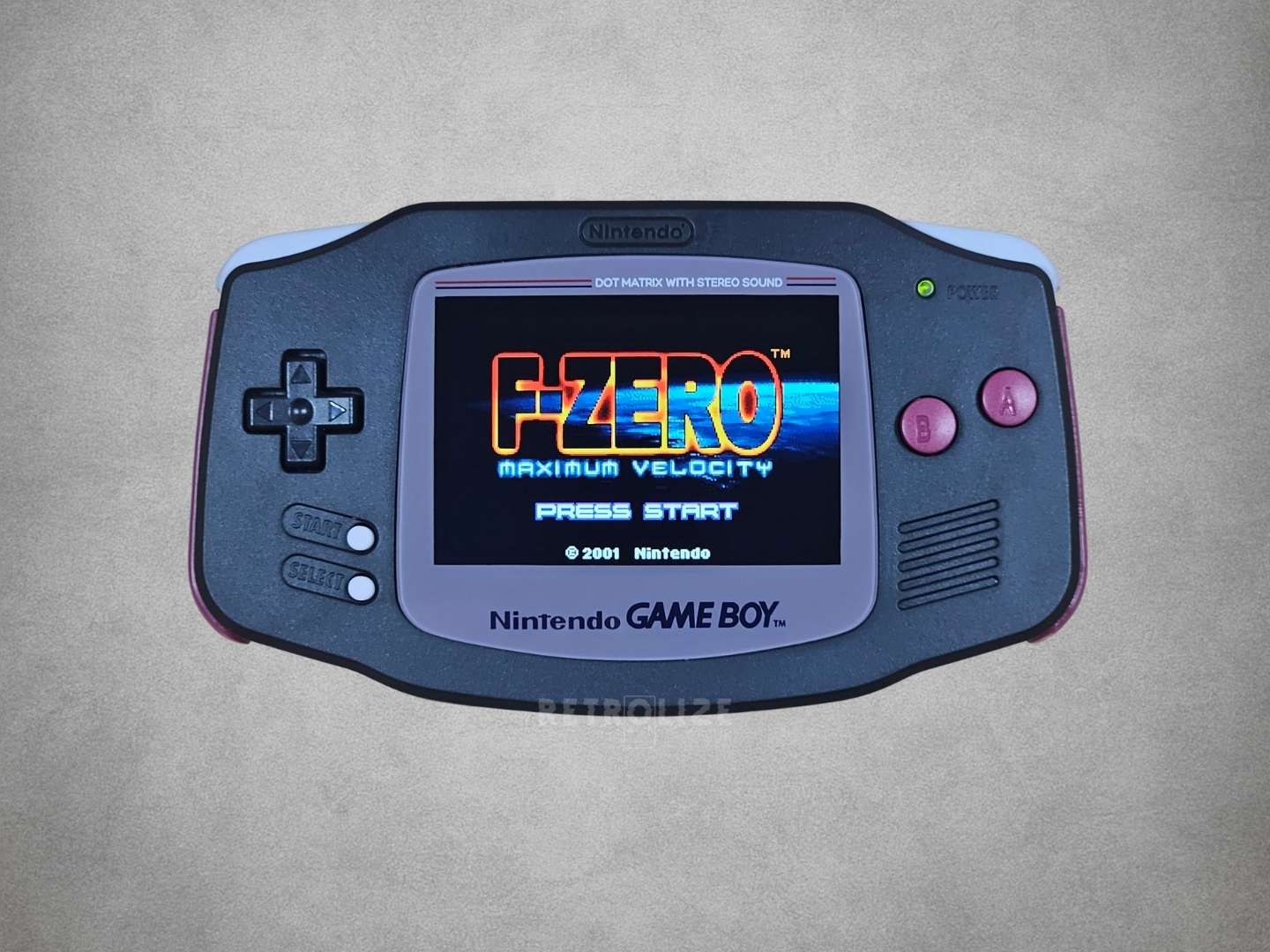

HighSpeedido V5 IPS Display

The original non-backlit Game Boy Advance display is replaced with a HighSpeedido V5 IPS screen, providing a considerably brighter, clearer and more vibrant picture for original Game Boy Advance, Game Boy Color and Game Boy cartridges.

The modern IPS panel provides improved brightness, stronger colour reproduction, better viewing angles and a cleaner image than the original reflective screen, making the console far easier to use across a wider range of lighting conditions.

A built-in on-screen display provides access to brightness and supported screen-effect settings, allowing the display to be adjusted without compromising the familiar Game Boy Advance control layout.

The upgraded screen is particularly effective with the colourful pixel artwork of the Game Boy Advance library while also providing a sharp modern display for compatible original Game Boy and Game Boy Color cartridges.

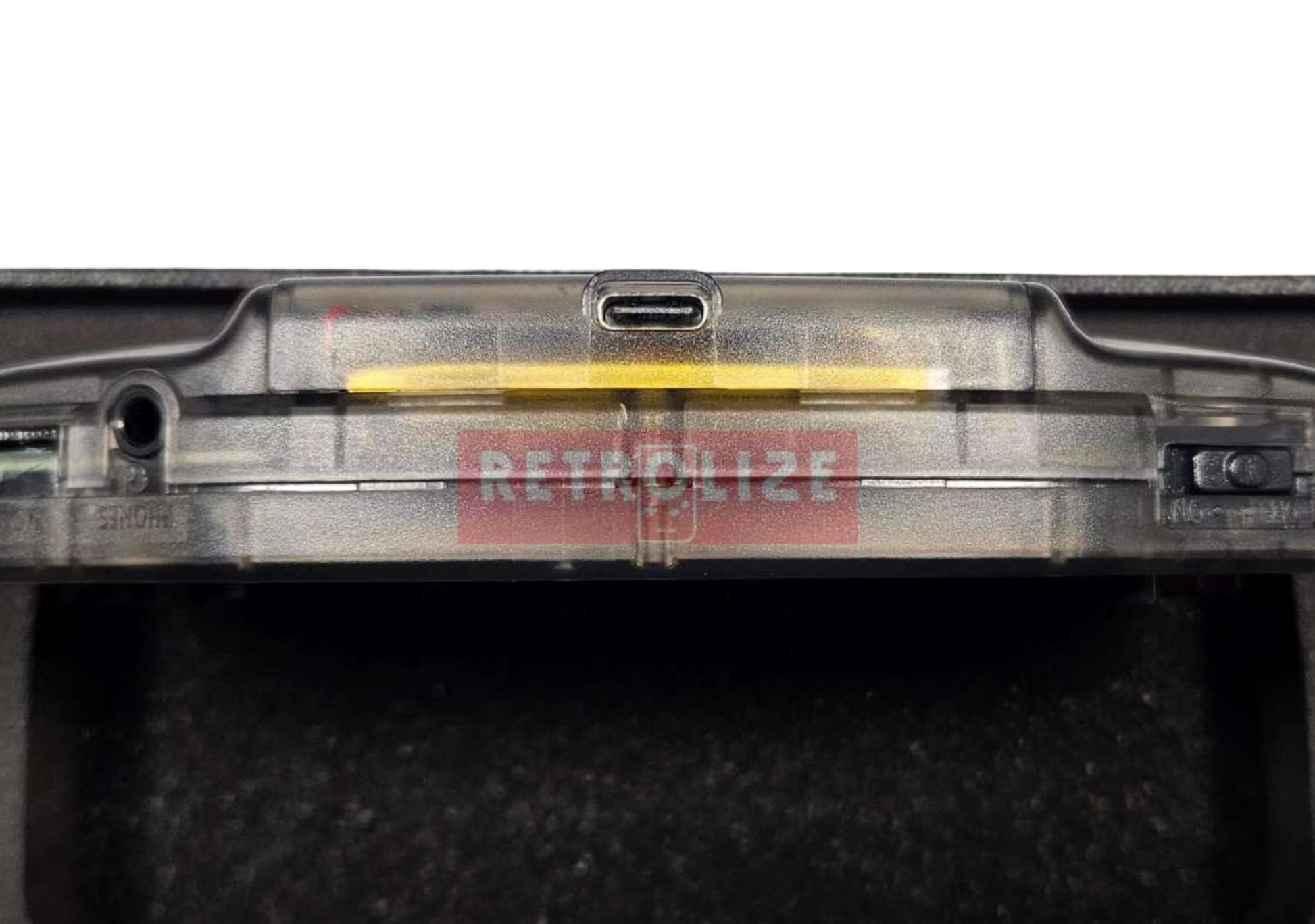

Built-In 1800mAh USB-C Rechargeable Battery

The original Game Boy Advance was designed around disposable AA batteries. This modified GBA replaces that arrangement with a built-in 1800mAh rechargeable battery and dedicated USB-C charging system.

The rechargeable conversion makes the console significantly more convenient for regular use, allowing the battery to be topped up using USB-C instead of repeatedly removing the battery cover and replacing AA cells.

Typical battery life is around 6–8 hours depending on IPS brightness, speaker volume, cartridge type and general use.

The charging system is integrated neatly into the replacement shell as part of the rebuild, maintaining the familiar shape and portability of the original Game Boy Advance.

Upgraded 2W Audio

The internal audio system is refreshed as part of the restoration and upgraded with a 2W speaker for clearer, stronger sound from the console's built-in audio output.

The volume wheel and surrounding audio circuitry are cleaned, inspected and tested during the rebuild rather than simply reusing decades-old components without attention.

The original headphone connection remains available for compatible wired headphones, retaining the flexibility of the original Nintendo hardware.

Panasonic Capacitor Replacement

Ageing electronic components are one of the areas often overlooked when modifying original Game Boy hardware, which is why the work performed on these consoles extends beyond the visible screen and shell upgrades.

The original Game Boy Advance motherboard is recapped using modern Panasonic SMD capacitors to improve long-term reliability. Relevant power and audio components are replaced with modern equivalents as part of the refurbishment process.

The motherboard is also inspected for contamination, corrosion, damaged traces, weak solder joints and signs of previous repair work before reassembly.

Motherboard Reflow & Restoration

Key areas of the original Nintendo motherboard are reflowed during restoration to help address cold, weakened or fractured solder joints that can develop after decades of use.

These faults can contribute to intermittent power, audio-visual problems, unreliable controls and inconsistent operation, so the restoration process is designed to address the condition of the underlying hardware rather than concentrating solely on cosmetic modifications.

The cartridge connector, power switch, controls, link port, volume wheel, audio circuitry and other important connections are inspected and cleaned as part of the rebuild.

New Shell, Buttons & Silicone Membranes

A premium replacement ABS shell is fitted alongside new buttons and fresh silicone control membranes, giving the restored Game Boy Advance a clean finish while retaining the familiar ergonomics and control layout of Nintendo's original design.

The D-pad, A and B buttons, Start and Select controls and L and R shoulder buttons remain positioned exactly where Game Boy Advance players expect them, so the console immediately feels familiar in use.

The original cartridge slot, Game Link connection, headphone socket, volume control and external accessory connections are retained, preserving the functionality that makes original Game Boy Advance hardware so versatile.

A reflective Game Boy Advance logo completes the modernised exterior while remaining faithful to the styling of the original handheld.

Original Nintendo Cartridge Hardware

This is a genuine hardware-based Nintendo Game Boy Advance rather than an emulation handheld.

Game Boy Advance cartridges are inserted directly into the original cartridge connector and run on the original Nintendo motherboard. There are no emulator menus, operating systems or software libraries to configure.

The Game Boy Advance is also backwards compatible with compatible original Game Boy and Game Boy Color cartridges, allowing one handheld to cover three generations of Nintendo's cartridge-based Game Boy library.

Insert a compatible cartridge, switch the console on and play using original Nintendo hardware with the benefits of a modern IPS display, rechargeable battery and upgraded audio.

Meticulously Restored Before Dispatch

The restoration work is every bit as important as the visible modifications.

Each Game Boy Advance is completely stripped down so the motherboard, cartridge connector, controls, switches, ports and internal components can be individually inspected and cleaned.

The motherboard is reflowed, recapped with Panasonic SMD capacitors and rebuilt with the HighSpeedido V5 IPS display, rechargeable battery hardware, upgraded audio components and 2W speaker.

Once assembled, every console undergoes thorough testing for screen performance, display controls, buttons, D-pad response, shoulder buttons, audio, volume adjustment, charging, battery operation, cartridge reading, link-port operation and general reliability before dispatch.

A protective carry case, wrist strap, lens-cleaning cloth and Retrolize display box are also included, creating a complete restored and upgraded Game Boy Advance package suitable for regular play, collecting or gifting.

Restoration Process

Disassembly: Each Game Boy Advance is fully disassembled so the original Nintendo motherboard, cartridge connector, controls, switches, ports and internal components can be individually inspected and cleaned.

Motherboard Inspection & Reflow: The motherboard is inspected for contamination, corrosion, damaged traces and weakened solder joints. Relevant areas are reflowed to help repair cold or fractured joints that can contribute to power faults, audio-visual problems, intermittent operation or unresponsive controls.

Panasonic Capacitor Replacement: Ageing capacitors are replaced with modern Panasonic SMD components to refresh key areas of the original motherboard and improve long-term reliability.

Reassembly With Modern Upgrades: The restored motherboard is rebuilt with the HighSpeedido V5 IPS display, refreshed audio components, upgraded 2W speaker, serviced volume wheel, link port, USB-C recharge circuit and built-in 1800mAh rechargeable battery.

New Shell & Controls: A premium replacement shell, new buttons and fresh silicone membranes are fitted while retaining the familiar Game Boy Advance layout and original cartridge-based operation.

Thorough Testing: Every console is tested for IPS screen performance, display controls, D-pad and button response, shoulder controls, audio, volume adjustment, USB-C charging, battery operation, cartridge reading, link-port function and overall reliability before dispatch.

Product Type: Restored & modified Nintendo handheld console
Original Console Model: Nintendo Game Boy Advance AGB-001
Core Hardware: Original Nintendo Game Boy Advance motherboard
Display Upgrade: HighSpeedido V5 IPS screen
Display Type: Backlit IPS LCD
Display Controls: Built-in on-screen display
Brightness Control: Adjustable
Screen Effects: Selectable through the display menu
Compatible Cartridges: Game Boy, Game Boy Color & Game Boy Advance Game Paks
Controls: D-pad, A, B, Start, Select, L & R
Shell: Premium replacement ABS shell
Buttons: New replacement controls
Control Membranes: New silicone membranes
GBA Logo: Reflective Game Boy Advance logo
Battery Type: Built-in rechargeable battery
Battery Capacity: 1800mAh
Charging Connection: USB-C
Typical Battery Runtime: Approximately 6–8 hours depending on use
Original AA Battery Requirement: Replaced by rechargeable battery system
Speaker: Upgraded 2W internal speaker
Volume Control: Original-style volume wheel
Headphone Connection: 3.5mm headphone socket
Link Port: Game Boy Advance link connection retained
Capacitors: Panasonic SMD capacitor replacement
Cartridge Slot: Original Nintendo cartridge connector
Motherboard Work: Cleaned, inspected, recapped & reflowed
Final Testing: Display, controls, audio, charging, battery, cartridge reading & general operation

Nintendo Game Boy Advance

Original Game Boy Advance Game Paks: Supported

Nintendo Game Boy Color

Game Boy Color Game Paks: Supported

Dual-Compatible Game Boy Color Game Paks: Supported

Nintendo Game Boy

Original Game Boy Game Paks: Supported

Compatible Connections

Game Boy Advance Game Link Cable: Supported with compatible Game Boy Advance software

Nintendo GameCube – Game Boy Advance Cable: Supported with compatible GameCube and Game Boy Advance software

Original Nintendo Hardware: Each console is built around an original Nintendo Game Boy Advance motherboard that has been professionally restored and upgraded with modern display, power and audio components.

Replacement Shell & Controls: These are restored and modified consoles rather than untouched original-condition Game Boy Advance systems. A premium replacement shell, new buttons and fresh silicone membranes are fitted during the rebuild.

USB-C Rechargeable: The original AA battery arrangement has been replaced with a built-in 1800mAh rechargeable battery and USB-C charging system.

Game Cartridge Not Included: Games shown in product photography are for demonstration purposes only unless specifically stated otherwise.

1 × Restored Nintendo Game Boy Advance With HighSpeedido V5 IPS Display
1 × Built-In 1800mAh USB-C Rechargeable Battery
1 × Wrist Strap
1 × Lens Cleaning Cloth
1 × Protective Carry Case
1 × Retrolize Display Box

This restored and upgraded Nintendo Game Boy Advance is covered by a 12-month limited Retrolize warranty from the date of delivery against manufacturing defects and hardware faults arising during normal use.

Warranty coverage includes eligible faults affecting the IPS display, physical controls, internal speaker, headphone output, rechargeable battery, USB-C charging circuit, power system and restored motherboard.

The warranty does not cover accidental damage, liquid damage, cracked or pressure-damaged screens, damaged cartridge connectors, damaged link ports, crushed shells, damaged USB-C ports, excessive force, unauthorised repairs or further modifications.

Battery or charging-system damage caused by unsuitable charging equipment, incorrect voltage, physical damage or excessive heat is not covered.

Display damage caused by drops, impacts, pressure, deep scratches or liquid ingress is not considered a manufacturing defect.

Individual cartridge faults, dirty cartridge contacts, depleted cartridge-save batteries, software-specific behaviour and incompatible third-party accessories are not considered console faults.

Normal cosmetic wear and the gradual reduction in rechargeable battery capacity that occurs through age and repeated charging cycles are not considered manufacturing defects.

The Retrolize warranty is provided in addition to your statutory consumer rights.

Warranty claims remain subject to the full Retrolize warranty terms.
