Nintendo Game Boy Color OLED Rechargeable 1800mAh – Recapped, Reflowed & Upgraded Audio – Clear White
Nintendo Game Boy Color OLED Rechargeable 1800mAh – Recapped, Reflowed & Upgraded Audio – Clear White
Made To Order
Game Boy consoles are built to order. Please allow up to 2 business days before dispatch.
Couldn't load pickup availability
📦 Restored Original Nintendo Game Boy Color – Ready To Play 📦
🌈 25% Larger Laminated AMOLED Display 🌈
🔋 1800mAh Rechargeable Battery & USB Charging 🔋
🔧 Recapped With Panasonic Capacitors & Motherboard Reflowed 🔧
🔊 Upgraded Audio & Replacement 2W Speaker 🔊
👆 Touch Controls For Brightness, Colours & Retro Screen Effects 👆
🌈 Clear White Styling & Customisable Illuminated Logo 🌈
🎮 Plays Original Game Boy & Game Boy Color Cartridges 🎮
🎒 Carry Case, Charging Cable & Printed Display Box Included 🎒
🛡️ 12-Month Retrolize Warranty 🛡️
Description
Description
This Clear White Nintendo Game Boy Color combines original Nintendo hardware with a laminated OLED display, an internal 1800mAh rechargeable battery and upgraded audio. Its transparent replacement housing reveals the restored hardware inside, complemented by white controls, a white screen border and a customisable illuminated Game Boy Color logo.
Each console is fully disassembled, inspected, cleaned and rebuilt around an original Nintendo Game Boy Color motherboard. Panasonic capacitor replacement, motherboard inspection and solder-joint reflow form part of the restoration, alongside the modern screen, battery and speaker upgrades.
The finished handheld arrives fully assembled and tested, ready to use with your own compatible Game Boy and Game Boy Color cartridges. A protective black carry case, USB charging cable, black wrist strap, lens cloth and printed display box are included.

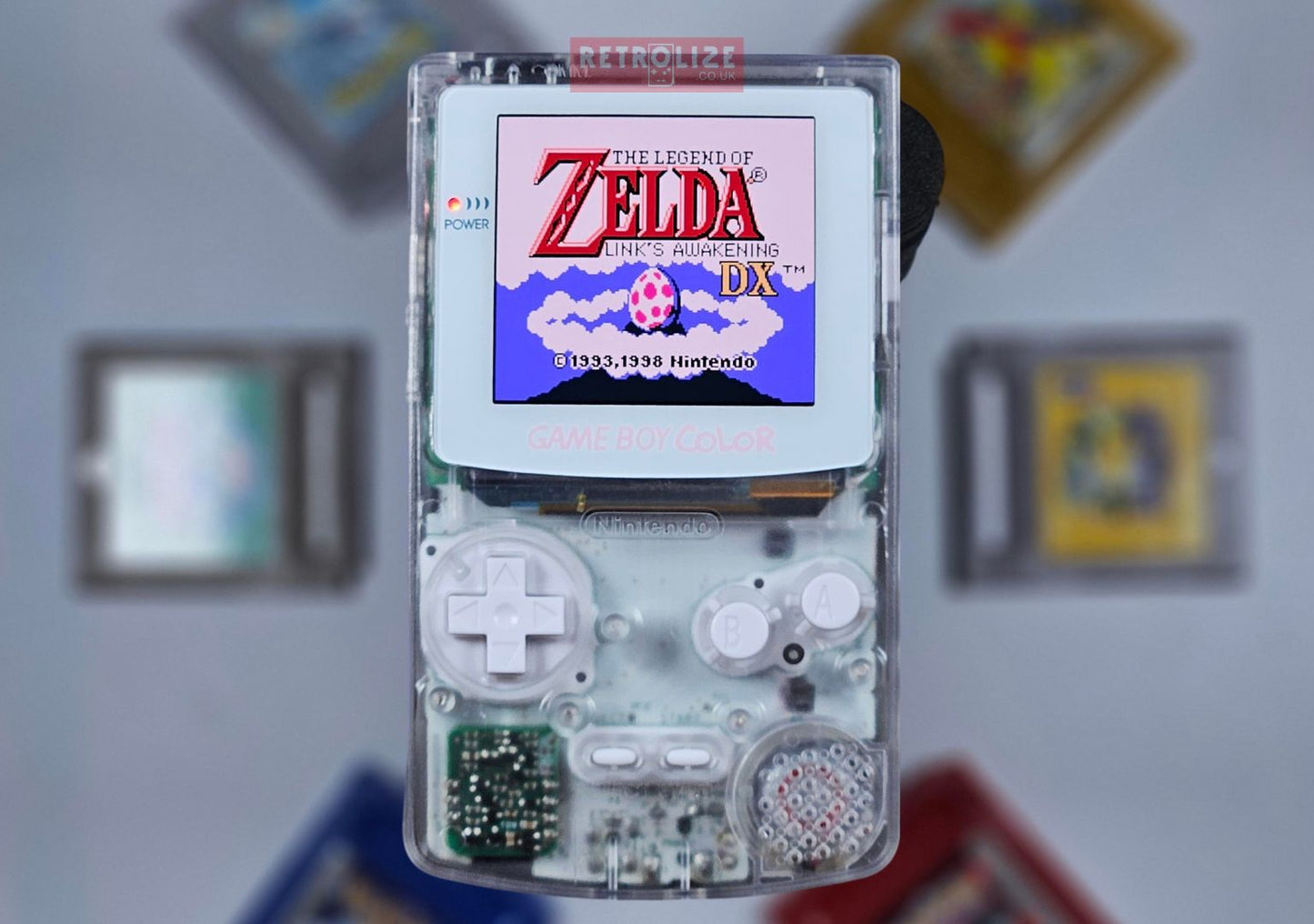

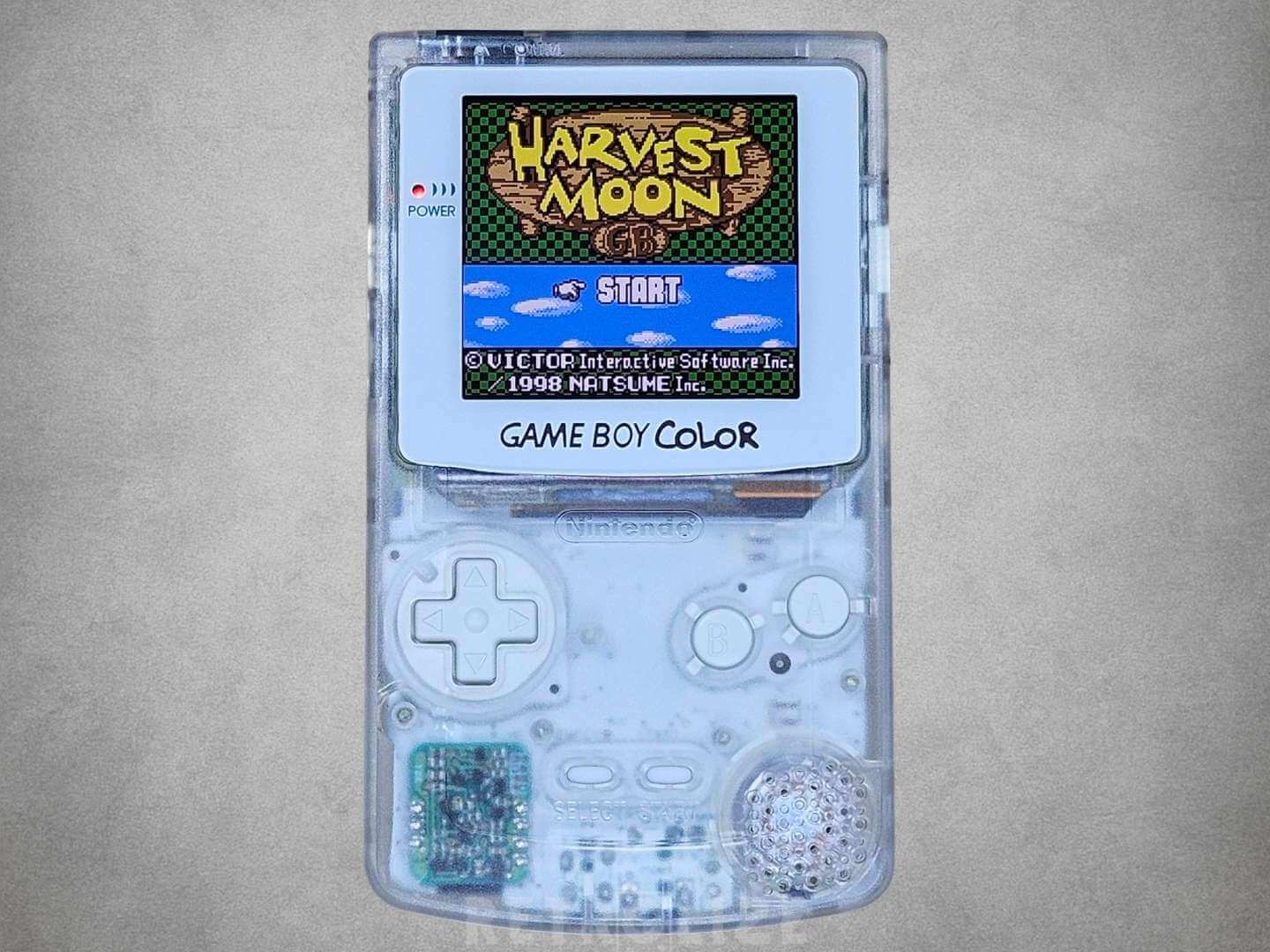

Laminated Hispeedido OLED Display
The original reflective LCD is replaced with a laminated Hispeedido OLED / AMOLED display, giving this modified Game Boy Color a viewing area approximately 25% larger than the original screen.
Deep black levels, strong contrast and vivid colours make games easier to see in different lighting conditions. The laminated construction removes the visible air gap between the screen and lens, creating a clear, closely integrated display.
Integer scaling preserves the pixel structure of the original 160×144 picture. Selectable retro pixel effects let you adjust the presentation to your preference, while frame blending can be enabled for games that benefit from it.
Touch-sensitive controls provide access to the on-screen display menu. Adjust brightness, colour presentation, pixel effects, frame blending and the illuminated logo colours without adding external switches to the housing. Gameplay continues to use the familiar physical control layout.

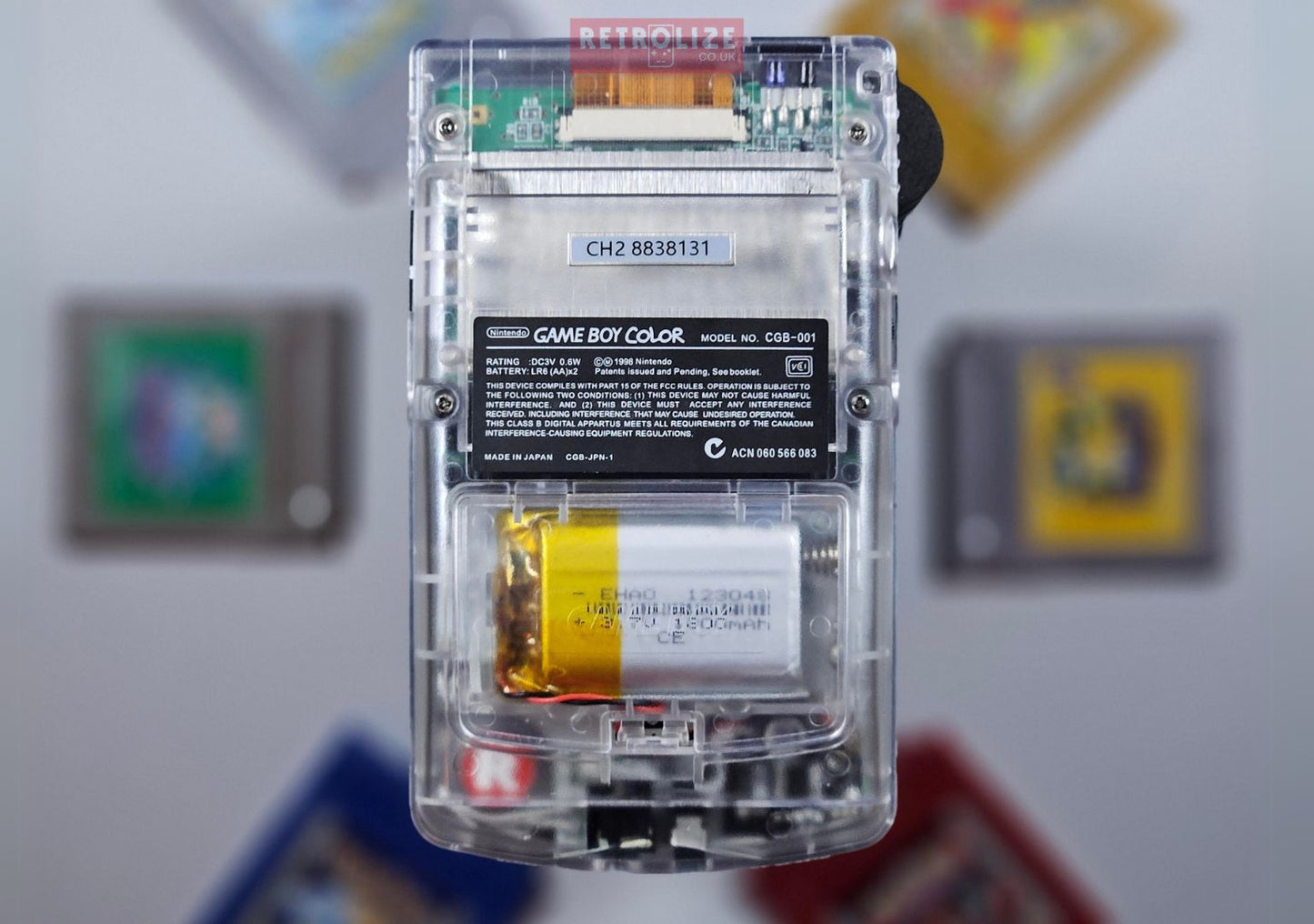

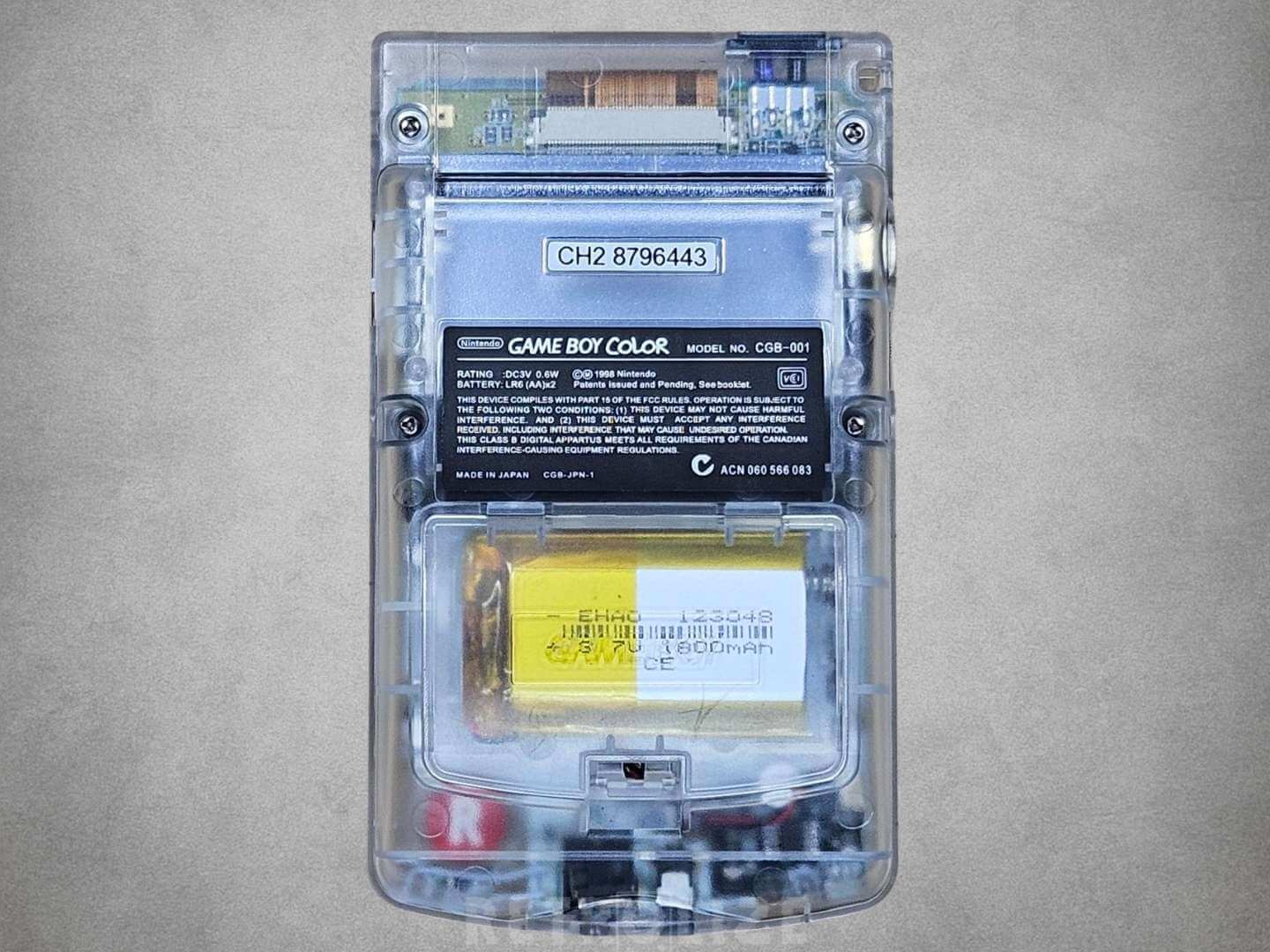

Built-In 1800mAh Rechargeable Battery
An internal 1800mAh rechargeable battery removes the need to regularly replace disposable AA batteries.
Charging uses the original Game Boy Color power socket and the supplied USB-A-to-barrel cable. Connect it to a suitable regulated 5V USB power source to recharge the console.
Battery runtime varies according to display brightness, speaker volume, cartridge and use, so there is no fixed runtime that applies to every game or setup.
The console must remain switched off while charging. Charge-and-play is not supported, and the charging cable must be disconnected before playing.
Upgraded Audio
A replacement 2W internal speaker refreshes the Game Boy Color’s built-in mono audio system.
The original volume wheel is serviced during restoration, and the original 3.5mm headphone socket remains available for wired headphones. Stereo headphone audio is supported where provided by the game.
The 2W specification refers to the replacement speaker’s rating.
Panasonic Capacitor Replacement
The motherboard is recapped using Panasonic SMD capacitors as part of the restoration.
The audio and display capacitors are replaced, while the main power capacitor is uprated to support the modified console’s display, audio and rechargeable battery system.
The board, connectors and relevant solder joints are inspected before reassembly. Areas showing weak, cold or fractured joints are reflowed where required.

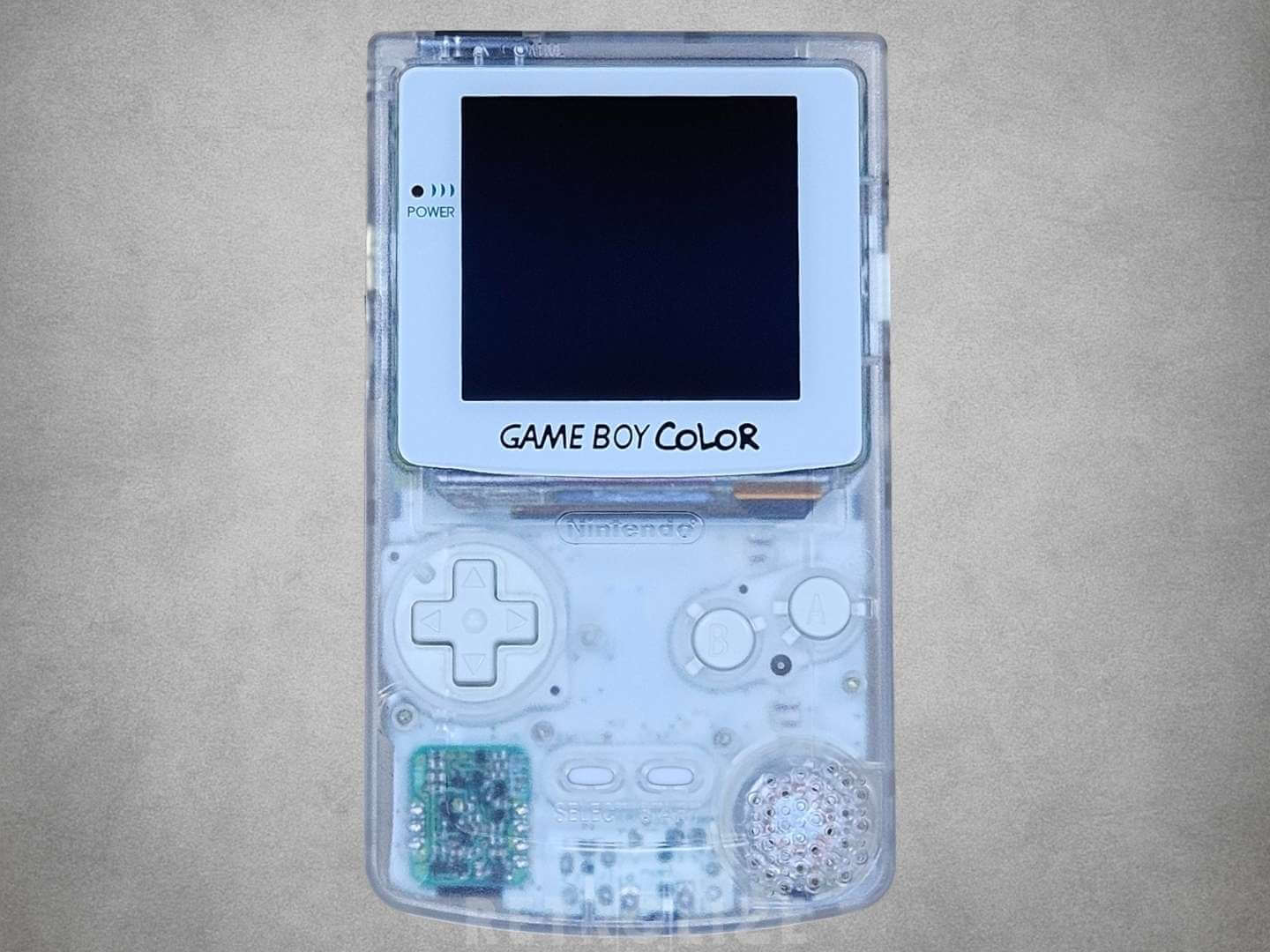

Custom Shell, Buttons & Controls
The transparent replacement shell gives this Clear White build its distinctive appearance, allowing the internal motherboard, speaker and rechargeable battery to remain visible through the housing.
White replacement buttons and fresh silicone membranes provide a clean control assembly. The white screen border complements the controls around the larger laminated display.
The original cartridge connector, link port, infrared hardware, headphone socket and volume wheel are retained. The charging connection also remains in the original power-socket position.
Original Cartridge Compatibility
Insert an original Game Boy cartridge, a dual-compatible release or a compatible Game Boy Color-exclusive cartridge and play directly on original Nintendo hardware.
Games use the console’s physical controls and their normal cartridge-based save functions. Where a cartridge relies on an internal save battery, that battery remains responsible for retaining its saved data.
Game Boy Advance cartridges are not supported. Game cartridges shown in the photographs are for demonstration and are not included.
The supplied black carry case, black wrist strap and lens cloth help protect the finished console, while the printed display box provides a presentation and storage option.
Explore our other restored and modified Nintendo Game Boy Color consoles for alternative finishes.
Each console includes a 12-month Retrolize warranty. Builds are completed to order; please allow up to 2 business days before dispatch.
Restoration Process
Disassembly: Each Game Boy Color is fully disassembled so the motherboard, cartridge connector, controls, ports and internal components can be inspected and cleaned.
Motherboard Inspection & Reflow: The original Nintendo motherboard is checked for corrosion, contamination, damaged traces and weakened solder joints. Relevant joints are reflowed where required to address poor connections.
Panasonic Capacitor Replacement: Panasonic SMD capacitors replace the ageing motherboard capacitors. The main power capacitor is uprated, with replacement audio and display capacitors also fitted.
Reassembly With Modern Upgrades: The restored motherboard is rebuilt with the laminated Hispeedido OLED display, refreshed audio components, replacement 2W speaker, serviced volume wheel, charging circuit and internal 1800mAh rechargeable battery.
New Shell & Controls: A transparent replacement housing, white replacement buttons and fresh silicone membranes are fitted while retaining the original cartridge connector, link connection, infrared hardware and headphone socket.
Thorough Testing: Screen performance, touch-menu operation, physical controls, audio, headphone output, charging, battery operation, cartridge reading and link-port function are checked before dispatch.
Specifications
Specifications
Product: Restored and upgraded Nintendo Game Boy Color
Console Platform: Nintendo Game Boy Color
Original Hardware Model: CGB-001
Core Hardware: Original Nintendo Game Boy Color motherboard
Condition: Restored original hardware with replacement exterior components and modern upgrades
Colour: Clear White
Housing: Transparent replacement ABS shell
Controls: White replacement controls with fresh silicone membranes
Screen Border: White
Physical Buttons: D-pad, A, B, Start and Select
Display: Hispeedido laminated OLED / AMOLED screen
Display Viewing Area: Approximately 25% larger than the original screen
Original Video Resolution: 160×144
Display Scaling: Integer-scaled pixel presentation
Display Menu: Touch-activated on-screen menu
Brightness: Adjustable using the display menu
Pixel Effects: Selectable retro display modes
Colour Presentation: Selectable colour modes
Frame Blending: Selectable using the display menu
Logo Lighting: Customisable illuminated Game Boy Color logo colours
Touchscreen Gameplay: No
Battery: Internal rechargeable lithium battery
Battery Capacity: 1800mAh
Battery Runtime: Varies with brightness, volume, cartridge and use
Charging Connection: Original Game Boy Color external power socket
Charging Cable: USB-A-to-barrel cable
Charging Power Source: Standard regulated 5V USB source
Charging Requirement: Console must remain switched off
Charge-And-Play: Not supported
AA Batteries: Replaced by the internal rechargeable battery system
Audio: Refreshed internal audio system
Speaker: Replacement 2W internal mono speaker
Volume Control: Serviced original volume wheel
Headphone Connection: Original 3.5mm socket; stereo where supported by the game
Link Port: Original Game Boy Color link connection
Infrared: Original infrared hardware retained
Cartridge Connector: Original Nintendo cartridge connector
Capacitors: Panasonic SMD replacements
Power Capacitor: Uprated 680µF capacitor
Audio Capacitor: 100µF
Display Capacitor: 22µF
Motherboard Restoration: Inspected, cleaned, recapped and reflowed where required
Compatible Games: Original Game Boy and Game Boy Color cartridges
Dimensions: Approximately 133.5 × 78 × 27.4mm
Assembly: Fully assembled and tested; built to order
Build Time: Up to 2 business days before dispatch
Warranty: 12-month limited Retrolize warranty
SKU: GBC-OLED-CLR-WHT-1800
Supported Systems
Supported Systems
Game Boy Cartridges
Original Nintendo Game Boy Cartridges: Supported
Dual-Compatible Black Game Boy Cartridges: Supported
Game Boy Color Cartridges
Original Nintendo Game Boy Color Cartridges: Supported
Game Boy Color-Enhanced Cartridges: Supported
Compatible Accessories
Game Boy Color Link Cables: Supported with compatible games and hardware
Game Boy Printer: Supported with compatible software and the correct link cable
Game Boy Camera: Supported
Game Boy Color Infrared Features: Supported where implemented by compatible software
Standard 3.5mm Wired Headphones: Supported
Critical Info
Critical Info
Complete Restored Console: This is a fully assembled Nintendo Game Boy Color built around an original Nintendo motherboard, professionally restored and fitted with modern display, battery and audio upgrades.
Clear White Styling: A transparent replacement housing reveals the internal hardware, complemented by white controls and a white screen border. The illuminated Game Boy Color logo colours can be adjusted using the display menu.
Supported Games: Plays original Game Boy and Game Boy Color cartridges. Game Boy Advance cartridges are not supported. Games shown in the photographs are for demonstration and are not included.
OLED Display: The laminated Hispeedido AMOLED display provides a viewing area approximately 25% larger than the original Game Boy Color screen, with adjustable brightness, colour options and retro pixel effects.
Display Controls: Touch-sensitive controls operate the screen’s settings menu. Games continue to use the physical D-pad, A, B, Start and Select buttons.
Rechargeable Battery: An internal 1800mAh rechargeable battery replaces the disposable AA battery arrangement. Runtime varies with brightness, volume, cartridge and use.
Switch Off Before Charging: The console must remain switched off while charging. Charge-and-play is not supported. Disconnect the charging cable before switching the console on.
Charging Connection: Use the supplied USB-A-to-barrel charging cable with a standard regulated 5V USB power source. Charging uses the original Game Boy Color power socket. A mains USB adapter is not included.
Cartridge Saves: Save data remains on the game cartridge where supported. An ageing cartridge-save battery can cause save loss independently of the console.
Link Functions: The original link port and infrared hardware are retained. Multiplayer, trading and infrared features require compatible games and accessories.
Made To Order: Game Boy consoles are built to order. Please allow up to 2 business days before dispatch.
Care & Support: Protect the laminated screen from pressure, impacts and abrasive cleaning. Contact Retrolize if you need help with charging, display settings or compatible accessories.
Getting Started
- Unpack the console and check that the charging cable and included accessories are present.
- With the console switched off, connect the supplied USB-A-to-barrel cable to the power socket and a suitable regulated 5V USB power source.
- Disconnect the charging cable before playing.
- With the console still switched off, insert your own compatible Game Boy or Game Boy Color cartridge.
- Switch on the console and adjust the volume using the volume wheel.
- Open the touch menu if you wish to adjust brightness, colour presentation, pixel effects or logo lighting.
- Use the game’s normal save function where available. Switch off before removing or changing cartridges.
- Store the console in its included carry case when travelling or when it is not in use.
Display Settings & Controls
Open The Menu: Hold a finger against the lower half of the screen for approximately five seconds.
Change Menu Pages: Swipe on the screen to move between settings pages.
Adjust Settings: Touch the on-screen triangle controls to change the selected values.
Close The Menu: Hold a finger against the upper half of the screen until the menu closes.
Brightness & Picture Options: Adjust screen brightness, colour presentation and retro pixel effects using the menu.
Frame Blending: Enable or disable frame blending to suit the game and your preferred appearance.
Illuminated Logo: Change the Game Boy Color logo colours using the display menu.
Gameplay Controls: Touch controls operate display settings; gameplay uses the console’s physical buttons.
Connection & Control Troubleshooting
The Console Will Not Switch On: Switch it off, charge using the supplied cable and a suitable 5V USB source, then disconnect the cable before trying again.
The Battery Does Not Appear To Charge: Check that the console is switched off and both cable connections are secure. Try another suitable USB power source. Contact Retrolize if the problem continues.
The Nintendo Logo Is Corrupted Or The Game Will Not Start: Switch off, remove the cartridge and check its contacts. Reinsert it fully and test another known-working compatible cartridge if available.
A Game Will Not Retain Its Save: Check whether that cartridge uses an internal save battery. A depleted cartridge battery requires attention to the cartridge rather than the console.
The Display Menu Opens During Play: Avoid resting a finger against the screen. Close the menu using the upper touch area and continue with the physical controls.
The Picture Looks Too Dim Or Has Unexpected Colours: Check brightness, colour mode, pixel effects and frame-blending settings in the display menu.
There Is No Sound: Check the volume wheel and remove any connected headphones. Test another game and contact Retrolize if the fault remains.
Battery Runtime Varies: Higher brightness, louder audio and different cartridges can change power consumption. Reduce brightness or volume if you want to extend time between charges.
Trading Or Multiplayer Does Not Connect: Check the link cable, cartridge compatibility and each game’s connection procedure. Different Game Boy generations and accessories can require different cables.

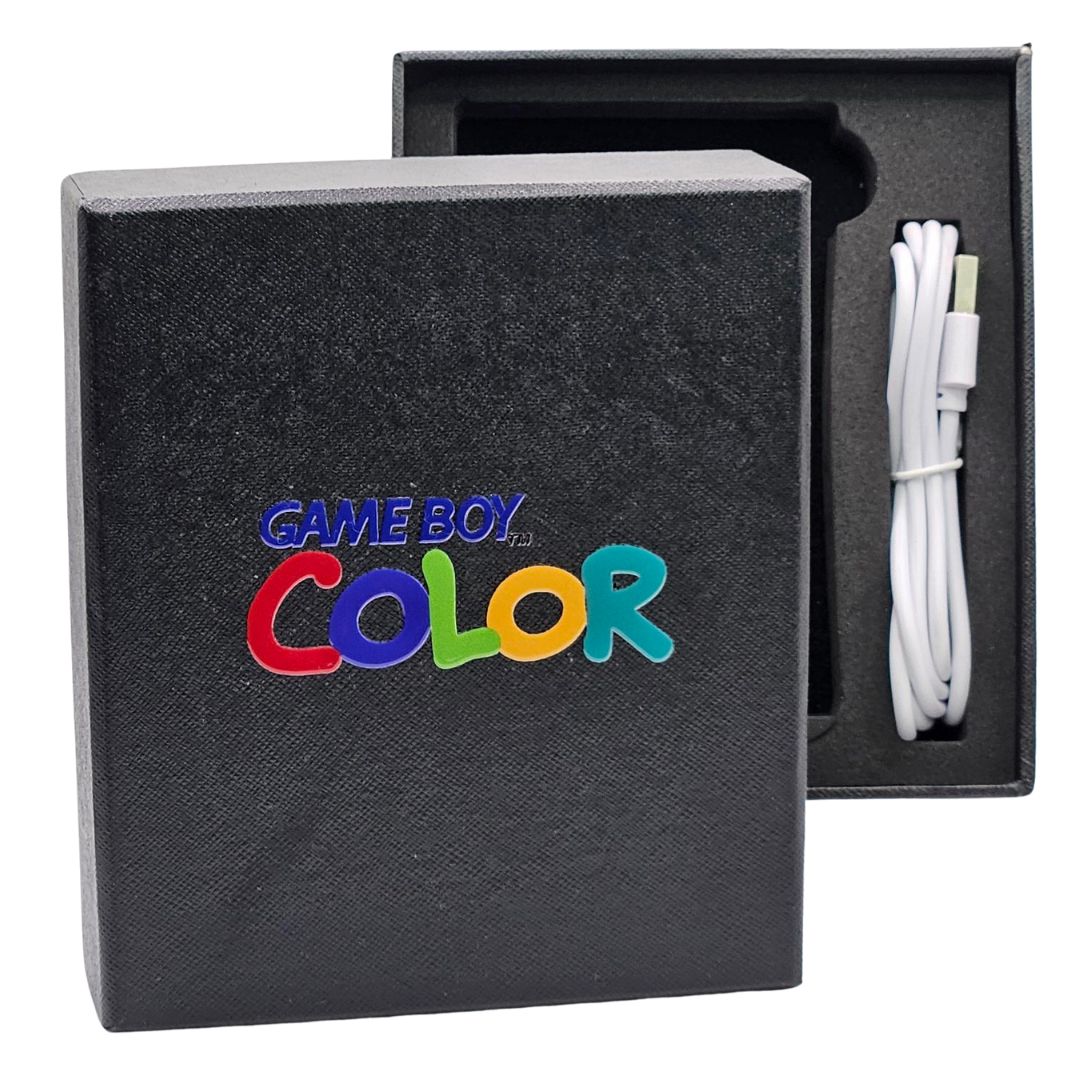

Package Includes
Package Includes
1 × Restored Nintendo Game Boy Color OLED Console – Clear White
1 × Installed 1800mAh Rechargeable Battery
1 × USB-A-To-Barrel Charging Cable
1 × Black Wrist Strap
1 × Lens-Cleaning Cloth
1 × Black Carry Case / Hard Case
1 × Printed Game Boy Color Display Box
Warranty Information
Warranty Information
This restored and upgraded Nintendo Game Boy Color is covered by a 12-month limited Retrolize warranty from the date of delivery against manufacturing defects and hardware faults arising during normal use.
Warranty coverage includes eligible faults affecting the AMOLED display, physical controls, internal speaker, headphone output, rechargeable battery, charging circuit, power system and restored motherboard.
The warranty does not cover accidental damage, liquid damage, cracked or pressure-damaged screens, damaged cartridge connectors, bent link-port pins, crushed shells, damaged charging cables, excessive pulling, unauthorised repairs or further modifications.
Battery damage caused by using an unsuitable charger, incorrect voltage, attempting to play while charging, puncturing the battery or exposing the console to excessive heat is not covered.
Display damage caused by drops, impacts, pressure, deep scratches or liquid ingress is not considered a manufacturing defect.
Individual cartridge faults, dirty cartridge contacts, depleted cartridge-save batteries, software-specific behaviour and incompatibility with unlicensed accessories are not considered console faults.
Normal cosmetic wear and the gradual reduction in rechargeable battery capacity that occurs through age and repeated charge cycles are not considered manufacturing defects.
Warranty claims remain subject to the full Retrolize warranty terms.
Additional Information
Additional Information
Is This An Original Nintendo Game Boy Color?
Yes. The console uses an original Nintendo Game Boy Color motherboard that has been restored and fitted with modern display, power and audio upgrades. The housing, buttons and other listed replacement components are fitted during restoration.
What Does Clear White Mean?
Clear White describes the transparent replacement housing paired with white controls and a white screen border. The internal hardware remains visible through the shell.
Is This A Complete Console Or An Upgrade Kit?
This is a complete, fully assembled and tested console. No installation or soldering is required. Supply your own compatible game cartridge to play.
Which Screen Is Fitted?
A laminated Hispeedido OLED / AMOLED display with a viewing area approximately 25% larger than the original Game Boy Color screen.
Can I Adjust The Brightness & Picture Settings?
Yes. The touch-operated display menu provides brightness adjustment, colour options, retro pixel effects and frame-blending settings.
Does It Have Touchscreen Gameplay?
No. Touch input operates the display settings menu. Games use the physical D-pad, A, B, Start and Select buttons.
Can I Change The Illuminated Logo Colour?
Yes. The illuminated Game Boy Color logo colours can be changed using the display menu.
Does It Need AA Batteries?
No. The original AA battery arrangement is replaced by an internal 1800mAh rechargeable battery.
How Does It Charge?
Use the supplied USB-A-to-barrel cable with the console’s power socket and a suitable regulated 5V USB power source. Keep the console switched off while charging. A mains USB adapter is not included.
Can I Play While Charging?
No. Charge-and-play is not supported. Disconnect the charging cable before switching on the console.
How Long Does The Battery Last?
Runtime varies with brightness, volume, cartridge and use. Lower brightness and volume can extend time between charges, so a single guaranteed runtime is not quoted.
Which Games Can It Play?
Original Game Boy and Game Boy Color cartridges, including original Game Boy releases, dual-compatible games and Game Boy Color-exclusive titles. Game Boy Advance cartridges are not supported.
Will My Existing Game Saves Still Work?
Existing saves remain on the cartridge where supported. If a cartridge uses an internal save battery, that battery must still be working. The console’s rechargeable battery does not replace a cartridge-save battery.
Can I Trade Or Play Multiplayer Using A Link Cable?
Yes, with compatible games, another compatible system and the correct link cable. The original Game Boy Color link port is retained.
Does Infrared Communication Still Work?
The original infrared hardware is retained. Infrared functions require compatible software and another suitable device.
Can I Use Headphones?
Yes. The original 3.5mm headphone socket is retained. Stereo audio is available where supported by the game.
What Restoration Work Is Included?
The console is disassembled, cleaned and inspected. Work includes Panasonic capacitor replacement, relevant solder-joint reflow, a replacement housing and controls, laminated OLED display, rechargeable battery system, refreshed audio and replacement 2W speaker, followed by functional testing.
Are Games Or A Mains Charger Included?
No. Game cartridges and a mains USB adapter are not included. The USB charging cable, black carry case, black wrist strap, lens cloth and printed display box are included.
How Soon Will It Be Dispatched?
Game Boy consoles are built to order. Please allow up to 2 business days before dispatch. Delivery time begins after dispatch and depends on the service selected.
Is International Delivery Available?
Tracked international delivery is available to supported destinations, with available services and delivery costs shown at checkout.
Share




Product reviews
Honest feedback to help you choose.
Customers receive a personal review invitation after purchase.
