Nintendo GameCube Premium ABS Replacement Shells

The Nintendo GameCube Premium ABS Replacement Shell provides a replacement outer housing for original DOL-001 and DOL-101 consoles. Whether you are replacing a scratched or damaged casing, restoring a console or planning a custom GameCube build, this kit lets you change the exterior while retaining the original internal hardware.

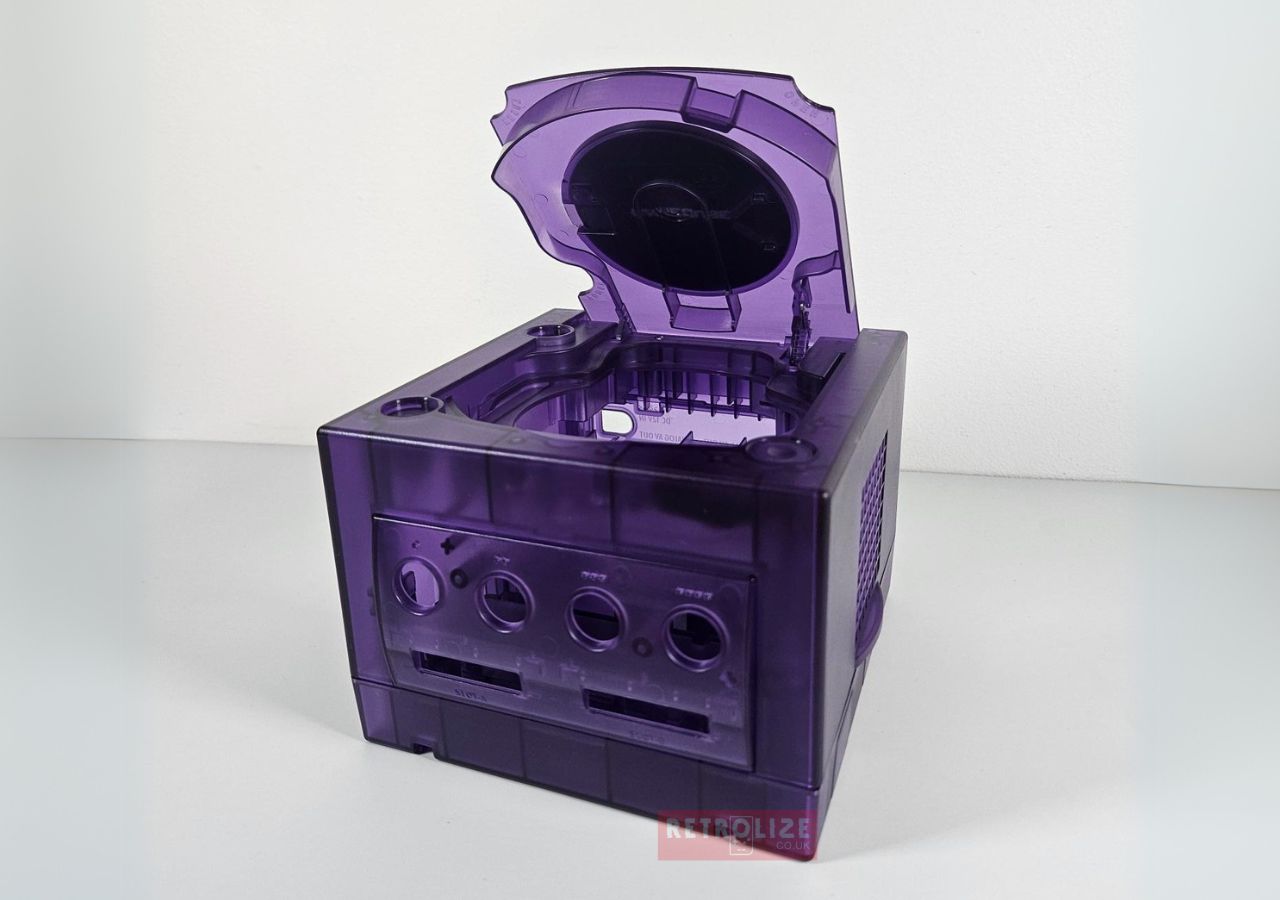

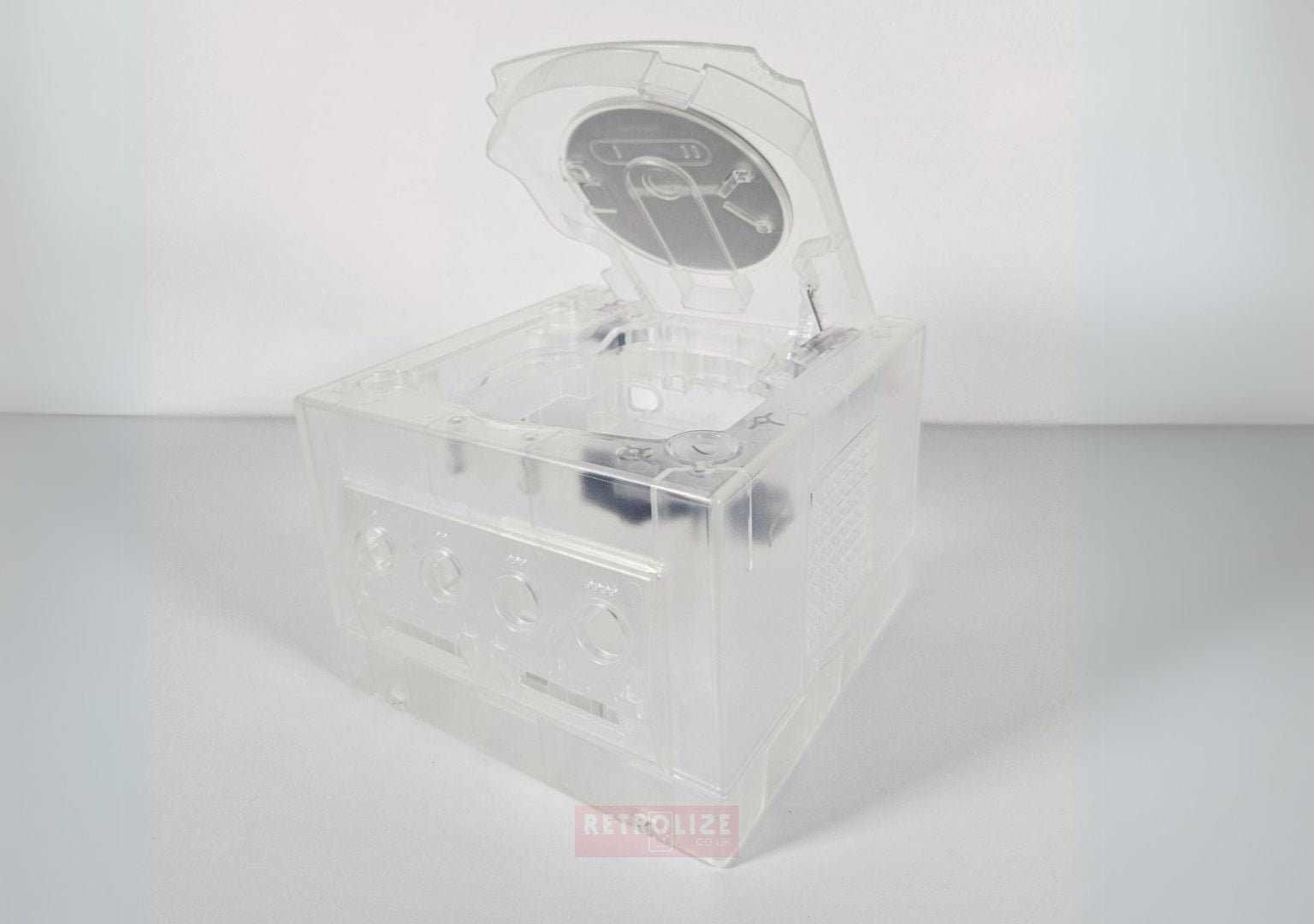

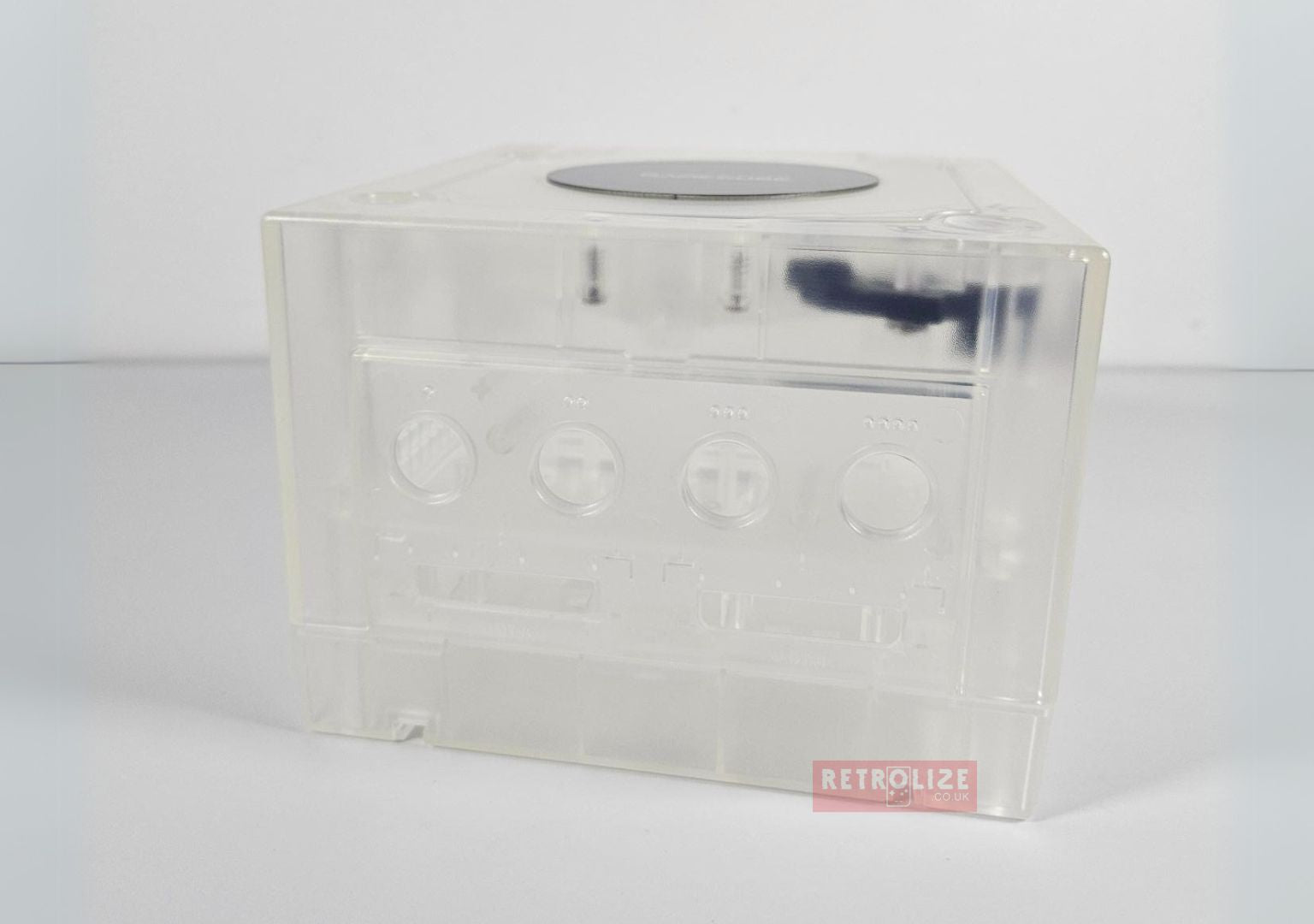

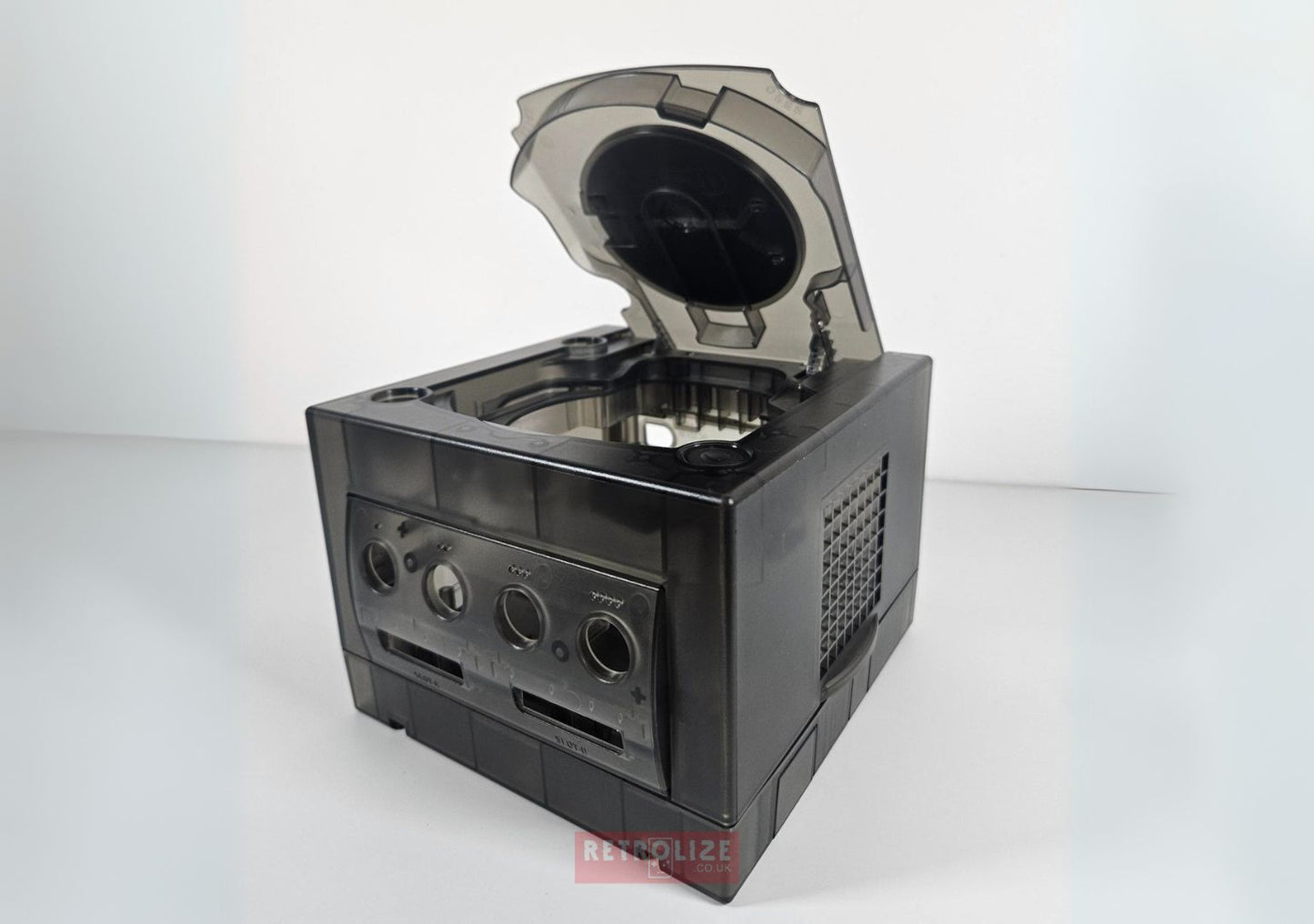

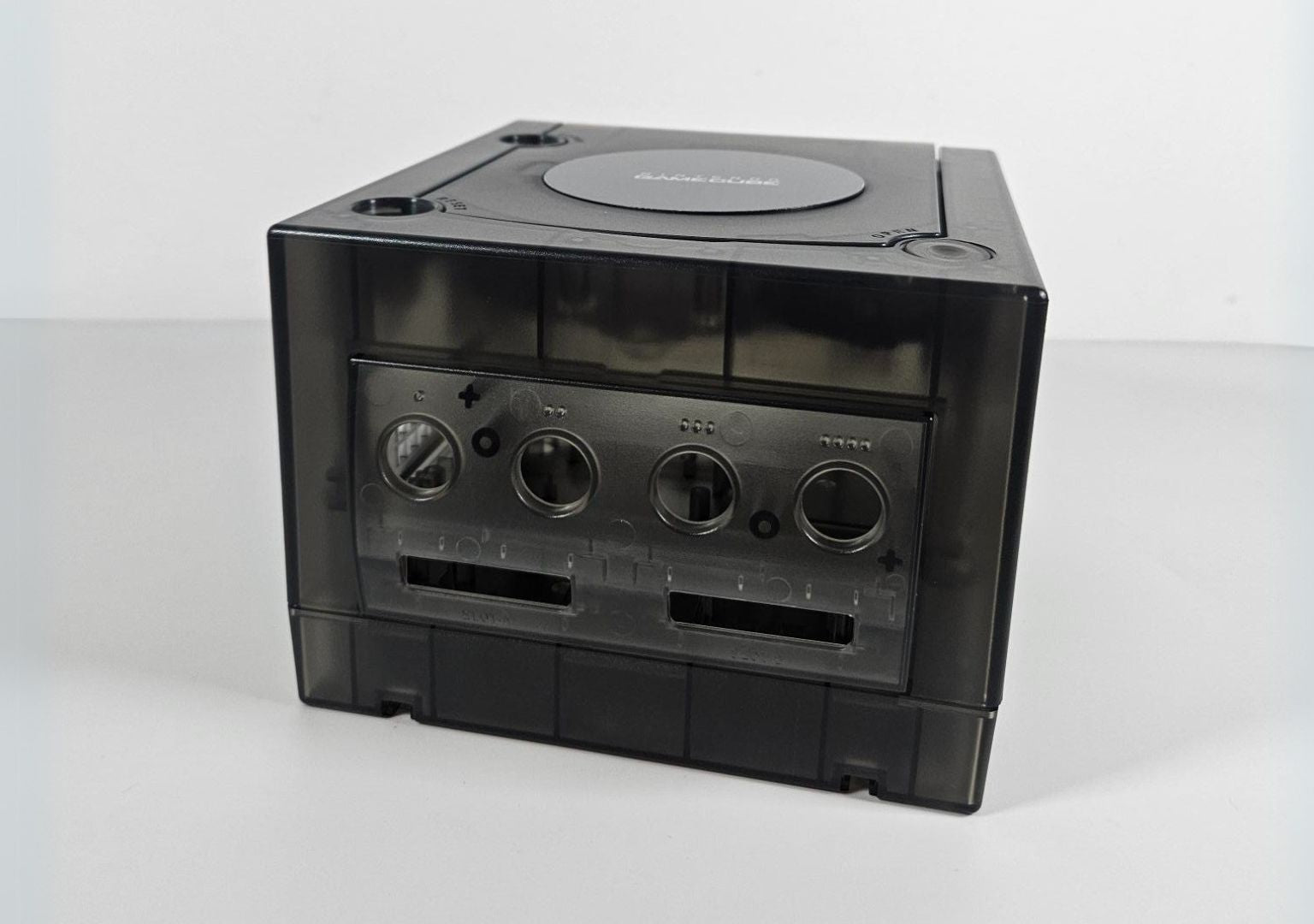

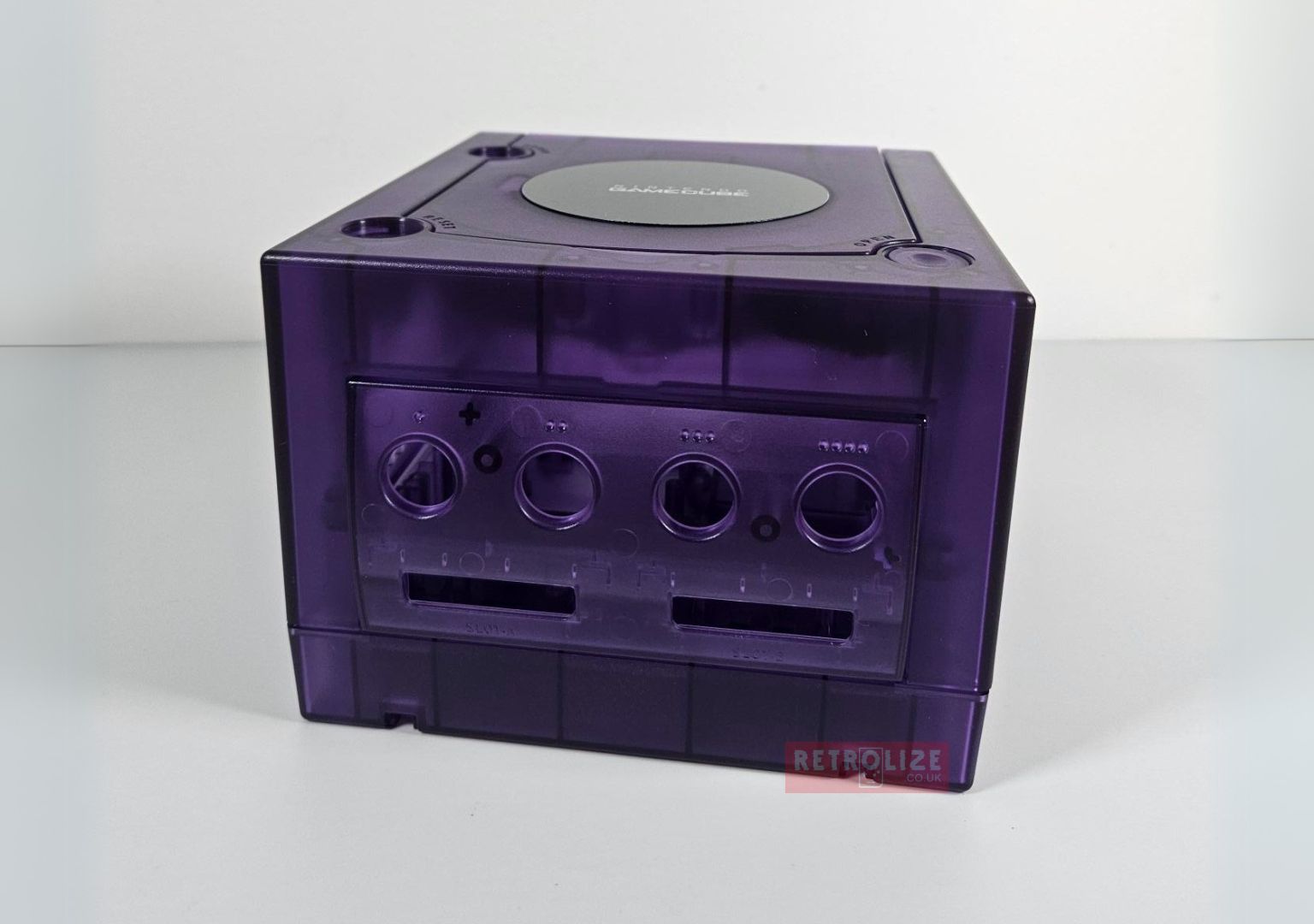

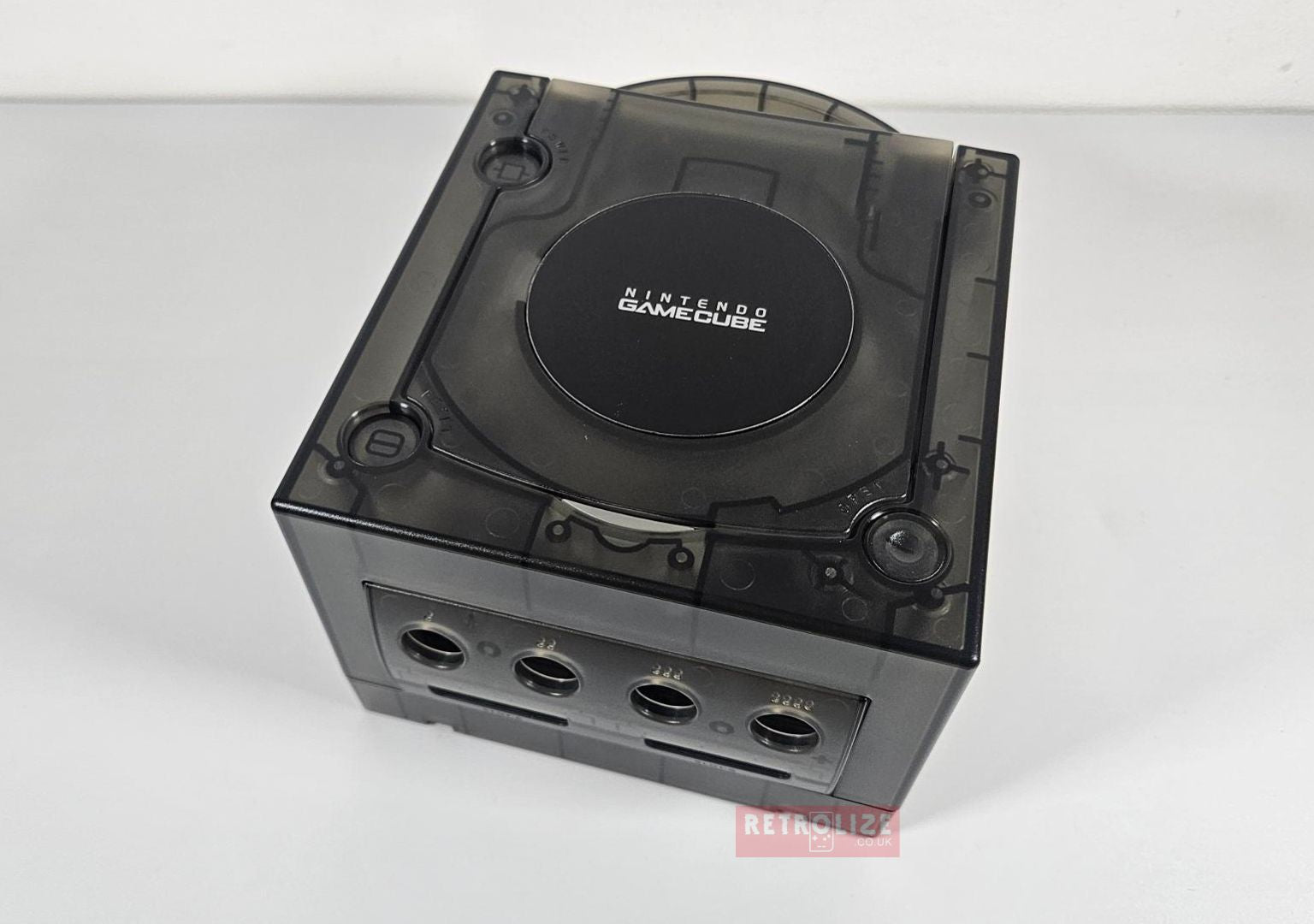

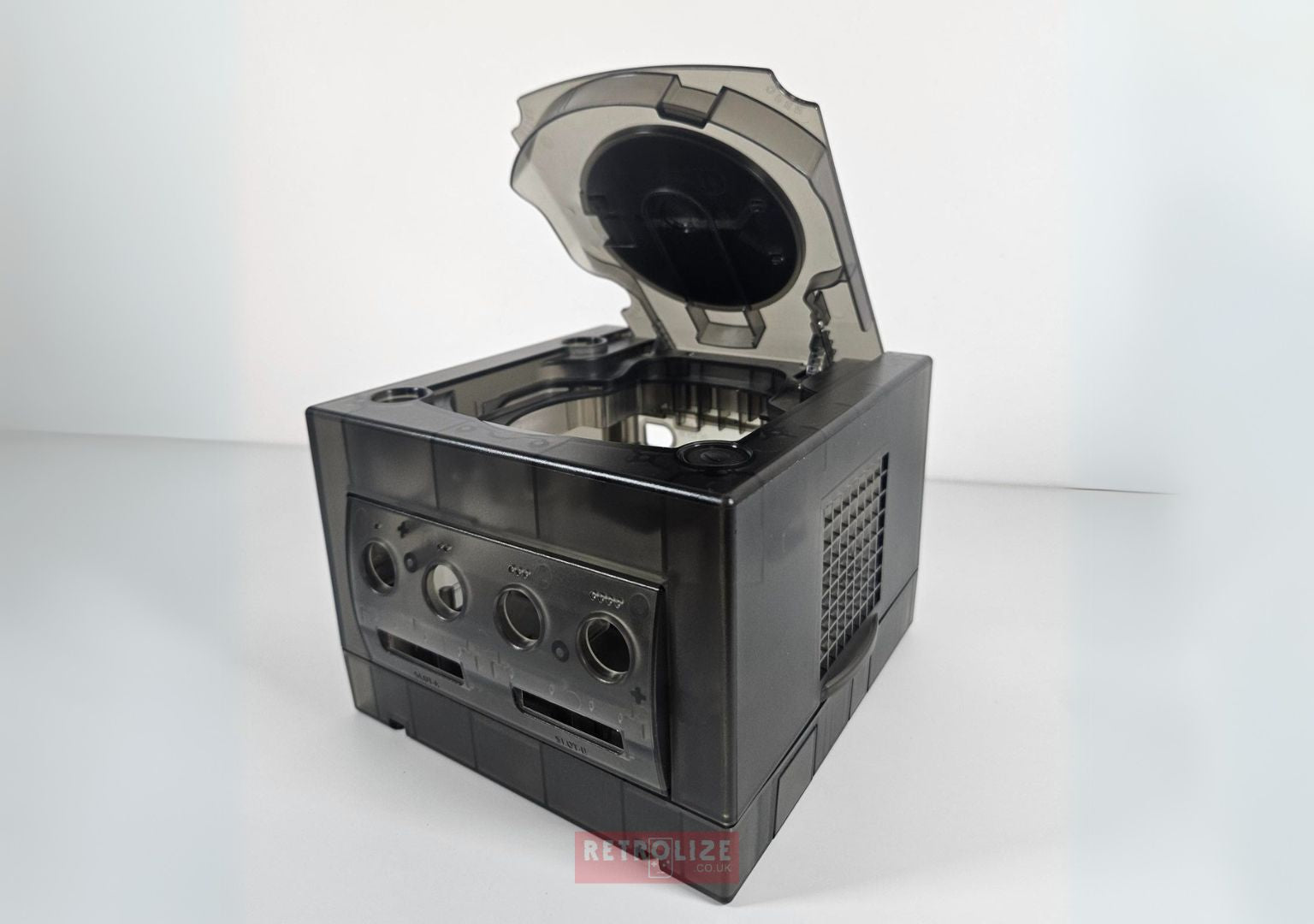

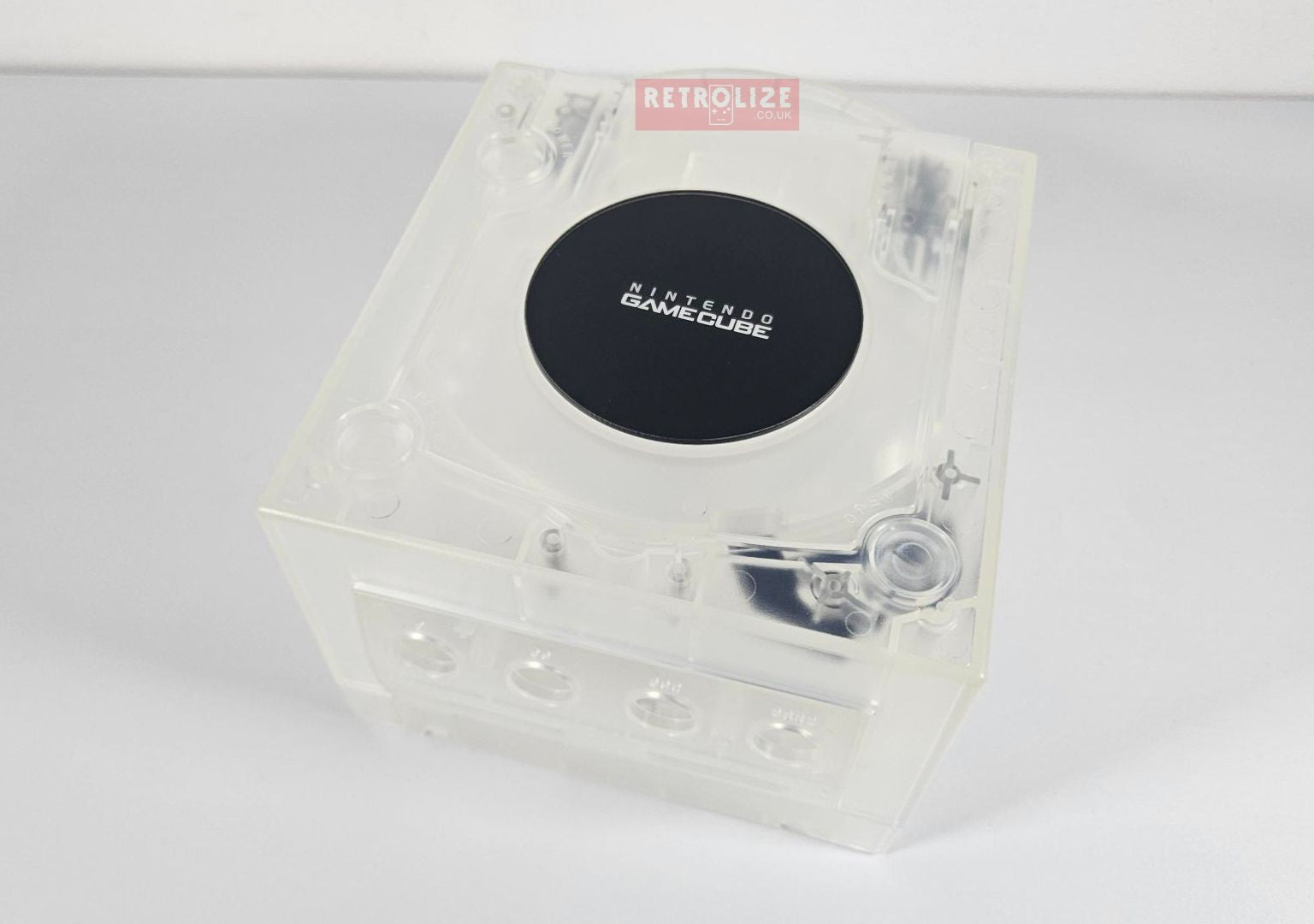

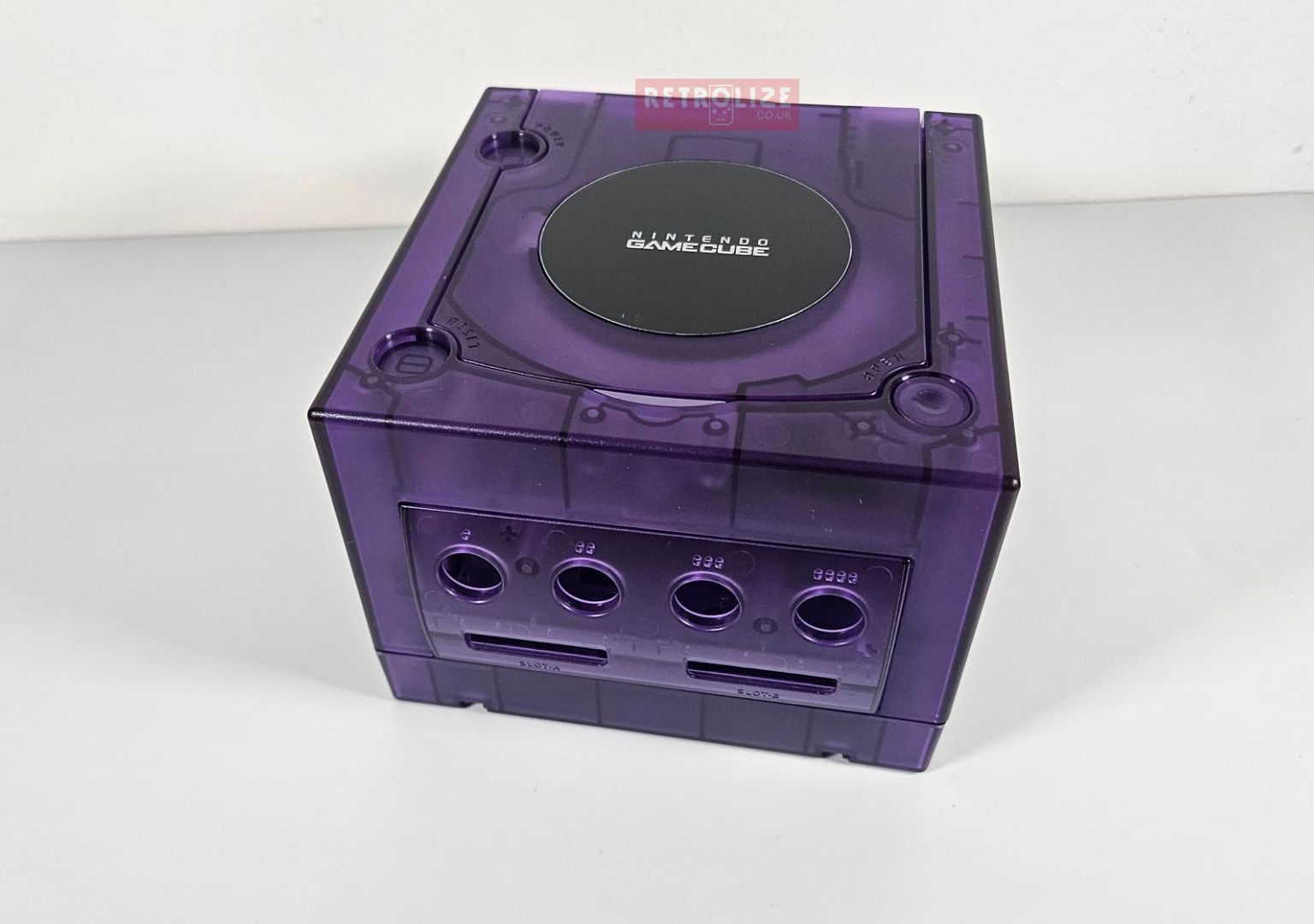

The housing is made from translucent ABS plastic and is available in Smokey Black, Purple and Clear. Smokey Black gives the console a darker tinted appearance, Purple provides a coloured translucent finish, and Clear offers a lighter appearance with the internal structure visible through the casing. The product photographs show each finish from several angles.

Compatibility covers DOL-001 and DOL-101 GameCube consoles, with rear panels for both models supplied. This allows the replacement housing to match the console’s existing connections. UK and European PAL, North American NTSC-U and Japanese NTSC-J versions of the supported models can use the kit.

Matching buttons and a GameCube faceplate logo are included to complete the exterior. The replacement case retains the familiar GameCube form, making it suitable for a console reshell or restoration where the original casing has become marked, discoloured or damaged.

Installation is a mechanical process that requires opening the console and transferring its internal assemblies. No soldering is required for a standard shell swap, although care is needed around the controller-board ribbon cable, connectors, clips and screw posts. Original screws and reusable components should be kept organised throughout the work.

For consoles with additional internal modifications, clearance should be checked around any extra boards, wiring or mounting hardware. The shell replaces the exterior housing; existing electronic faults still require separate diagnosis and repair.

Supplied by Retrolize with a 12-month warranty, the kit is available with fast UK delivery and support from our UK team. For complementary upgrades, repair components and restoration parts, explore our Nintendo GameCube Parts & Mods collection.

Product: Nintendo GameCube Premium ABS Replacement Shell
Product Type: Replacement Shells
Compatible Console: Nintendo GameCube
Supported Models: DOL-001 & DOL-101
Material: ABS plastic
Finish: Translucent
Available Colours: Smokey Black, Purple & Clear
Regional Compatibility: PAL, NTSC-U & NTSC-J versions of the supported models

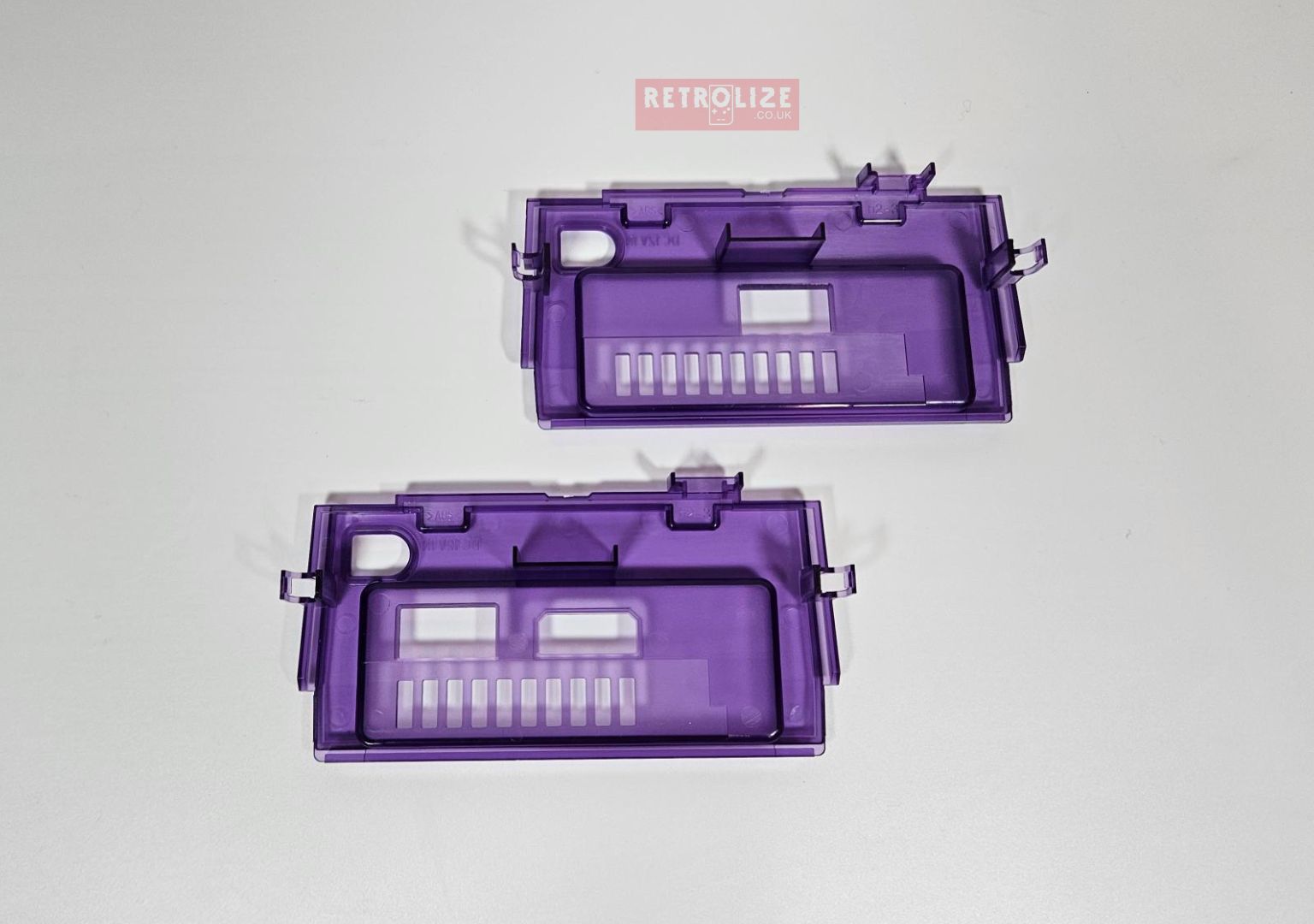

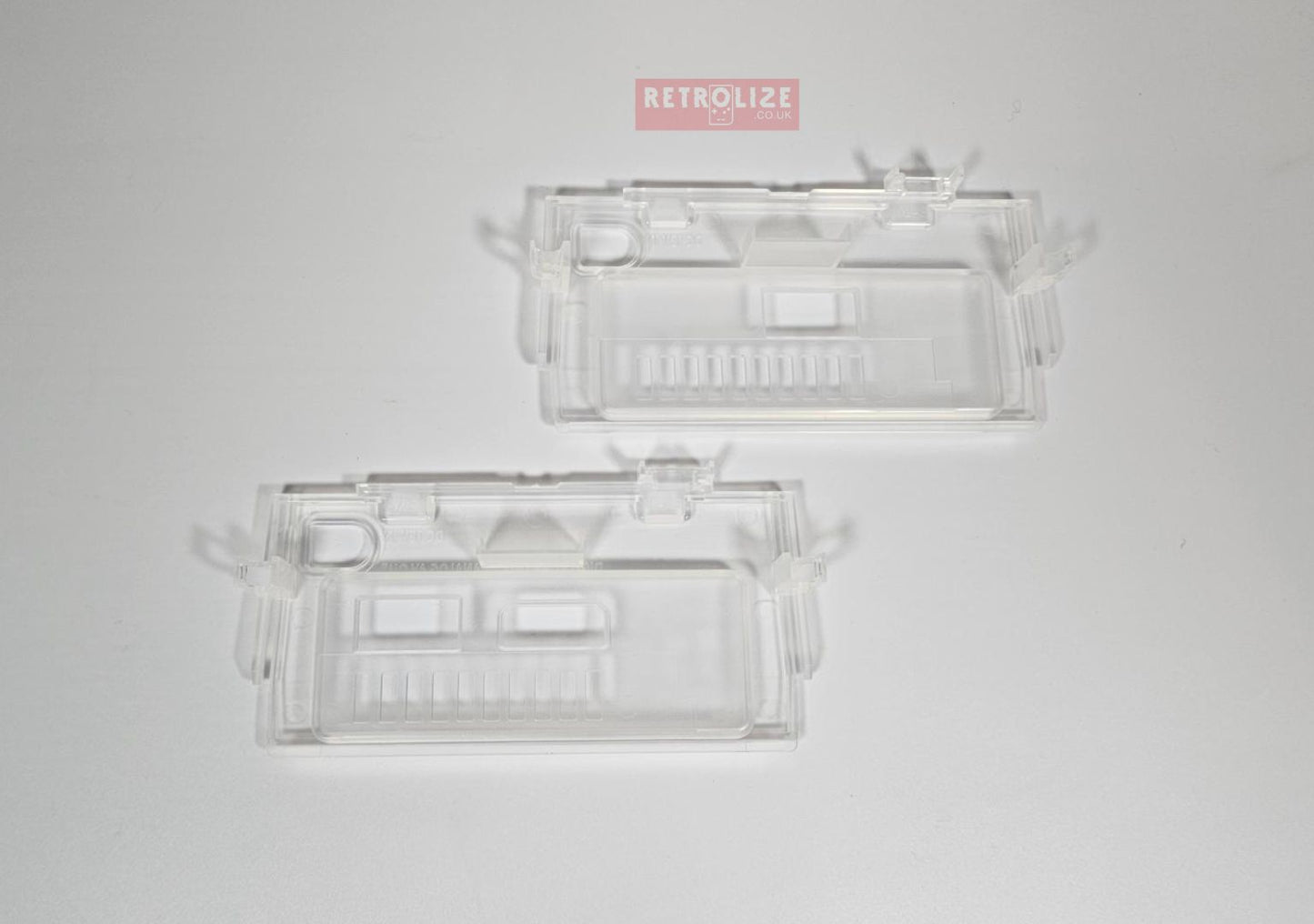

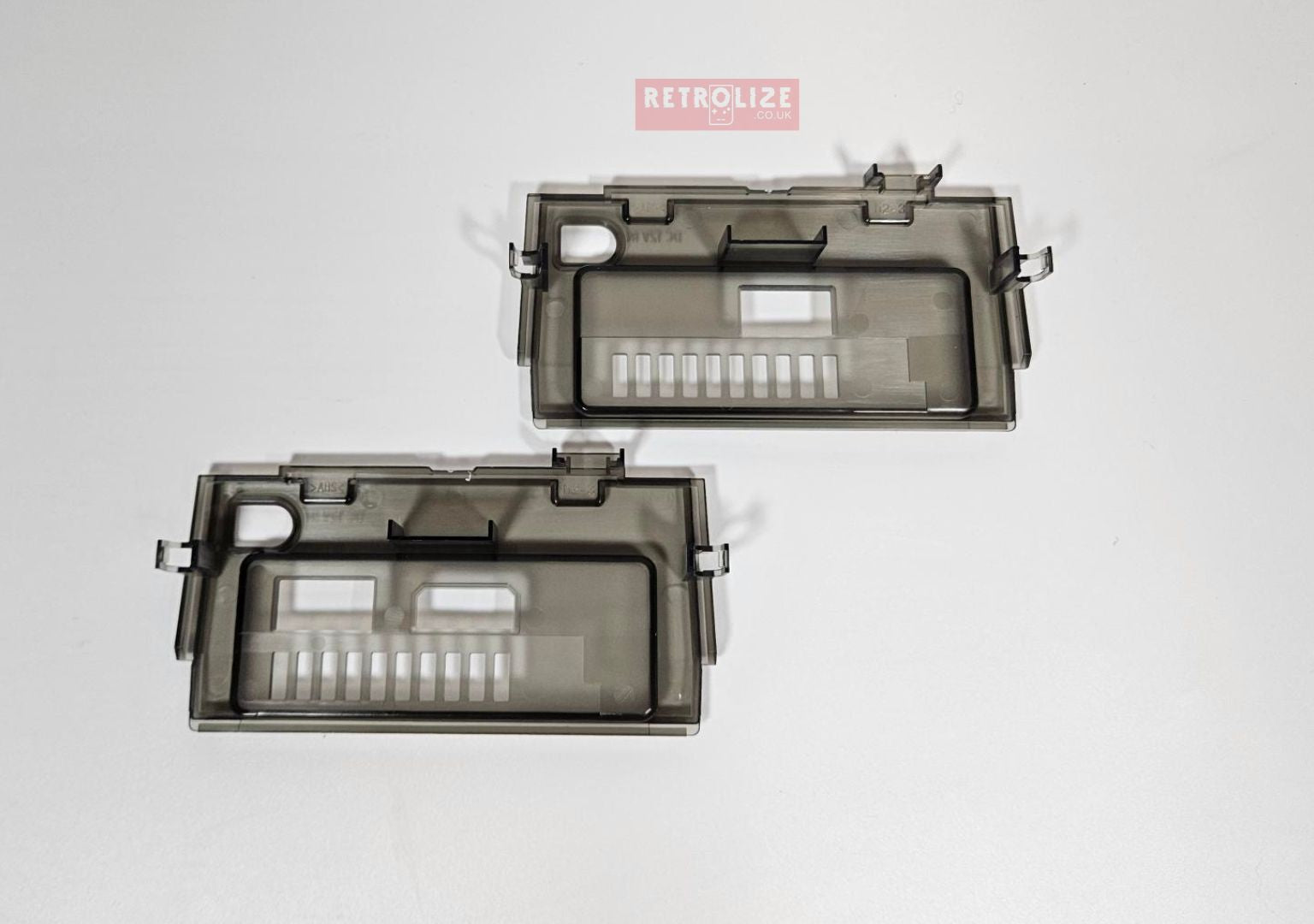

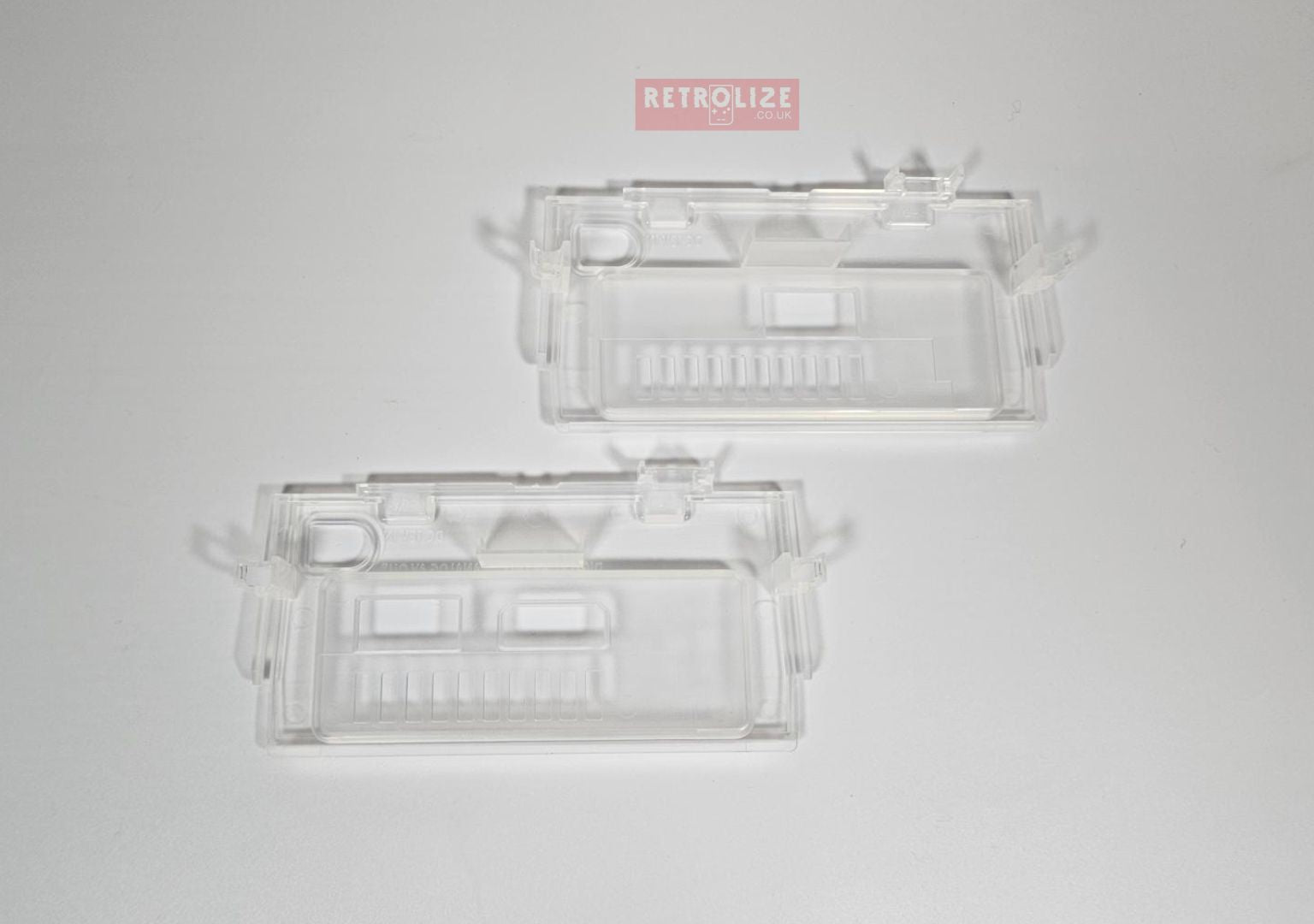

Rear Panels: DOL-001 & DOL-101 panels included
Matching Buttons: Included
GameCube Faceplate Logo: Included
Installation: Console disassembly & internal hardware transfer
Soldering Required: No, for a standard shell replacement
Outer Security Screw Tool: 4.5mm Gamebit
Retrolize Warranty: 12 months from delivery
SKU – Smokey Black: GC-SHELL-SMK
SKU – Purple: GC-SHELL-PUR
SKU – Clear: GC-SHELL-CLR

Compatible Console Models

Nintendo GameCube DOL-001: Supported using the matching supplied rear panel
Nintendo GameCube DOL-101: Supported using the matching supplied rear panel

Regional Versions

UK & European PAL Consoles: Supported in the listed models
North American NTSC-U/C Consoles: Supported in the listed models
Japanese NTSC-J Consoles: Supported in the listed models

Installation Requirements

Original GameCube Internal Hardware: Required for transfer into the housing
Consoles With Internal Modifications: Check clearance and mounting arrangements before fitting
Game Boy Player Replacement Housing: Separate component; not included

Replacement Shell Only: This listing is for the replacement housing and listed exterior components. A Nintendo GameCube console and its internal electronics are not included.

Compatible Consoles: Designed for original Nintendo GameCube DOL-001 and DOL-101 consoles. Check the console model and actual rear-port layout before ordering, particularly if the console has previously been repaired or re-shelled.

Correct Rear Panel: Both rear-panel designs are supplied. Fit the panel that matches the connections on your console. Changing the housing does not add ports or change the console’s region or video capabilities.

Installation Requirements: Console disassembly and transfer of the original internal hardware are required. A standard shell replacement does not require soldering, but suitable tools and careful handling are necessary.

Tools Required: A 4.5mm Gamebit screwdriver is required for the original outer security screws, alongside suitable Phillips screwdrivers for the internal assembly.

Original Hardware: Keep the original screws, shields, brackets, springs and other reusable components organised during disassembly. Retain them until the replacement housing is fully assembled and tested.

Power & Handling: Switch off the console, remove any disc and disconnect the power supply, cables and accessories before opening it. Handle connectors and the controller-board ribbon cable carefully.

Other Modifications: Check clearance around additional boards, mounting brackets, wiring and other internal upgrades before securing the hardware or closing the housing.

Installation Overview

1. Test the console before starting, then switch it off and disconnect all cables and accessories.
2. Remove the outer security screws and carefully open the original housing.
3. Photograph the internal arrangement and organise the screws and components as you dismantle the console.
4. Transfer the original internal hardware and required reusable components into the replacement housing.
5. Fit the appropriate rear panel and check the alignment of the buttons, front panel and lid mechanism.
6. Check for trapped cables, loose parts or interference with any internal modifications. Tighten screws carefully without forcing the housing together.
7. Reassemble the console before reconnecting power. Test startup, buttons, lid operation, controller connections and memory-card access.

Fitting & Troubleshooting

Buttons Stick Or Fail To Return: Check button alignment, surrounding clearance and housing fit. Do not force the buttons or overtighten nearby screws.

Lid Does Not Open Or Close Freely: Check the positioning of the lid mechanism and any transferred springs or fittings. Stop and inspect the assembly if the lid binds.

Housing Does Not Close Correctly: Check for trapped wiring, incorrectly seated components, misplaced screws or interference from internal modifications.

Console Does Not Start After Reassembly: Switch off and disconnect the power supply. Check any connections disturbed during installation and contact Retrolize if further assistance is needed.

1 × Nintendo GameCube Premium ABS Replacement Shell in the selected colour
1 × Set of matching buttons
1 × GameCube faceplate logo
1 × DOL-001 rear panel
1 × DOL-101 rear panel

This Nintendo GameCube Premium ABS Replacement Shell is covered by a 12-month Retrolize warranty from the date of delivery against manufacturing defects arising during normal use.

Coverage applies to the supplied housing and exterior components. Damage caused by accidental impact, liquid exposure, misuse, incorrect installation, overtightened screws, stripped or cracked screw posts, broken clips, forced fittings or incompatible components is excluded.

Damage resulting from unauthorised alterations, including painting, drilling or cutting, is not covered. Normal cosmetic wear and scratches arising during use are not considered manufacturing defects.

Faults in the console’s existing electronics or other original hardware are not considered faults with the replacement shell.

If you experience a problem, contact Retrolize with your order number and a description of the issue so we can assess it and provide the appropriate instructions.

Warranty claims remain subject to the full Retrolize warranty terms and our Returns Policy. Your statutory rights are unaffected.

Does This Fit Both DOL-001 & DOL-101 Consoles?

Yes. The kit supports both models and includes the corresponding rear panels. Fit the panel that matches your console’s connections.

Does It Fit UK, American & Japanese GameCubes?

Yes. Compatible PAL, NTSC-U and NTSC-J versions of the DOL-001 and DOL-101 are supported. The housing replacement leaves the console’s existing region and video standard unchanged.

What Is The Difference Between The Colours?

Smokey Black has a dark translucent tint, Purple has a purple translucent finish, and Clear provides a lighter appearance. Refer to the photographs when choosing a colour, allowing for differences caused by lighting and screen settings.

Does This Include A Working GameCube?

The package contains the replacement housing and listed exterior components. You need an existing GameCube to provide the internal electronics and required reusable hardware.

Is This An Original Nintendo Housing?

This is an aftermarket replacement shell designed for original Nintendo GameCube consoles.

Do I Need To Solder Anything?

No soldering is required for a standard shell replacement. You will need to dismantle the console, transfer its internal hardware and reassemble it carefully.

What Tools Will I Need?

A 4.5mm Gamebit screwdriver is required for the original outer security screws. Suitable Phillips screwdrivers are also needed for the internal assembly. Keep the original screws and reusable components organised during installation.

Are The Buttons, Logo & Rear Panels Included?

Yes. Matching buttons, a GameCube faceplate logo and rear panels for both DOL-001 and DOL-101 consoles are included.

Can I Use It On A Modified GameCube?

Check the space required by any additional boards, wiring, mounting trays or other internal modifications. Their clearance requirements may differ from those of the original console hardware.

Does It Include A Game Boy Player Shell?

A Game Boy Player replacement housing is a separate component and is not included in this kit.
