Premium Fully Shielded CVBS Sync RGB SCART Video Cable - SNES, RGB-Modded N64 & PAL GameCube

Connect compatible Nintendo consoles to an RGB CRT television, retro gaming scaler or video converter with this Premium Fully Shielded On-Sync RGB SCART Cable.

Designed for original PAL and NTSC Super Nintendo consoles, RGB-modified Nintendo 64 systems and PAL Nintendo GameCube consoles, this universal Nintendo MultiAV cable carries separate red, green and blue video channels for a cleaner analogue picture than composite or S-Video.

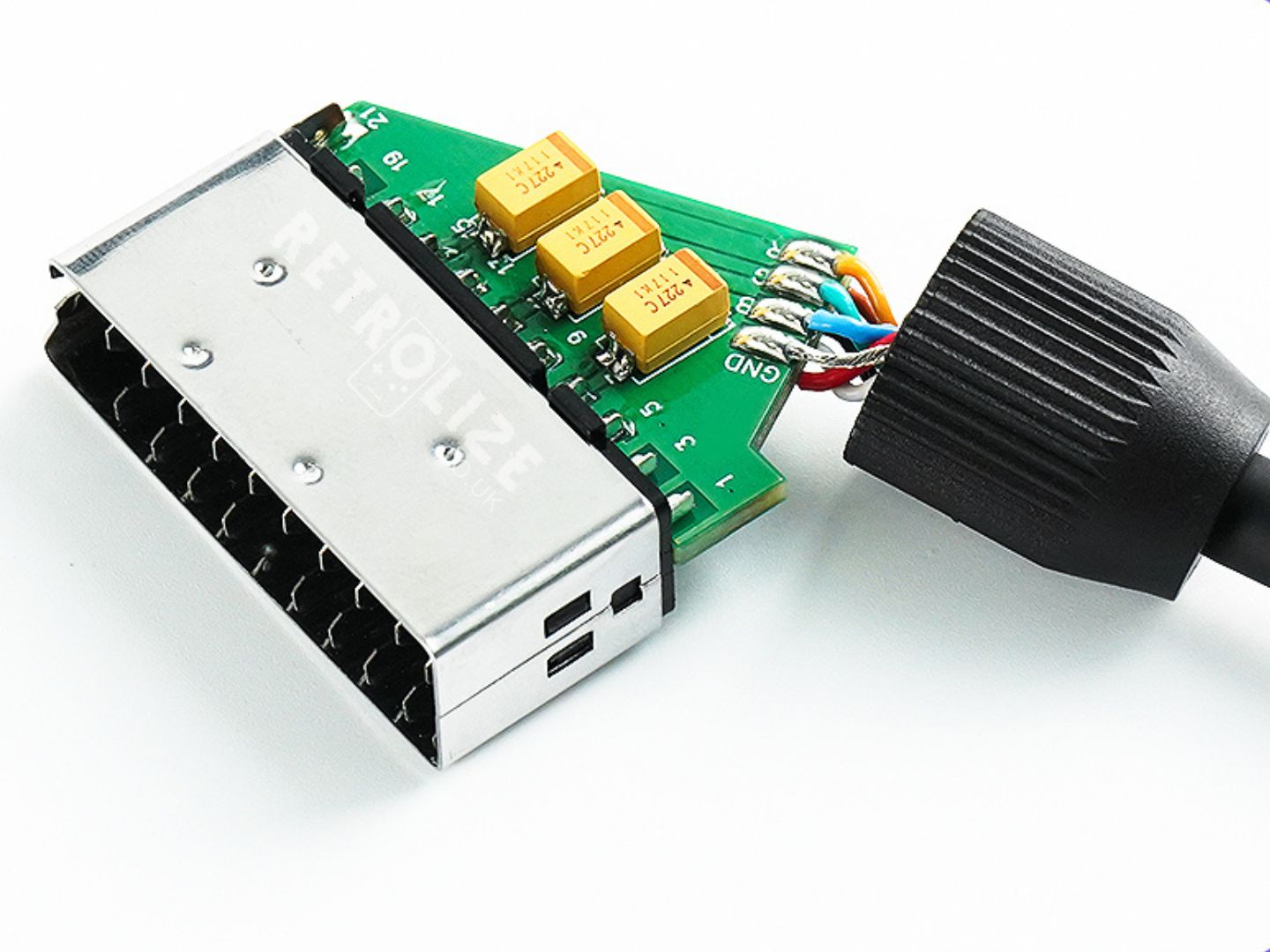

The cable’s universal signal-conditioning design accommodates the different RGB output requirements used by the supported Nintendo hardware. This allows one properly designed cable to be used across compatible PAL and NTSC SNES consoles, PAL GameCube systems and Nintendo 64 consoles fitted with a correctly configured RGB modification.

Composite video is used as the synchronisation source, providing a widely compatible RGBS signal for EuroSCART televisions and retro gaming processors. This sync-on-composite configuration is suitable for equipment designed to accept standard 15kHz RGB through SCART.

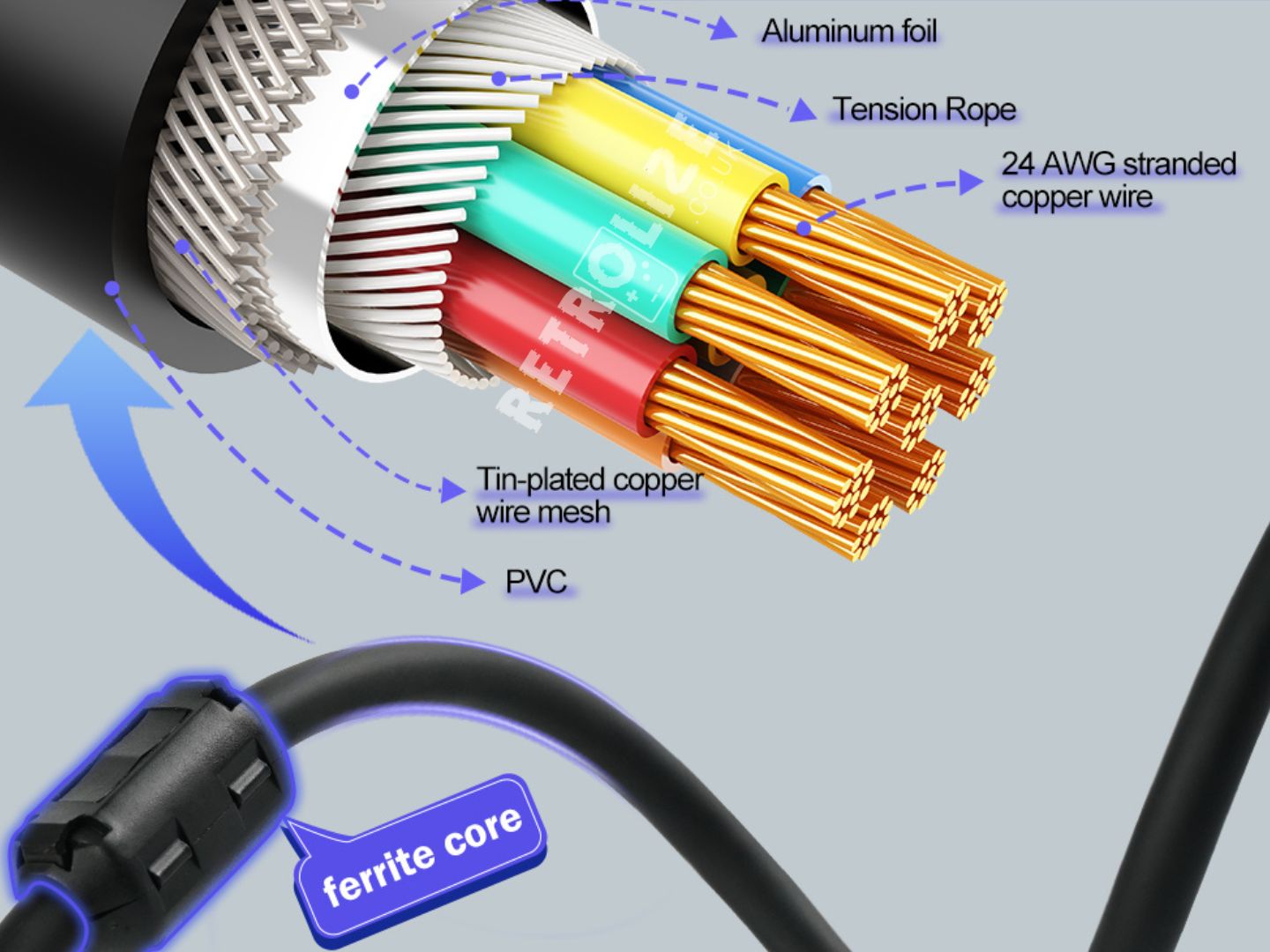

Fully shielded construction helps reduce interference, crosstalk and visible noise between the RGB, sync and audio signals. This is particularly important when connecting original analogue hardware to sensitive video scalers or large modern displays where poor cable shielding can make interference more noticeable.

Stereo audio is carried through the same SCART connection, providing RGB video and left-and-right audio through one cable without requiring a separate audio lead.

Connect the cable directly to a scart compatible television or pair it with the OSSC or GBSC Pro to convert the original analogue RGB signal for a modern HDMI display.

At approximately 1.3 metres long, the cable provides practical placement between the console and connected television or video processor without leaving excessive cable behind the equipment.

Product Type: Universal Nintendo RGB SCART cable
Compatible Console Connection: Nintendo MultiAV
Display Connection: 21-pin male EuroSCART
Video Format: Analogue RGBS
Sync Source: Composite video used for sync
Video Frequency: 15kHz standard-definition RGB
Compatible Video Modes: System-dependent 240p, 288p, 480i and 576i
Audio: Analogue stereo through SCART
Cable Construction: Fully shielded
Cable Length: Approximately 1.3 metres
Cable Length In Feet: Approximately 4.27 feet
Connector Standard: EuroSCART
Installation: Plug and play with compatible hardware
Colour: Black

Super Nintendo & Super Famicom

Original Full-Size PAL Super Nintendo: Supported

Original Full-Size NTSC-U Super Nintendo: Supported

Original Full-Size Super Famicom: Supported

SNES Jr / SNS-101: Supported with an RGB restoration or RGB bypass modification that routes RGB and composite-video sync through the Nintendo MultiAV connector.

Super Famicom Jr / SHVC-101: Supported with an RGB restoration or RGB bypass modification that routes RGB and composite-video sync through the Nintendo MultiAV connector.

Nintendo 64

PAL Nintendo 64: Supported with a compatible RGB modification.

NTSC-U Nintendo 64: Supported with a compatible RGB modification.

NTSC-J Nintendo 64: Supported with a compatible RGB modification.

The RGB modification must route red, green and blue video through the standard Nintendo MultiAV pins while retaining composite video as the sync source.

Nintendo GameCube

PAL GameCube DOL-001: Supported through the Analogue AV Out.

PAL GameCube DOL-101: Supported through the Analogue AV Out.

PAL GameCube consoles provide 15kHz RGB through the Nintendo MultiAV connection in compatible 50Hz and 60Hz interlaced video modes.

Compatible Displays & Video Equipment

EuroScart capable televisions: Supported

OSSC AV1 RGB SCART Input: Supported

GBSC Pro RGB SCART Input: Supported

RetroTINK 5X Pro SCART Input: Supported

Compatible RGBS-To-YPbPr Converter: Supported

Professional RGB Monitor: Supported with a suitable EuroSCART-to-BNC or compatible breakout cable.

EuroSCART Connection: Designed for European SCART equipment and not Japanese JP21 connections.

Designed For The Listed Nintendo Systems: The internal signal components are configured for the compatible consoles shown under Supported Systems.

15kHz RGB Output: Carries standard-definition analogue RGB and does not provide HDMI, component video or 480p output.

Sync-On-Composite: Uses composite video as the synchronisation source for the RGB signal.

1 × Premium Fully Shielded On-Sync RGB SCART Cable For SNES, RGB-Modded N64 & PAL GameCube

This Premium Nintendo RGB SCART Cable is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, crushed or cut cabling, bent connector pins, excessive pulling, damaged strain relief, unauthorised modification or faults caused by incompatible consoles, modifications or display equipment.

Console incompatibility, incorrect RGB modification wiring, unsupported video modes, JP21 equipment, composite-only SCART inputs or devices that do not accept 15kHz RGBS are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms.
