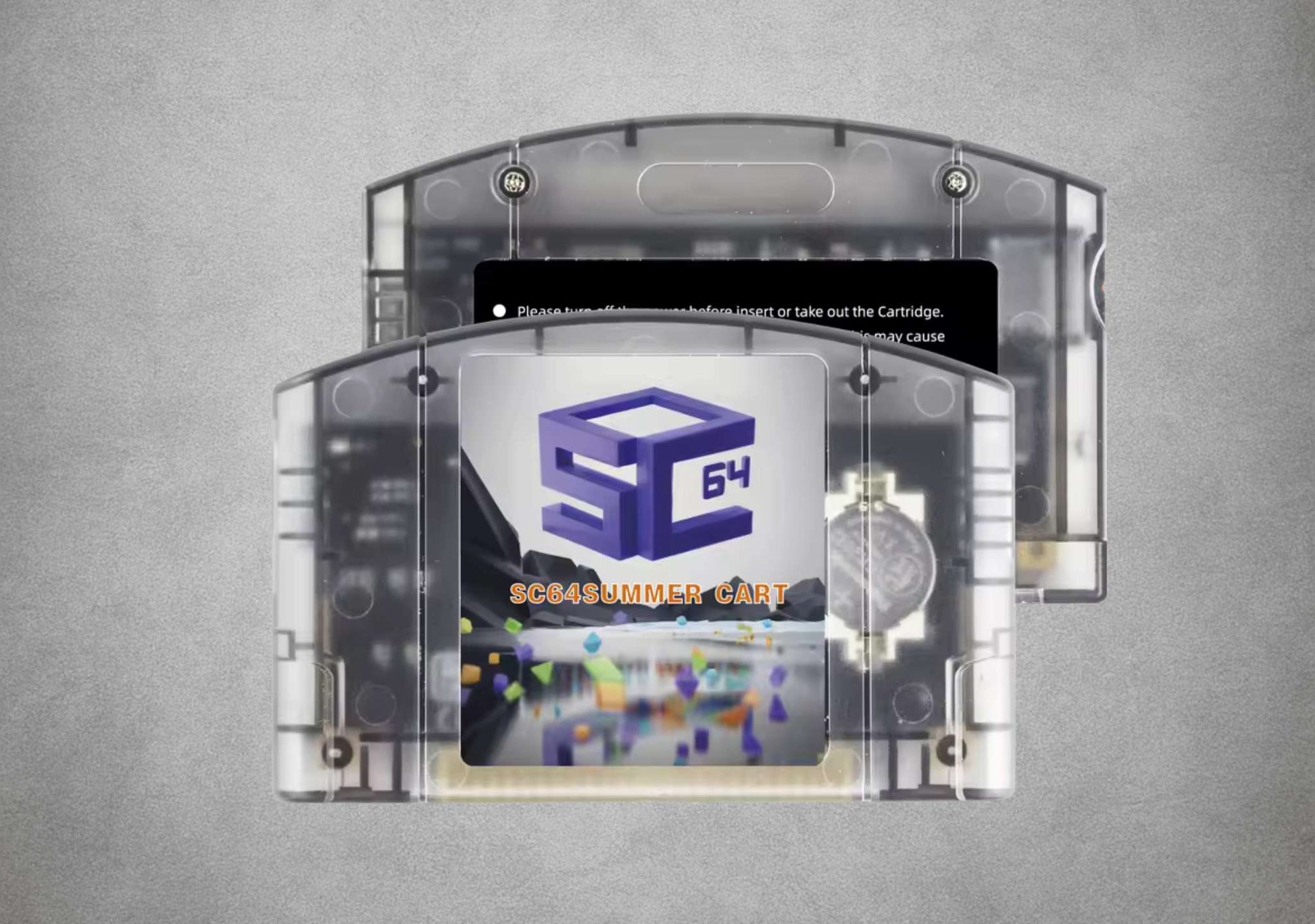

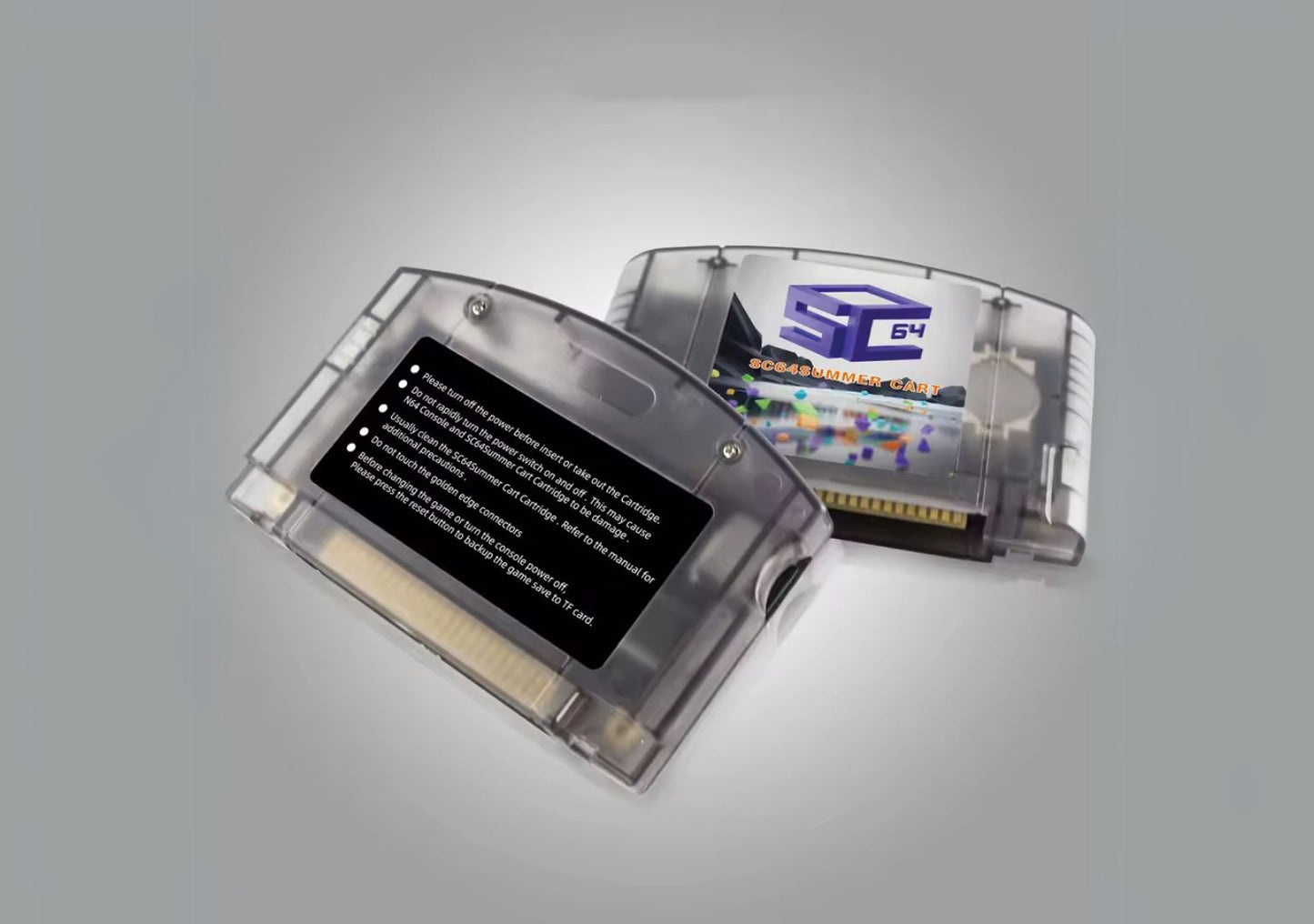

SummerCart64 4TG N64 Flash Cartridge With 64DD Emulation

The SummerCart64 4TG N64 Flash Cartridge provides a versatile microSD-based storage solution for original Nintendo 64 consoles, combining N64 software support, automatic save handling, real-time clock functionality and hardware-level Nintendo 64DD emulation.

This version includes a preconfigured 16GB microSD card with N64FlashcartMenu, emulator applications, supporting files and content organised across multiple classic systems. It is ready to use straight from the box while still allowing compatible files to be added or organised using a separate microSD card reader.

N64FlashcartMenu provides an accessible interface for browsing software stored on the card, with support for folders, favourites and recently accessed titles.

At the centre of the cartridge is a Lattice MachXO2-7000HC speed-grade -4 FPGA supported by 64MiB of SDRAM and 16MiB of QSPI flash memory. Approximately 14MiB of the flash memory can supplement the SDRAM, allowing compatible N64 software with a combined size of up to approximately 78MiB to be loaded.

EEPROM, SRAM and FlashRAM save types are supported with automatic write-back to the microSD card. Unlike flash cartridges that require the console Reset button to be pressed before switching off, SummerCart64 can store compatible save data automatically.

A battery-backed real-time clock supports compatible software that uses date or time functions. The installed CR2032 battery can be replaced when required.

Hardware-level Nintendo 64DD emulation allows compatible .ndd disk images to be used with the appropriate DD IPL file. Compatibility remains dependent on the software image, region, menu configuration and individual title.

The included emulator applications extend the available system support to selected Game Boy, Game Boy Color, NES, Famicom, PC Engine, TurboGrafx-16, Fairchild Channel F, Master System, Game Gear, SG-1000, Super Nintendo and Super Famicom software. Performance varies between individual titles and emulator builds.

This 4TG version does not include USB-C or another USB data interface and its cartridge firmware is not user-updatable. Files are added, removed and organised by connecting the removable microSD card to a compatible card reader.

The separate SummerCart64 6TG version combines a faster FPGA speed grade with additional USB-C functionality. This 4TG version retains the principal microSD, automatic-save, RTC and 64DD features in a more affordable configuration.

Finished in Translucent Smoke Grey/Clear, the cartridge is dispatched from UK stock with fast delivery, international tracked delivery to supported destinations and a 12-month Retrolize warranty.

Brand: SummerCart64
Product Name: SummerCart64 4TG N64 Flash Cartridge
Product Type: Nintendo 64 Flash Cartridge
Model: SummerCart64 4TG
Version: Standard 4TG Version
FPGA: Lattice MachXO2-7000HC
FPGA Speed Grade: -4
System Memory: 64MiB SDRAM
Flash Memory: 16MiB QSPI Flash
Reserved Flash Memory: Approximately 2MiB
Extended Game Data Memory: Approximately 14MiB
Maximum Combined Software Size: Approximately 78MiB
On-Chip Buffer: 8KiB
Storage Format: Removable microSD Card
Included Storage: Preconfigured 16GB microSD Card
Maximum microSD Capacity: Up To 2TB
microSD Interface Speed: Up To Approximately 23.8MiB/s
Menu: N64FlashcartMenu
Menu Features: Folder Browsing, Favourites & Recently Accessed Titles
Nintendo 64 Software: Supported
Nintendo 64DD Emulation: Hardware-Level Support
64DD File Format: Compatible .ndd Disk Images
64DD IPL Requirement: Compatible DD IPL File Required
Save Types: EEPROM 4K, EEPROM 16K, SRAM & FlashRAM
Save Handling: Automatic Write-Back To microSD Card
Console Reset Required For Saving: No
Real-Time Clock: Battery-Backed RTC
RTC Battery: Replaceable CR2032
Region Handling: UltraCIC_C
Console Regions: PAL, NTSC-U & NTSC-J
USB Connectivity: Not Included
Computer File Management: Via A Compatible microSD Card Reader
Cartridge Firmware: Preprogrammed & Not User-Updatable
Status Indicator: Integrated LED
Cartridge Button: Integrated Programmable Button
Open-Source Platform: SummerCart64
Console Modification Required: No
External Power Required: No
Power Source: Nintendo 64 Cartridge Slot
Colour: Translucent Smoke Grey
SKU: SC64-4TG-16GB

Nintendo 64 Consoles

Original Nintendo 64 PAL Consoles: Supported
Original Nintendo 64 NTSC-U Consoles: Supported
Original Nintendo 64 NTSC-J Consoles: Supported
Nintendo 64 Console Modification: Not Required

Nintendo 64 Software & Functions

Compatible Nintendo 64 Software: Supported
Compatible Nintendo 64 Homebrew: Supported Via microSD
N64FlashcartMenu: Supported
EEPROM 4K Saves: Supported
EEPROM 16K Saves: Supported
SRAM Saves: Supported
FlashRAM Saves: Supported
Automatic Save Write-Back: Supported
Battery-Backed Real-Time Clock: Supported
Compatible Software Up To Approximately 78MiB: Supported
Expansion Pak Software: Supported When A Working Expansion Pak Is Installed

Nintendo 64DD

Hardware-Level Nintendo 64DD Emulation: Supported
Compatible .ndd Disk Images: Supported
Compatible DD IPL File: Required
Nintendo 64DD Hardware Unit: Not Required
Universal 64DD Software Compatibility: Not Guaranteed

Emulated Systems

Game Boy: Supported Through gb.v64
Game Boy Color: Supported Through gbc.v64
Nintendo Entertainment System & Famicom: Supported Through neon64bu.rom
PC Engine & TurboGrafx-16: Supported Through POMPCE99
Fairchild Channel F: Supported Through Press-F.z64
Sega Master System: Supported Through smsPlus64.z64
Sega Game Gear: Supported Through smsPlus64.z64
Sega SG-1000: Supported Through smsPlus64.z64
Super Nintendo & Super Famicom: Supported Through sodium64.z64
Universal Compatibility Across Every Title: Not Guaranteed

Connections & Limitations

USB-C Connectivity: Not Included
USB Data Transfer: Not Supported
USB Development & Debugging: Not Supported
User Firmware Updating: Not Supported
Computer File Management: Requires Removal Of The microSD Card
Compatible microSD Card Reader: Required For Computer File Management
Controller Pak Replacement: Not Provided
Rumble Pak Replacement: Not Provided
Transfer Pak Replacement: Not Provided
Nintendo 64 Microphone Replacement: Not Provided
Hot Plugging: Not Supported
External Power Supply: Not Required

Important Supported-Systems Information

A platform being listed as supported does not guarantee that games for that platform are included on the supplied microSD card. Performance and compatibility vary between individual titles, emulator applications, software revisions and selected settings.

4TG Standard Version: This is the SummerCart64 4TG version built around a Lattice MachXO2-7000HC speed-grade -4 FPGA.

No USB Connectivity: This 4TG cartridge does not include USB-C or another USB data connection. Files are managed by removing the microSD card and connecting it to a compatible card reader.

Not Firmware Updatable: The cartridge firmware is preprogrammed and is not user-updatable. Generic SummerCart64 USB firmware instructions do not apply to this 4TG version.

4TG & 6TG Differences: Both versions provide the principal microSD, save, RTC and 64DD functions. The separate 6TG version uses a faster FPGA speed grade and provides additional USB-C functionality that is not included with this 4TG cartridge.

Preconfigured 16GB microSD Card: The supplied card is prepared with N64FlashcartMenu, emulator applications, supporting files and content arranged across multiple supported systems.

Preconfigured Content May Vary: The exact selection and organisation of content can change between production batches. A system being listed as supported does not guarantee that games for that system are present on the supplied card.

Included Emulator Applications: The supplied microSD card includes emulator applications for Game Boy, Game Boy Color, NES, Famicom, PC Engine, TurboGrafx-16, Fairchild Channel F, Master System, Game Gear, SG-1000, Super Nintendo and Super Famicom software.

Emulator File Identification: gb.v64 is the Game Boy build, gbc.v64 is the Game Boy Color build, neon64bu.rom is Neon64 for NES and Famicom, POMPCE99.BIN and POMPCE99.z64 are two formats of the POMPCE99 PC Engine and TurboGrafx-16 emulator, Press-F.z64 is Press-F Ultra for Fairchild Channel F, smsPlus64.z64 supports Master System, Game Gear and SG-1000, and sodium64.z64 supports Super Nintendo and Super Famicom software.

ROM Converter Utility: rom-converter.py is a supporting file-conversion utility and is not an emulator or game.

Back Up The Supplied Card: Create a complete backup of the supplied microSD card before adding, deleting, reorganising or replacing any files.

Expansion Pak Requirements Still Apply: Games and homebrew that require the Nintendo 64 Expansion Pak will still require a working Expansion Pak to be installed in the console.

Controller Accessories Not Replaced: The cartridge does not replace a Controller Pak, Rumble Pak, Transfer Pak, microphone or another controller-port accessory required by compatible software.

64DD Requirements: Nintendo 64DD emulation requires compatible .ndd disk images and the appropriate DD IPL file. Compatibility can vary between individual titles, regions and file revisions.

Emulation Performance Varies: Performance varies between individual titles, emulator applications and settings. A system being supported does not mean that every title will run perfectly.

Regional Compatibility: PAL, NTSC-U and NTSC-J consoles are supported. Regional compatibility does not convert a game’s original video standard, timing or software region.

Automatic Save Write-Back: EEPROM, SRAM and FlashRAM saves can be written automatically to the microSD card without pressing the console Reset button. Allow storage activity to finish before switching the console off.

Hot Plugging: Always switch the Nintendo 64 off before inserting or removing the cartridge or microSD card.

First-Time Setup

1. Switch the Nintendo 64 off.
2. Confirm that the supplied microSD card is fully inserted into the SummerCart64 cartridge.
3. Insert the cartridge firmly into the Nintendo 64 cartridge slot.
4. Connect the console to a compatible television or display.
5. Switch the Nintendo 64 on.
6. Allow N64FlashcartMenu to load.
7. Browse the available folders and select the required title or emulator application.
8. Allow any save activity to finish before switching the console off.
9. Always switch the console off before removing the cartridge or microSD card.

Managing Files On The microSD Card

1. Switch the Nintendo 64 off.
2. Remove the SummerCart64 cartridge from the console.
3. Remove the microSD card from the cartridge.
4. Connect the microSD card to a compatible computer using a suitable card reader.
5. Create a complete backup before changing its contents.
6. Add, remove or organise compatible files as required.
7. Safely eject the microSD card from the computer.
8. Reinsert the card fully into the cartridge before use.

Managing files on the microSD card does not update or alter the cartridge firmware.

1 × SummerCart64 4TG N64 Flash Cartridge In Translucent Smoke Grey
1 × Preconfigured 16GB microSD Card With N64FlashcartMenu, Emulator Applications, Supporting Files & Multi-System Content

This SummerCart64 4TG N64 Flash Cartridge is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use from the date of delivery.

The warranty does not cover accidental damage, liquid damage, misuse, forced insertion, hot plugging, damaged cartridge contacts, damaged microSD connections, unauthorised modification, hardware reprogramming or damage caused by an incompatible console or accessory.

Corrupted storage, deleted files, user-added content, incompatible software, emulator limitations, changes made to the supplied microSD card or failure to create a backup of its original contents are not considered hardware faults.

Compatibility differences involving individual games, homebrew software, ROM revisions, 64DD disk images, DD IPL files, emulator applications, console regions or unsupported accessories are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms and are provided in addition to the customer’s statutory rights.

Is The SummerCart64 4TG Ready To Play?

Yes. The supplied 16GB microSD card is preconfigured with N64FlashcartMenu, emulator applications, supporting files and content organised across multiple supported systems, allowing the cartridge to be used without additional setup.

What Is Included On The 16GB microSD Card?

The card includes N64FlashcartMenu, emulator applications, supporting utilities and preconfigured content arranged across multiple supported systems. The exact selection can vary between production batches.

Which Emulator Applications Are Included?

The supplied emulator applications provide support for selected Game Boy, Game Boy Color, NES, Famicom, PC Engine, TurboGrafx-16, Fairchild Channel F, Master System, Game Gear, SG-1000, Super Nintendo and Super Famicom software.

What Is The Difference Between The 4TG & 6TG Versions?

This 4TG version uses a Lattice MachXO2-7000HC speed-grade -4 FPGA and does not include USB connectivity or user-updatable cartridge firmware.

The separate 6TG version uses a faster FPGA speed grade and provides additional USB-C functionality. Both versions retain the principal microSD, automatic-save, RTC and 64DD functions.

Does The 4TG Version Have USB-C?

No. This version does not include USB-C or another USB data connection. Files must be managed using the removable microSD card and a compatible card reader.

Can The Cartridge Firmware Be Updated?

No. The cartridge firmware is preprogrammed and is not user-updatable. Generic SummerCart64 USB firmware instructions should not be followed with this 4TG version.

Can I Add My Own Compatible Files?

Yes. Switch the console off, remove the microSD card and connect it to a compatible computer using a suitable card reader. Back up the supplied card before making changes.

What Are The Two POMPCE99 Files?

POMPCE99.BIN and POMPCE99.z64 are two file formats of the same PC Engine and TurboGrafx-16 emulator. They are not two different emulators.

What Is rom-converter.py?

It is a supporting file-conversion utility. It is not an emulator or game.

Does It Support Nintendo 64DD Software?

Yes. The cartridge provides hardware-level 64DD emulation for compatible .ndd disk images when used with the appropriate DD IPL file.

Does It Save Automatically?

Yes. Compatible EEPROM, SRAM and FlashRAM save data is written back to the microSD card automatically without requiring the Nintendo 64 Reset button to be pressed.

Does It Replace The Nintendo 64 Expansion Pak?

No. Software that requires an Expansion Pak still needs a working Expansion Pak installed in the console.

Does It Replace Controller Accessories?

No. A required Controller Pak, Rumble Pak, Transfer Pak, microphone or other controller-port accessory must still be connected separately.

Does It Work With PAL & NTSC Consoles?

Yes. PAL, NTSC-U and NTSC-J Nintendo 64 consoles are supported. This does not convert the video standard, timing or region of individual software.

Are Games For Every Supported System Included?

Not necessarily. A system being listed as supported does not guarantee that games for that platform are present on the supplied microSD card.
