🔋 USB-C Charging For Game Boy Color 🔋

⚡ Replaces AA Batteries With Li-Ion Power ⚡

🛡️ Overvoltage And Undervoltage Protection 🛡️

💡 Charging And Full Battery LED Indicators 💡

🧩 Exact Shape For Game Boy Color Installs 🧩

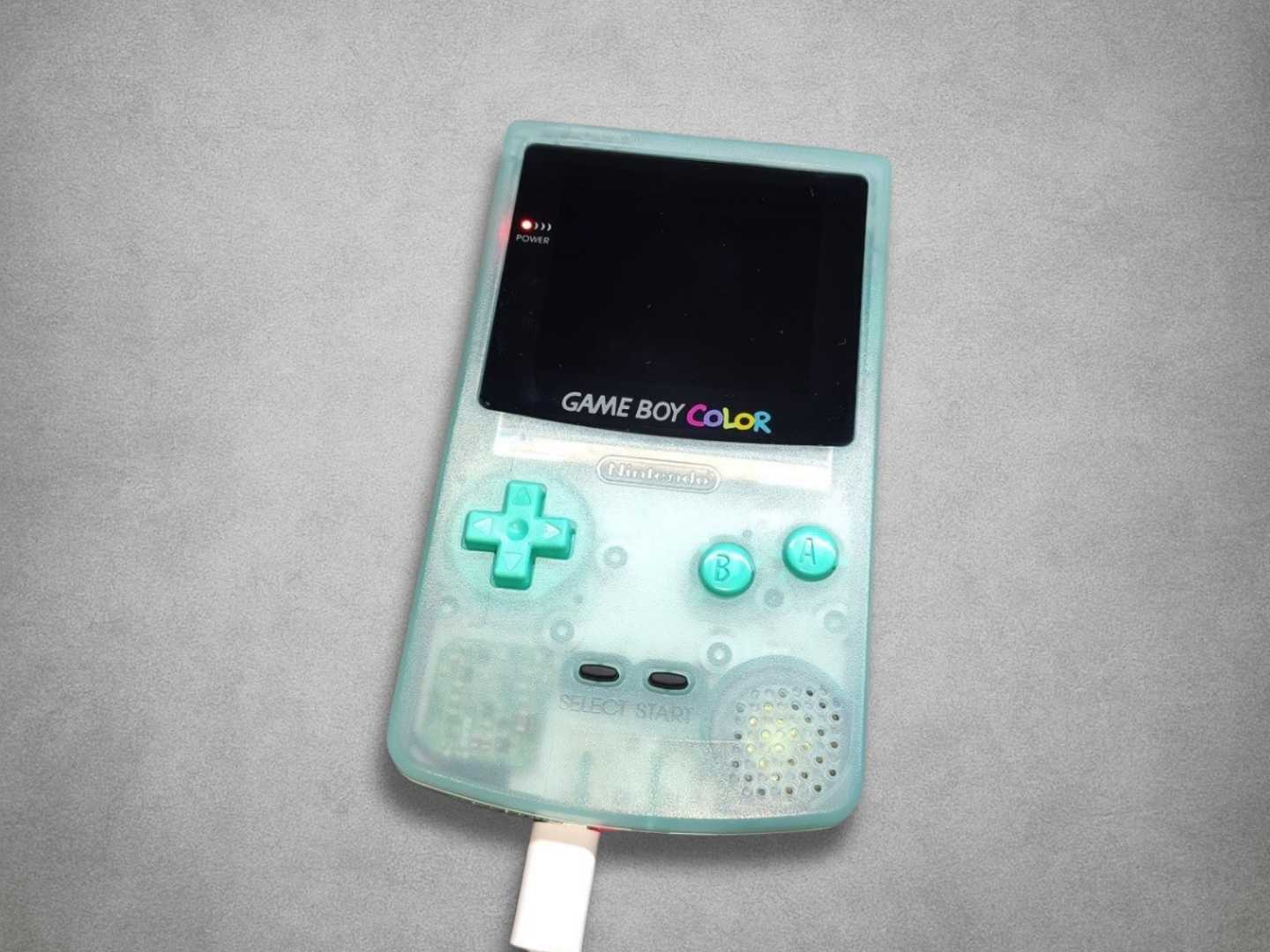

The Game Boy Color USB-C Charging Kit adds modern USB-C charging and Li-ion battery support to the Nintendo Game Boy Color, replacing standard AA batteries with a rechargeable power setup.

Designed for Game Boy Color mods, IPS builds and restored handhelds, the kit includes overvoltage and undervoltage protection, built-in charging and full battery LEDs, plus an optional external light board for original-style status indicators.

Compatible with CGB-CPU-01, CGB-CPU-02, CGB-CPU-03, CGB-CPU-04, CGB-CPU-05 and CGB-CPU-06 boards. Installation requires soldering, modding experience and a separate Li-ion battery.

Features:

  • USB-C Charging: Adds modern USB-C charging to the Nintendo Game Boy Color.
  • Li-Ion Battery Support: Replaces AA battery use with a rechargeable Li-ion battery setup.
  • Battery Protection: Includes overvoltage and undervoltage protection for safer charging and battery use.
  • Built-In LED Indicators: Main board LEDs show red while charging and green when the battery is full.

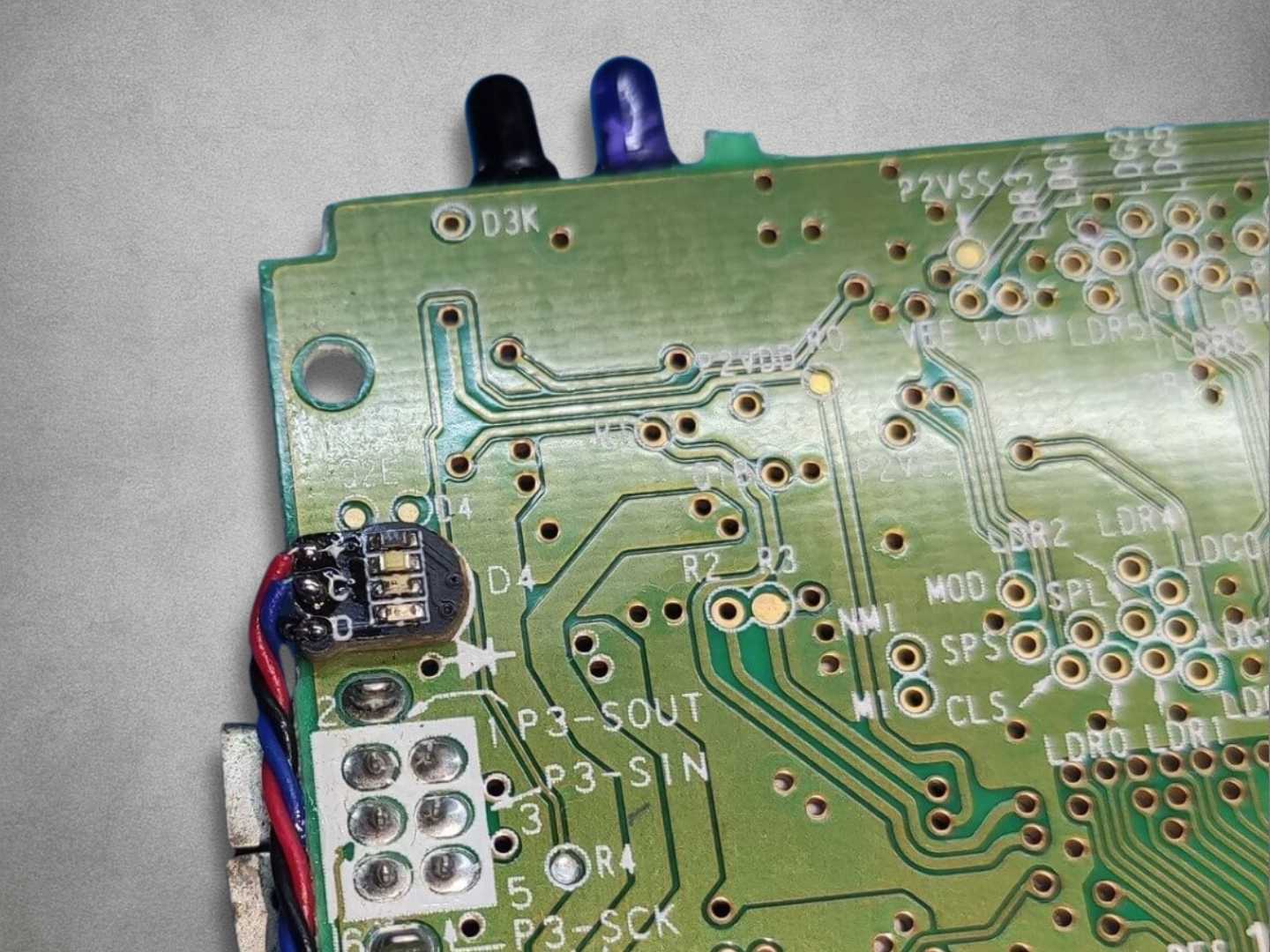

  • Optional Power Light Board: Allows play, charging and full battery indicators to replace the original power LED.
  • Simple Or Full Install Options: Use the main board only for an easier install, or add the light board for original-style LED placement.
  • Game Boy Color Fitment: Designed with the correct shape for Game Boy Color installations.
  • Original Regulator Support: Designed to work with the console’s original voltage regulator.
  • IPS Build Friendly: Suitable for many Game Boy Color IPS screen builds and custom handheld upgrades.
  • Play and Charge: Unsupported
£24.99
£24.99
Sale Sold out
UK VAT included (where applicable)

Low stock: 2 left

Critical Info

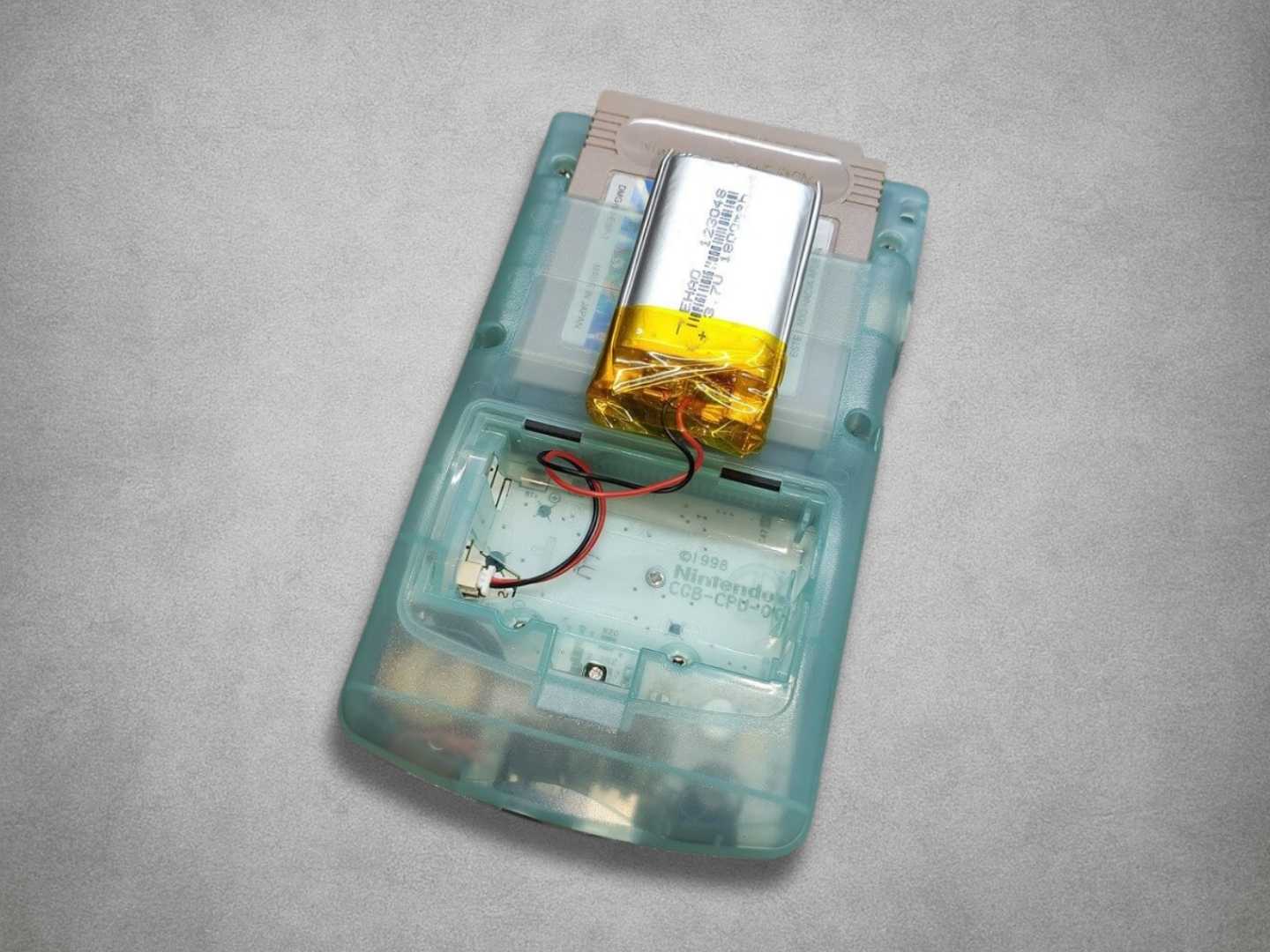

Li-ion battery is not included and must be purchased separately.

Installation requires soldering, shell work and modding experience.

This kit does not support charge-and-play. Do not use the console while charging.

Designed for Li-ion battery use with a voltage range of 2.75V to 4.2V. If replacing the original power supply, the replacement must support this voltage range. Using an incompatible power setup may damage the console.

This is a USB-C charging and Li-ion battery mod for the Game Boy Color. It is not a 5V power converter, -19V converter or audio amplifier kit.

Installation Guide PDF

Video Installation Guide

Article On Giltesa.com

GitHub Repository

Required (Not Included)

  • Li-ion battery (for example a 102050 or 123048)
    Tri-Wing and Phillips Screwdrivers
  • Cutting Pliers
  • Tweezers
  • Soldering iron
  • Solder
  • Flux
  • Desoldering pump
  • Desoldering mesh
  • Isopropyl alcohol
  • Instant glue (Loctite, Super Glue)

Description

Upgrade your Nintendo Game Boy Color with a USB-C charging kit designed for modern rechargeable handheld gaming. This Game Boy Color USB-C Charging Mod allows the console to use a Li-ion battery instead of standard AA batteries, giving original Nintendo GBC hardware a cleaner, more practical power solution.

Built specifically for Game Boy Color restorations, IPS screen builds and custom handheld upgrades, the kit adds USB-C charging, Li-ion battery support, overvoltage protection and undervoltage protection. Integrated LEDs on the main board show charging status with a red light and full battery status with a green light, while the optional external LED board can display play, charging and full battery indicators in the original status LED position.

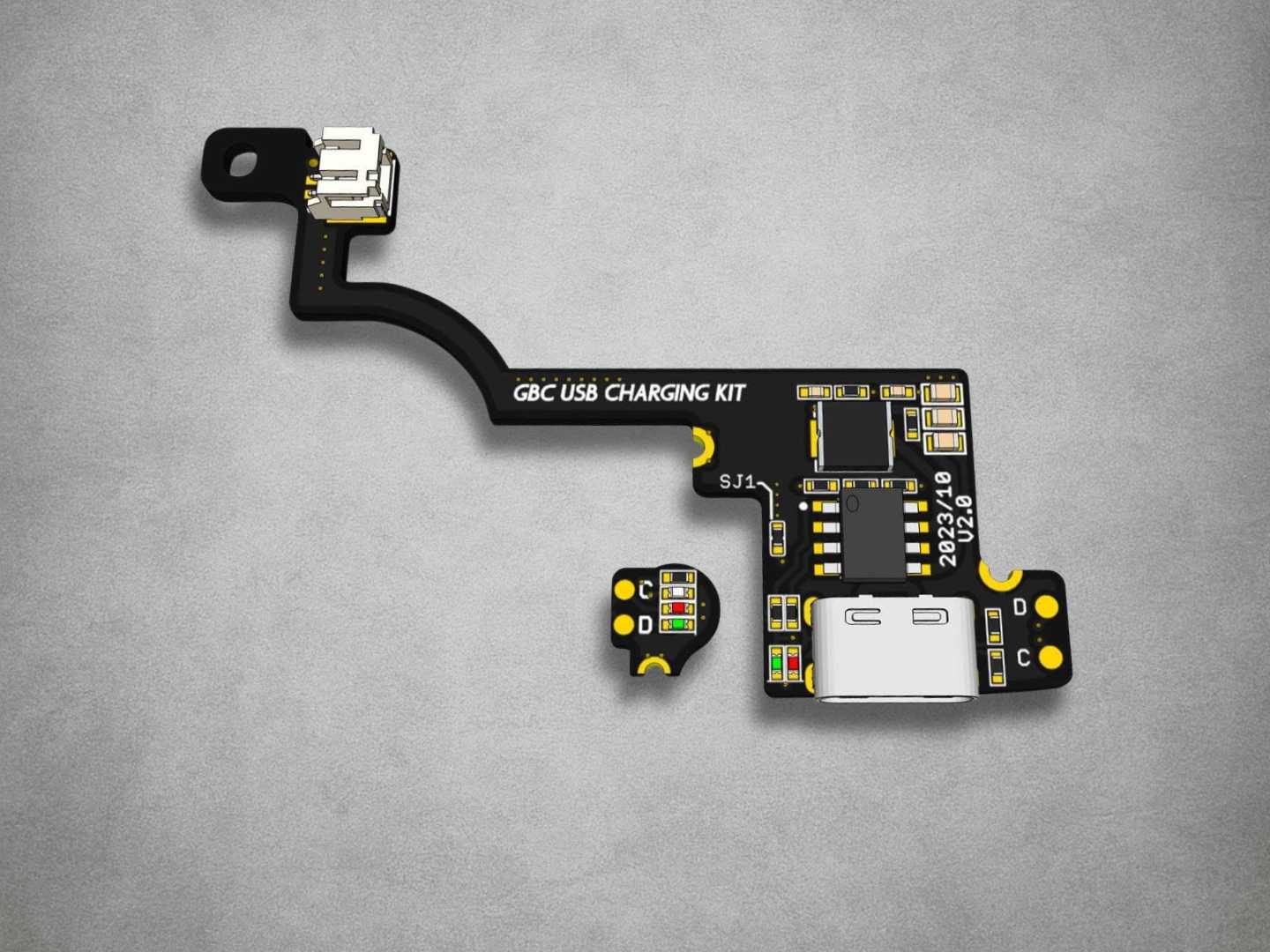

The kit includes two boards: the main charging board and a light board. For a simpler install, the main board can be used on its own without additional cables. For a more complete original-style setup, the light board can be installed and connected with the included cable to move the status LEDs to the console’s original LED area.

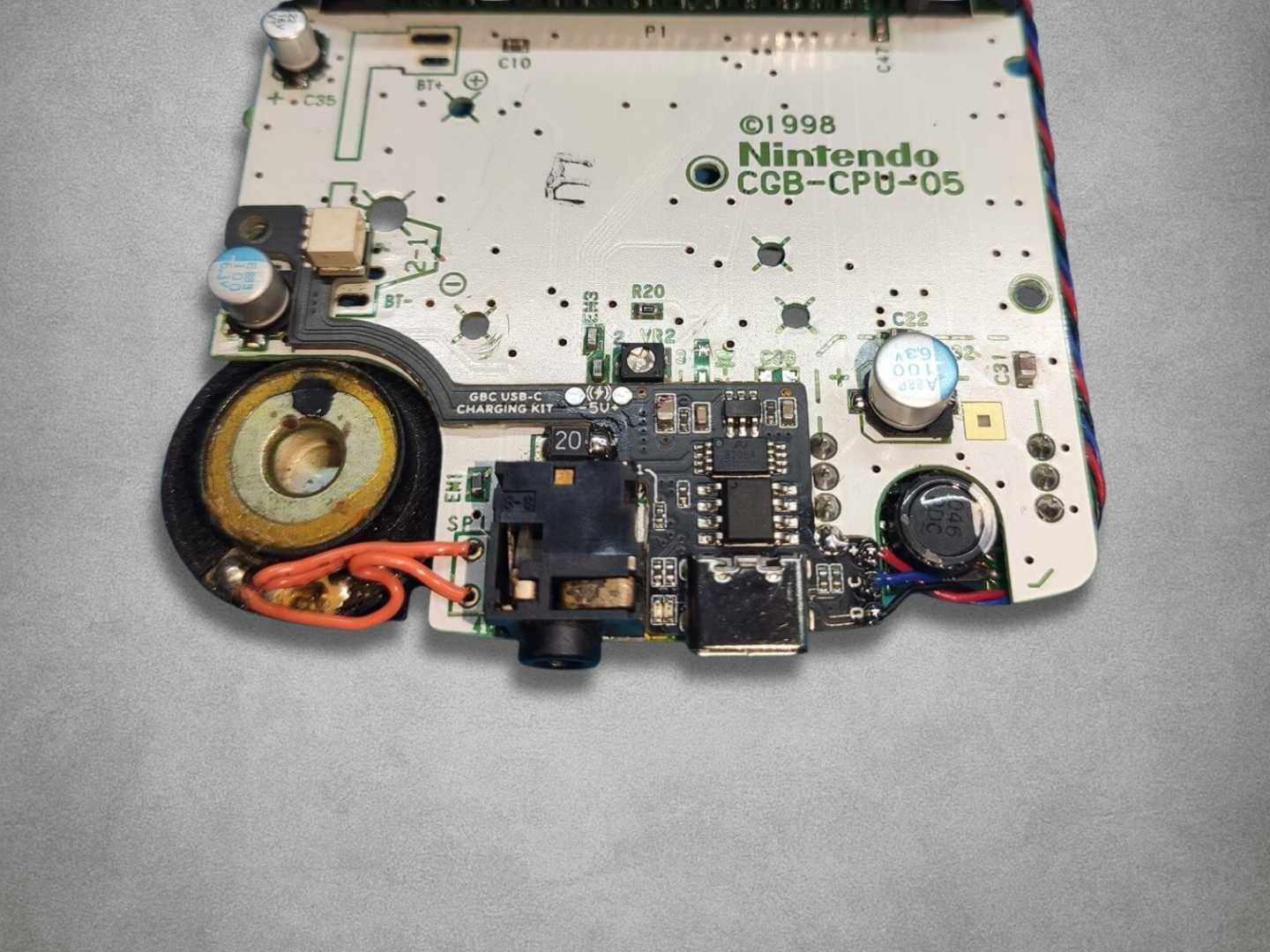

Designed to work with the Game Boy Color’s original voltage regulator, this compact GBC power mod is compatible with CGB-CPU-01, CGB-CPU-02, CGB-CPU-03, CGB-CPU-04, CGB-CPU-05 and CGB-CPU-06 boards. It is also suitable for many IPS screen builds and can be used alongside compatible upgrades such as CleanPower Regulator, CleanAmp v1.1 Audio Amplifier and Pololu 5V Step-Up Voltage Regulator U1V10F5.

This is a strong upgrade for modders, repair shops and retro handheld builders who want USB-C charging and rechargeable Li-ion battery support in a restored or modified Game Boy Color.

Package Includes

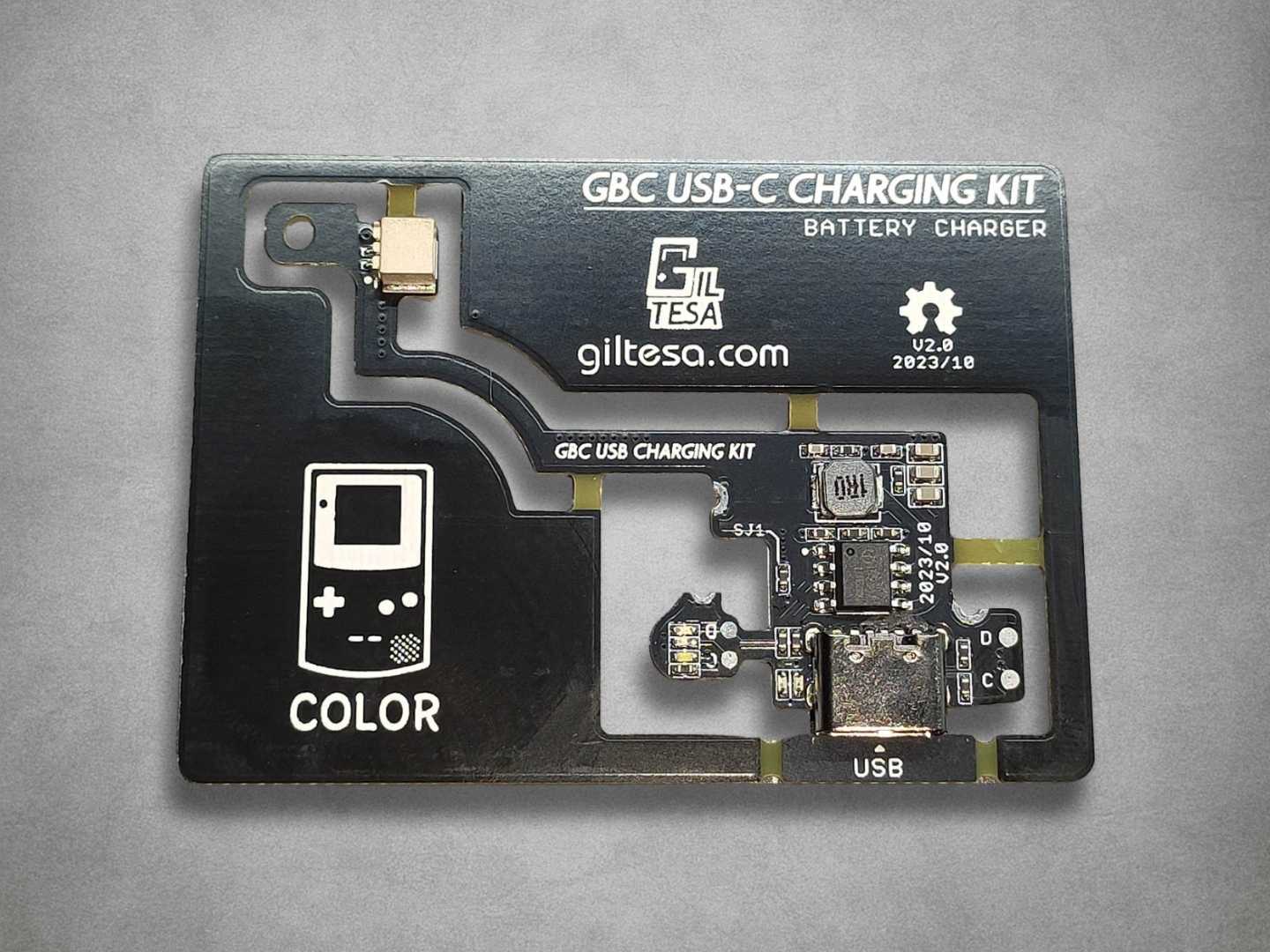

  • 1 x Frame board with charging board and light board
  • 1 x Battery cable with JST SH1.0 connector
  • 1 x Two-wire cable for connecting the light board
  • 1 x Light diffuser pipe

Supported Systems

Nintendo Game Boy Color

Compatible with the following Game Boy Color board revisions:

CGB-CPU-01
CGB-CPU-02
CGB-CPU-03
CGB-CPU-04
CGB-CPU-05
CGB-CPU-06
