BitFunx Component To HDMI Adapter For Nintendo Wii

The BitFunx Component To HDMI Adapter For Nintendo Wii connects a compatible Nintendo Wii console to a modern television, monitor or capture device with an HDMI input.

This full-size Wii HDMI adapter converts the console’s analogue YPbPr component-video signal and stereo audio into a digital HDMI output. Video and audio are carried through a single HDMI cable, removing the need for separate component-video and audio connections.

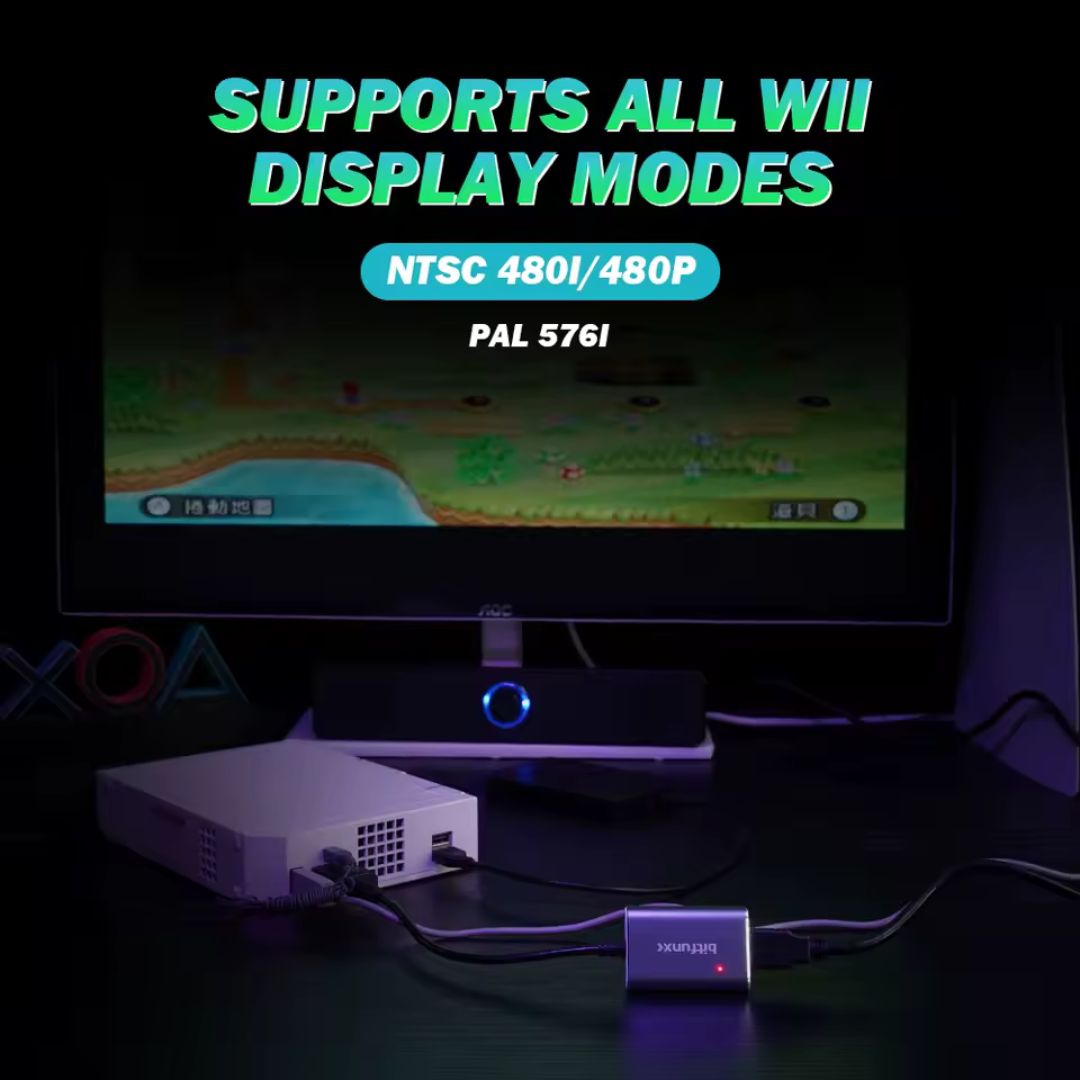

Supported Nintendo Wii video modes include NTSC 480i and 480p alongside PAL 480i, 480p and 576i. For the clearest compatible image, select EDTV Or HDTV (480p) through the Nintendo Wii Screen settings when supported by both the game and display.

This adapter performs signal conversion rather than resolution upscaling. It preserves the video mode produced by the Nintendo Wii and does not create native 720p, 1080p or 4K detail. Image quality and scaling behaviour will therefore depend partly on the original game, selected Wii settings and connected display.

GameCube games can also be displayed through the adapter when played on a backwards-compatible Nintendo Wii RVL-001 console. GameCube support is not available through RVL-101 Family Edition consoles or the Wii Mini.

Installation is plug and play, with no drivers, software, console modification, external power supply or USB power cable required. An integrated multi-colour LED identifies power, detected video input and active HDMI output.

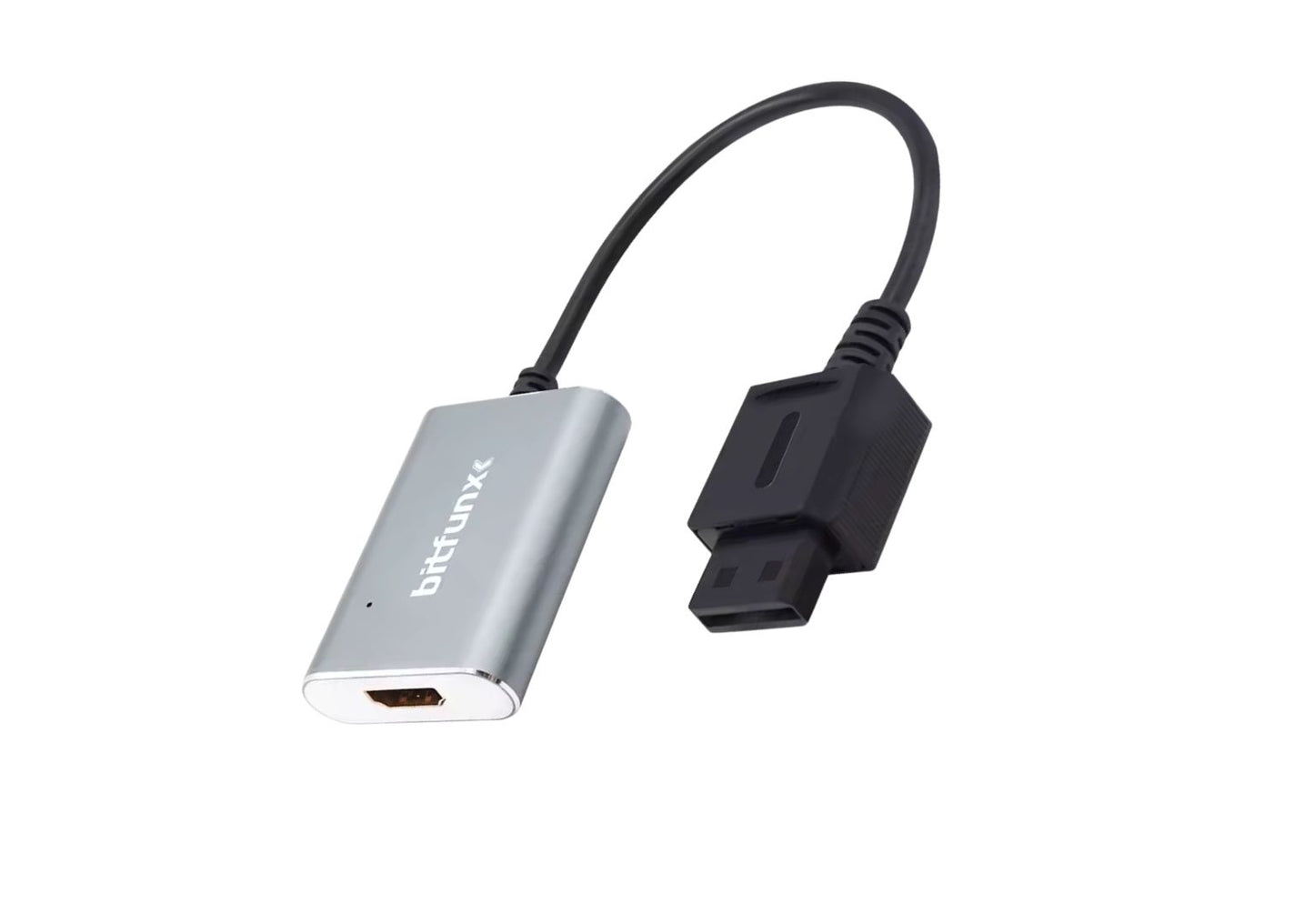

The adapter features a durable aluminium-alloy housing measuring approximately 60 × 40 × 12mm, an integrated 24cm console cable and a supplied 1.5-metre HDMI cable.

Finished in Silver, the adapter is dispatched from UK stock with fast delivery, international tracked delivery to supported destinations and a 12-month Retrolize warranty.

Browse our complete range of retro gaming upscalers and HDMI adapters.

Find more Nintendo Wii parts and mods.

Brand: BitFunx
Product Name: BitFunx Component To HDMI Adapter For Nintendo Wii
Product Type: Component Video To HDMI Adapter
Model: BitFunx Wii HDMI Adapter
Manufacturer Product Code: XLL-Wii-Adapter
Compatible Console: Nintendo Wii
Compatible Console Models: RVL-001 & RVL-101
Console Regions: PAL, NTSC-U & NTSC-J
GameCube Software Compatibility: Supported Through Backwards-Compatible Nintendo Wii RVL-001 Consoles
Console Connection: Nintendo Wii AV Multi Out
Input Connector: Nintendo Wii AV Multi Out Male Plug
Video Input Signal: Analogue YPbPr Component Video
Composite Video Input: Not Supported
Audio Input Signal: Analogue Stereo Audio From Nintendo Wii AV Multi Out
Signal Conversion: Analogue Component Video & Stereo Audio To Digital HDMI
Output Connector: Full-Size HDMI Type-A Female Port
Video Output: Digital HDMI
Audio Output: Stereo Audio Through HDMI
Separate Audio Output: Not Included
Supported NTSC Video Modes: 480i & 480p
Supported PAL Video Modes: 480i, 480p & 576i
Progressive-Scan Output: Up To 480p
Output Resolution: Matches The Video Mode Selected By The Nintendo Wii
Resolution Upscaling: Not Supported
Video-Mode Detection: Automatic
Status Indicator: Integrated Multi-Colour LED
Red LED: Adapter Powered On
Purple LED: Nintendo Wii Video Signal Detected
White LED: HDMI Output Active
Power Source: Nintendo Wii AV Multi Out
External Power Required: No
USB Power Required: No
Drivers Or Software Required: No
Installation: Plug & Play
Console Modification Required: No
Compatible Display Requirement: HDMI Input Supporting The Selected 480i, 480p Or 576i Wii Video Mode
HDMI Cable Required: Yes
HDMI Cable Included: Yes
HDMI Cable Length: Approximately 1.5 Metres
Housing Material: Aluminium Alloy
Integrated Console Cable Length: Approximately 24cm
Dimensions: Approximately 60 × 40 × 12mm
Weight: Approximately 45g
Colour: Silver
Retail Packaging: Included
Nintendo Wii Mini Compatibility: Not Supported
SKU: BFX-WII-HDMI-SLV

Nintendo Wii Consoles

Nintendo Wii RVL-001 PAL Consoles: Supported
Nintendo Wii RVL-001 NTSC-U Consoles: Supported
Nintendo Wii RVL-001 NTSC-J Consoles: Supported
Nintendo Wii Family Edition RVL-101 PAL & NTSC Consoles: Supported
Nintendo Wii Mini RVL-201 Consoles: Not Supported

Software & Video Modes

Nintendo Wii Software: Supported
GameCube Software Through Nintendo Wii RVL-001 Consoles: Supported Subject To Game & Video-Mode Compatibility
GameCube Software Through Nintendo Wii RVL-101 Consoles: Not Supported
GameCube Software Through Nintendo Wii Mini Consoles: Not Supported
Original Nintendo GameCube DOL-001 & DOL-101 Hardware: Not Supported
NTSC 480i Output: Supported
NTSC 480p Progressive-Scan Output: Supported
PAL 480i Output: Supported
PAL 480p Progressive-Scan Output: Supported
PAL 576i Output: Supported
720p, 1080p & 4K Resolution Upscaling: Not Supported

Connection Requirements

Nintendo Wii AV Multi Out Port: Required
Full-Size HDMI Cable: Required & Included
Television, Monitor Or Capture Device With HDMI Input: Required
Display Support For The Selected 480i, 480p Or 576i Video Mode: Required
External USB Power: Not Required
Console Modification: Not Required
Drivers Or Additional Software: Not Required

Nintendo Wii Mini Compatibility: This adapter is not compatible with the Nintendo Wii Mini RVL-201.

Signal Conversion, Not Resolution Upscaling: The adapter converts the Nintendo Wii’s original YPbPr component-video signal to HDMI. It does not upscale the output to 720p, 1080p or 4K.

Original Wii Resolution: The HDMI output uses the video mode selected through the Nintendo Wii, including 480i, 480p or 576i where supported.

Use 480p Where Available: For the clearest compatible output, select EDTV Or HDTV (480p) through the Nintendo Wii Screen settings. Not every game supports progressive-scan output.

Display Compatibility: Some modern televisions, monitors and capture devices may not accept 480i or 576i through HDMI. Check that the display supports the selected Wii video mode.

GameCube Software Compatibility: GameCube games can only be used through an original backwards-compatible Nintendo Wii RVL-001 console. RVL-101 and Wii Mini consoles do not support GameCube software.

Aspect Ratio: The adapter does not automatically correct or change the aspect ratio. Select 4:3 or 16:9 through the Nintendo Wii and display settings as required.

HDMI Cable Included: A 1.5-metre HDMI cable is supplied with the adapter.

No External Power Required: Power is supplied through the Nintendo Wii AV Multi Out connection. No USB cable or separate power supply is required.

Connection Care: Switch the Nintendo Wii off before connecting or removing the adapter. Avoid placing excessive strain on the console AV port or integrated cable.

First-Time Setup

1. Switch the Nintendo Wii and HDMI display off.

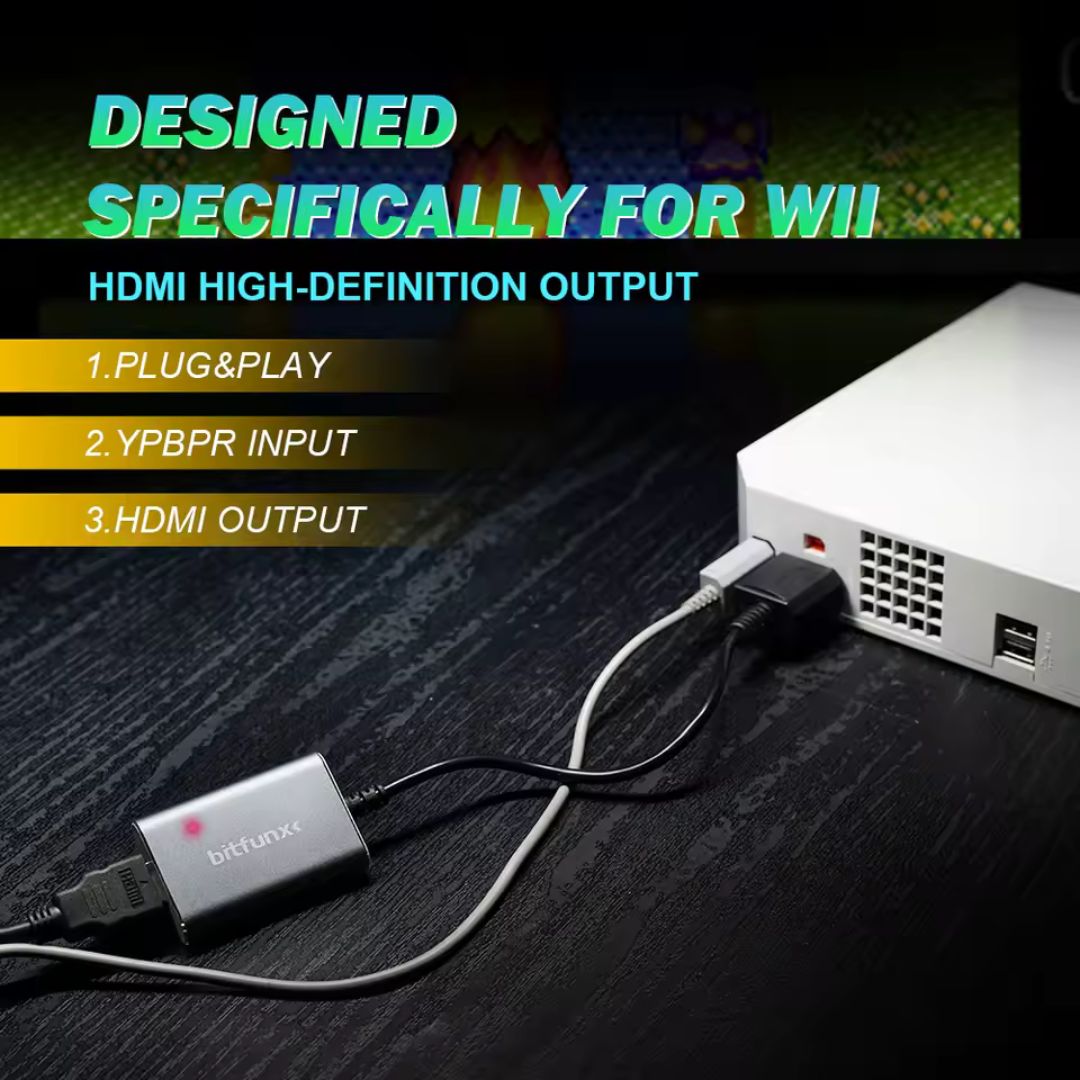

2. Connect the adapter’s integrated plug to the Nintendo Wii AV Multi Out port.
3. Connect the supplied HDMI cable between the adapter and an available HDMI input on the television, monitor or capture device.
4. Select the corresponding HDMI input on the display.
5. Switch the display and Nintendo Wii on.
6. Open Wii Options, select Wii Settings, choose Screen and then select TV Resolution.
7. Select EDTV Or HDTV (480p) when supported by the game and display. Otherwise, use a compatible 480i or 576i setting.
8. Select the required 4:3 or 16:9 widescreen setting separately.
9. Switch the Nintendo Wii off before disconnecting the adapter.

Status Indicator

Red LED: The adapter is receiving power from the Nintendo Wii.

Purple LED: A compatible Nintendo Wii video signal has been detected.

White LED: HDMI output to the connected display is active.

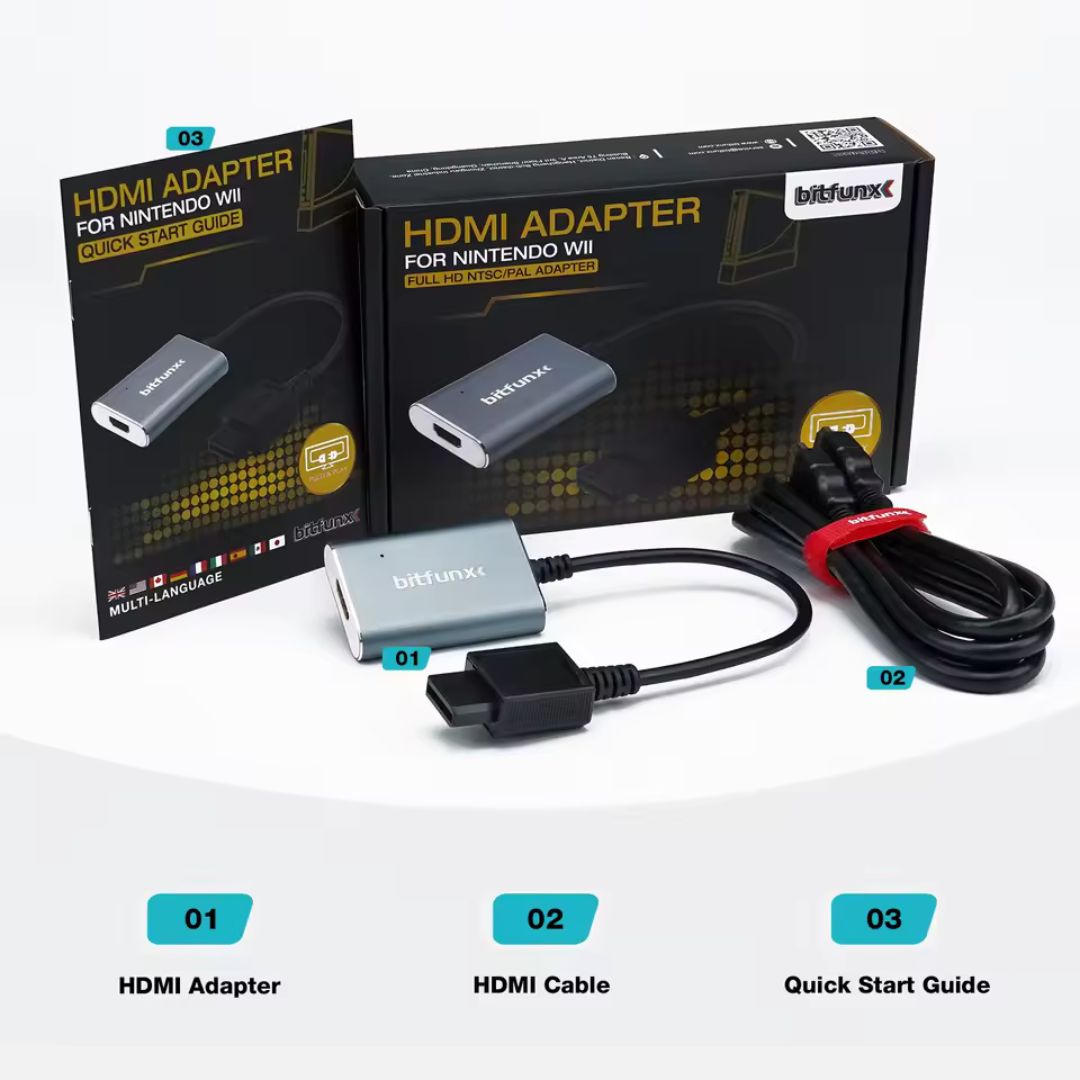

1 × BitFunx Component To HDMI Adapter For Nintendo Wii In Silver
1 × 1.5-Metre HDMI Cable
1 × Multi-Language Quick Start Guide
1 × Retail Box

This BitFunx Nintendo Wii HDMI Adapter is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, misuse, damaged connectors, excessive strain placed on the adapter, unauthorised modification or faults caused by an incompatible console, HDMI cable or display.

Display compatibility, television scaling, aspect-ratio behaviour and differences between supported video modes are not considered product faults. Warranty claims remain subject to the full Retrolize warranty terms.

Will This Adapter Improve The Nintendo Wii’s Picture Quality?

It provides a convenient digital HDMI connection using the Wii’s higher-quality YPbPr component-video signal. Final image quality still depends on the original game, selected video mode and scaling performed by the connected display.

Does The Adapter Upscale The Nintendo Wii To 1080p Or 4K?

No. The adapter converts the original Wii video signal to HDMI without upscaling it to 720p, 1080p or 4K.

Does The Adapter Enable 480p Automatically?

No. Select EDTV Or HDTV (480p) through Wii Options, Wii Settings, Screen and TV Resolution. The connected game and display must also support 480p.

Does It Work With The Nintendo Wii Mini?

No. The Nintendo Wii Mini RVL-201 uses a different video-output configuration and is not compatible with this adapter.

Can I Use It With GameCube Games?

Yes, when the GameCube game is played through a backwards-compatible Nintendo Wii RVL-001 console. It does not add GameCube support to RVL-101 or Wii Mini consoles.

Will 480i And 576i Work On Every HDMI Display?

Not necessarily. Some modern televisions, monitors and capture devices do not accept interlaced 480i or 576i signals through HDMI. Use 480p where supported.

Is An HDMI Cable Included?

Yes. A 1.5-metre HDMI cable is included.

Does It Require USB Power Or A Separate Power Supply?

No. The adapter receives power directly through the Nintendo Wii AV Multi Out port.

Does It Provide A Separate Audio Output?

No. Stereo audio is carried through HDMI. The adapter does not provide a separate 3.5mm or RCA audio output.

What Do The Different LED Colours Mean?

Red confirms that the adapter is powered, purple indicates that a Wii video signal has been detected and white indicates active HDMI output.

Can I Use It With A Computer Monitor Or Capture Device?

Yes, provided the monitor or capture device has an HDMI input and supports the selected 480i, 480p or 576i Wii video mode.

What Is The Difference Between This Adapter And The Mini Version?

This full-size model uses an aluminium-alloy housing, a short integrated console cable, a multi-colour status indicator and an included 1.5-metre HDMI cable. The BitFunx Mini Component To HDMI Adapter For Nintendo Wii uses a smaller direct-fit design and requires a separate standard HDMI cable.
