BitFunx Mini Component To HDMI Adapter For Nintendo Wii

Connect an original Nintendo Wii to a modern HDMI television, monitor, projector or compatible capture device with the BitFunx Mini Component To HDMI Adapter.

This compact Wii HDMI adapter connects directly to the console’s AV Multi Out port and converts its YPbPr component video and analogue stereo audio into a convenient HDMI output. Video and sound are carried through a single HDMI cable, removing the need for a separate five-connector Wii component cable or additional audio lead.

By using the Wii’s YPbPr component-video signal, the adapter supports progressive-scan 480p output and provides a cleaner source than the console’s standard composite connection. Supported video modes include NTSC 480i and 480p alongside PAL 480i, 480p and 576i.

For the clearest available picture, select EDTV Or HDTV (480p) through the Wii system settings whenever the game and connected display support it. Software limited to an interlaced video mode will continue to display at its original resolution.

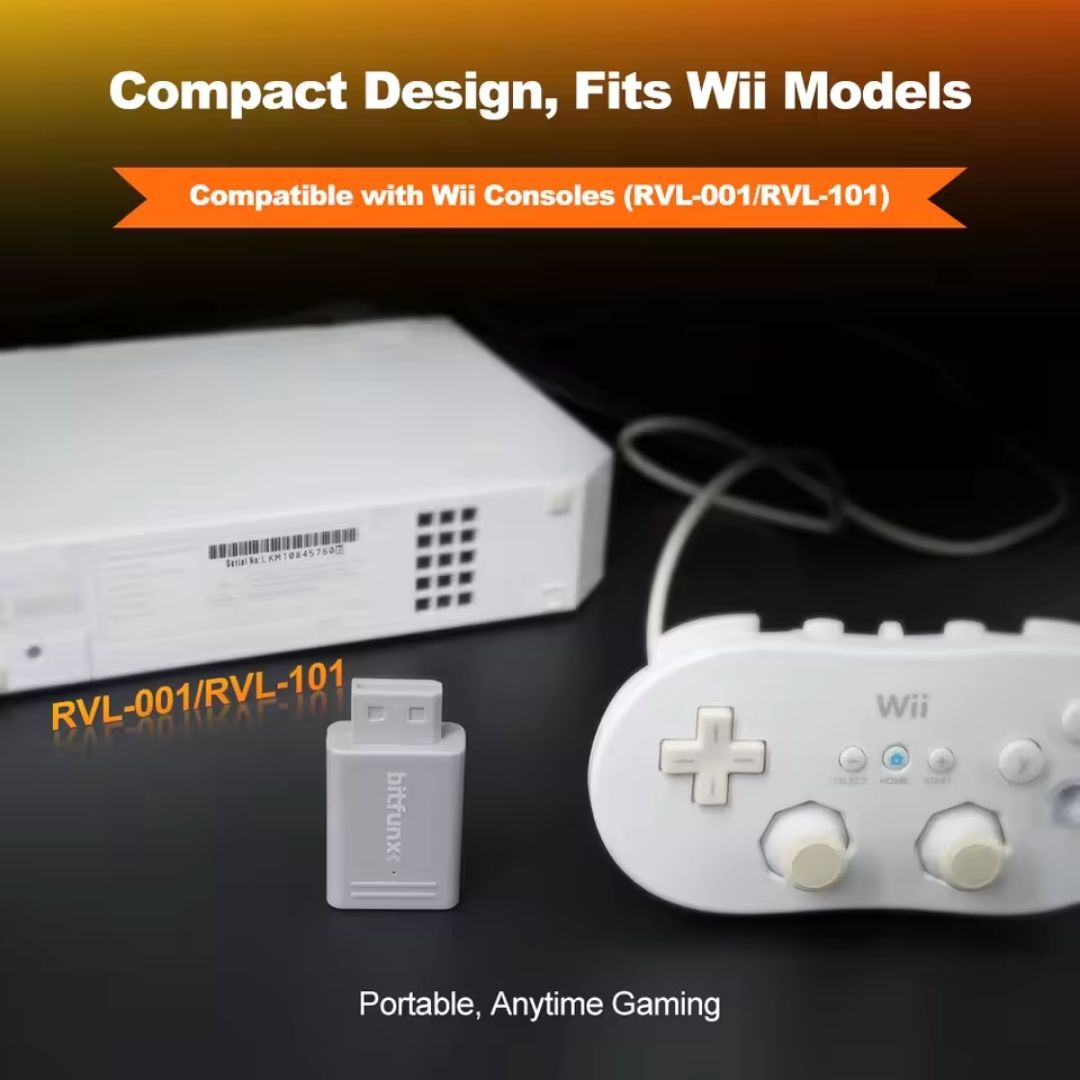

Original Nintendo Wii RVL-001 and Wii Family Edition RVL-101 consoles are supported. GameCube software can also be displayed when played through a backwards-compatible RVL-001 console. The Nintendo Wii Mini RVL-201 is not supported.

The adapter performs analogue-to-digital signal conversion rather than resolution upscaling. It does not turn Nintendo Wii games into native 720p, 1080p or 4K content. Final picture quality will also depend on the game, selected Wii video mode and processing performed by the connected display.

Installation is plug and play, with no console modification, USB power cable or external power supply required. The adapter receives power through the console connection, while its integrated status light identifies power, signal detection and active HDMI output.

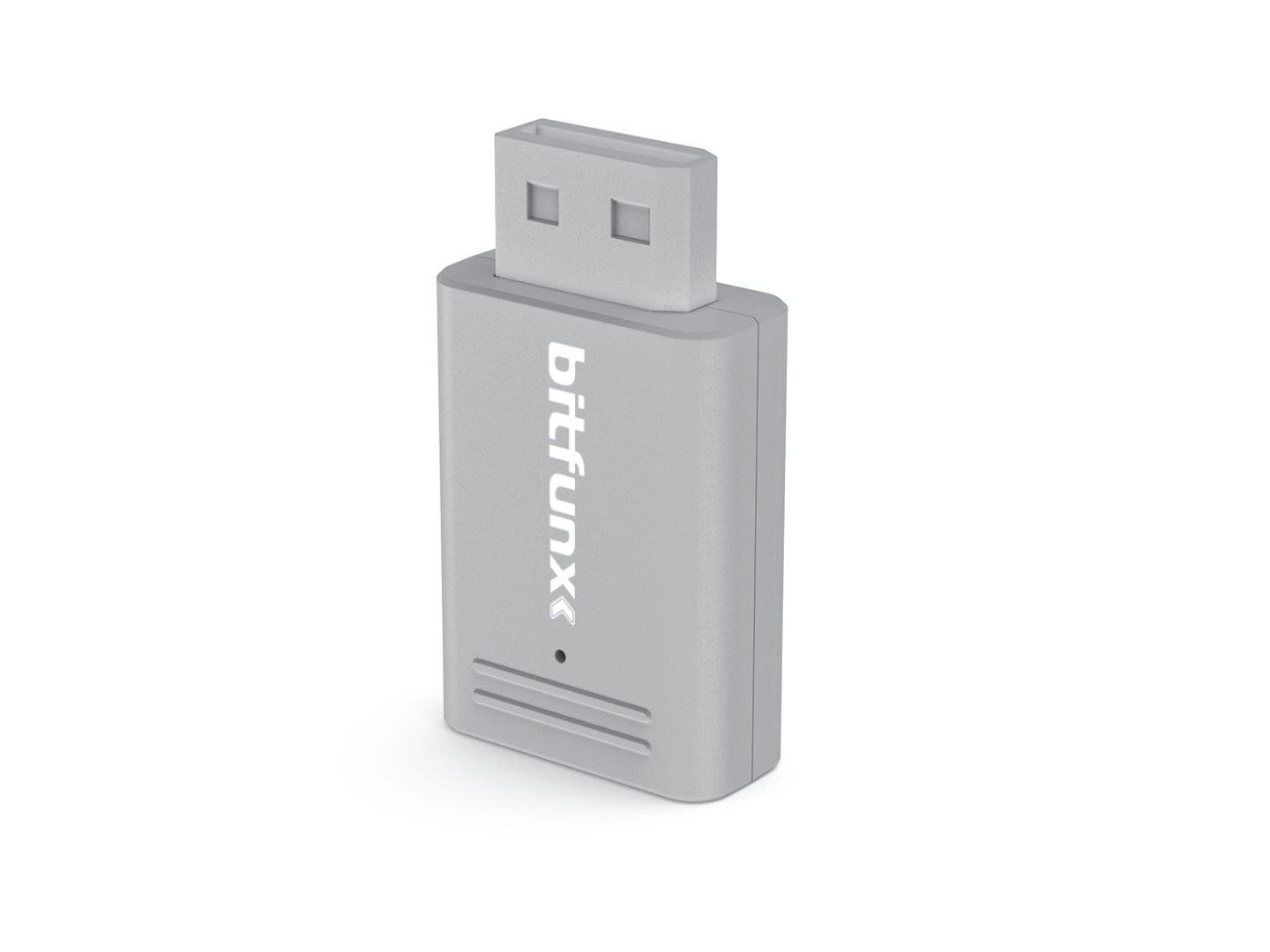

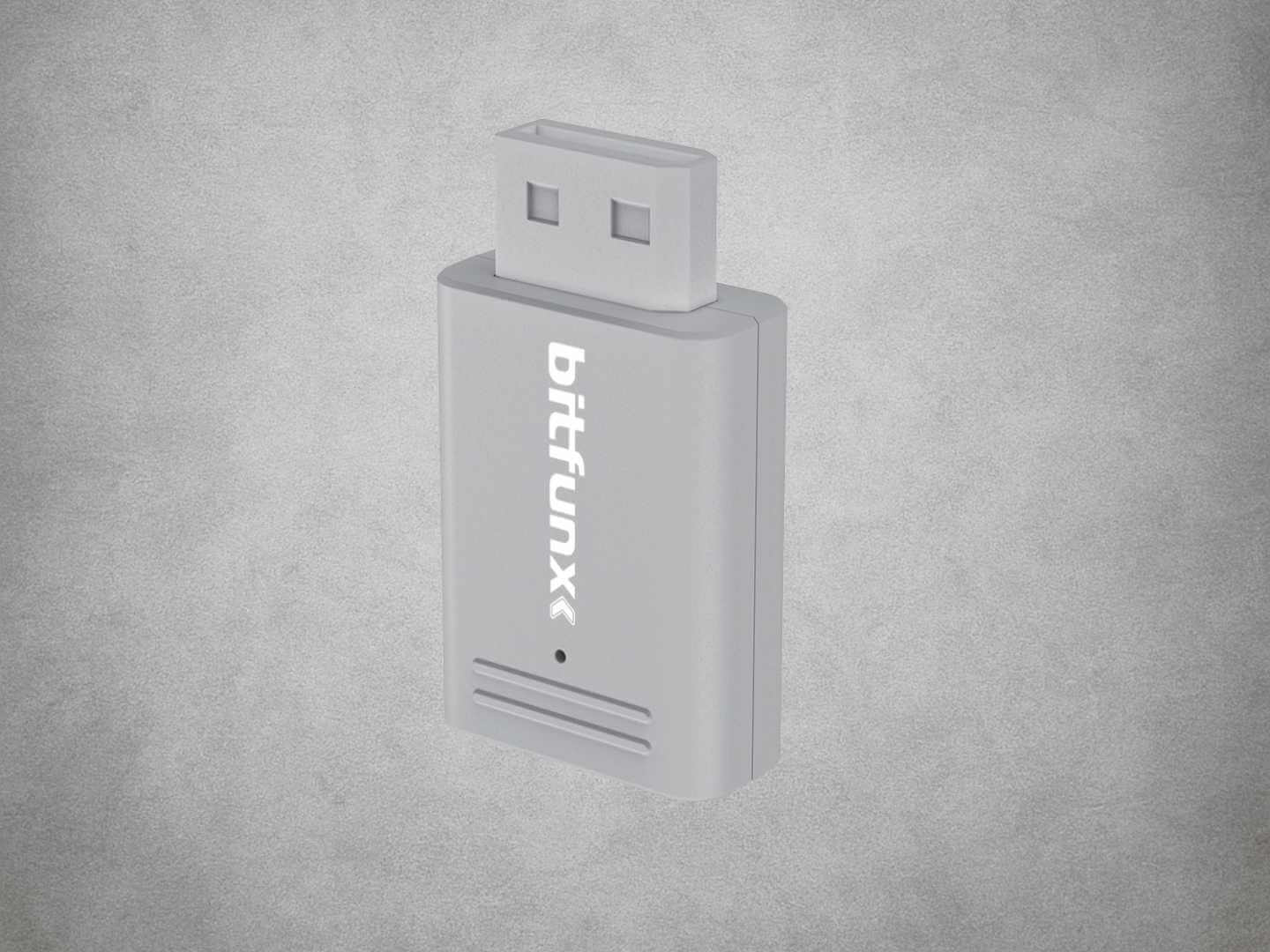

Measuring approximately 43 × 30 × 13mm and weighing around 14g, the direct-fit design provides a compact Wii-to-HDMI installation. A standard HDMI cable is required and is not included.

Finished in Grey, the adapter is dispatched from UK stock with fast delivery, international tracked delivery to supported destinations and a 12-month Retrolize warranty.

Browse our complete range of retro gaming upscalers and HDMI adapters.

Find more Nintendo Wii parts and mods.

Brand: BitFunx
Product Name: Mini Component To HDMI Adapter For Nintendo Wii
Product Type: Component Video To HDMI Adapter
Model: BitFunx Mini Wii HDMI Adapter
Manufacturer Product Code: XLL-WII-MINI-HDMI-Adapter
Compatible Console: Nintendo Wii
Compatible Console Models: RVL-001 & RVL-101
Console Region Compatibility: PAL, NTSC-U & NTSC-J
GameCube Software Compatibility: Supported Through Backwards-Compatible Nintendo Wii RVL-001 Consoles
Console Connection: Nintendo Wii AV Multi Out
Input Connector: Nintendo Wii AV Multi Out Male Plug
Video Input Signal: Analogue YPbPr Component Video
Composite Video Input: Not Supported
Audio Input Signal: Analogue Stereo Audio From Nintendo Wii AV Multi Out
Signal Conversion: Analogue Component Video & Stereo Audio To Digital HDMI

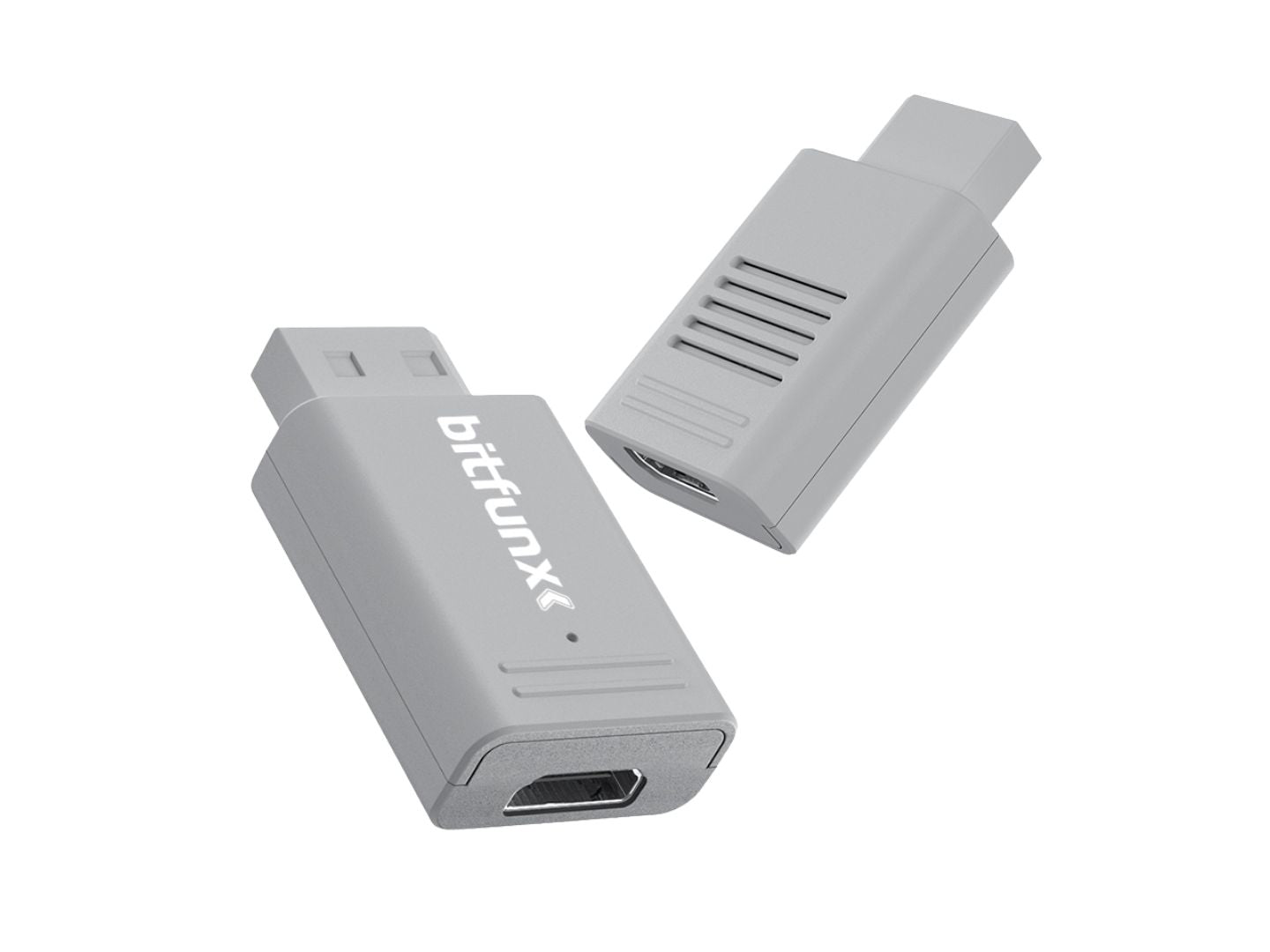

Output Connector: Full-Size HDMI Type-A Female Port
Video Output: Digital HDMI
Audio Output: Stereo Audio Through HDMI
Separate Audio Output: Not Included

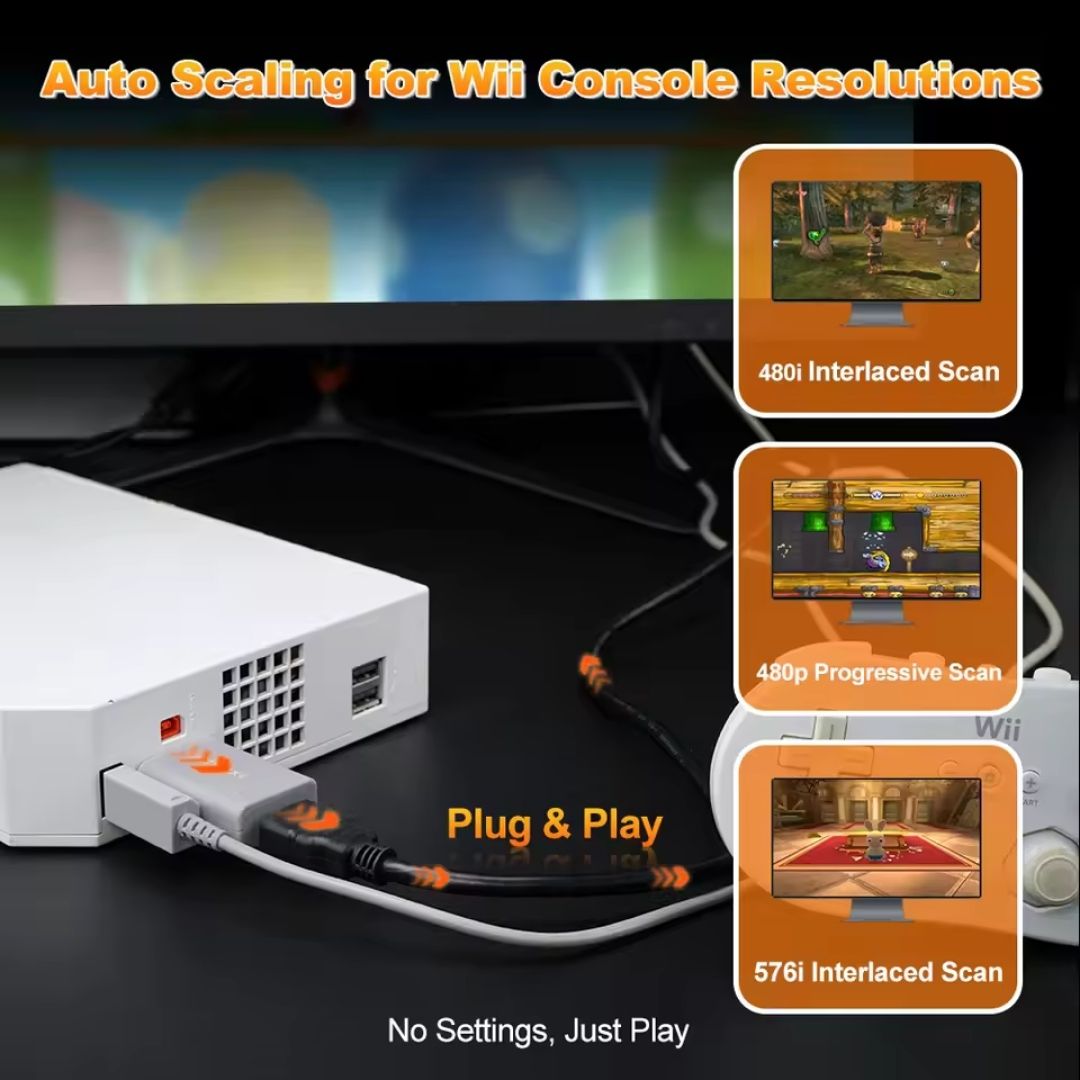

Supported NTSC Video Modes: 480i & 480p
Supported PAL Video Modes: 480i, 480p & 576i
Progressive-Scan Output: Up To 480p
Output Resolution: Matches The Video Mode Selected By The Nintendo Wii
Resolution Upscaling: Not Supported
Video-Mode Detection: Automatic
Status Indicator: Integrated Multi-Colour LED
Red LED: Adapter Powered On
Purple LED: Nintendo Wii Video Signal Detected
White LED: HDMI Output Active
Power Source: Nintendo Wii AV Multi Out
External Power Required: No
USB Power Required: No
Installation: Plug & Play
Console Modification Required: No
Compatible Display Requirement: HDMI Input Supporting The Selected 480i, 480p Or 576i Wii Video Mode
HDMI Cable Required: Yes
HDMI Cable Included: No
Dimensions: Approximately 43 × 30 × 13mm
Weight: Approximately 14g
Colour: Grey
Retail Packaging: Included
Nintendo Wii Mini Compatibility: Not Supported
SKU: BFX-WII-MINI-HDMI-GRY

Nintendo Wii Consoles

Original Nintendo Wii RVL-001 PAL Consoles: Supported
Original Nintendo Wii RVL-001 NTSC-U Consoles: Supported
Original Nintendo Wii RVL-001 NTSC-J Consoles: Supported
Nintendo Wii Family Edition RVL-101 PAL Consoles: Supported
Nintendo Wii Family Edition RVL-101 NTSC Consoles: Supported
Nintendo Wii Mini RVL-201 Consoles: Not Supported

Software & Video Modes

Nintendo Wii Software: Supported
Nintendo GameCube Software On Backwards-Compatible RVL-001 Consoles: Supported Subject To The Game & Video Mode
Nintendo GameCube Hardware DOL-001 & DOL-101: Not Supported
NTSC 480i Output: Supported
NTSC 480p Progressive-Scan Output: Supported
PAL 480i Output: Supported
PAL 480p Progressive-Scan Output: Supported
PAL 576i Output: Supported
720p, 1080p & 4K Upscaling: Not Supported

Connection Requirements

Standard HDMI Cable: Required & Not Included
HDMI Television, Monitor, Projector Or Capture Device: Required
Display Support For The Selected Wii Video Mode: Required
External USB Power: Not Required
Console Modification: Not Required

Nintendo Wii Mini Not Supported: The Nintendo Wii Mini RVL-201 does not provide the YPbPr component-video output required by this adapter.

HDMI Cable Required: A standard HDMI cable is required and is not included.

Not A Resolution Upscaler: The adapter converts the Nintendo Wii’s original component-video and analogue-audio signals into HDMI. It does not increase the console’s native resolution to 720p, 1080p or 4K.

Use 480p Where Available: For the clearest supported output, select Screen > TV Resolution > EDTV Or HDTV (480p) within the Nintendo Wii system settings.

Game Support Can Vary: Some Nintendo Wii and GameCube games do not support progressive-scan 480p output and will continue to use their original interlaced video mode.

GameCube Compatibility Requires RVL-001: Nintendo GameCube software can only be played on an original backwards-compatible Nintendo Wii RVL-001 console. The adapter does not add GameCube compatibility to an RVL-101 console.

Display Compatibility: The connected television, monitor, projector, HDMI switch or capture device must support the resolution and refresh rate produced by the Nintendo Wii. Compatibility with 480i and 576i can vary between modern displays.

Aspect Ratio: Select the appropriate 4:3 or 16:9 setting through both the Wii system menu and the connected display. The adapter does not automatically change the aspect ratio selected by the console.

Connection Care: Switch the Nintendo Wii off before connecting or removing the adapter. Avoid placing excessive strain on the adapter, HDMI cable or console AV port.

First-Time Setup

1. Switch the Nintendo Wii off.
2. Connect the BitFunx adapter directly to the Wii AV Multi Out port.
3. Connect a standard HDMI cable between the adapter and the television, monitor, projector or capture device.
4. Select the corresponding HDMI input on the connected display.
5. Switch the Nintendo Wii on and allow the adapter to detect the console signal.
6. Open Wii Options > Wii Settings > Screen > TV Resolution.
7. Select EDTV Or HDTV (480p) where supported by the console, game and display.
8. Select the correct 4:3 or 16:9 widescreen setting on both the Wii and display.
9. Always switch the console off before removing the adapter.

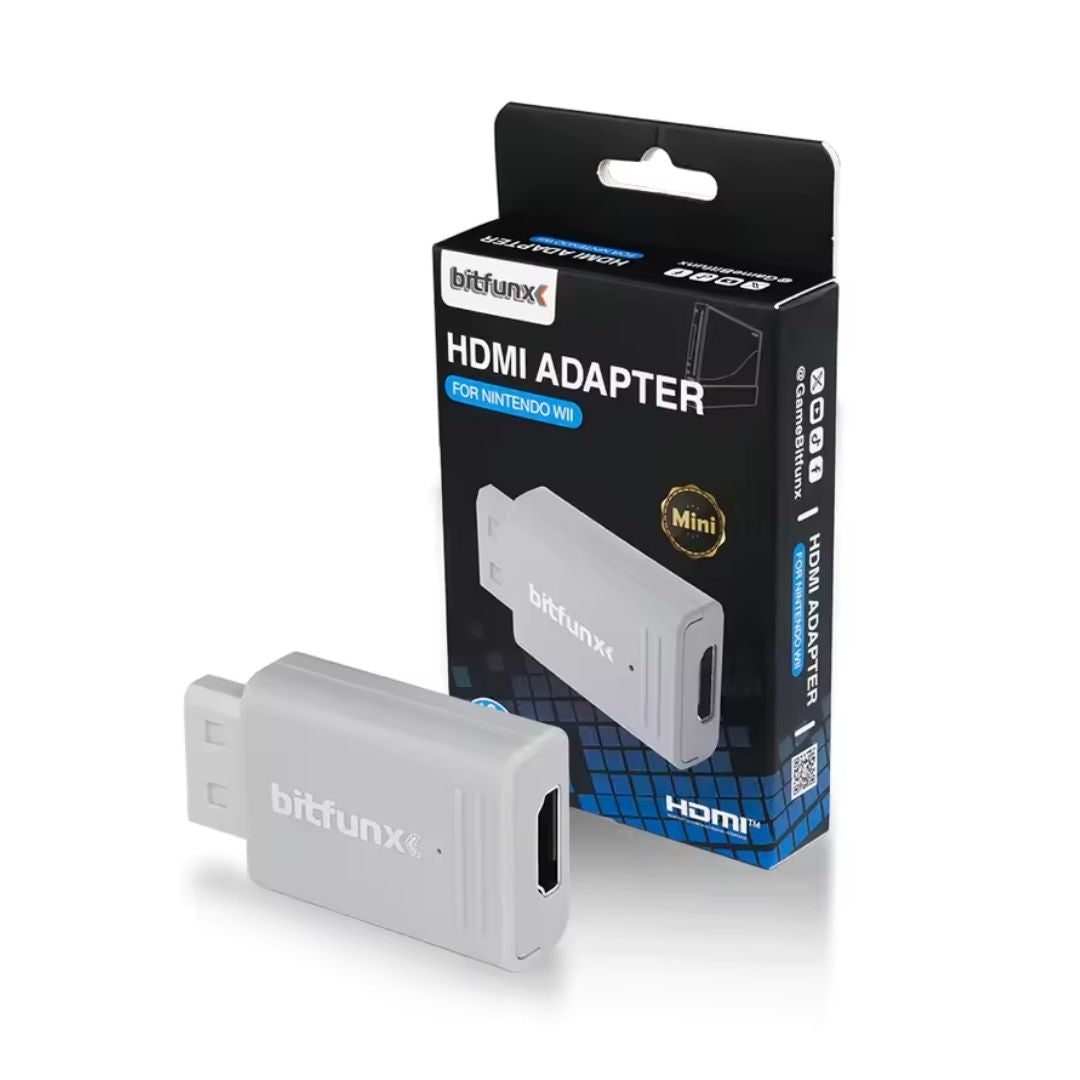

1 × BitFunx Mini Component To HDMI Adapter For Nintendo Wii
1 × BitFunx Retail Box

This BitFunx Nintendo Wii HDMI Adapter is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, misuse, damaged connectors, excessive strain placed on the adapter, unauthorised modification or faults caused by an incompatible console, HDMI cable or display.

Display compatibility, television scaling, aspect-ratio behaviour and differences between supported video modes are not considered product faults. Warranty claims remain subject to the full Retrolize warranty terms.

Does This Adapter Improve Nintendo Wii Picture Quality?

It allows the Wii’s cleaner YPbPr component-video signal and progressive-scan 480p mode to be used through an HDMI connection. Final picture quality will still depend on the game, selected video mode and processing performed by the connected display.

Why Is The 480p Option Greyed Out?

The EDTV Or HDTV (480p) option is only available when the Wii detects a compatible component-video connection. Switch the console off, make sure the adapter is fully inserted into the Wii AV Multi Out port, then restart the console before checking the setting again. The Nintendo Wii Mini RVL-201 is not compatible with this adapter.

Does It Upscale Nintendo Wii Games To 1080p Or 4K?

No. The adapter converts the Wii’s original video signal to HDMI without creating a 720p, 1080p or 4K output. A 4K television may scale the picture internally, but this does not add native detail to the original Wii signal.

Does It Work With The Nintendo Wii Mini?

No. The Nintendo Wii Mini RVL-201 does not provide the component-video signal required by this adapter.

Can It Display Nintendo GameCube Games?

Yes, when the game is played through an original backwards-compatible Nintendo Wii RVL-001 console. The adapter does not add GameCube compatibility to the Wii Family Edition RVL-101.

Is An HDMI Cable Included?

No. A standard HDMI cable is required and must be purchased separately.

Does It Need A USB Cable Or Power Supply?

No. The adapter receives the power needed for normal operation through the Nintendo Wii AV connection.

Will It Work With A Computer Monitor Or Capture Device?

It can work with an HDMI monitor or capture device that accepts the Wii’s selected output resolution and refresh rate. Compatibility with 480i and 576i varies, so 480p should be used where available.

How Is This Different From The Full-Size BitFunx Wii Adapter?

This version connects directly to the Wii and provides a smaller, lighter installation. The full-size BitFunx Wii Component To HDMI Adapter uses an integrated console cable, has a larger aluminium housing and includes an HDMI cable.
