Giltesa Game Boy DMG-01 USB-C Charging Mod PRO

The Giltesa Game Boy DMG-01 USB-C Charging Mod PRO is an all-in-one rechargeable battery, power and audio upgrade for the original Nintendo Game Boy.

Rather than installing separate charging, voltage-regulation and audio boards, the kit combines a USB-C Li-ion charging controller, regulated 5V DC power converter and speaker audio amplifier within one purpose-designed system.

The regulated 5V output is designed for modified Game Boy DMG builds using compatible IPS displays and power-hungry accessories such as flash cartridges. It does not produce the -19V rail required by the original DMG display, so it must not be used with the original screen or another display requiring that voltage.

USB-C to USB-C cables, conventional USB charging cables, compatible chargers and USB power banks can be used. Fast chargers are also accepted, although charging takes place at the kit’s normal supported speed.

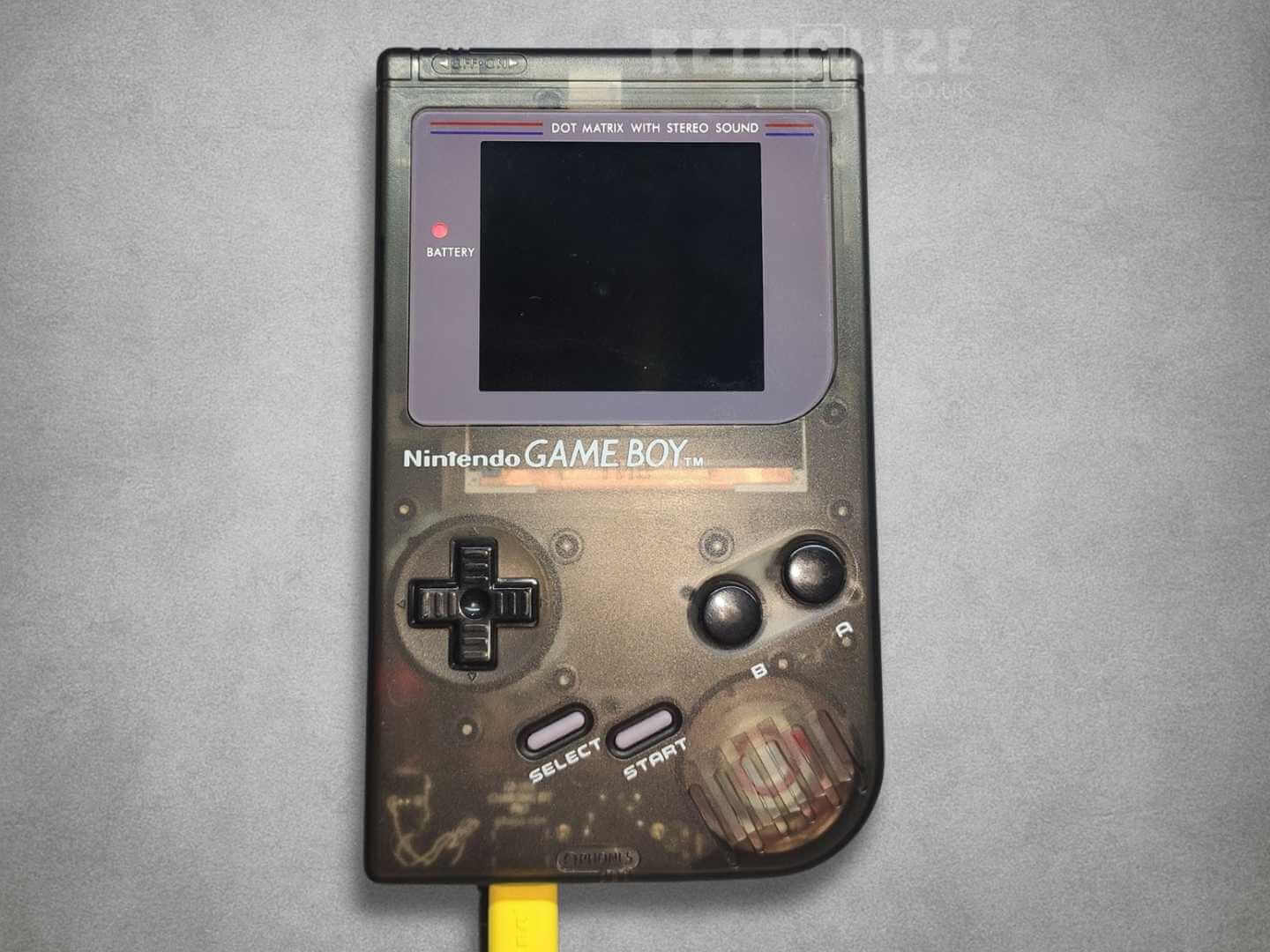

When installed correctly with a suitable Li-ion battery, the board supports safe charge-and-play operation. Integrated LEDs indicate charging in red and a full battery in green. These onboard indicators can be disabled through the SJ1 jumper when the supplied optional external LED board is installed.

The external indicator board provides a white power indicator, red charging indicator and green fully charged indicator. Its installation is optional.

An integrated audio amplifier drives the speaker using both Game Boy audio channels. Giltesa recommends installing a new 8Ω 1W speaker to help avoid unwanted audio noise.

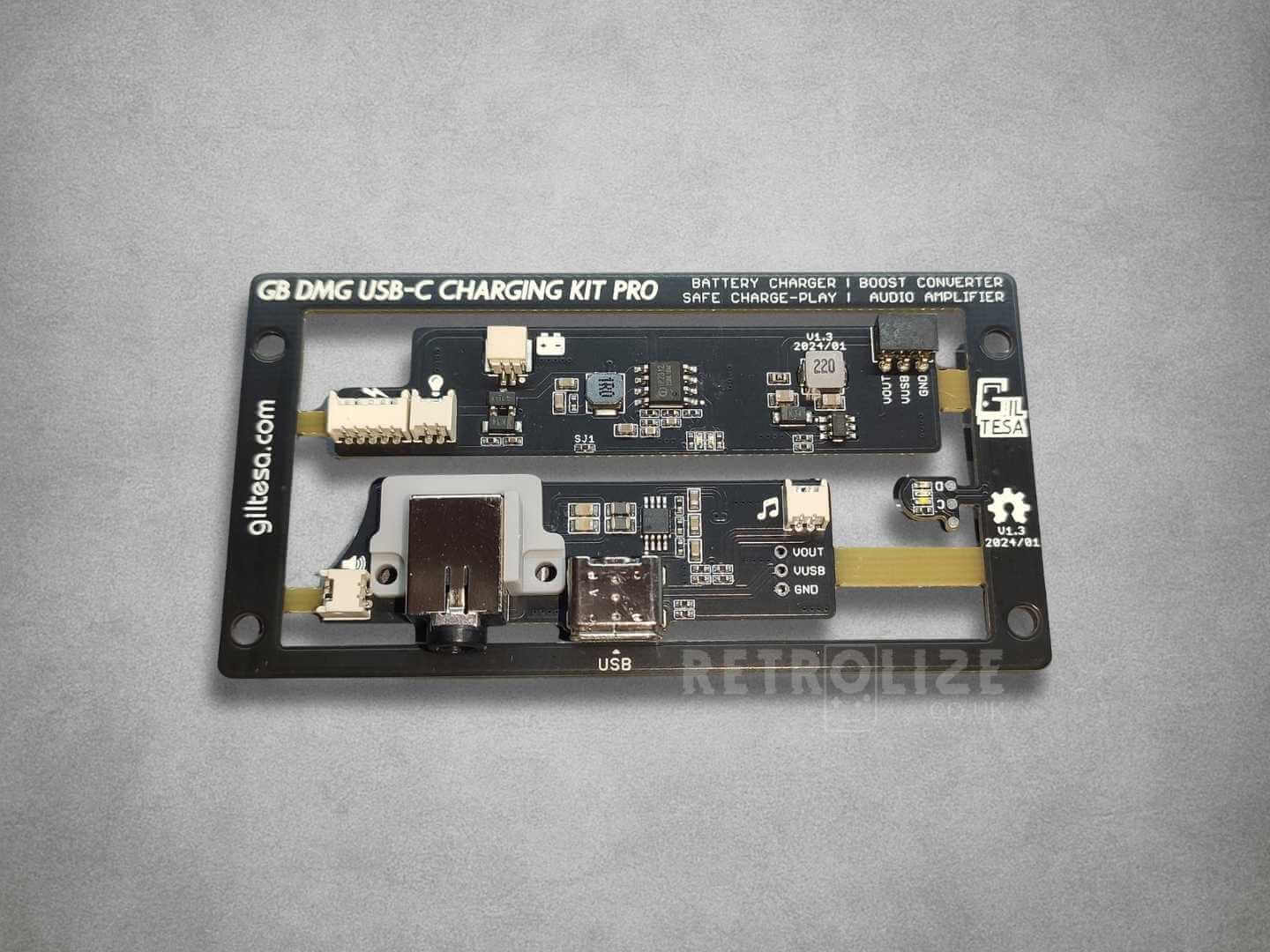

The kit includes the main circuit board, USB-C board, external light board, connecting cables, USB-C board holder, header pins and light diffuser. A Li-ion battery, replacement speaker, tools and installation supplies are not included.

Professional installation is strongly recommended for customers without suitable soldering, electronics and shell-modification experience.

Dispatched from UK stock with fast delivery, international tracked delivery to supported destinations and a 12-month limited Retrolize warranty.

Brand: Giltesa
Product Name: Game Boy DMG-01 USB-C Charging Mod PRO
Product Type: USB-C Charging, Power & Audio Modification Kit
Model: Game Boy DMG USB-C Charging Kit PRO
Manufacturer Product Code: GB-DMG-PRO
Circuit Version: v1.4
Compatible Console: Original Nintendo Game Boy DMG-01
Core Functions: USB-C Charging, Li-Ion Battery Management, 5V Power Conversion & Speaker Audio Amplification
Charging Connection: USB-C
USB Cable Compatibility: USB-A To USB-C & USB-C To USB-C
External Power Compatibility: Compatible USB Chargers & USB Power Banks
Fast-Charger Behaviour: Charges At The Kit’s Normal Supported Speed
Battery Type: Suitable Li-Ion Battery Required
Battery Protection: Overvoltage & Undervoltage Protection
Charge-And-Play: Supported When Correctly Installed
Power Converter: Integrated DC Boost Converter
Power Output: Regulated 5V
Negative 19V Rail: Not Provided
Original DMG Display Compatibility: Not Supported
IPS Display Compatibility: Compatible 5V IPS Screens
Flash Cartridge Support: Stable 5V Power Provided For Compatible Flash Cartridges
Audio Amplifier: Integrated Speaker Amplifier
Audio Channels: Both Game Boy Audio Channels Amplified
Recommended Speaker: New 8Ω 1W Speaker
Main Board Indicators: Red Charging LED & Green Full-Battery LED
Main LED Control: Disable Through SJ1 Jumper
External LED Board: Included With Optional Installation
External LED Functions: White Power, Red Charging & Green Full-Battery Indicators
Battery Connector: JST SH1.0 2-Pin
Other Cable Connectors: JST 1.25
Soldering Required: Yes
Shell Modification Required: Yes
Console Modification Required: Yes
Circuit Colour: Black
Manufacturer-Listed Dimensions: 120 × 65 × 12mm
Manufacturer-Listed Weight: Approximately 17g
SKU: GB-DMG-PRO

Original Game Boy Hardware

Original Nintendo Game Boy DMG-01: Supported
Original Game Boy DMG Motherboard Versions: Expected To Be Supported When Wired According To The Official Guide
Custom Replacement Motherboards: Not Tested By The Manufacturer

Display Compatibility

Compatible 5V IPS Displays: Supported
Original Game Boy DMG Display: Not Supported
Replacement Displays Requiring The -19V Rail: Not Supported

Power & Charging Compatibility

USB-A To USB-C Cables: Supported
USB-C To USB-C Cables: Supported
Compatible USB Chargers: Supported
Compatible USB Power Banks: Supported
Compatible Fast Chargers: Supported At The Kit’s Normal Charging Speed
Safe Charge-And-Play: Supported When Correctly Installed
Suitable Li-Ion Battery: Required & Not Included

Audio Compatibility

Original Game Boy Speaker Circuit: Amplified By The Integrated Audio Amplifier
New 8Ω 1W Replacement Speaker: Recommended
Replacement Speaker Included: No

Installation Requirements

Soldering: Required
Internal Wiring: Required
USB-C Port Shell Trimming: Required
Battery Compartment Trimming: Required
Professional Installation: Recommended

Advanced Installation Required: This is a solder-in modification kit intended for installers with suitable Game Boy modding experience. Installation requires soldering, shell trimming and careful internal wiring.

Li-Ion Battery Required: A suitable Li-ion battery is required and is not included.

IPS Screen Build Required: The board provides a regulated 5V output but does not supply the -19V rail required by the original Game Boy DMG display. The original display and any replacement screen requiring the -19V rail are not compatible.

Replacement Speaker Recommended: A new 8Ω 1W speaker is not included but is highly recommended to help prevent unwanted audio noise.

Shell Modification Required: The Game Boy shell must be trimmed to accommodate the USB-C port and Li-ion battery.

Safe Charge-And-Play: The board supports simultaneous charging and gameplay when installed correctly with a suitable battery, charger and wiring.

Fast-Charger Behaviour: Compatible fast chargers may be connected, but the kit charges at its normal supported speed rather than using a proprietary fast-charging mode.

Battery Safety: Confirm the battery specification, connector polarity and wiring before applying power. Incorrect polarity, damaged cells, short circuits or unsuitable charging equipment can damage the kit or console and may create a safety risk.

Custom Motherboards: The wired design should work with original Game Boy DMG motherboard versions. Compatibility with custom replacement motherboards has not been tested by the manufacturer.

Documentation & Useful Links

Installation Instructions

GitHub Repository

Required But Not Included

Li-Ion Battery: A suitable Li-ion battery, such as a compatible 125054 cell.

Replacement Speaker: A new 8Ω 1W speaker is optional but highly recommended to help prevent unwanted audio noise.

Screwdrivers: Suitable Tri-Wing and Phillips screwdrivers.

Cutting Tools: Suitable cutting pliers and a precision cutter or scalpel.

Additional Tools & Supplies: Tweezers, temperature-controlled soldering iron, solder, flux and isopropyl alcohol.

Installation Preparation

1. Read the Installation Instructions linked above before disassembling or modifying the console.
2. Confirm that the Game Boy uses a compatible 5V IPS display rather than the original DMG display.
3. Obtain a suitable Li-ion battery and check its connector polarity before installation.
4. Disconnect every battery and external power source before beginning work.
5. Disassemble the Game Boy using suitable Tri-Wing and Phillips screwdrivers.
6. Trim the shell for the USB-C port and battery as shown in the official instructions.
7. Install and wire the main board, USB-C board and optional external LED board precisely as documented.
8. Check every solder joint, wire, connector and battery connection for correct polarity, insulation and possible short circuits.
9. Test the charging, power, audio and LED functions before fully reassembling the console.
10. Do not apply power if any connection, battery specification or installation step is uncertain.

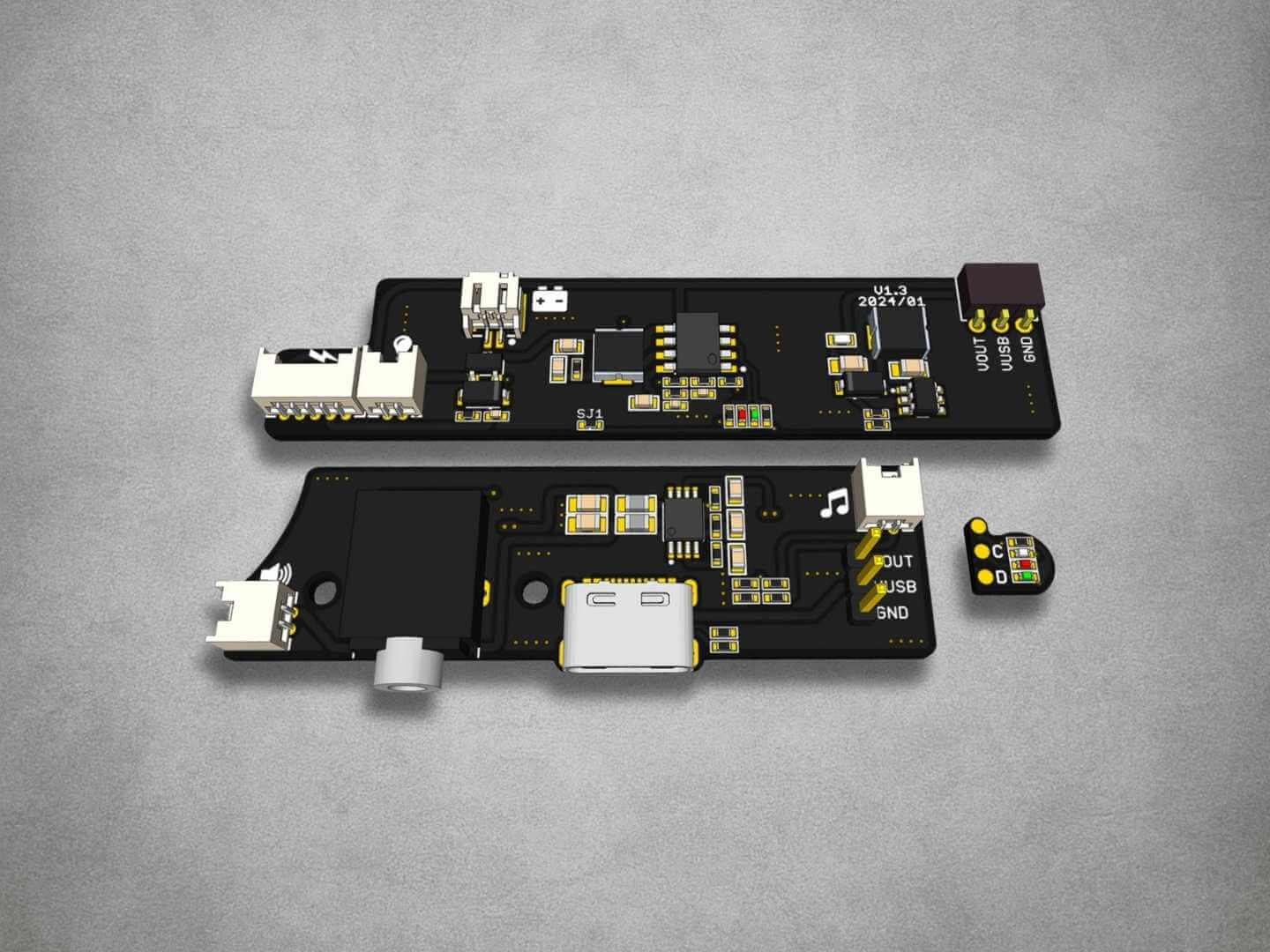

1 × Giltesa PCB Frame Containing The Main Board, USB-C Board & Light Board
1 × 10cm Battery Cable With JST SH1.0 2-Pin Connector
1 × 15cm Audio Cable With JST 1.25 2-Pin Connector
1 × 10cm Speaker Cable With JST 1.25 2-Pin Connector
1 × 10cm Light-Board Cable With JST 1.25 2-Pin Connector
1 × 15cm Power Cable With JST 1.25 5-Pin Connector
1 × 3-Pin Header
1 × Plastic USB-C Board Holder
1 × Light Diffuser Pipe

Li-ion battery, speaker, installation tools and soldering supplies are not included.

This Giltesa Game Boy DMG-01 USB-C Charging Mod PRO is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults affecting the components supplied with the kit during normal use.

The warranty applies only to the components supplied as part of this product. It does not cover the customer’s Game Boy motherboard, display, shell, battery, speaker, flash cartridge, charging cable, charger, tools or other third-party components.

The warranty does not cover accidental damage, liquid damage, damaged circuit boards or connectors, reversed battery polarity, short circuits, solder bridges, excessive soldering heat, incorrect wiring, unsuitable batteries, failed installation, shell-cutting errors, unauthorised modification or damage caused during fitting or removal.

Damage caused by an unsuitable battery, charger, cable, power supply or adapter is not covered. This includes damage caused by excessive voltage or current, reversed polarity, incompatible charging behaviour, poor voltage regulation, damaged cables or incorrectly wired battery connectors.

Damage caused by puncturing, crushing, short-circuiting, overheating or otherwise mishandling a Li-ion battery is not covered.

Compatibility differences involving the original DMG display, displays requiring the -19V rail, untested custom motherboards or unsupported third-party accessories are not considered product faults.

Retrolize may request photographs, video, installation information or inspection of the supplied kit and associated console before approving a warranty claim.

Warranty claims remain subject to the full Retrolize warranty terms and are provided in addition to the customer’s statutory rights.

What Does The Giltesa PRO Kit Add To A Game Boy DMG?

It combines USB-C Li-ion charging, rechargeable battery management, regulated 5V power conversion and speaker audio amplification within one modification kit.

Is A Li-Ion Battery Included?

No. A suitable Li-ion battery must be purchased separately. Check the battery specification, physical dimensions, connector and polarity before installation.

Can I Use The Original Game Boy DMG Screen?

No. The original screen requires a -19V supply rail that this board does not provide.

Can I Use The Kit With An IPS Screen?

Yes, provided the IPS screen operates from the 5V rail. Displays requiring the original -19V rail are not compatible.

Can I Charge And Play At The Same Time?

Yes. The board supports safe charge-and-play when installed correctly with a suitable Li-ion battery and compatible charging equipment.

Does It Support USB-C To USB-C Cables?

Yes. The kit supports USB-C to USB-C cables as well as conventional USB-A to USB-C cables.

Can I Connect It To A Fast Charger?

Yes, provided the charger is compatible. The kit charges at its normal supported speed and does not use a proprietary fast-charging mode.

Is A Speaker Included?

No. A replacement speaker is not included. Giltesa recommends using a new 8Ω 1W speaker to help avoid unwanted audio noise.

What Do The LEDs Indicate?

The integrated main-board LEDs show red while charging and green when the battery is full. The optional external LED board adds white for power, red for charging and green for a full battery.

Do I Have To Install The External LED Board?

No. The external indicator board is optional. If it is installed, the main-board LEDs can be disabled through the SJ1 jumper.

Does Installation Require Soldering?

Yes. Installation requires soldering, internal wiring and shell trimming. Professional installation is recommended without appropriate electronics and Game Boy modification experience.

Does It Work With Custom Game Boy Motherboards?

Compatibility with custom replacement motherboards has not been tested by Giltesa. The kit should be treated as intended for original Game Boy DMG motherboard versions.
