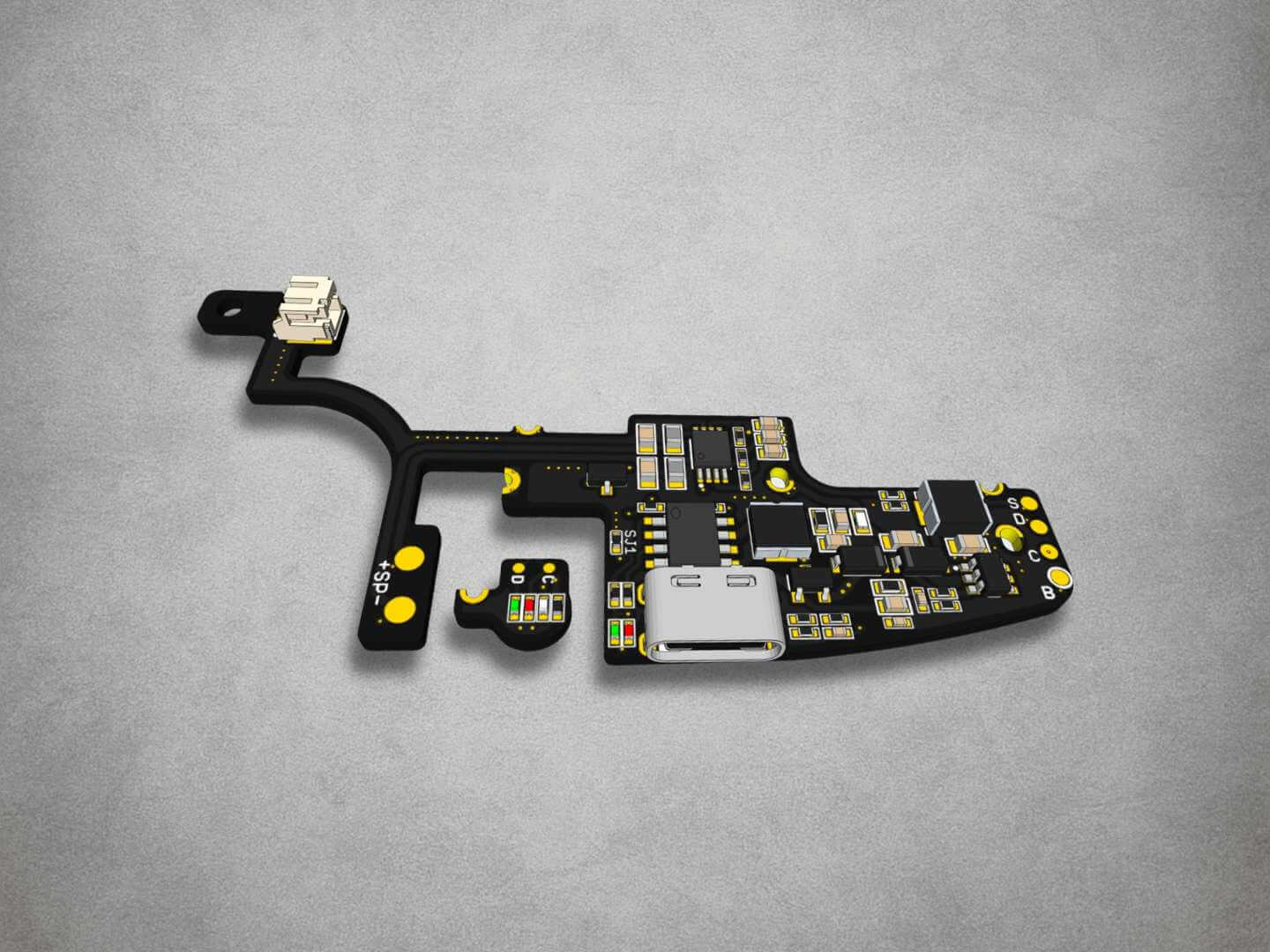

• Giltesa USBC Pro mod for Game Boy Color - Pro Kit
  • Giltesa USBC Pro mod for Game Boy Color - Pro Kit

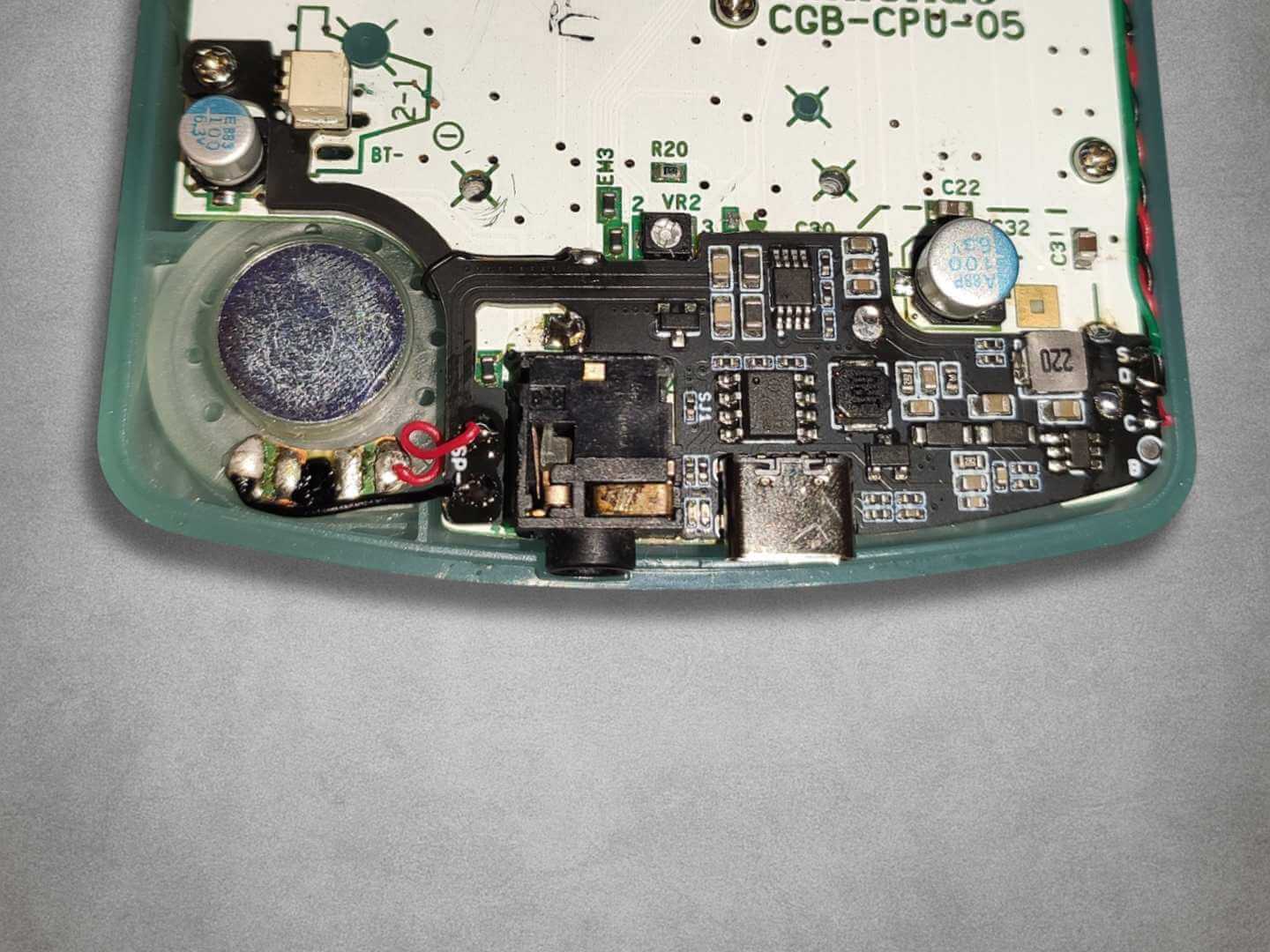

  • Giltesa USBC Pro mod for Game Boy Color Kit installed

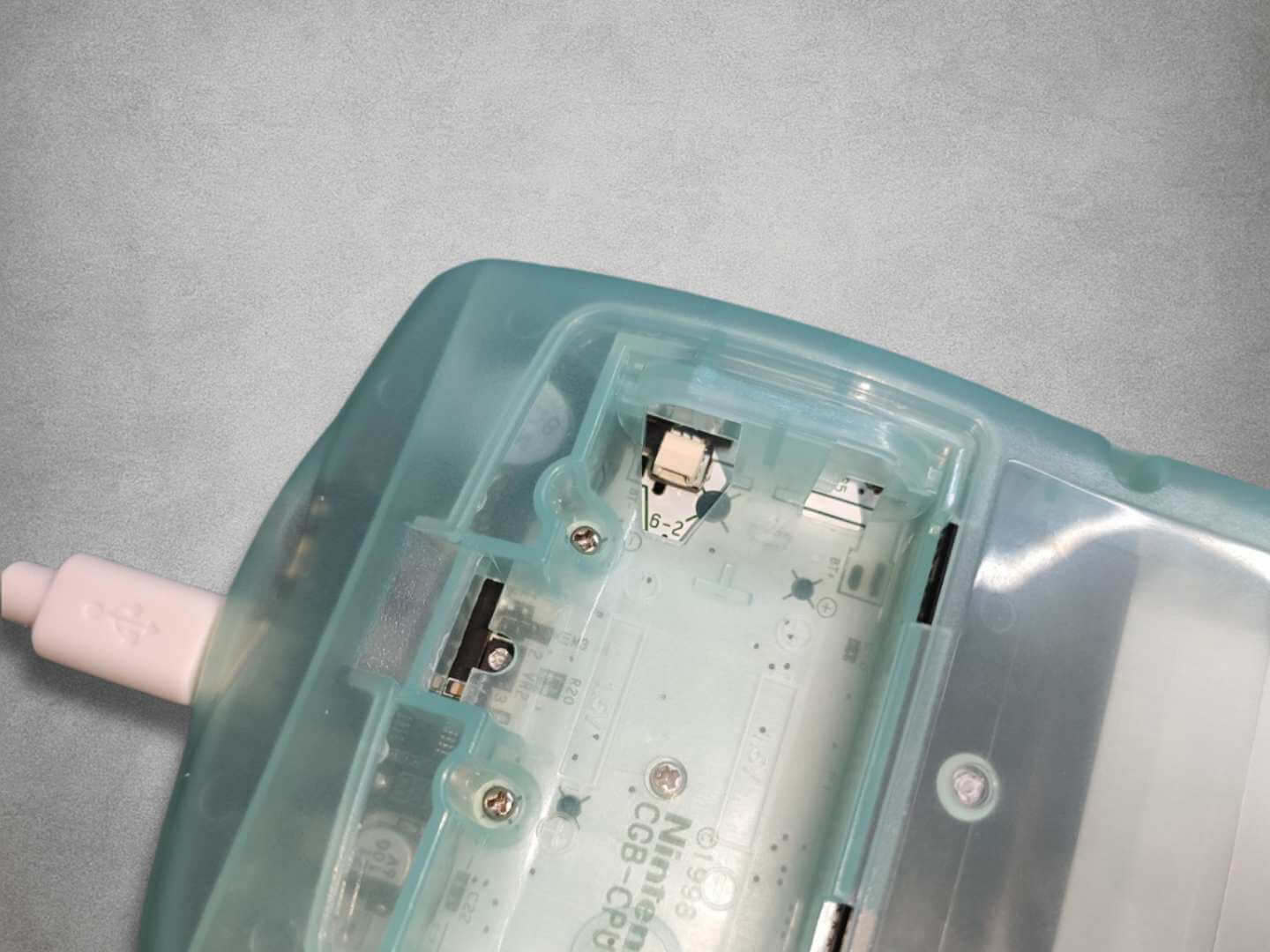

  • Giltesa USBC Pro mod for Game Boy Color - Pro Kit Rear View for Battery Connection

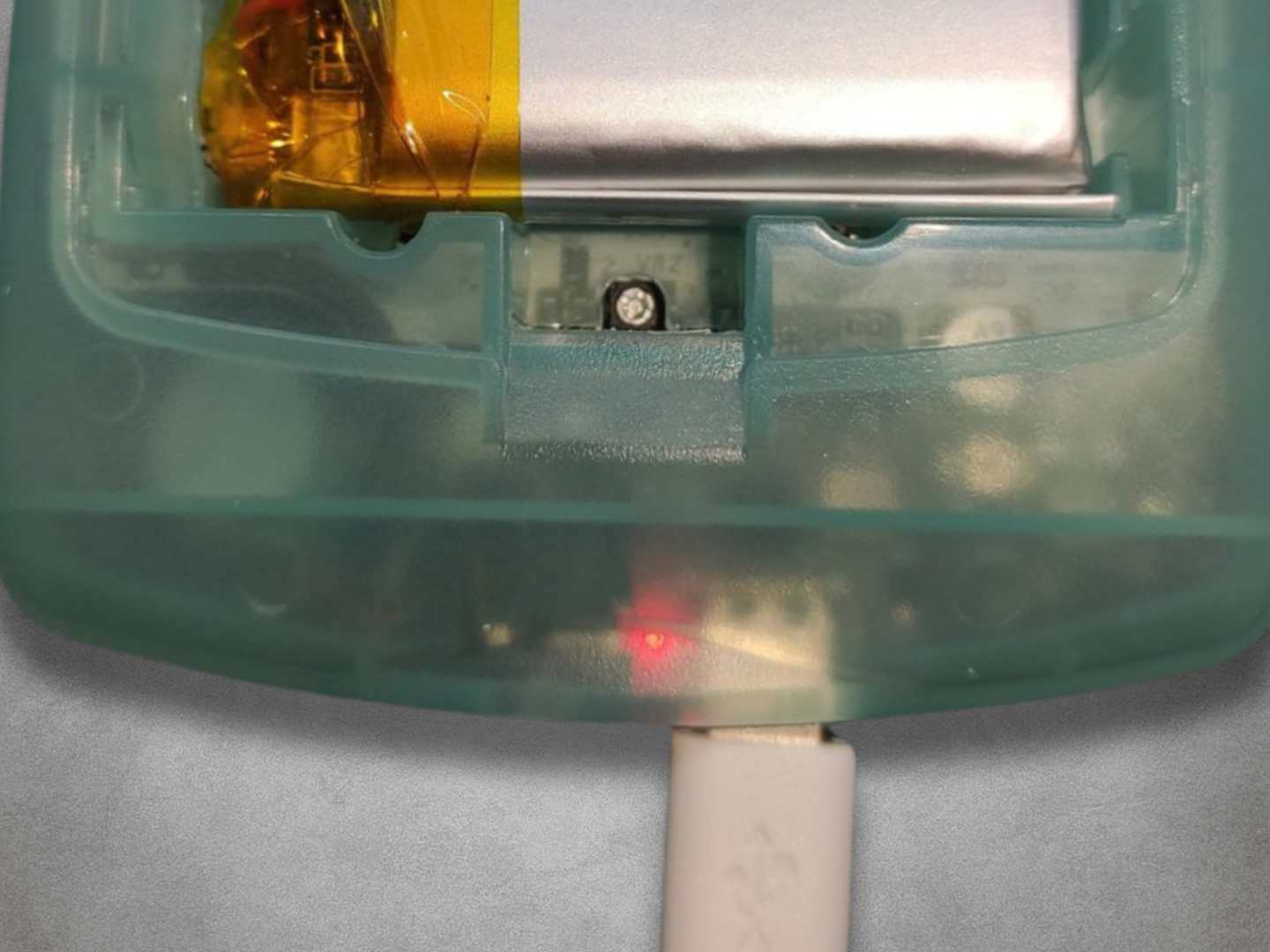

  • Giltesa USBC mod for Game Boy Color - Basic Kit Rear View Charging
1 5

USB-C Charging Mod PRO by Giltesa - Game Boy Color

USB-C Charging Mod PRO by Giltesa - Game Boy Color

🔋 USB-C Charging For Game Boy Color 🔋

⚡ Built-In 5V Power Converter ⚡

🎧 Integrated Speaker Audio Amplifier 🎧

🛡️ Li-Ion Battery Protection Circuit 🛡️

🎮 Safe Charge-And-Play Support 🎮

The Game Boy Color USB-C Charging Kit PRO is an all-in-one GBC power upgrade with USB-C charging, Li-ion battery support, 5V power conversion and an integrated speaker audio amplifier.

Designed for IPS screen builds, flash carts and modern Game Boy Color mods, it replaces multiple separate power and audio upgrades with one cleaner circuit. The board supports safe charge-and-play from v3.1 onwards, with charging and full battery LED indicators built in.

Compatible with Game Boy Color CGB-CPU-01 to CGB-CPU-06 boards. Original GBC screens are not supported. Li-ion battery, speaker, capacitors, tools and installation supplies are not included.

Features

  • USB-C Charging: Adds modern USB-C charging to the Nintendo Game Boy Color.
  • Li-Ion Battery Support: Allows use of a rechargeable Li-ion battery instead of standard AA batteries.
  • Battery Protection: Includes overvoltage and undervoltage protection for safer charging.
  • 5V Power Converter: Built-in DC-to-DC converter provides 5V output for compatible IPS screen builds.
  • Safe Charge-And-Play: Supports playing while charging from board version v3.1 onwards.
  • Integrated Audio Amplifier: Built-in speaker amplifier improves audio output.
  • LED Indicators: Red and green LEDs show charging and full battery status.
  • Optional Light Board: External LED board can show play, charging and full battery status.
  • All-In-One Design: Combines charging, power conversion and audio amplification into one clean mod board.
  • Exact GBC Fitment: Designed with the correct shape for Game Boy Color installations.
£39.99
£39.99
Sale Sold out
UK VAT included (where applicable)

Low stock: 2 left

Critical Info

This kit is designed for IPS screens that work from 5V. The original Game Boy Color screen is not compatible.

Installation requires soldering, shell cutting and modding experience.

Li-ion battery, replacement speaker, capacitors, cutting tool, screwdrivers, soldering tools, flux and isopropyl alcohol are not included.

A new 8Ω 1W speaker is optional but recommended to reduce noise. New capacitors are also optional but recommended for cleaner audio and reliability.

CGB-CPU-05 and CGB-CPU-06 boards do not have the EM4 electronic component. One of the kit pads must be soldered to the correct alternative pad to detect headphone connection.

Documentation & Useful Links

Installation Guide PDF - Current Version

Installation Guide PDF - v2.3 Only

Video Installation - v2.2

GitHub Repository

Required But Not Included

  • Li-ion battery
  • New 8Ω 1W speaker, optional but recommended to reduce audio noise
  • New capacitors, optional but recommended for cleaner audio and improved reliability
  • Game Boy Color USB-C Cutting Tool, optional but recommended for shell trimming
  • Tri-wing screwdriver
  • Phillips screwdriver
  • Cutting pliers
  • Cutter or rotary cutting tool
  • Tweezers
  • Soldering iron
  • Solder
  • Flux
  • Isopropyl alcohol

Description

Upgrade your Nintendo Game Boy Color with the USB-C Charging PRO kit, an all-in-one GBC power mod designed for modern IPS screen builds, rechargeable battery setups and flash cart use. This compact upgrade combines USB-C charging, Li-ion battery charging, 5V power conversion and a speaker audio amplifier into one clean circuit.

Modern Game Boy Color upgrades such as IPS backlit screens and flash carts can demand more power than the original hardware was designed to handle. The Game Boy Color USB-C Charging PRO Mod helps solve this by adding a stable 5V DC-to-DC converter, rechargeable Li-ion battery support and protection against overvoltage and undervoltage.

The integrated audio amplifier improves speaker output, while built-in LED indicators show charging and full battery status near the USB-C port. An optional external LED board can also be installed to show play, charging and full battery status through the shell.

Designed for Game Boy Color modders, repair shops and retro handheld builders, this USB-C charging kit is ideal for GBC IPS screen upgrades, restored consoles, custom builds and flash cart setups. It offers a cleaner alternative to installing separate charging, power conversion and audio amplifier boards.

Specifications

Product Type: Game Boy Color USB-C charging and power mod
Circuit Version: v3.3
Console Compatibility: Nintendo Game Boy Color
Charging Input: USB-C
Battery Type: Li-ion rechargeable battery (not included)
Power Output: 5V DC-to-DC conversion
Screen Compatibility: IPS screens that run from 5V
Original Screen Support: Not compatible
Audio: Integrated speaker audio amplifier
Charge-And-Play: Supported from board version v3.1 onwards
LED Indicators: Charging, full battery and optional play status
Installation: Requires soldering and shell trimming
Weight: 0.012kg
Dimensions: 12cm x 6cm x 0.5cm
Circuit Colour: Black

Package Includes

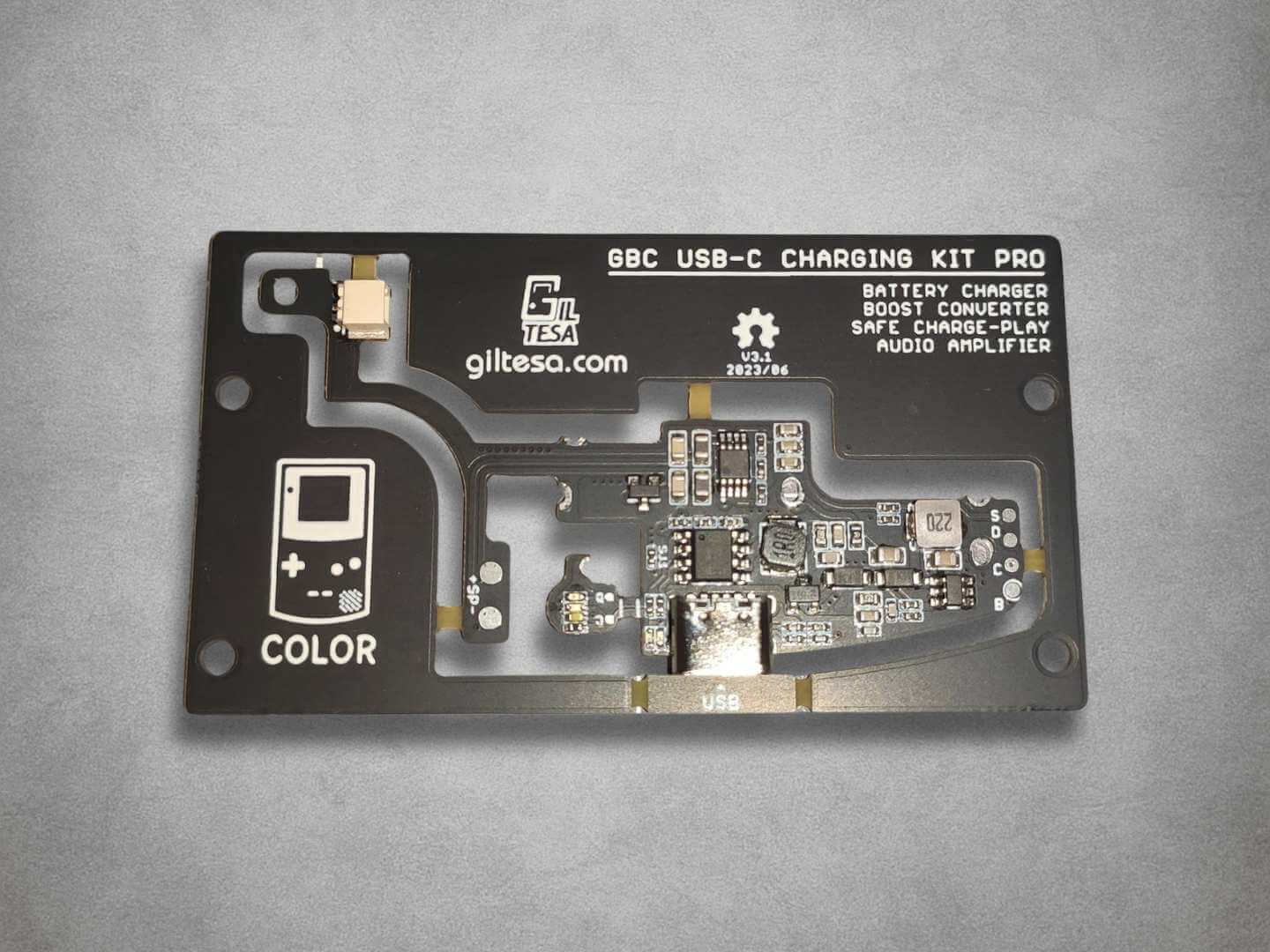

  • 1 x Frame board with charging board and light board
  • 1 x Battery cable with JST SH1.0 connector
  • 1 x Two-wire cable for connecting the light board
  • 1 x Light diffuser pipe

Supported Systems

Nintendo Game Boy Color

Compatible with the following Game Boy Color board revisions:

CGB-CPU-01
CGB-CPU-02
CGB-CPU-03
CGB-CPU-04
CGB-CPU-05
CGB-CPU-06
