USB-C Charging Mod PRO v2 by Giltesa - Game Boy Pocket

Li-ion battery is not included and must be purchased separately.

Installation requires soldering, shell trimming and modding experience.

The USB-C port and Li-ion battery require shell trimming.

This kit is designed for IPS screen builds that work from the 5V rail. The original Game Boy Pocket screen is not compatible.

The -19V rail is not provided by this kit, so the original contrast wheel will not function. This means GBP IPS screens that rely on the contrast wheel for brightness control, such as the FunnyPlaying GBP Retro Pixel IPS screen, will be stuck at one brightness level.

This board is recommended for IPS screens with touch-sensor or start and select brightness control instead.

A new 8Ω 1W speaker is optional but highly recommended to help avoid audio noise.

New capacitors are optional but recommended for cleaner, more reliable audio and power performance.

This kit is not suitable for Game Boy Light installations.

Useful links:

Installation Guide PDF

GitHub Repository

Required but not included:

Li-ion Battery
8Ω 1W Speaker
Tri-Wing & Phillips Screwdrivers
Cutting Pliers
Cutter
Tweezers
Soldering iron
Tin / solder
Flux
Isopropyl alcohol

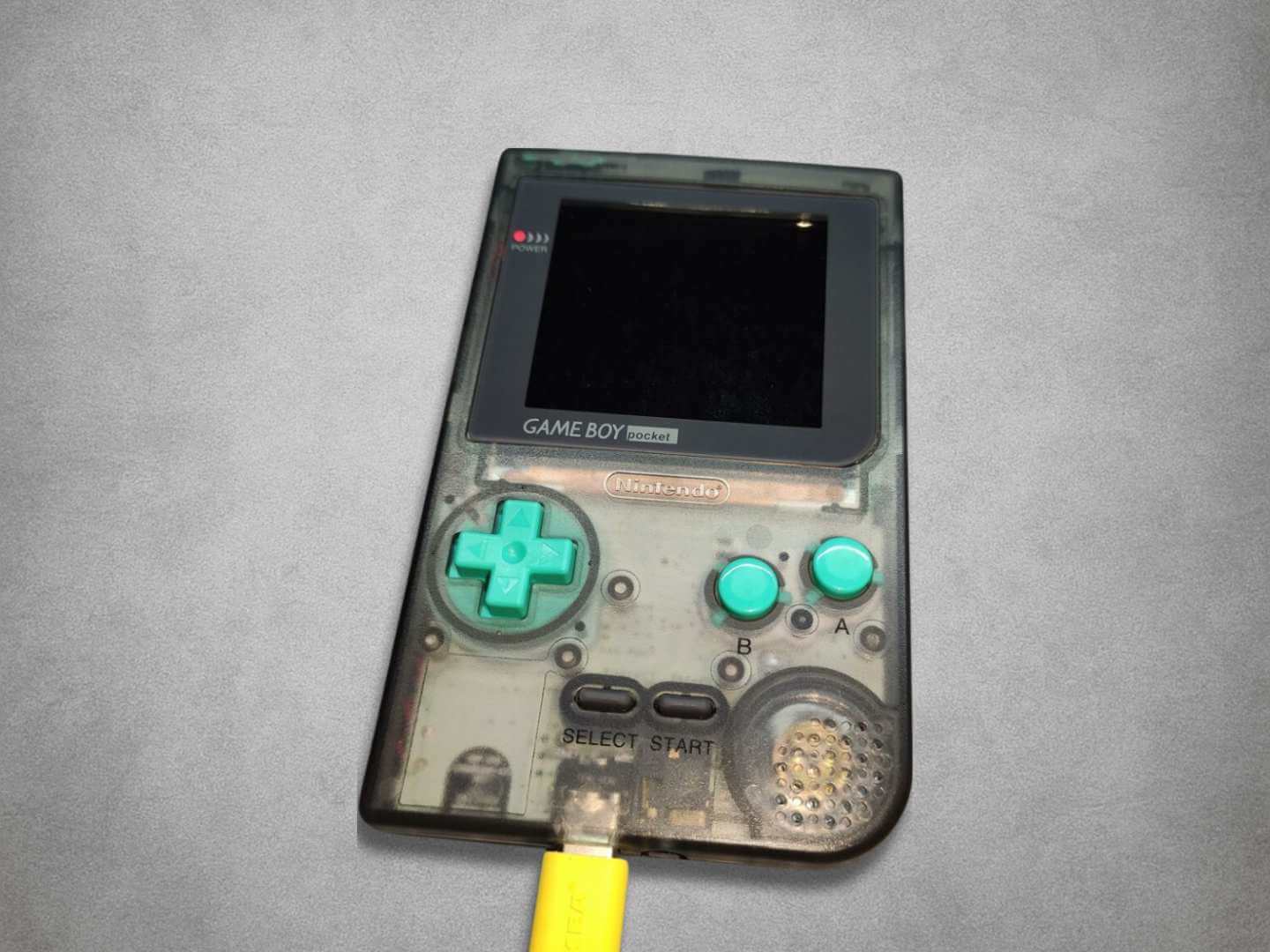

Upgrade your Nintendo Game Boy Pocket with the Giltesa Game Boy Pocket USB-C Charging Kit PRO, an all-in-one USB-C power mod designed for modern IPS screen builds, rechargeable battery setups and flash cart use. This compact circuit combines USB-C charging, Li-ion battery charging, a 5V boost converter and an integrated speaker audio amplifier into one clean installation.

Modern Game Boy Pocket upgrades such as IPS screens and flash carts can draw more power than the original handheld was designed to handle. The Giltesa GBP USB-C Charging Kit PRO helps solve that by providing stable 5V power for the Game Boy Pocket, IPS screen and flash cart, while adding overvoltage protection, undervoltage protection and safe charge-and-play support.

The integrated audio amplifier improves speaker output, making it a useful upgrade for restored and modified Game Boy Pocket consoles. Built-in LED indicators show charging and full battery status next to the USB-C port, while the optional external light board adds play, charging and full battery indicators for a cleaner finished build.

This PRO kit is designed for Game Boy Pocket IPS screen builds that work from the 5V rail. It is not compatible with the original Game Boy Pocket screen, as the stock display requires voltage this kit does not provide. It is also not recommended for IPS kits that rely on the original contrast wheel for brightness adjustment, as the -19V rail is not supplied.

Ideal for modders, repair shops and retro handheld builders, the Giltesa Game Boy Pocket USB-C Charging Kit PRO is a cleaner alternative to stacking separate charging, power conversion and audio amplifier boards inside one console.

Product Type: Game Boy Pocket USB-C charging and power mod
Circuit Version: v3.2
Console Compatibility: Nintendo Game Boy Pocket
Charging Input: USB-C
Battery Type: Li-ion rechargeable battery
Power Output: 5V DC-to-DC conversion
Screen Compatibility: IPS screens that run from 5V
Original Screen Support: Not compatible
Audio: Integrated speaker audio amplifier
Charge-And-Play: Supported
LED Indicators: Charging, full battery and optional play status
Installation: Requires soldering and shell trimming
PCB Colour: Black

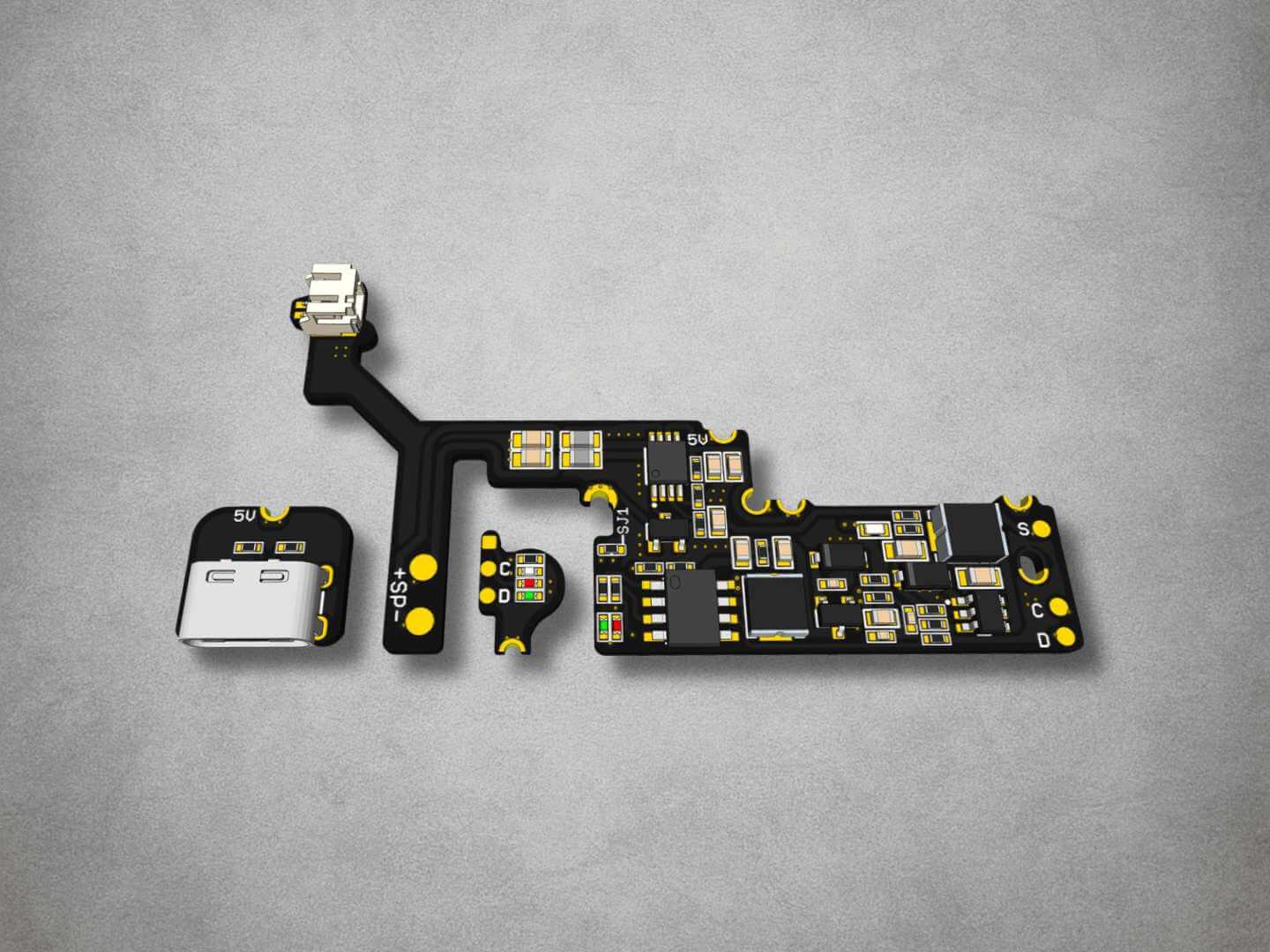

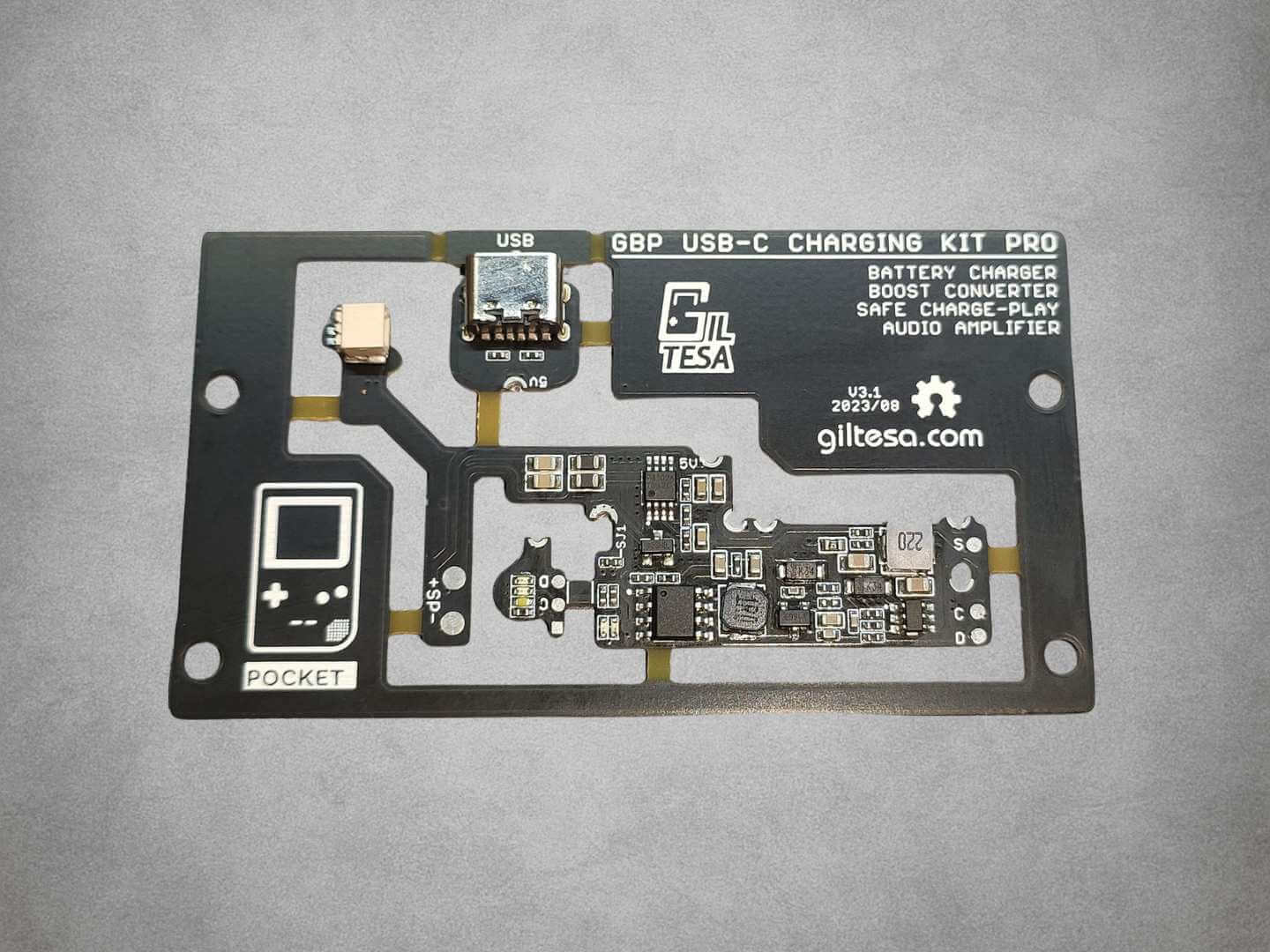

• 1 x Frame panel with main board, USB-C board and light board
• 1 x Battery cable with JST SH1.0 connector
• 1 x Two-wire cable for connecting the light board
• 1 x Light diffuser pipe

Nintendo Game Boy Pocket

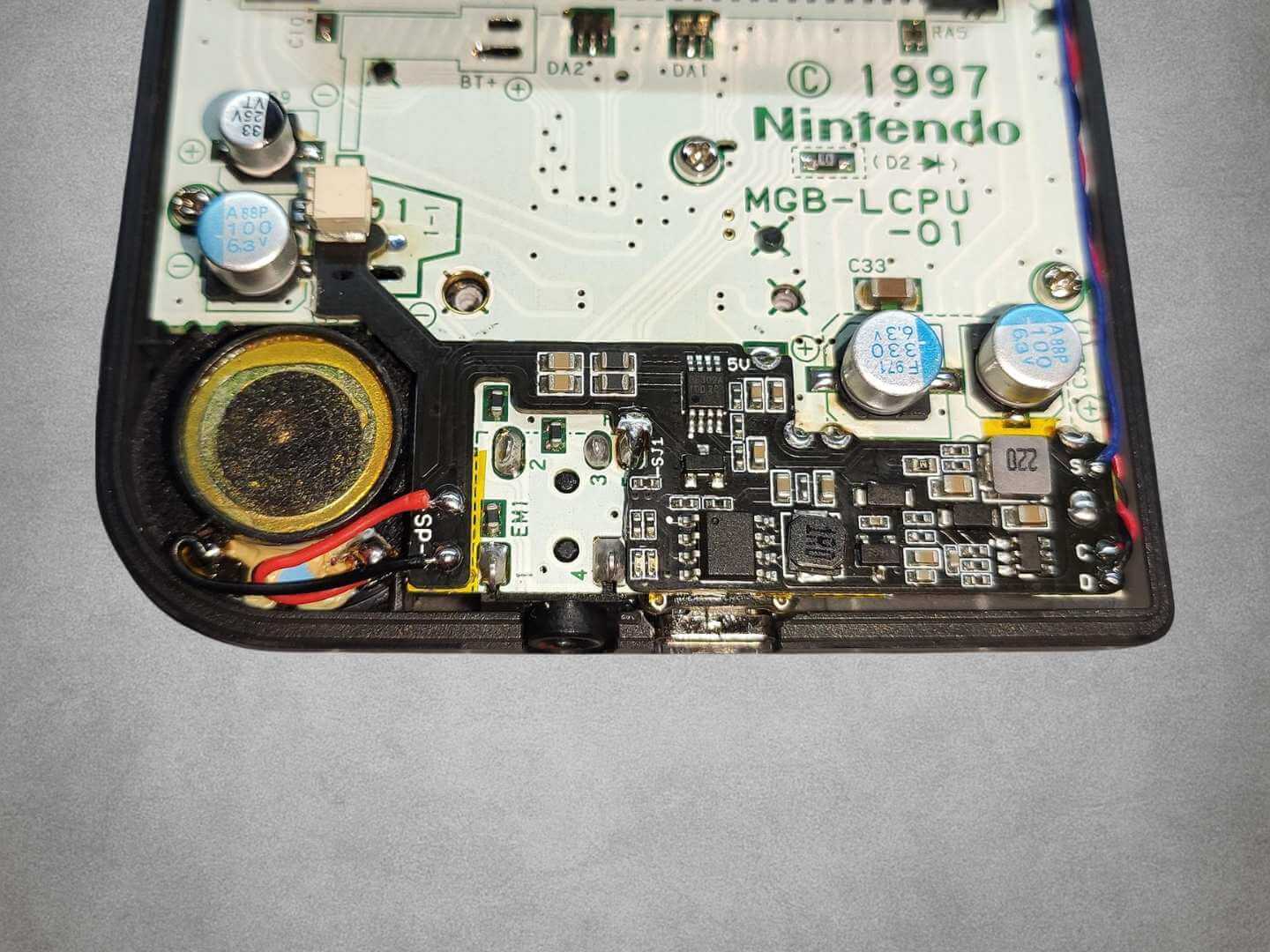

Compatible with the following Game Boy Pocket board revisions:

MGB-ECPU-01
MGB-LCPU-02

Other Game Boy Pocket board versions may require additional wiring or may not be compatible. MGB-CPU-01 may require extra work or may not be suitable, so check fitment before installation.

Tested compatible third-party modules include FunnyPlaying Game Boy Pocket IPS Backlight and EZ-Flash Jr, but the FunnyPlaying IPS screen is not recommended due to brightness control limitations.
