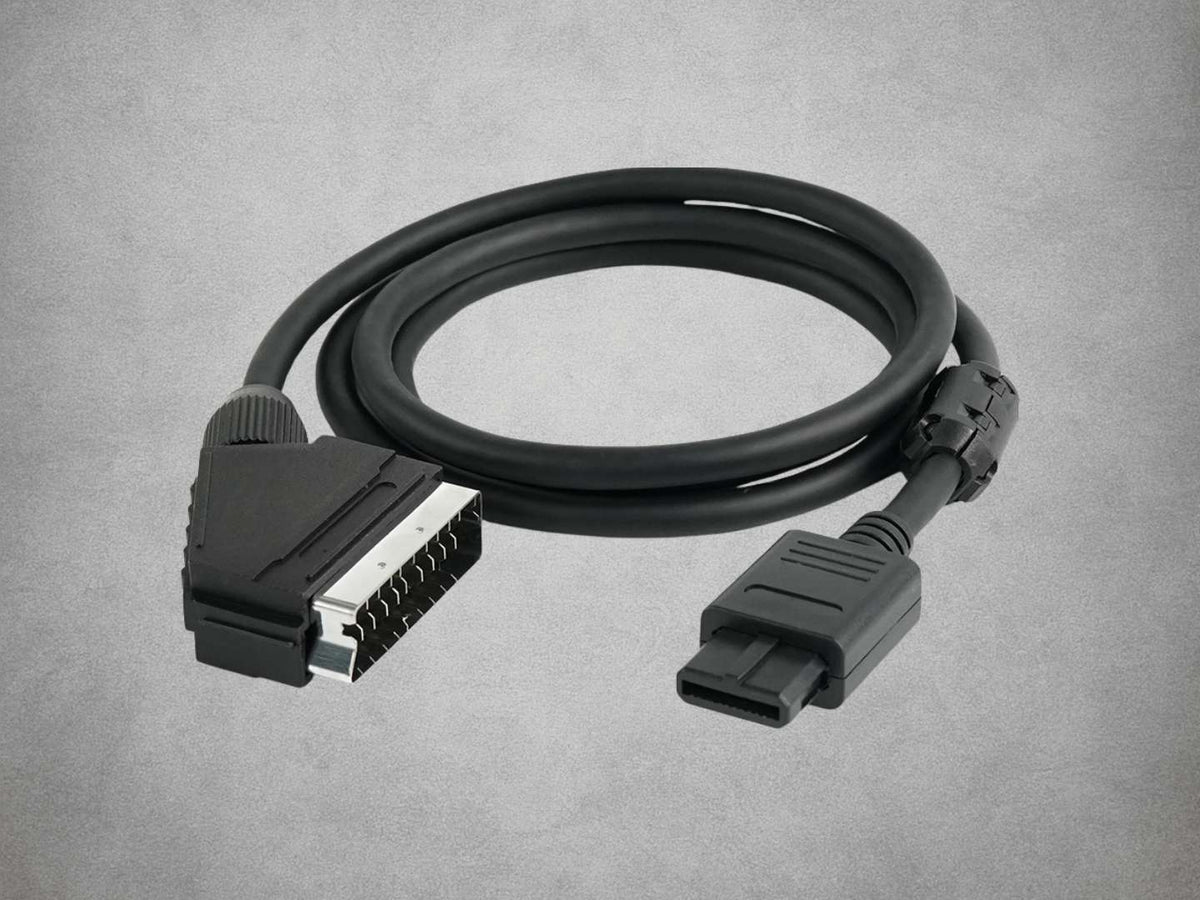

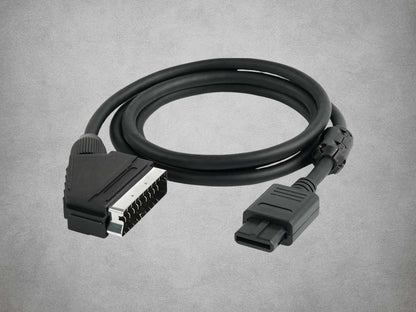

Premium Super Nintendo SNES & Super Famicom RGB SCART Cable – Fully Shielded CVBS Sync

This SNES & Super Famicom RGB SCART cable is designed for compatible original Super Nintendo and Super Famicom consoles, providing clean analogue RGBS video through the Nintendo MultiAV connection and a fully shielded EuroSCART cable.

Compatible full-size SNES and Super Famicom systems output native analogue RGB, allowing the cable to carry the red, green and blue video channels separately rather than combining the entire picture into a composite-video signal. This provides sharper edges, cleaner colour separation and reduced colour interference on compatible RGB displays.

The cable uses CVBS Sync, also known as Sync-On-Composite, where composite video carries the synchronisation information for the RGB signal. This creates a standard 15kHz RGBS connection suitable for compatible EuroSCART televisions, CRT displays and retro gaming video processors. CVBS Sync should not be confused with dedicated CSYNC, as composite video is being used specifically as the sync source.

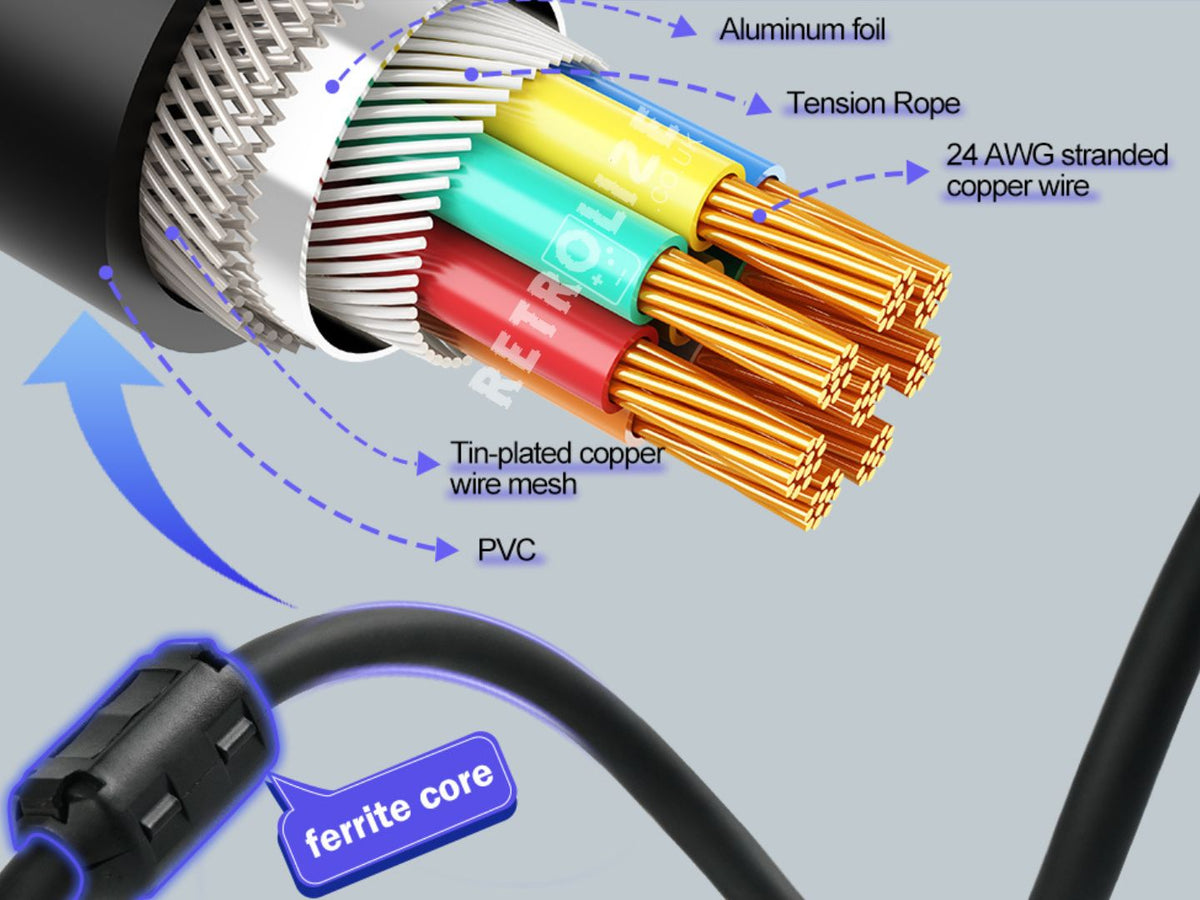

Fully shielded construction helps protect the video, sync and audio signals from electrical interference and crosstalk. The cable uses 24 AWG stranded-copper conductors, aluminium foil shielding and tin-plated copper-mesh shielding, together with an integrated ferrite core to help suppress high-frequency interference.

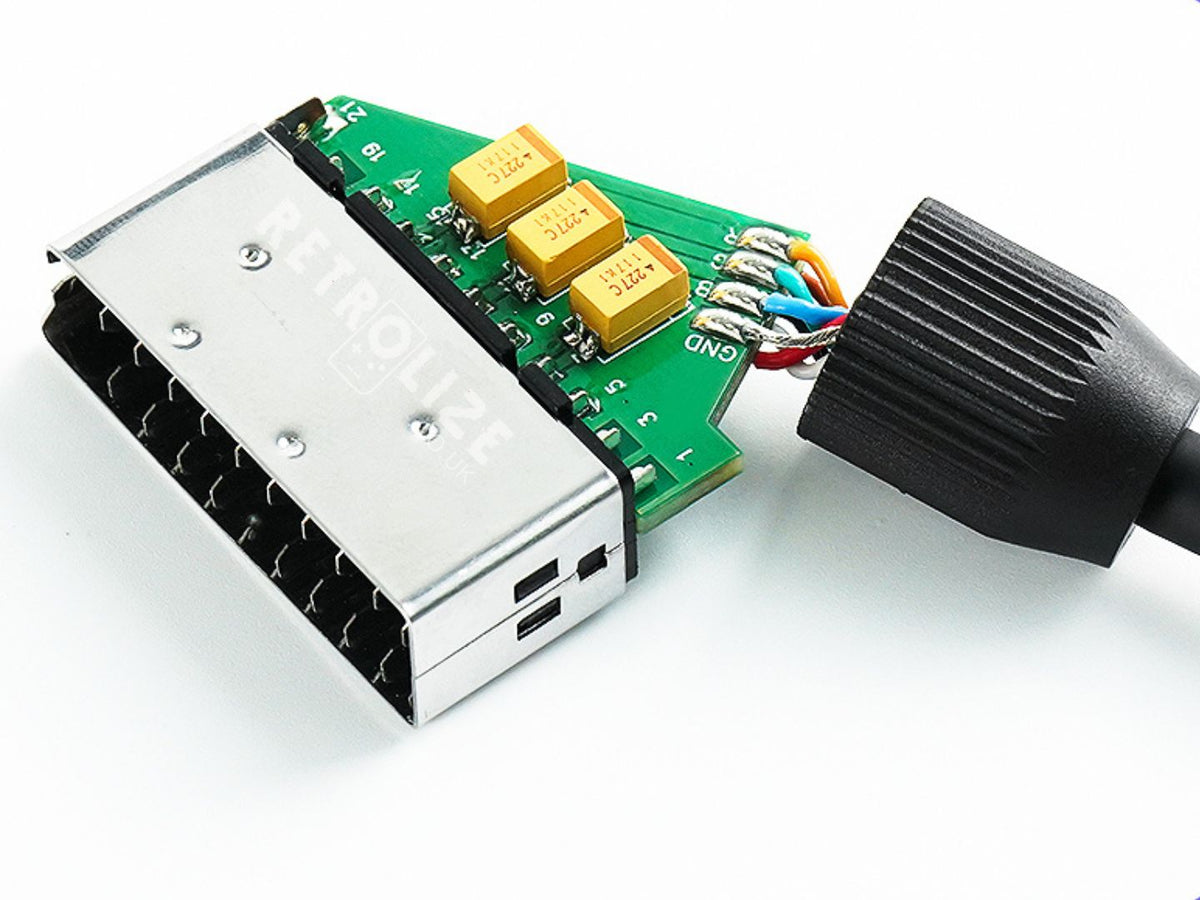

Inside the SCART connector, an integrated PCB houses the required video components and provides a secure connection between the Nintendo MultiAV output and the 21-pin EuroSCART plug. Stereo audio is carried alongside the RGB video through the same cable.

The cable can be connected directly to a compatible RGB SCART television or CRT. For modern displays, it can also be used with the OSSC or GBSC Pro to convert the original analogue RGB signal for HDMI output.

At approximately 1.3 metres long, the cable provides practical positioning between the console and connected television or video processor without excessive cable length.

Original full-size PAL SNES, NTSC-U SNES and Super Famicom consoles are supported. SNES Jr / SNS-101 and Super Famicom Jr / SHVC-101 systems require a compatible RGB restoration or RGB bypass modification that routes RGB and composite-video sync through the Nintendo MultiAV connector.

Product Type: Fully shielded RGB SCART cable
Compatible Consoles: Compatible Super Nintendo & Super Famicom systems
Console Connection: Nintendo MultiAV
Display Connection: 21-pin male EuroSCART
Video Format: Analogue RGBS
Sync Type: CVBS / Sync-On-Composite
Sync Source: Composite video
Video Frequency: 15kHz standard-definition RGB
Compatible Video Modes: Region-dependent 240p, 288p, 480i & 576i
Audio: Stereo Via EuroSCART
Conductor Type: 24 AWG stranded copper
Primary Shielding: Aluminium foil
Secondary Shielding: Tin-plated copper mesh
Internal Support: Tension cord
Outer Jacket: PVC
Interference Protection: Integrated ferrite core
Internal Electronics: Integrated SCART PCB with required video components
Cable Length: Approximately 1.3 metres
Connector Standard: EuroSCART
Installation: Plug & play with compatible hardware
Cable Colour: Black

Super Nintendo & Super Famicom

Original Full-Size PAL Super Nintendo: Supported

Original Full-Size NTSC-U Super Nintendo: Supported

Original Full-Size Super Famicom: Supported

SNES Jr / SNS-101: Supported with an RGB restoration or RGB bypass modification that routes RGB and composite-video sync through the Nintendo MultiAV connector.

Super Famicom Jr / SHVC-101: Supported with an RGB restoration or RGB bypass modification that routes RGB and composite-video sync through the Nintendo MultiAV connector.

The cable carries the original 15kHz RGB video signal generated by the console. Output resolution and refresh rate depend on the console region, installed modification and software being used.

Compatible Displays & Video Equipment

EuroSCART Capable Televisions: Supported

OSSC AV1 RGB SCART Input: Supported

GBSC Pro RGB SCART Input: Supported

Compatible RGBS-To-YPbPr Converter: Supported

Professional RGB Monitor: Supported with a suitable EuroSCART-to-BNC or compatible RGBS breakout cable

EuroSCART Connection: Designed for European 21-pin EuroSCART equipment.

15kHz RGB Output: Carries standard-definition analogue RGB and does not provide HDMI, component video or progressive-scan output.

Sync-On-Composite: Composite video is used as the synchronisation source for the RGB signal.

1 × Premium Fully Shielded CVBS Sync RGB SCART Cable For SNES & Super Famicom

This Premium Nintendo RGB SCART Cable is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, crushed or cut cabling, bent connector pins, excessive pulling, damaged strain relief, unauthorised modification or faults caused by incompatible consoles, modifications or display equipment.

Console incompatibility, incorrect RGB modification wiring, unsupported video modes, JP21 equipment, composite-only SCART inputs or devices that do not accept 15kHz RGBS are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms.
