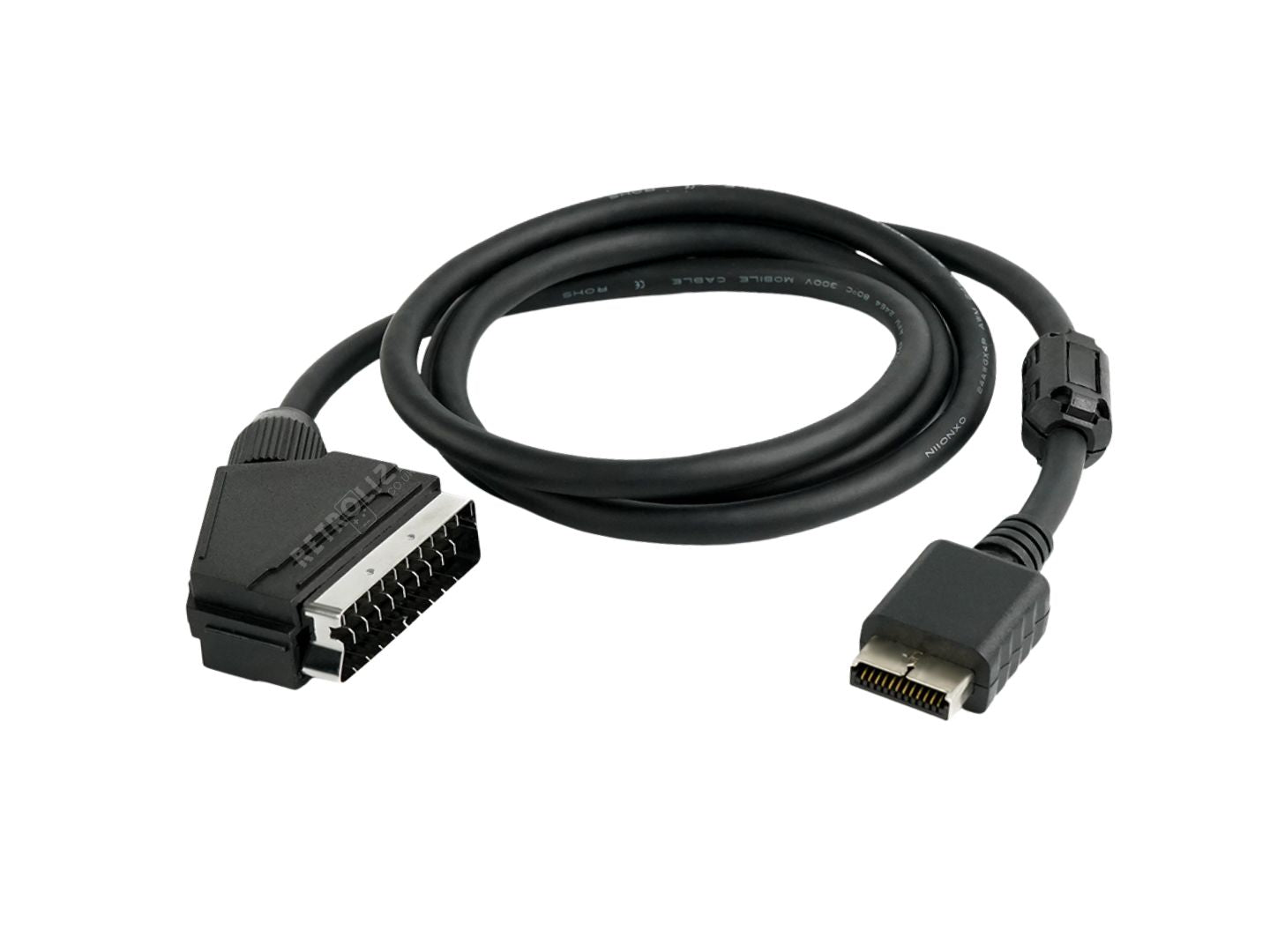

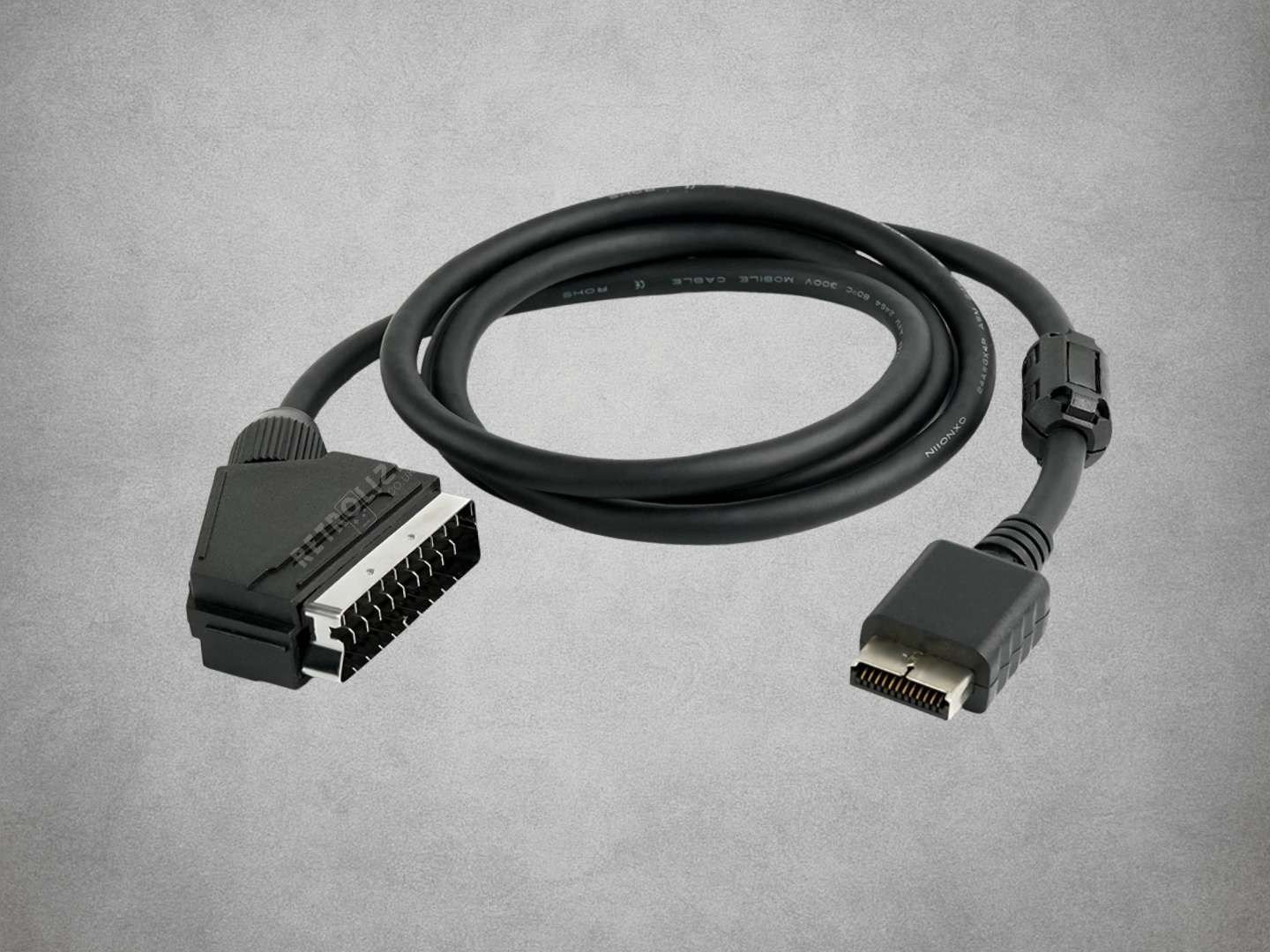

Premium PlayStation 1, 2 & 3 RGB SCART Cable – Fully Shielded CVBS Sync

This PlayStation 1, PlayStation 2 & PlayStation 3 RGB SCART cable is designed for compatible Sony consoles using the 12-pin AV Multi Out connection, providing clean analogue RGBS video through a fully shielded EuroSCART connection with CVBS Sync.

The original PlayStation, PlayStation 2 and PlayStation 3 can provide analogue RGB through the Sony AV Multi Out connection. When configured for compatible RGB output, the cable carries the red, green and blue picture channels separately rather than combining the entire image into a composite-video signal. This provides sharper edges, cleaner colour separation and reduced colour interference compared with standard composite video.

The cable uses CVBS Sync, also known as Sync-On-Composite, where composite video carries the synchronisation information required by the RGB signal. This provides a standard 15kHz RGBS connection suitable for compatible EuroSCART televisions, CRT displays and retro gaming video processors.

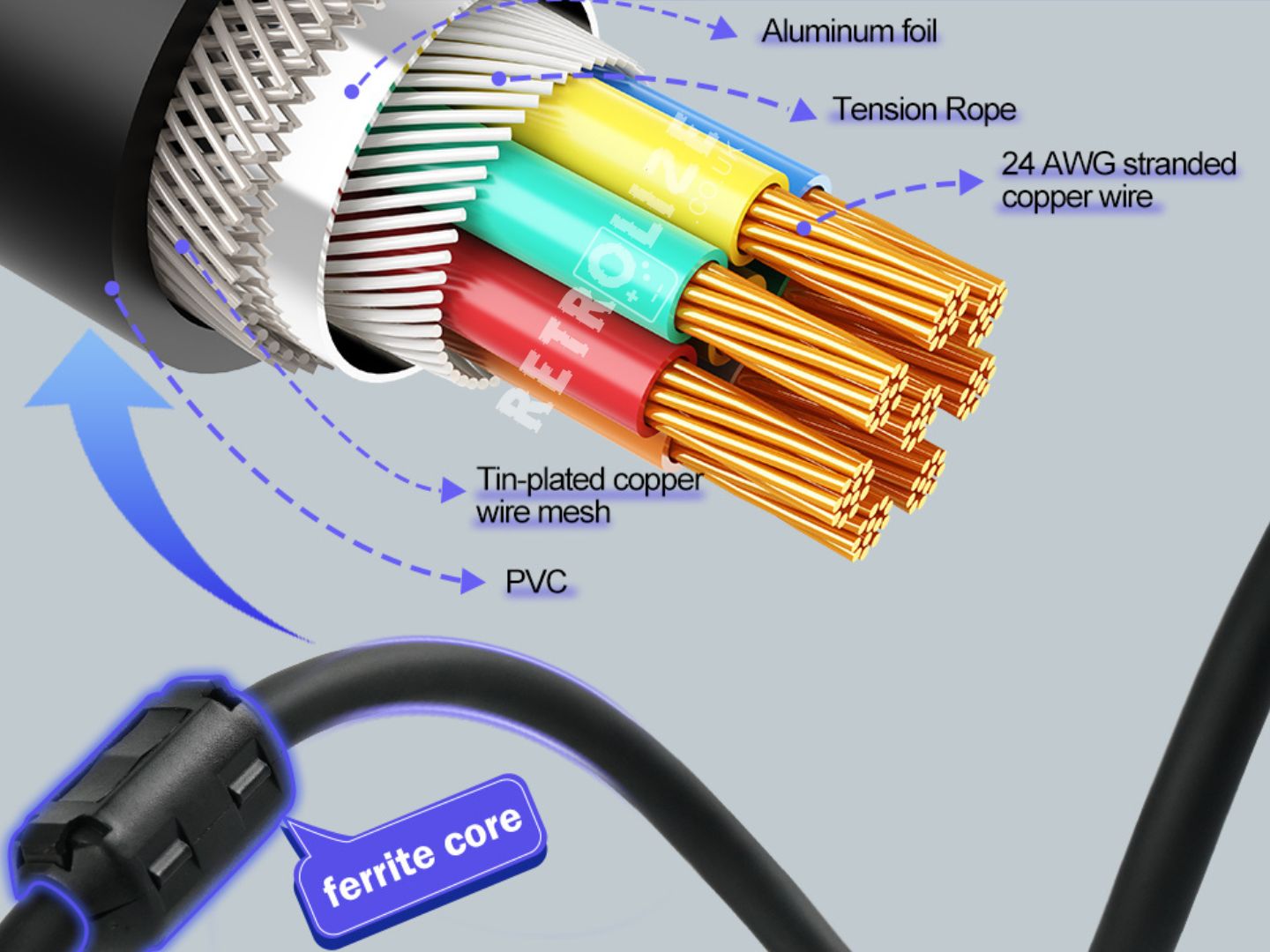

Fully shielded construction helps protect the RGB, sync and stereo-audio signals from electrical interference and crosstalk. The cable uses 24 AWG stranded-copper conductors, aluminium foil shielding and tin-plated copper-mesh shielding, together with an integrated ferrite core to help suppress high-frequency interference.

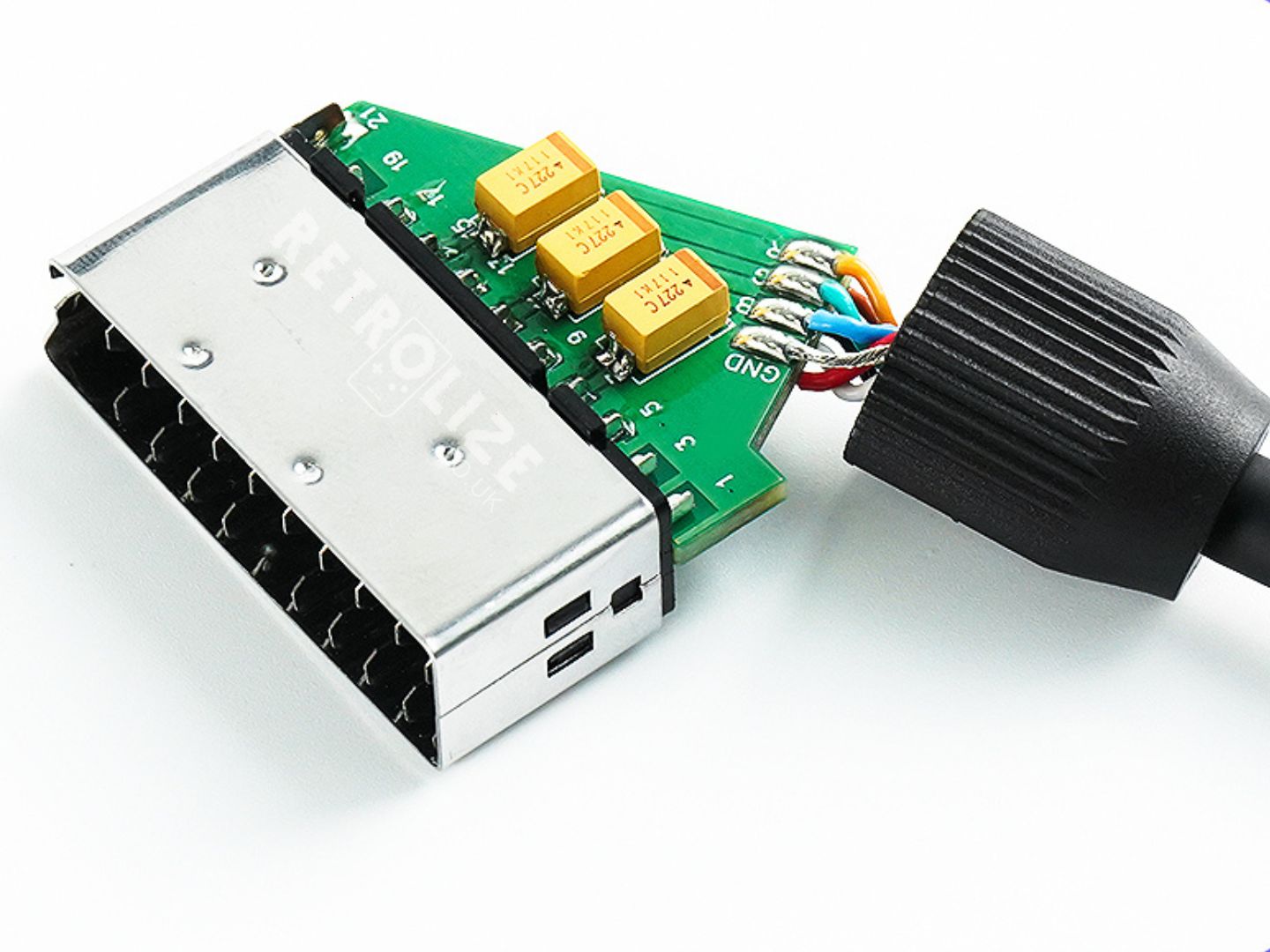

An internal PCB within the SCART connector houses the required video components and provides a secure connection between the Sony AV Multi Out connector and the 21-pin EuroSCART plug. Left and right analogue audio are carried alongside the RGB video through the same cable.

On PlayStation 1 and PS one consoles, the cable carries the console's native standard-definition RGB output, including software and region-dependent 240p, 288p, 480i and 576i video modes.

On PlayStation 2 consoles, standard-definition RGB video is supported when the console's Component Video Out setting is configured for RGB. Progressive-scan RGB modes such as 480p use Sync-On-Green rather than CVBS Sync and therefore require compatible video equipment and a different signal configuration.

On PlayStation 3 consoles, the AV Multi Out connection can be configured for compatible analogue output through the console's Video Output Settings. This cable is intended for standard-definition RGBS operation rather than the console's HDMI, component or high-definition video modes.

The cable can be connected directly to a compatible RGB SCART television or CRT. For modern displays it can also be paired with the OSSC or GBSC Pro to convert compatible analogue RGB signals for HDMI output.

At approximately 1.3 metres long, the cable provides practical positioning between the PlayStation console and connected television, CRT or video processor without excessive cable length.

Product Type: Fully shielded RGB SCART cable
Compatible Consoles: PlayStation 1, PS one, PlayStation 2 & PlayStation 3
Console Connection: Sony 12-pin AV Multi Out connector
Display Connection: 21-pin male EuroSCART
Video Format: Analogue RGBS
Sync Source: Composite video / CVBS used as sync
Video Frequency: 15kHz standard-definition RGB
Compatible Video Modes: System and software-dependent 240p, 288p, 480i and 576i
Progressive-Scan Output: Not through CVBS-sync RGB SCART
Audio: Analogue stereo through SCART
Cable Length: Approximately 1.3 metres
Cable Length In Feet: Approximately 4.27 feet
Conductor Type: 24 AWG stranded copper
Primary Shielding: Aluminium foil
Secondary Shielding: Tin-plated copper-wire mesh
Internal Support: Tension cord
Outer Jacket: PVC
Interference Protection: Integrated ferrite core
Signal Components: Integrated PCB inside the SCART connector
Connector Standard: EuroSCART
Installation: Plug and play with compatible equipment
Colour: Black

PlayStation 1

Original PlayStation – PAL: Supported through the AV Multi Out connection.

Original PlayStation – NTSC-U: Supported through the AV Multi Out connection.

Original PlayStation – NTSC-J: Supported through the AV Multi Out connection.

PS one Slim – PAL: Supported through the AV Multi Out connection.

PS one Slim – NTSC-U: Supported through the AV Multi Out connection.

PS one Slim – NTSC-J: Supported through the AV Multi Out connection.

Compatible Video Modes: Region and software-dependent 240p, 288p, 480i & 576i RGB.

PlayStation 2

PlayStation 2 Fat – PAL: Supported.

PlayStation 2 Fat – NTSC-U: Supported.

PlayStation 2 Fat – NTSC-J: Supported.

PlayStation 2 Slim – PAL: Supported.

PlayStation 2 Slim – NTSC-U: Supported.

PlayStation 2 Slim – NTSC-J: Supported.

Component Video Out Setting: Must be set to RGB when using standard-definition RGB SCART.

Standard-Definition RGB: Compatible 240p, 288p, 480i & 576i modes supported where produced by the console and software.

480p Progressive RGB: Uses Sync-On-Green rather than CVBS Sync and requires compatible video equipment.

PlayStation 3

PlayStation 3 Fat: PAL, NTSC-U & NTSC-J consoles supported through AV Multi Out.

PlayStation 3 Slim: PAL, NTSC-U & NTSC-J consoles supported through AV Multi Out.

PlayStation 3 Super Slim: PAL, NTSC-U & NTSC-J consoles supported through AV Multi Out.

Video Output Setting: Select AV MULTI / SCART and configure a compatible standard-definition output.

High-Definition Output: Use HDMI or a suitable component-video connection for HD video modes.

Compatible Video Equipment

EuroSCART Capable Televisions: Supported

OSSC AV1 RGB SCART Input: Supported

GBSC Pro RGB SCART Input: Supported

Compatible RGBS-To-YPbPr Converter: Supported

Professional RGB Monitor: Supported with a suitable EuroSCART-to-BNC or compatible RGBS breakout cable.

EuroSCART Connection: Designed for European SCART equipment and not Japanese JP21 connections.

Standard-Definition RGB: Carries compatible 240p, 288p, 480i and 576i analogue RGB video.

CVBS Sync: Uses composite video as the synchronisation source for the RGB signal.

Console Video Setting: PlayStation 2 and PlayStation 3 systems must be configured for RGB or AV MULTI/SCART output when using this cable.

1 × Premium Fully Shielded CVBS Sync RGB SCART Cable For PlayStation 1, 2 & 3

This Premium PlayStation RGB SCART Cable is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, crushed or cut cabling, bent connector pins, excessive pulling, damaged strain relief, unauthorised modification or faults caused by incompatible equipment.

Display incompatibility, incorrect console video settings, unsupported video modes, JP21 equipment, composite-only SCART inputs or devices that do not accept 15kHz RGBS are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms.
