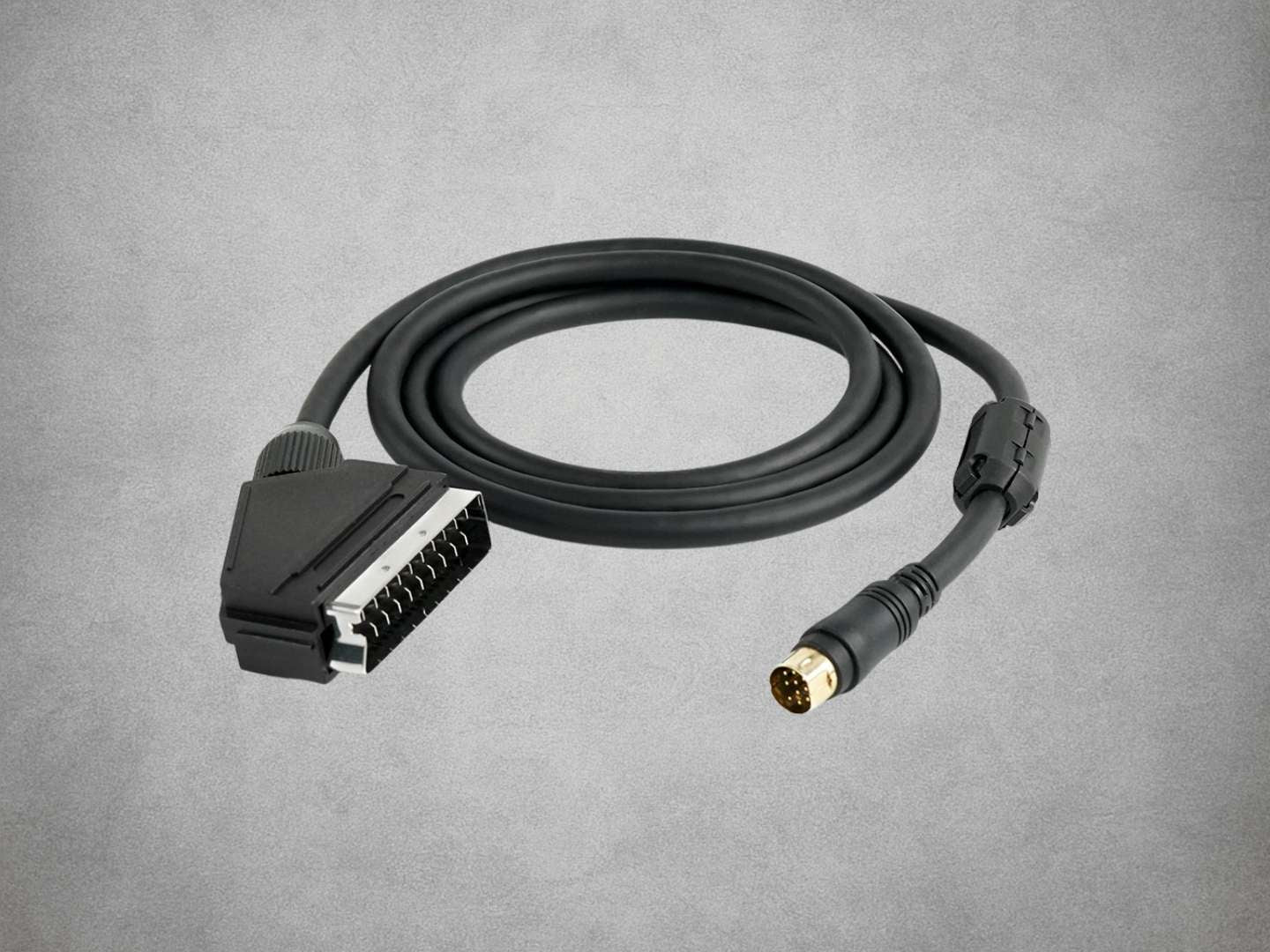

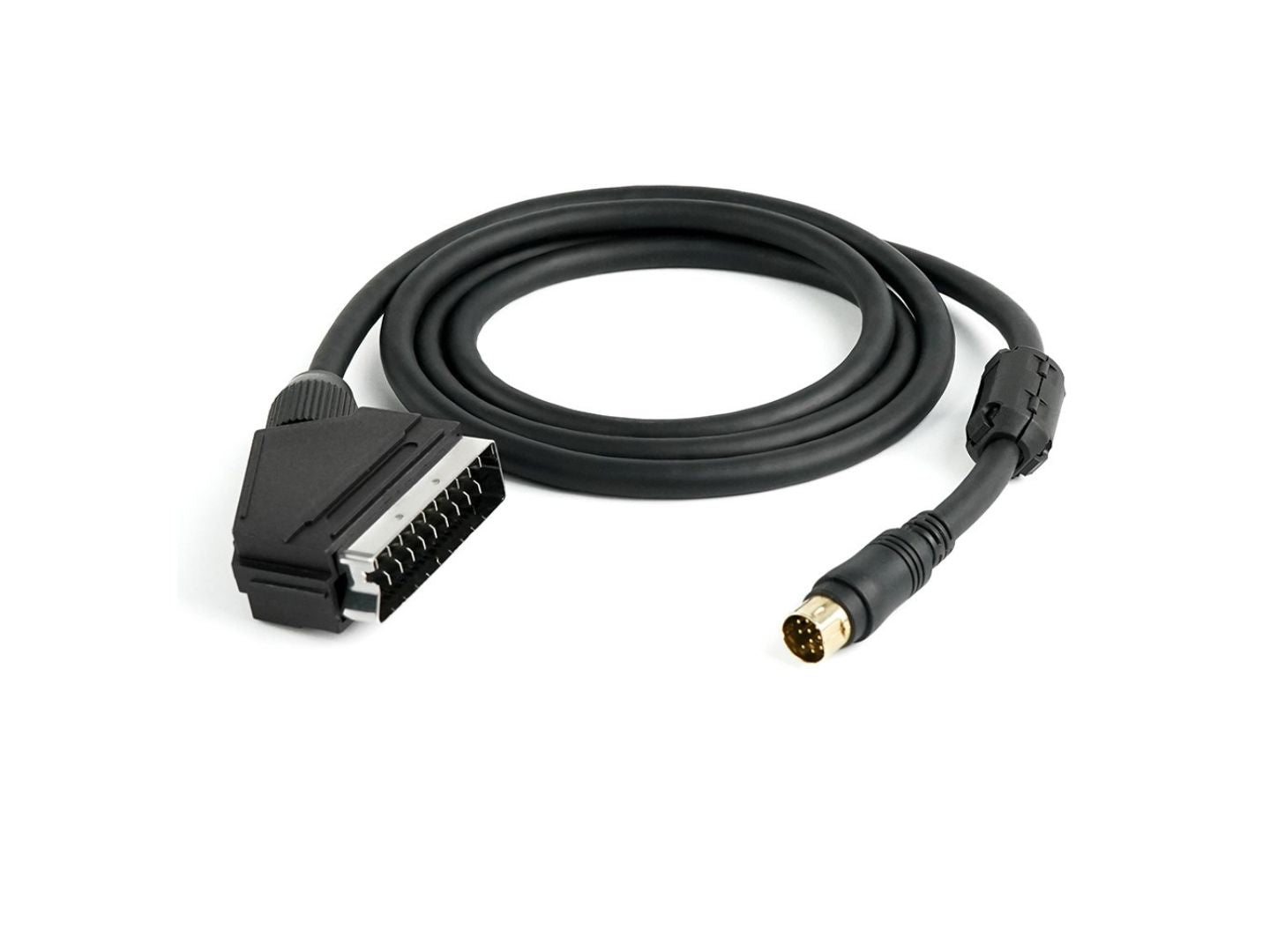

Premium Sega Saturn RGB SCART Cable – Fully Shielded CVBS Sync

This Sega Saturn RGB SCART cable is designed for PAL, NTSC-U and NTSC-J Sega Saturn consoles, providing clean analogue RGBS video through a fully shielded EuroSCART connection with CVBS Sync.

The Sega Saturn provides native RGB video through its AV output, allowing the cable to carry the red, green and blue picture channels separately rather than combining the entire image into a composite-video signal. On compatible displays this provides sharper edges, cleaner colour separation and reduced colour interference compared with standard composite video.

The cable uses CVBS Sync, also known as Sync-On-Composite, where composite video carries the synchronisation information required by the RGB signal. This provides a standard 15kHz RGBS connection suitable for compatible EuroSCART televisions, CRT displays and retro gaming video processors.

CVBS Sync is particularly suitable for a multi-region Sega Saturn cable because the dedicated sync pin differs between PAL and NTSC Saturn hardware. Using composite video as the synchronisation source provides a consistent RGBS connection across supported PAL, NTSC-U and NTSC-J Sega Saturn consoles without relying on the console's dedicated CSYNC output.

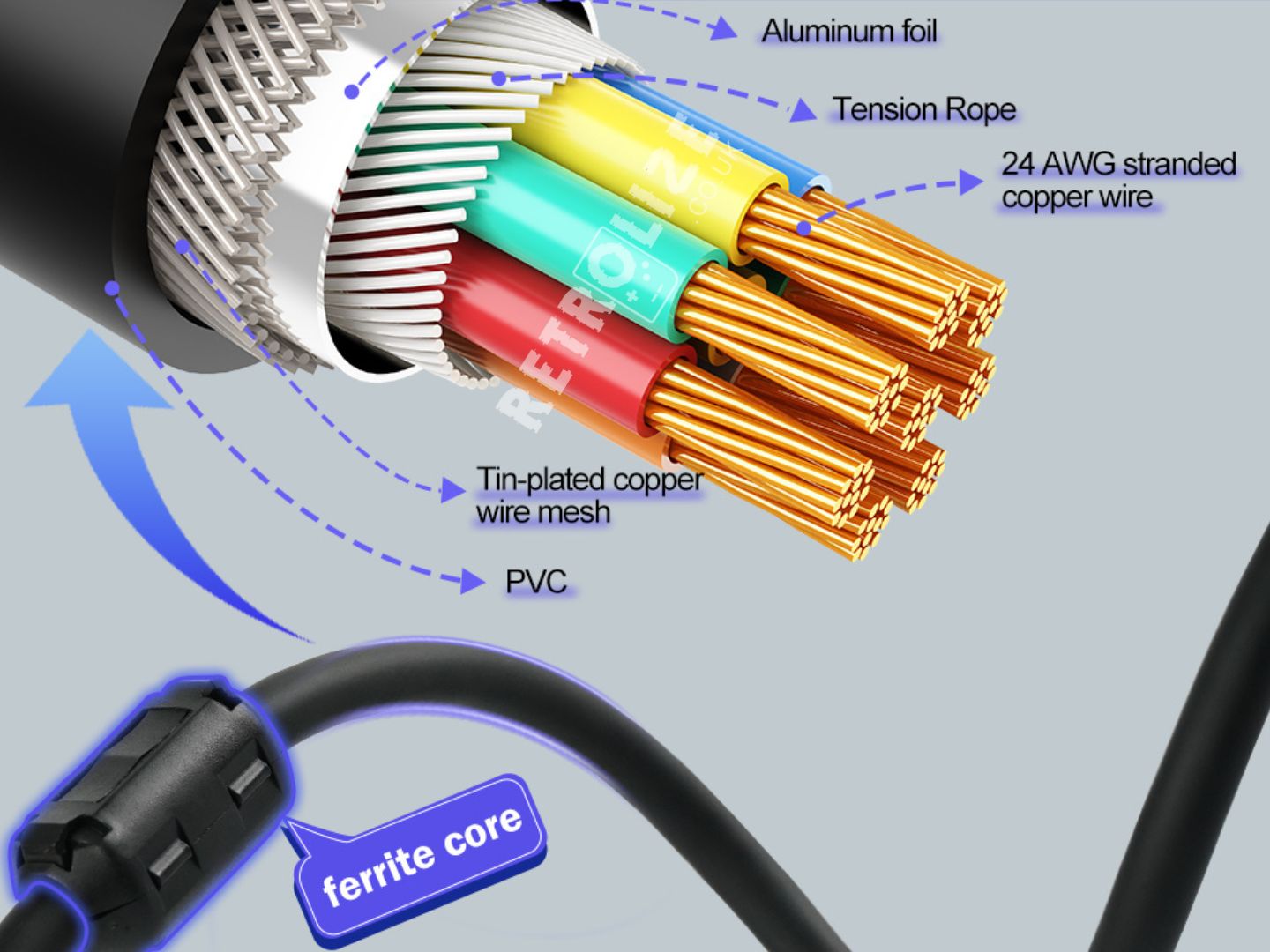

Fully shielded construction helps protect the RGB, sync and audio signals from electrical interference and crosstalk. The cable uses 24 AWG stranded-copper conductors, aluminium foil shielding and tin-plated copper-mesh shielding, together with an integrated ferrite core to help suppress high-frequency interference.

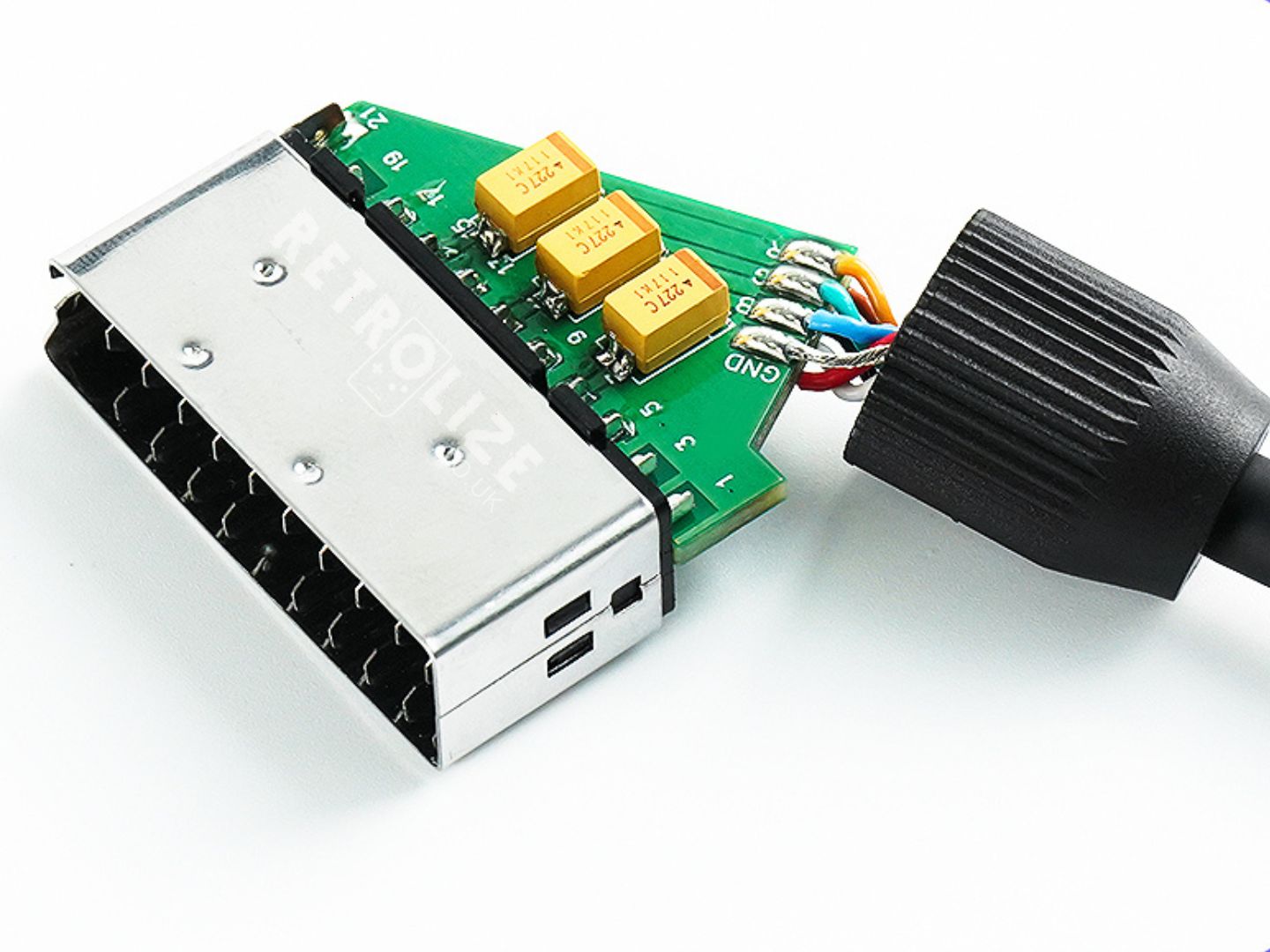

An internal PCB within the SCART connector houses the required video components and provides a secure connection between the Sega Saturn AV output and the 21-pin EuroSCART plug. Stereo analogue audio is carried alongside the RGB video through the same cable.

The cable carries the Sega Saturn's 15kHz standard-definition RGB output, supporting system and software-dependent 240p, 288p, 480i and 576i video modes. This makes it suitable for original-resolution Saturn gaming on compatible CRT televisions as well as RGB-capable video processors.

The cable can be connected directly to a compatible RGB SCART television or CRT. For modern displays it can also be paired with the OSSC or GBSC Pro to convert the original analogue RGB signal for HDMI output.

At approximately 1.3 metres long, the cable provides practical positioning between the Sega Saturn and connected television, CRT or video processor without excessive cable length.

Product Type: Fully shielded RGB SCART cable
Compatible Console: Sega Saturn
Console Connection: Sega Saturn 10-pin AV connector
Display Connection: 21-pin male EuroSCART
Video Format: Analogue RGBS
Sync Source: Composite video / CVBS used as sync
Video Frequency: 15kHz standard-definition RGB
Compatible Video Modes: System and software-dependent 240p, 288p, 480i and 576i
Audio: Analogue stereo through SCART
Cable Length: Approximately 1.3 metres
Cable Length In Feet: Approximately 4.27 feet
Conductor Type: 24 AWG stranded copper
Primary Shielding: Aluminium foil
Secondary Shielding: Tin-plated copper-wire mesh
Internal Support: Tension cord
Outer Jacket: PVC
Interference Protection: Integrated ferrite core
Signal Components: Integrated PCB inside the SCART connector
Connector Standard: EuroSCART
Installation: Plug and play with compatible equipment
Colour: Black

Sega Saturn Consoles

PAL Sega Saturn: Supported

NTSC-U Sega Saturn: Supported

NTSC-J Sega Saturn: Supported

Compatible with standard retail Sega Saturn revisions using the original 10-pin AV output.

Compatible Displays & Video Equipment

EuroScart capable televisions: Supported

OSSC AV1 RGB SCART Input: Supported

GBSC Pro RGB SCART Input: Supported

Compatible RGBS-To-YPbPr Converter: Supported

Professional RGB Monitor: Supported with a suitable EuroSCART-to-BNC or compatible RGBS breakout cable

EuroSCART Connection: Designed for European SCART equipment and not Japanese JP21 connections.

15kHz RGB Output: Carries standard-definition analogue RGB video from the Sega Saturn.

Sync-On-Composite: Uses composite video as the synchronisation source for the RGB signal.

1 × Premium Fully Shielded CVBS Sync RGB SCART Cable For Sega Saturn

This Premium Sega Saturn RGB SCART Cable is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, crushed or cut cabling, bent connector pins, excessive pulling, damaged strain relief, unauthorised modification or faults caused by incompatible equipment.

Display incompatibility, incorrect scaler settings, JP21 equipment, composite-only SCART inputs or devices that do not accept 15kHz RGBS are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms.
