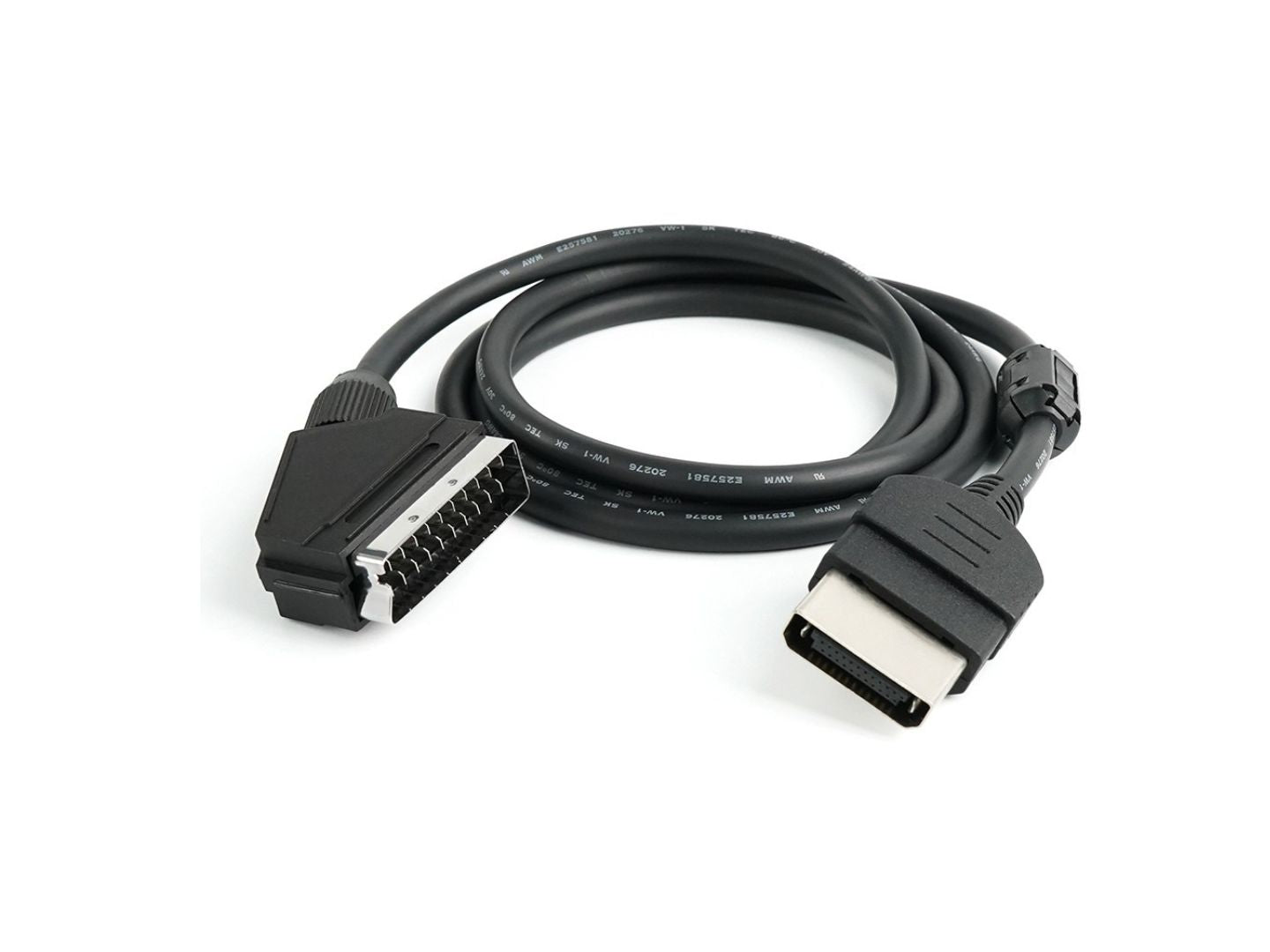

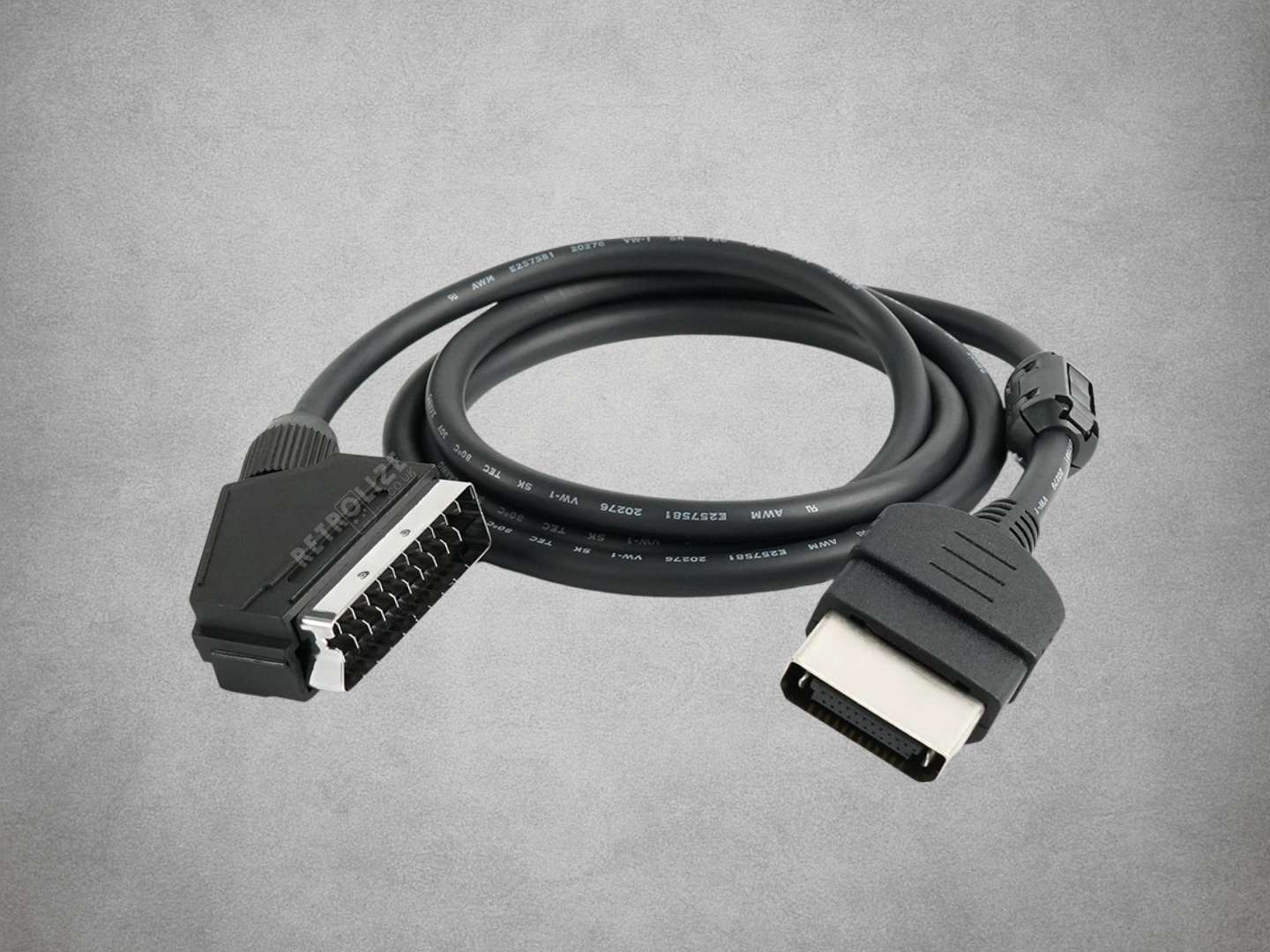

Premium Original Xbox RGB SCART Cable – Fully Shielded CVBS Sync

This Original Xbox RGB SCART cable is designed for first-generation Microsoft Xbox consoles, providing clean analogue RGBS video through a fully shielded EuroSCART connection with CVBS Sync.

The Original Xbox can output separate red, green and blue video channels through its proprietary AV connection when used in RGB SCART mode. Keeping these picture channels separate provides sharper edges, cleaner colour separation and reduced colour interference compared with the console's standard composite-video output.

The cable uses CVBS Sync, also known as Sync-On-Composite, where composite video carries the synchronisation information required by the RGB signal. This creates a standard 15kHz RGBS connection suitable for compatible EuroSCART televisions, CRT displays and retro gaming video processors.

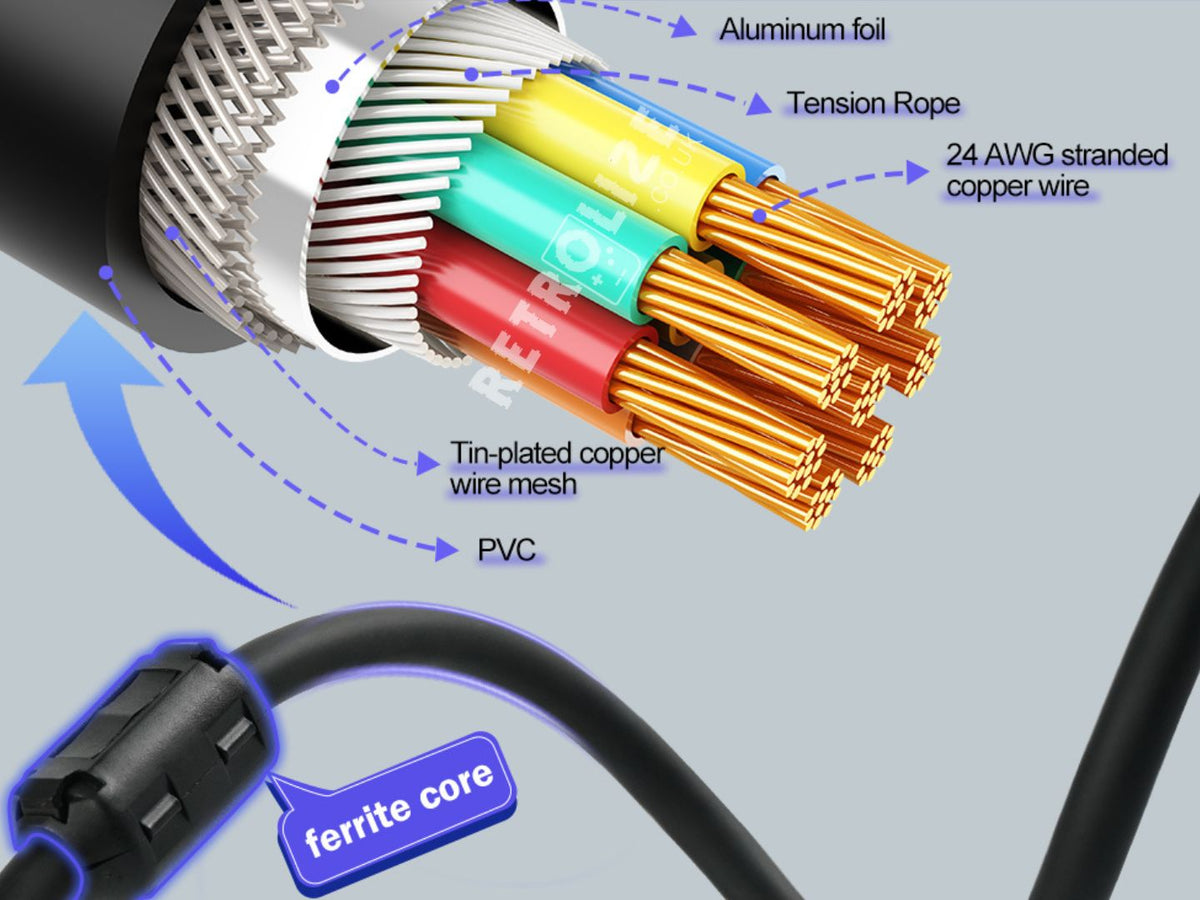

Fully shielded construction helps protect the RGB, sync and audio signals from electrical interference and crosstalk. The cable uses 24 AWG stranded-copper conductors, aluminium foil shielding and tin-plated copper-mesh shielding, together with an integrated ferrite core to help suppress high-frequency interference.

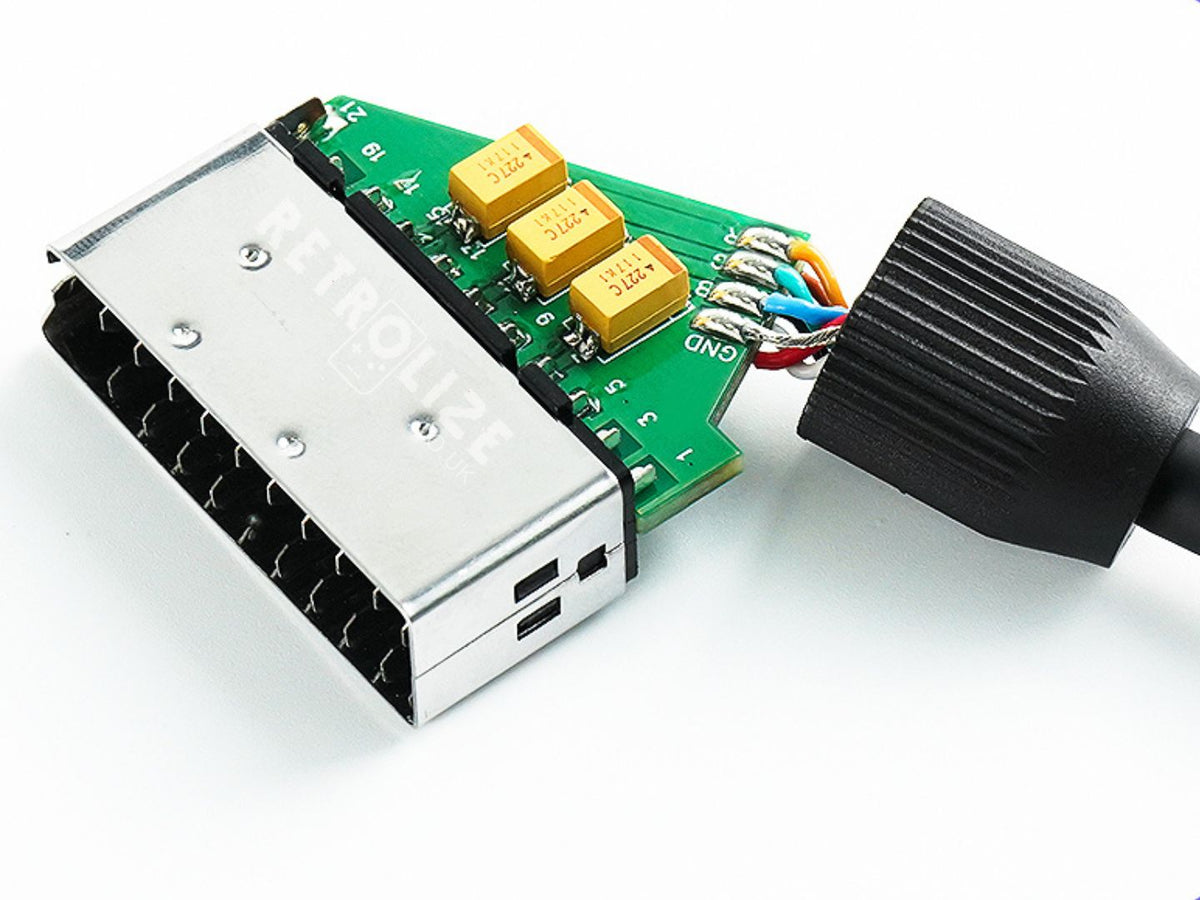

An internal PCB within the SCART connector houses the required video components and provides a secure connection between the Original Xbox AV output and the 21-pin EuroSCART plug. Stereo analogue audio is carried alongside the RGB video through the same cable.

This Original Xbox SCART cable is designed for the console's standard-definition RGB output. Depending on the console region and video configuration, compatible 480i and 576i signals can be carried through RGB SCART. The Xbox's progressive and high-definition 480p, 720p and 1080i modes are not provided through this cable and require a suitable component or digital video solution.

The cable supports PAL, NTSC-U and NTSC-J Original Xbox consoles, including hardware revisions 1.0 through 1.6b, through the standard Xbox AV connection. It is also sometimes referred to as an OG Xbox RGB SCART cable, but is designed exclusively for the original first-generation Xbox rather than later Xbox consoles.

The cable can be connected directly to a compatible RGB SCART television or CRT. For modern displays it can also be paired with the OSSC or GBSC Pro to convert the original analogue RGB signal for HDMI output.

At approximately 1.3 metres long, the cable provides practical positioning between the Original Xbox and connected television, CRT or video processor without excessive cable length.

Product Type: Fully shielded RGB SCART cable
Compatible Console: Original Microsoft Xbox
Console Connector: Original Xbox AV connector
Display Connector: 21-pin male EuroSCART
Video Format: Analogue RGBS
Sync Source: Composite video used for sync
Video Frequency: 15kHz standard-definition RGB
Compatible Video Modes: 480i and 576i, depending on console region and display settings
Audio: Analogue stereo through SCART
Cable Length: Approximately 1.3 metres
Cable Length In Feet: Approximately 4.27 feet
Conductor Type: 24 AWG stranded copper
Shielding: Aluminium foil and tin-plated copper mesh
Interference Protection: Integrated ferrite core
Signal Components: Integrated PCB inside the SCART connector
Connector Standard: EuroSCART
Installation: Plug and play with compatible equipment
Colour: Black

Original Xbox Consoles

Original Xbox PAL: Supported

Original Xbox NTSC-U: Supported

Original Xbox NTSC-J: Supported

Original Xbox Hardware Revisions 1.0 To 1.6b: Supported through the standard Original Xbox AV connection.

PAL consoles can output compatible 576i at 50Hz or standard-definition 60Hz video where supported by the console settings and software. NTSC consoles use compatible standard-definition 60Hz output.

Compatible Displays & Video Equipment

EuroScart capable televisions: Supported

OSSC AV1 RGB SCART Input: Supported

GBSC Pro RGB SCART Input: Supported

RetroTINK 5X Pro SCART Input: Supported

Compatible RGBS-To-YPbPr Converter: Supported

Professional RGB Monitor: Supported with a suitable EuroSCART-to-BNC or compatible breakout cable.

EuroSCART Connection: Designed for European SCART equipment and not Japanese JP21 connections.

Standard-Definition RGB: Carries compatible 480i and 576i analogue RGB video.

Progressive & HD Modes: Original Xbox 480p, 720p and 1080i modes require a separate component or digital video solution.

Sync-On-Composite: Uses composite video as the synchronisation source for the RGB signal.

1 × Premium Fully Shielded CVBS Sync RGB SCART Cable For Original Xbox

This Premium Original Xbox RGB SCART Cable is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, crushed or cut cabling, bent connector pins, excessive pulling, damaged strain relief, unauthorised modification or faults caused by incompatible consoles or display equipment.

Display incompatibility, unsupported video modes, incorrect display settings, JP21 equipment, composite-only SCART inputs or devices that do not accept 15kHz RGBS are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms.
