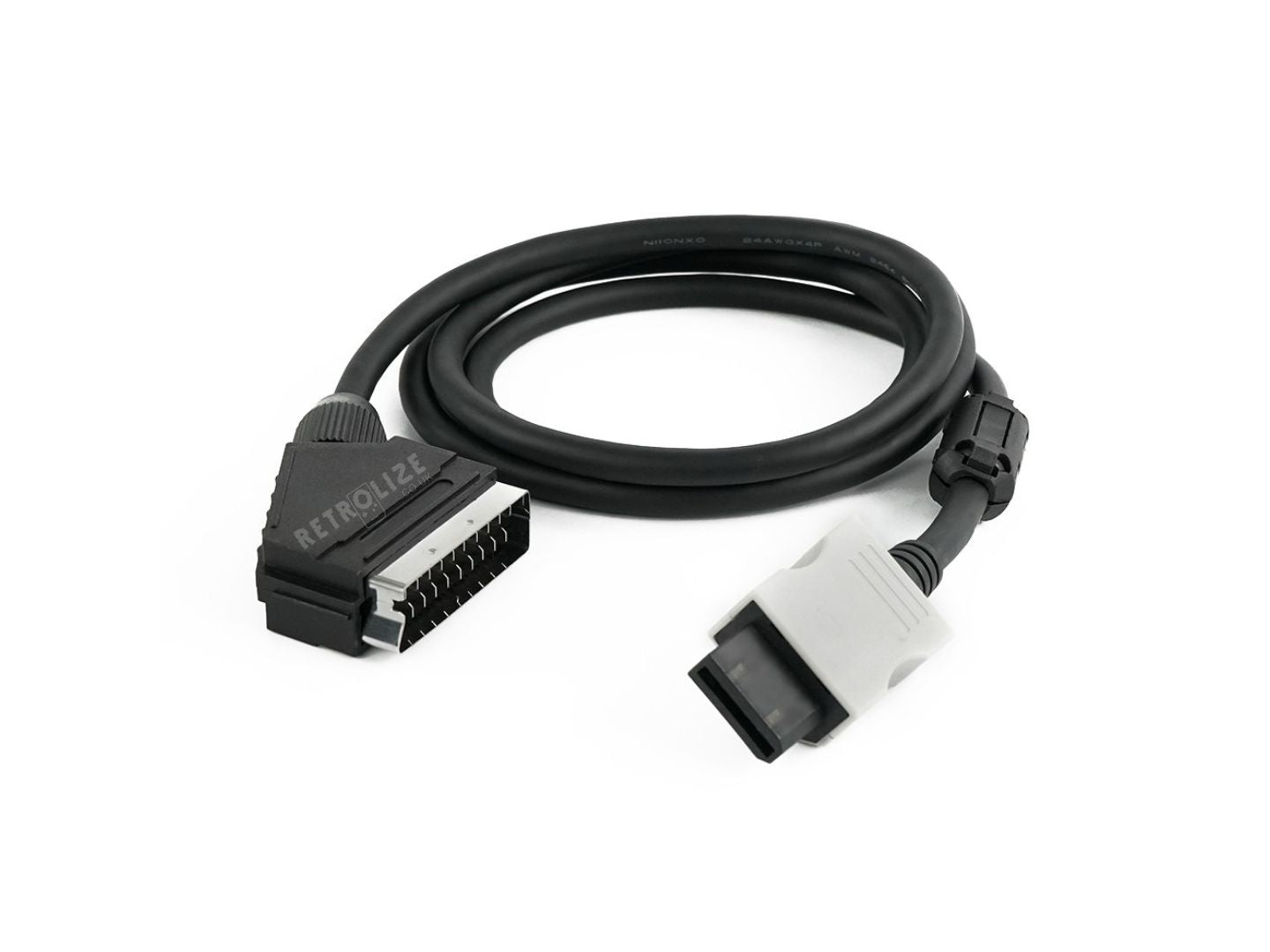

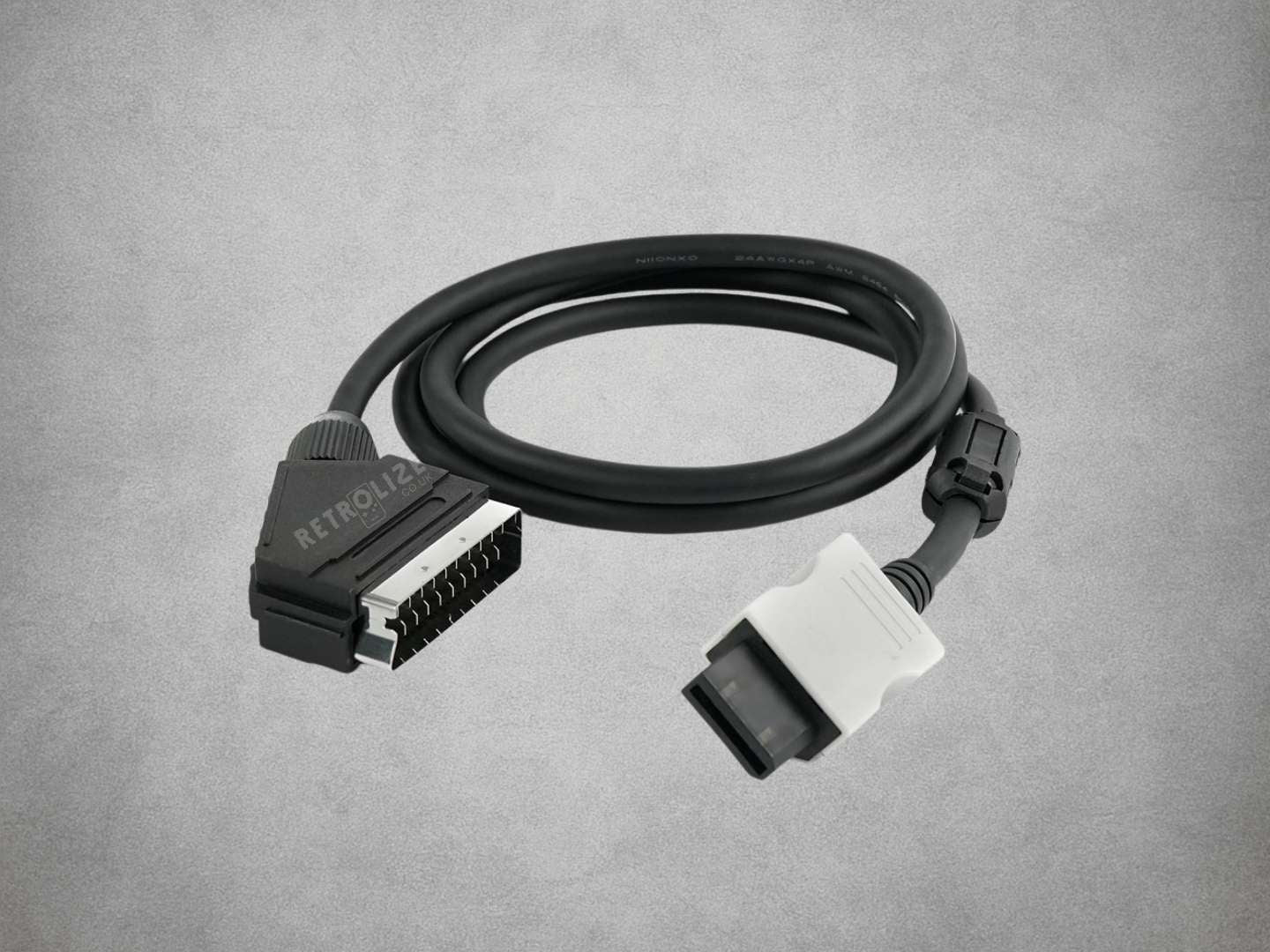

Premium PAL Nintendo Wii RGB SCART Cable – Fully Shielded CVBS Sync

This Nintendo Wii RGB SCART cable is designed for PAL Nintendo Wii consoles, providing clean analogue RGBS video through the Wii AV Multi Out connection and a fully shielded EuroSCART cable with CVBS Sync.

PAL Nintendo Wii consoles can output native analogue RGB, allowing the cable to carry the red, green and blue picture channels separately rather than combining the entire image into a composite-video signal. On compatible displays this provides sharper edges, cleaner colour separation and reduced colour interference compared with the Wii's standard composite-video connection.

The cable uses CVBS Sync, also known as Sync-On-Composite, where composite video carries the synchronisation information required by the RGB signal. This provides a standard 15kHz RGBS connection suitable for compatible EuroSCART televisions, CRT displays and retro gaming video processors.

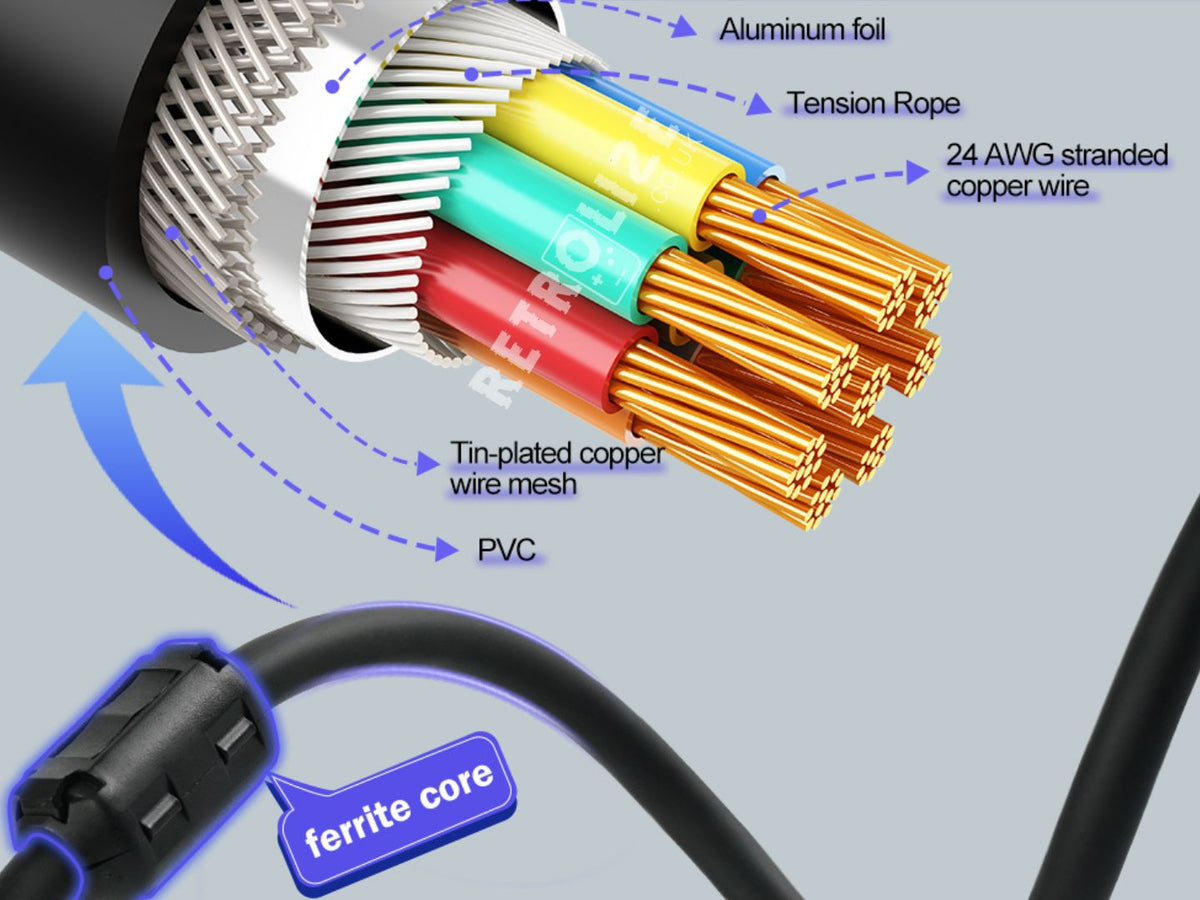

Fully shielded construction helps protect the RGB, sync and stereo-audio signals from electrical interference and crosstalk. The cable uses 24 AWG stranded-copper conductors, aluminium foil shielding and tin-plated copper-mesh shielding, together with an integrated ferrite core to help suppress high-frequency interference.

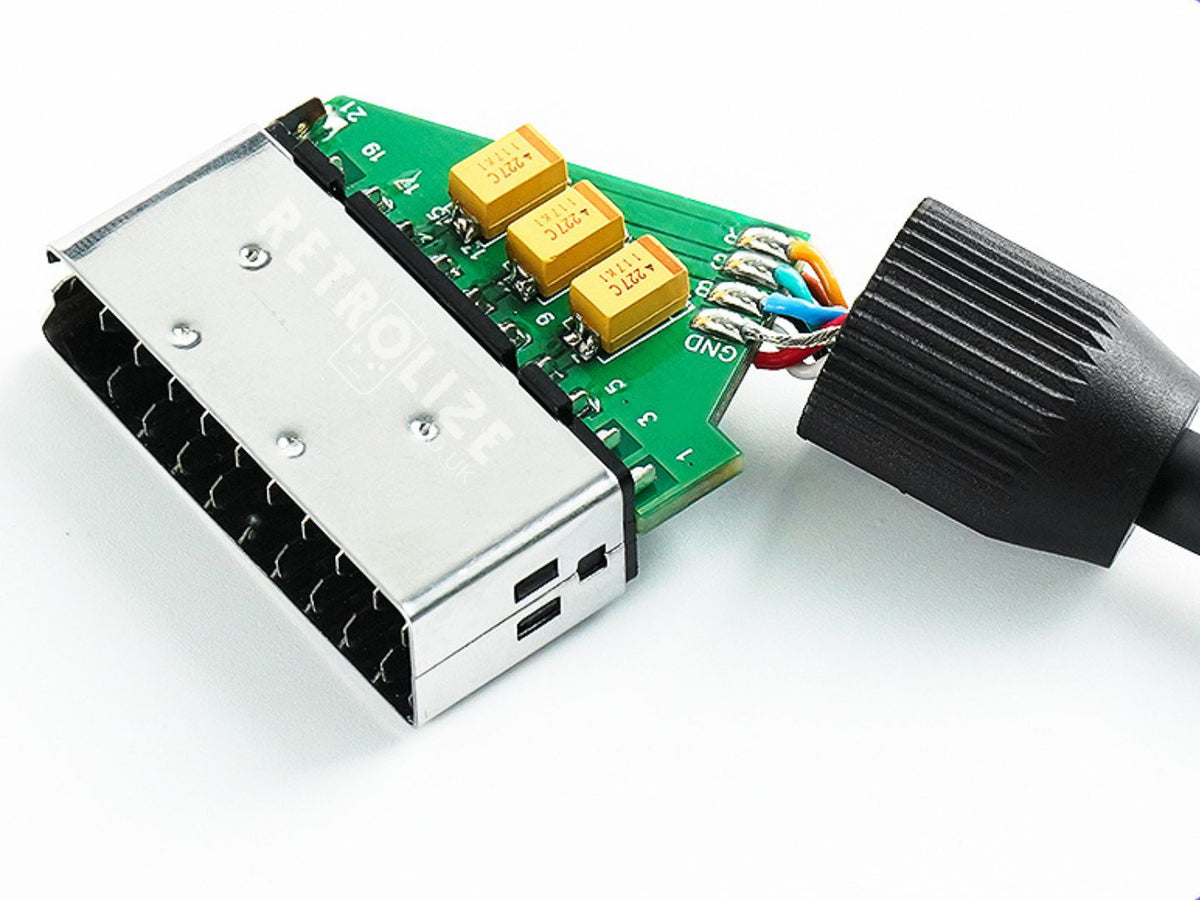

An internal PCB within the SCART connector houses the required video components and provides a secure connection between the Nintendo Wii AV Multi Out and the 21-pin EuroSCART plug. Left and right analogue audio are carried alongside the RGB video through the same cable.

The cable supports the Wii's 15kHz standard-definition RGB output, including compatible 50Hz 576i and 60Hz 480i video modes. It can also carry the standard-definition video output used by compatible Nintendo GameCube software when played on a backwards-compatible PAL Wii RVL-001.

RGB SCART does not provide the Wii's 480p progressive-scan output. A suitable component-video or alternative progressive-scan connection is required for 480p.

This cable is intended for PAL Nintendo Wii consoles that provide RGB through the Wii AV Multi Out. NTSC-U and NTSC-J Wii consoles do not provide standard RGB output through this connection and are therefore not supported.

The cable can be connected directly to a compatible RGB SCART television or CRT. For modern displays it can also be paired with the OSSC or GBSC Pro to convert the original analogue RGB signal for HDMI output.

At approximately 1.3 metres long, the cable provides practical positioning between the Nintendo Wii and connected television, CRT or video processor without excessive cable length.

Product Type: Fully shielded RGB SCART cable
Compatible Console Region: PAL Nintendo Wii
Console Connection: Nintendo Wii AV Multi Out
Display Connection: 21-pin male EuroSCART
Video Format: Analogue RGBS
Sync Source: Composite video / CVBS used as sync
Video Frequency: 15kHz standard-definition RGB
50Hz Output Mode: 576i
60Hz Output Mode: 480i
480p Progressive-Scan Output: Requires a separate Wii component cable
Audio: Analogue stereo through EuroSCART
Cable Length: Approximately 1.3 metres
Cable Length In Feet: Approximately 4.27 feet
Conductor Type: 24 AWG stranded copper
Primary Shielding: Aluminium foil
Secondary Shielding: Tin-plated copper-wire mesh
Internal Support: Tension cord
Outer Jacket: PVC
Interference Protection: Integrated ferrite core
Signal Components: Integrated PCB inside the SCART connector
Connector Standard: EuroSCART
Installation: Plug & play with compatible equipment
Colour: Black

PAL Nintendo Wii Consoles

PAL Nintendo Wii RVL-001: Supported

PAL Nintendo Wii Family Edition RVL-101: Supported

Compatible Software & Video Modes

PAL Nintendo Wii Software At 50Hz 576i: Supported

PAL Nintendo Wii Software At 60Hz 480i: Supported

Nintendo GameCube Software Played On A Compatible PAL Wii RVL-001: Supported at the standard-definition video mode selected by the console and software.

480p Progressive Scan: Not supported through RGB SCART. A suitable component or alternative progressive-scan video connection is required.

Compatible Video Equipment

EuroSCART Capable Televisions: Supported

OSSC AV1 RGB SCART Input: Supported

GBSC Pro RGB SCART Input: Supported

Compatible RGBS-To-YPbPr Converter: Supported

Professional RGB Monitor: Supported with a suitable EuroSCART-to-BNC or compatible RGBS breakout cable.

Not Supported

NTSC-U Nintendo Wii Consoles: Not supported for standard RGB output through the Wii AV Multi Out.

NTSC-J Nintendo Wii Consoles: Not supported for standard RGB output through the Wii AV Multi Out.

PAL Nintendo Wii Cable: Designed for PAL Nintendo Wii consoles that provide RGB through the Wii AV Multi Out connection.

EuroSCART Connection: Uses the European 21-pin SCART standard and is not compatible with the differently wired Japanese JP21 connection.

Standard-Definition RGB: Supports compatible 50Hz 576i and 60Hz 480i video modes. A separate Wii component cable is required for 480p progressive-scan output.

1 × Premium Fully Shielded CVBS Sync RGB SCART Cable For Nintendo Wii (PAL)

This Premium Nintendo Wii RGB SCART Cable is covered by a 12-month limited Retrolize warranty against manufacturing defects and hardware faults arising during normal use.

The warranty does not cover accidental damage, liquid damage, crushed or cut cabling, bent connector pins, excessive pulling, damaged strain relief, unauthorised modification or faults caused by incompatible equipment.

Display incompatibility, unsupported video modes, incorrect console settings, incorrect scaler settings, JP21 equipment or devices that do not accept 15kHz RGBS are not considered product faults.

Warranty claims remain subject to the full Retrolize warranty terms.
